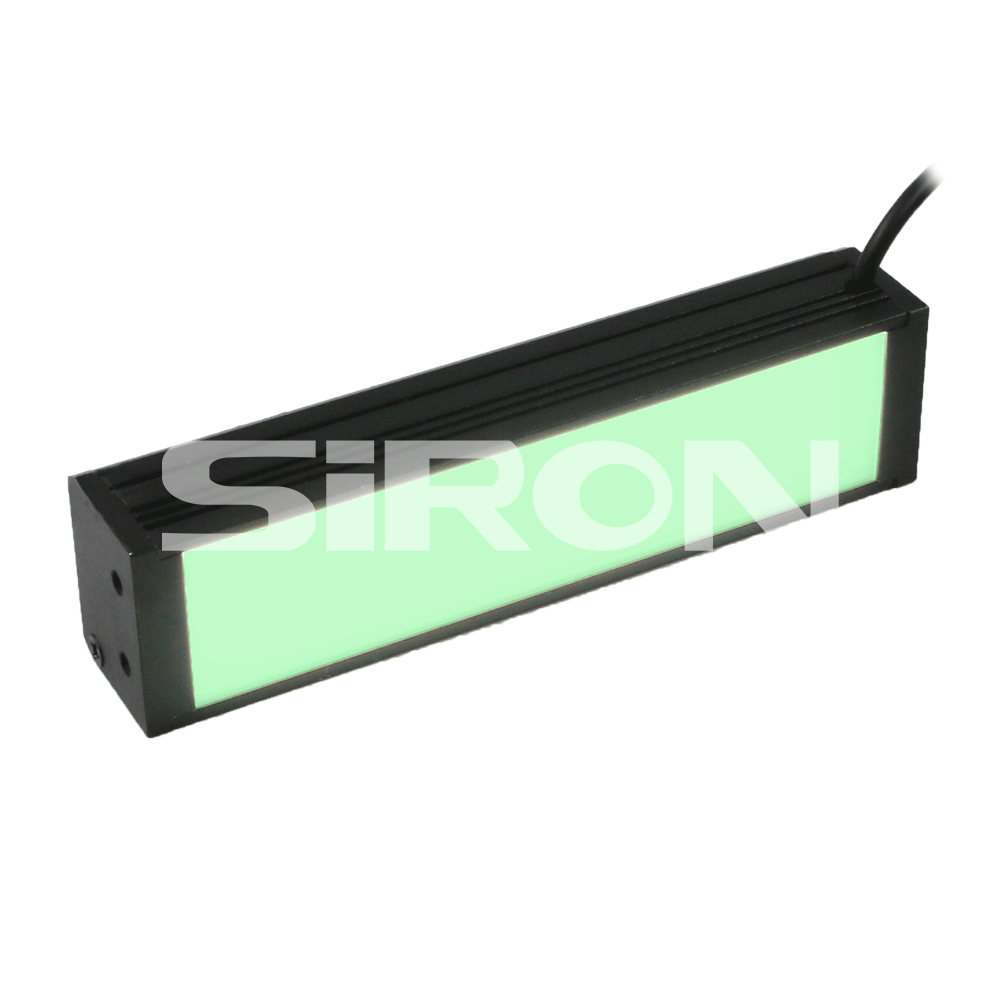

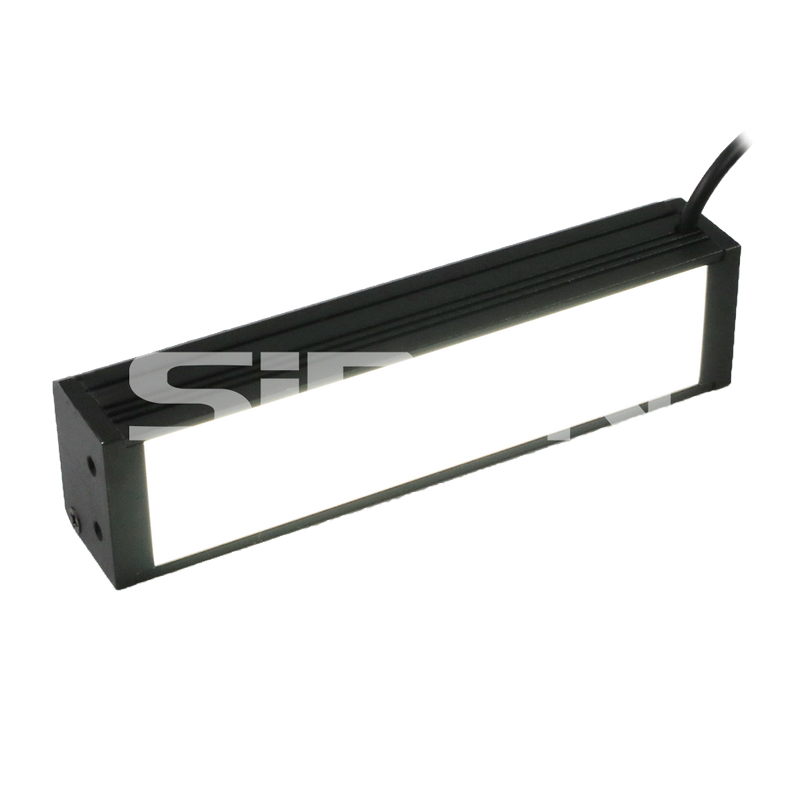

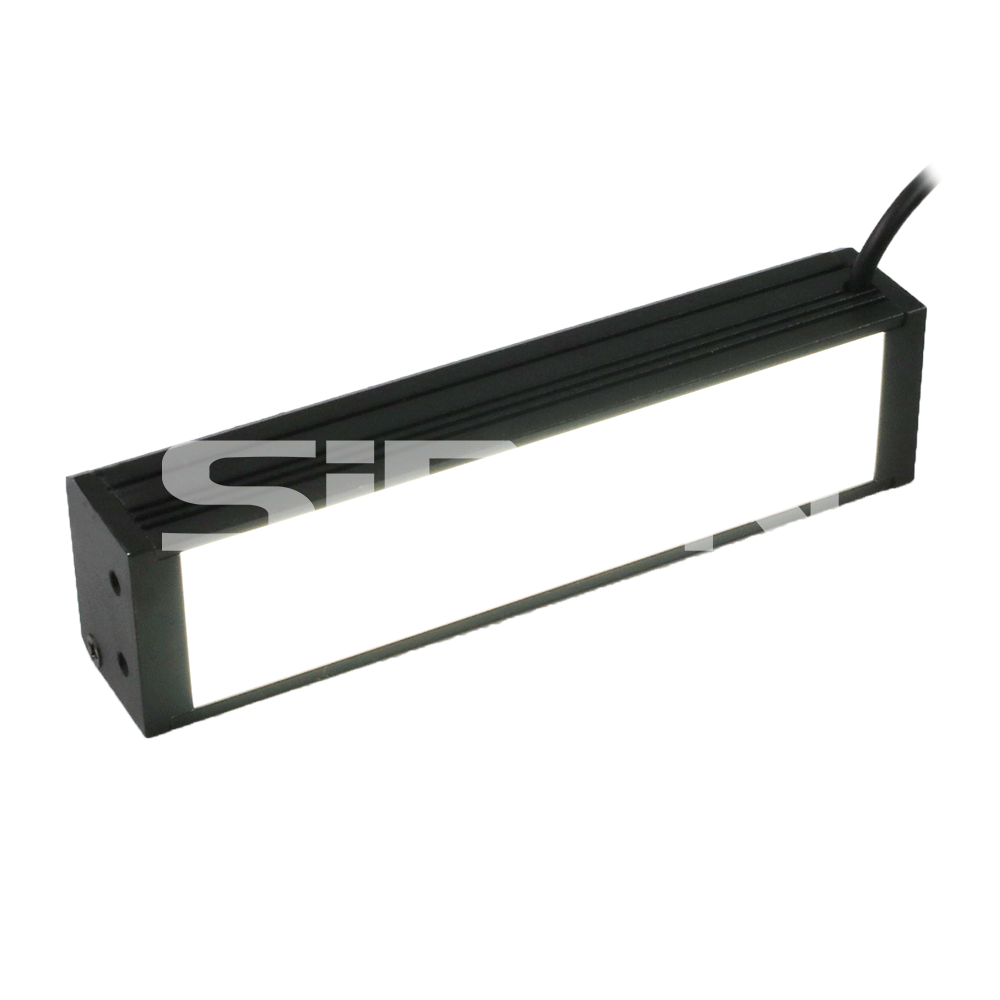

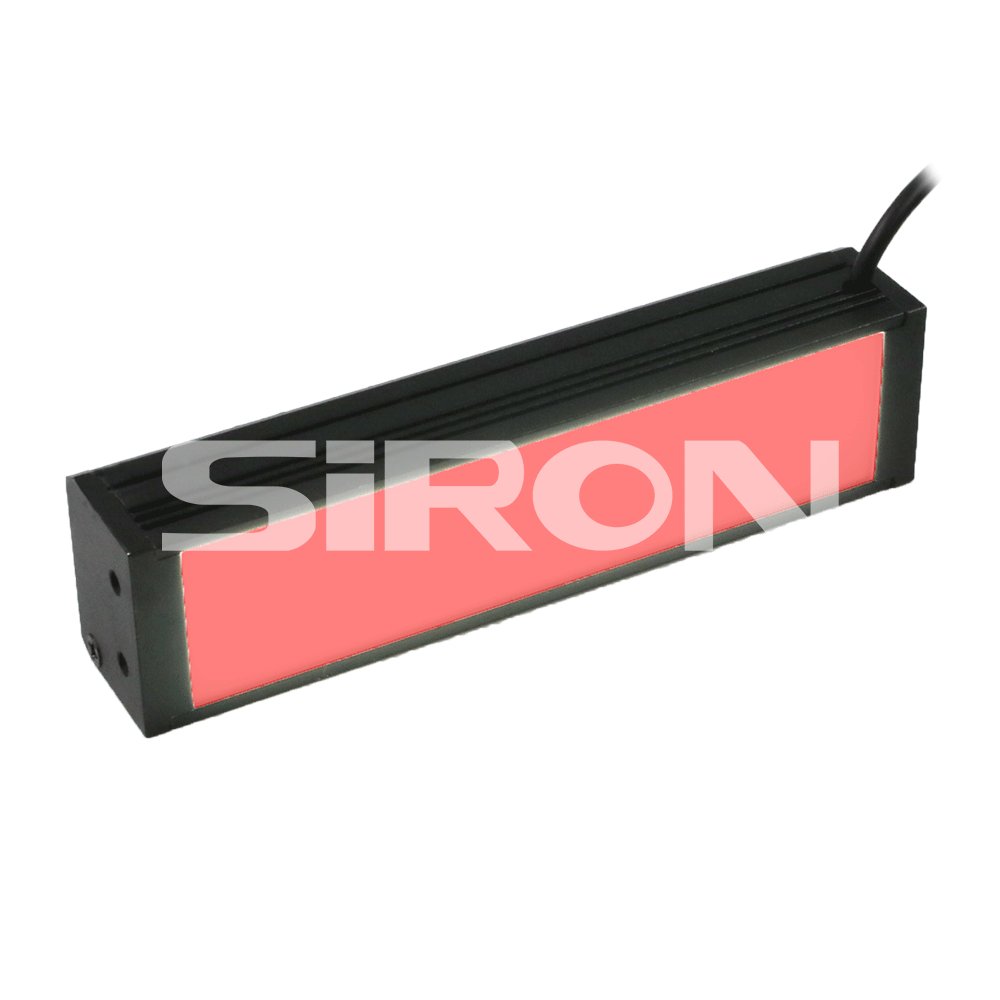

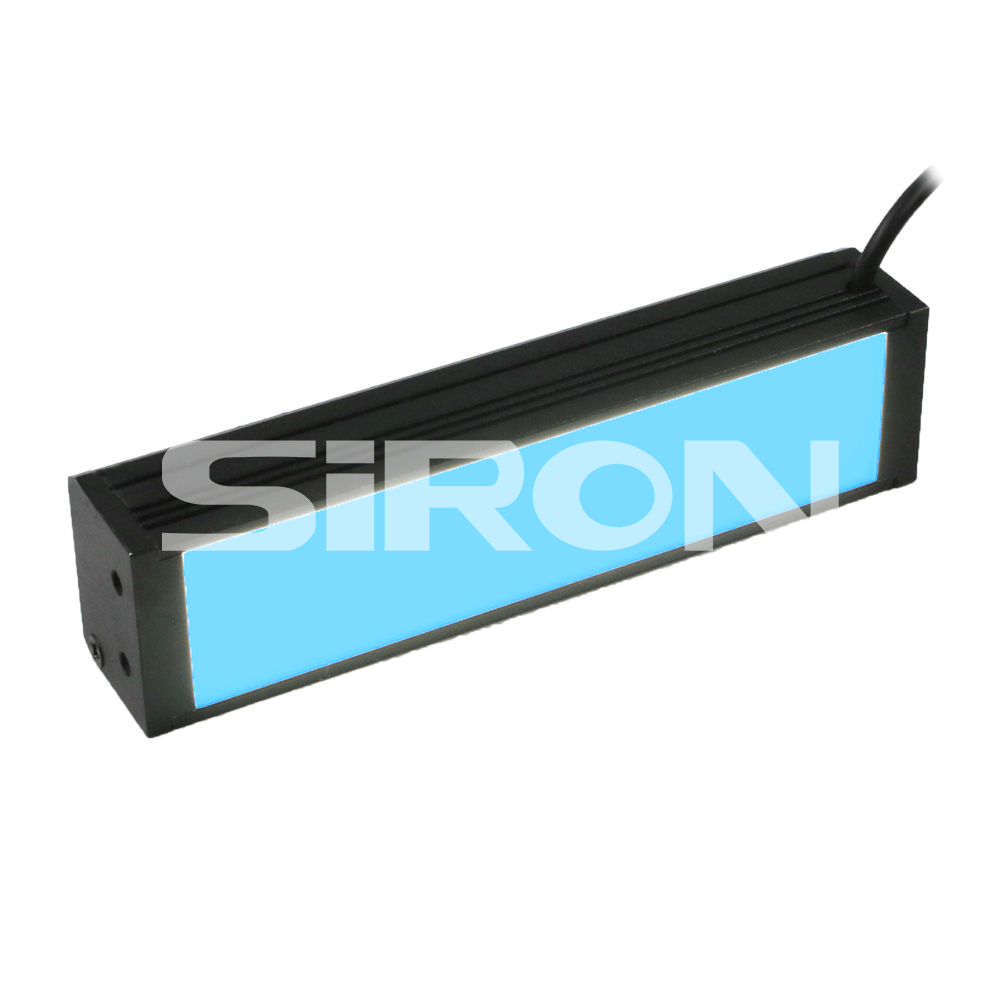

SiRON K711 Series High Uniform Bar Light Source

Name: SiRON K711 Series High Uniform Bar Light Source
Brand: SiRON
Rating: 5.0 (78 reviews)

Features:

* With high diffusivity and high light transmittance diffuser, it can produce very uniform light;
* The specially designed heat sink can keep the temperature of the light source .

low and at the same time increase the brightness of the light source.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K711 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light High Uniform Bar Light Source Good cooling Good uniformity High bright

Product Description

About selection

v

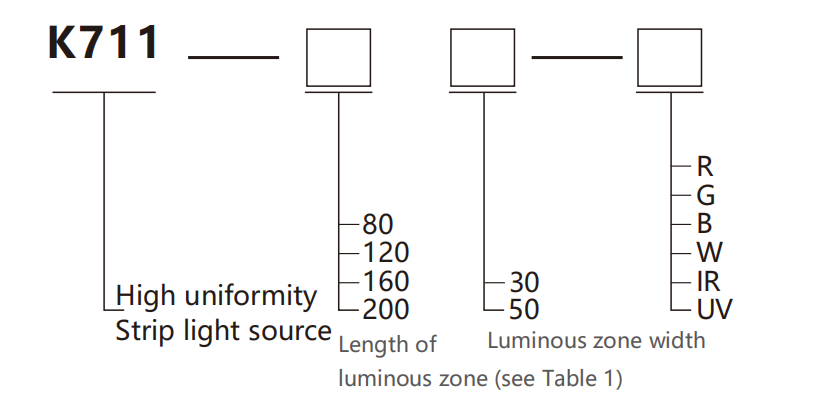

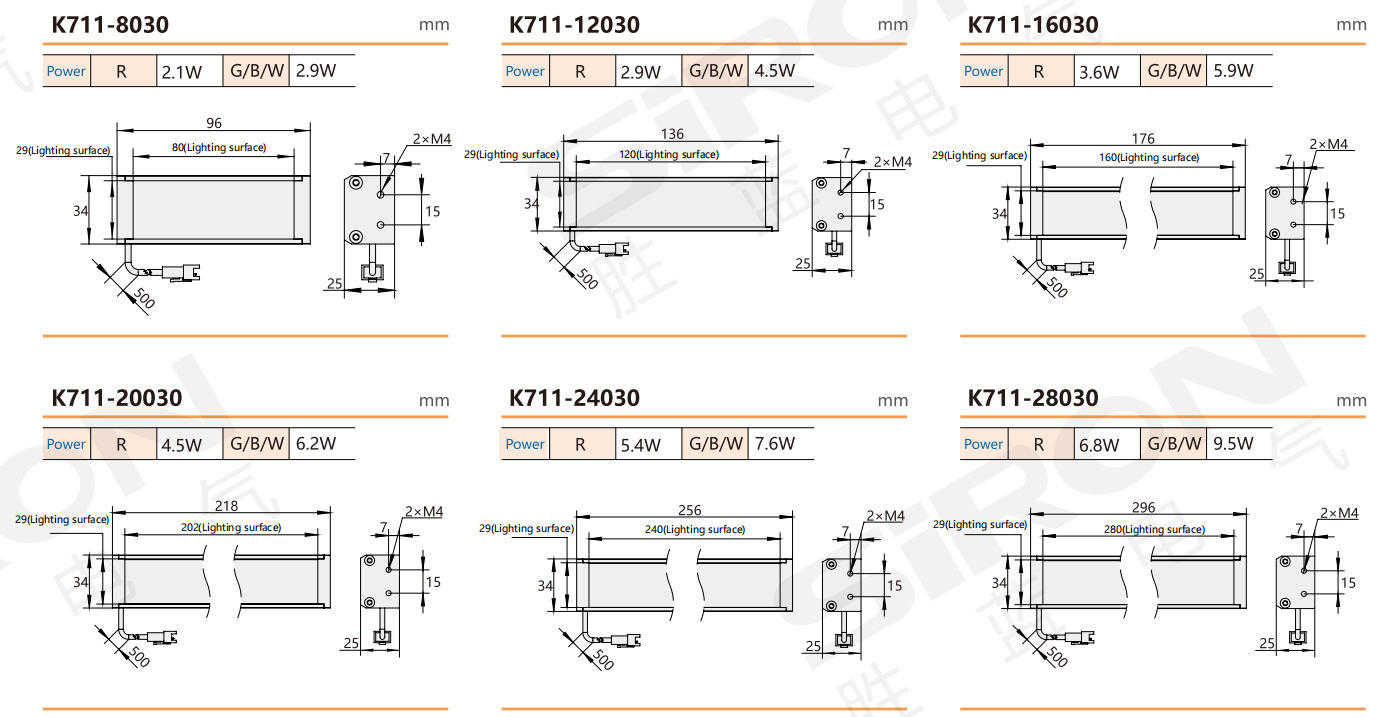

Selection example: K711-8030-R indicates the K711 series, the length of the luminous area is 80mm,

the width of the luminous area is 30mm, and the color of the light source is red.

Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

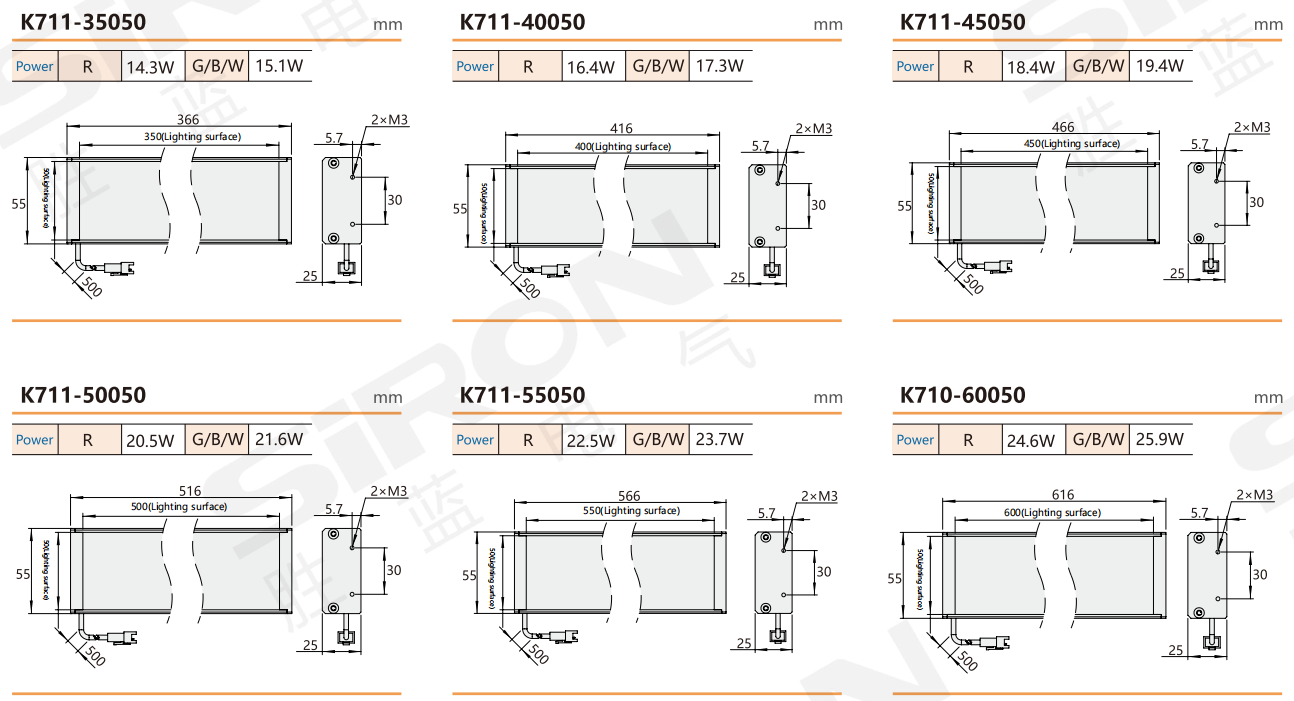

LED rows	6 rows	LED rows	10 rows
Light area length	80,120,160,200,240,280,320,360 400,440,480,520	Light area length	50,100,150,200,250,300,350,400 450,500,550,600
Light area width	30	Light area width	50

Specifications

Name	High uniform bar light source

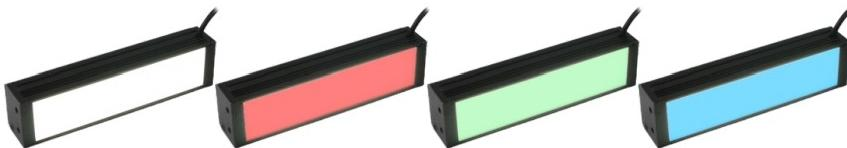

Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85% (No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller
Scope of application	LCD panel defect detection;Surface crack detection; Surface defect detection of fine metal
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
