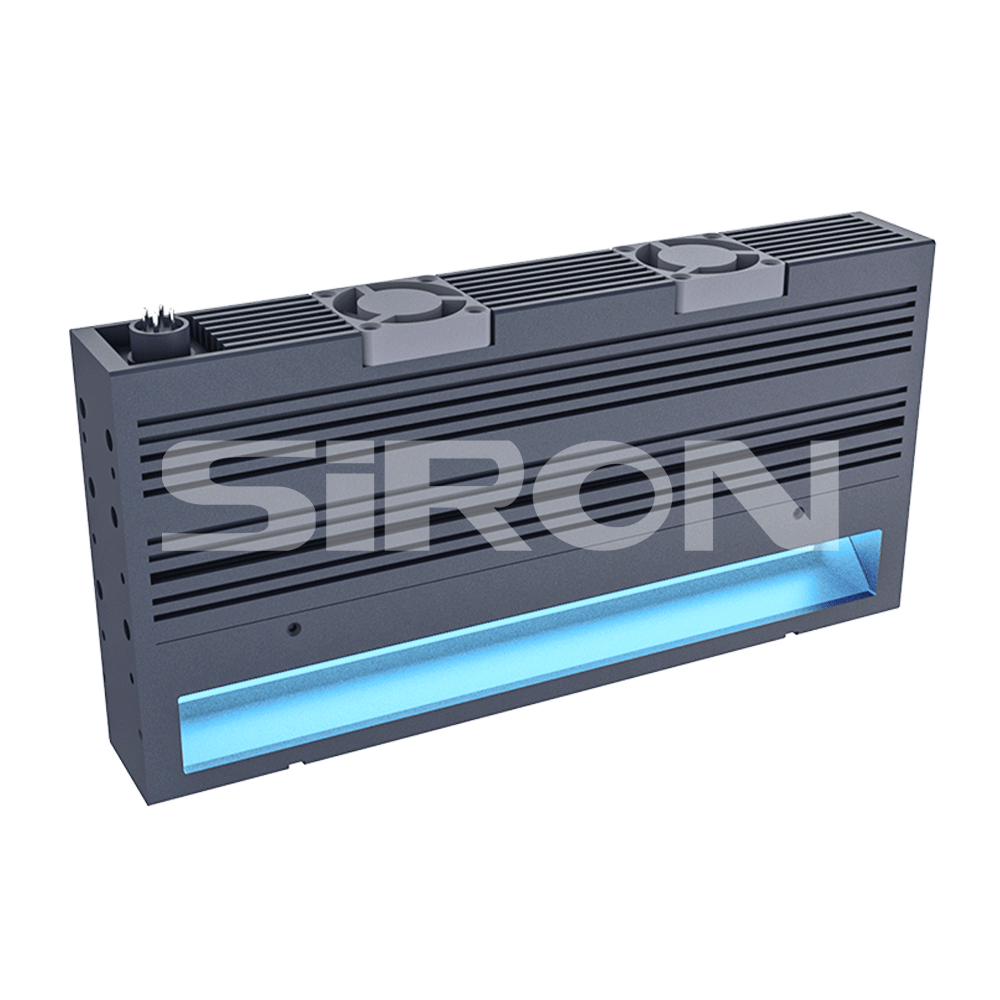

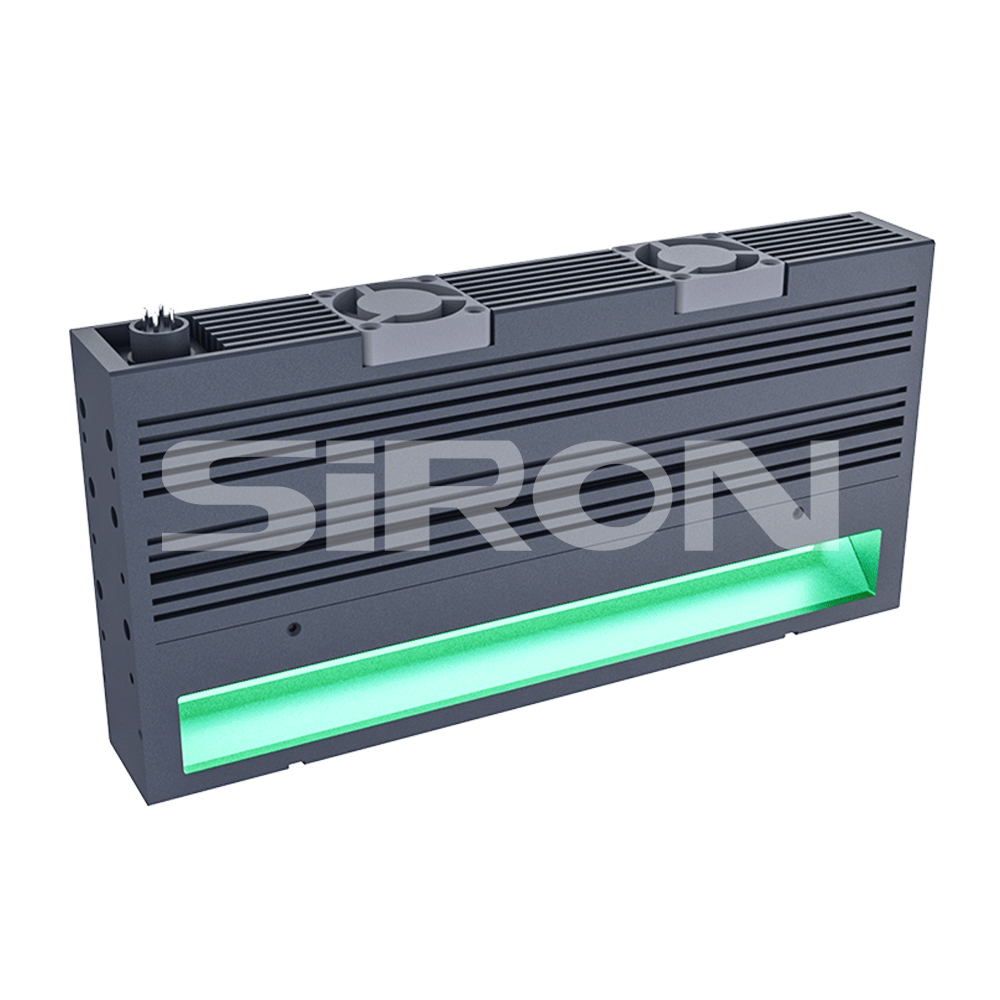

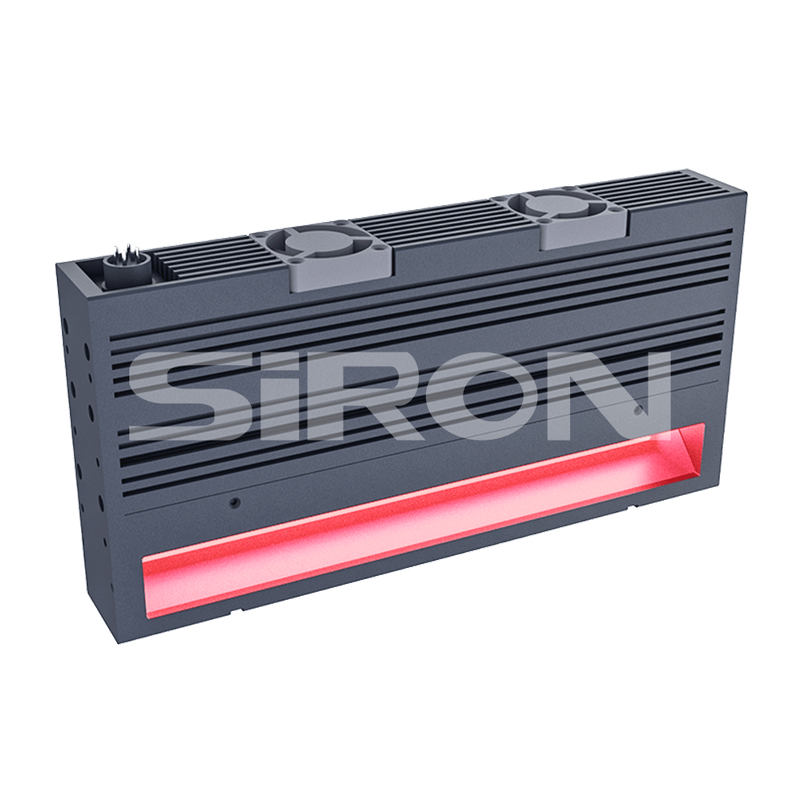

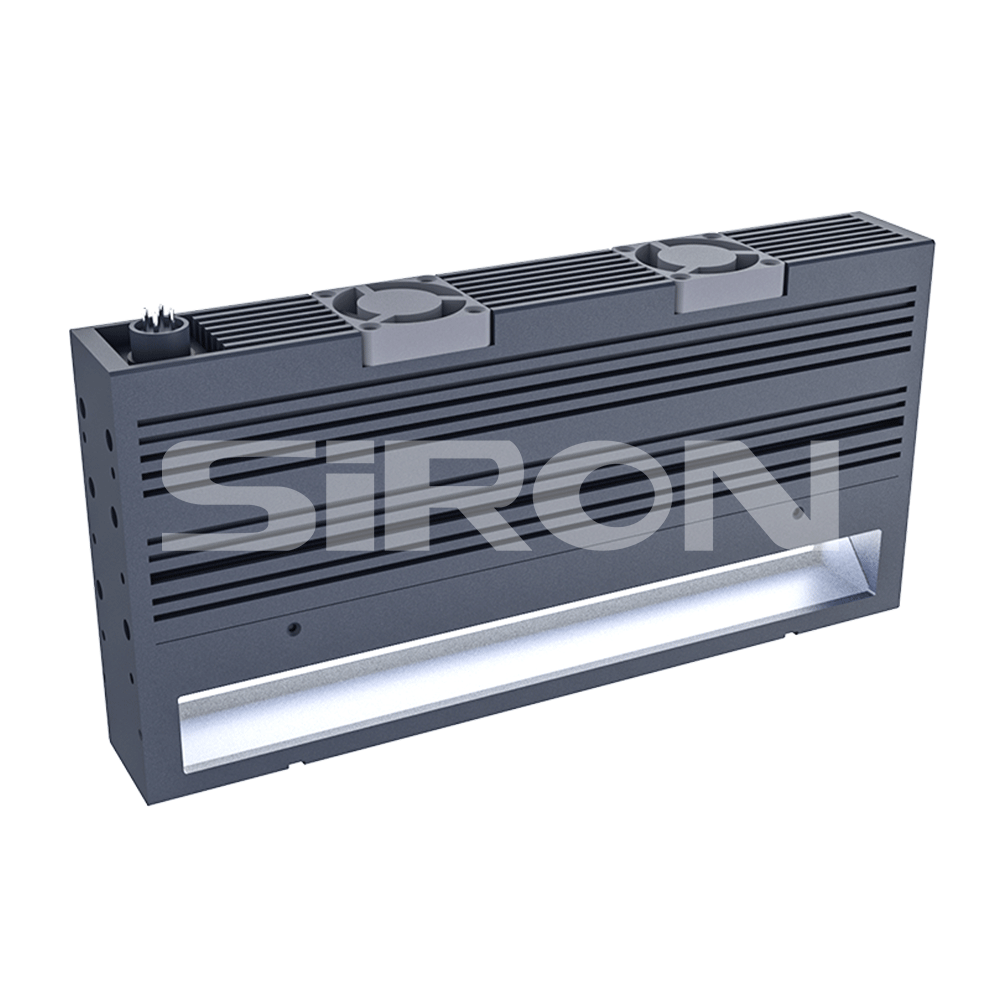

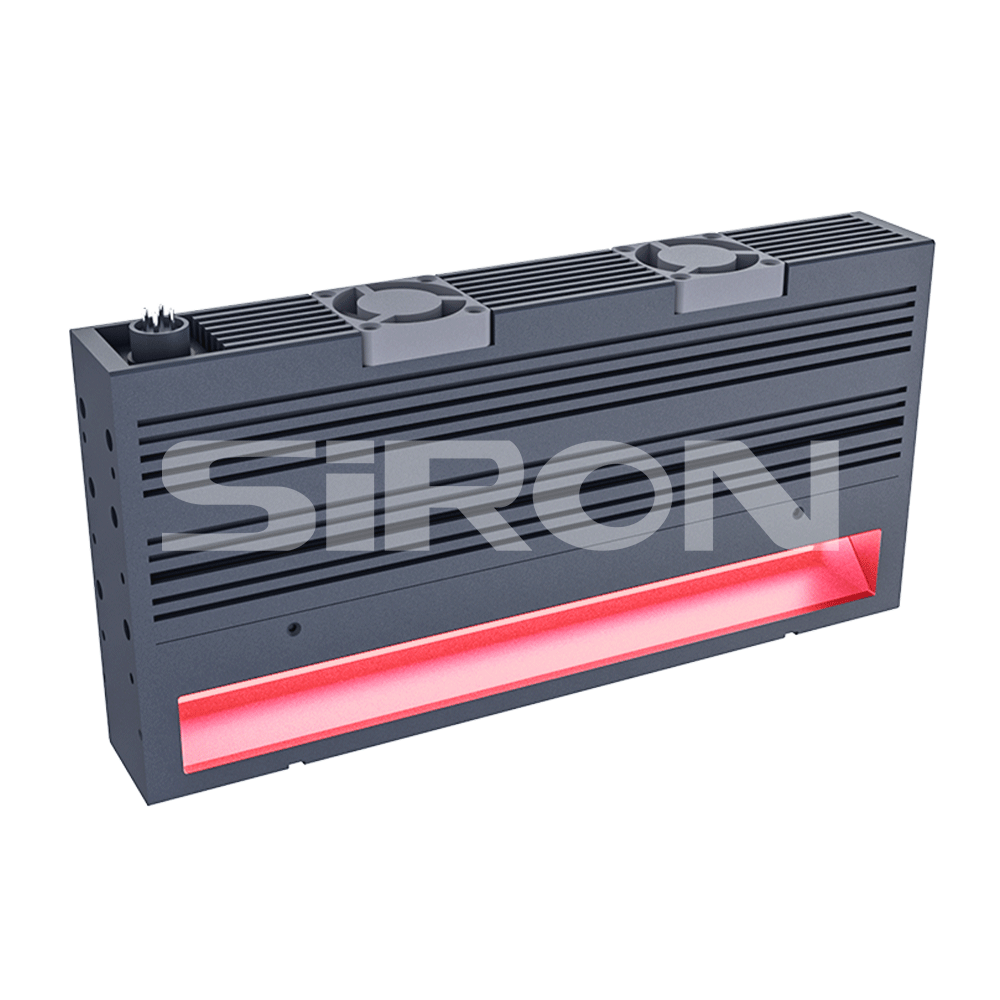

SiRON K734 Series Line Scan Coaxial Light Source

Name: SiRON K734 Series Line Scan Coaxial Light Source
Brand: SiRON
Rating: 5.0 (66 reviews)

Features:

* Use a special condenser lens to converge the high-brightness LED into a linear light with high brightness;

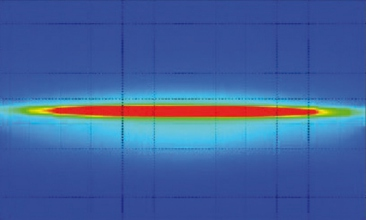

* Illuminated by a special lens to keep the light bright and even and soft;

* Suitable for detecting objects with high reflectivity or printing surfaces.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K734 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Line Scan Coaxial Light Source Highlight Linear light High bright Linear Light

Product Description

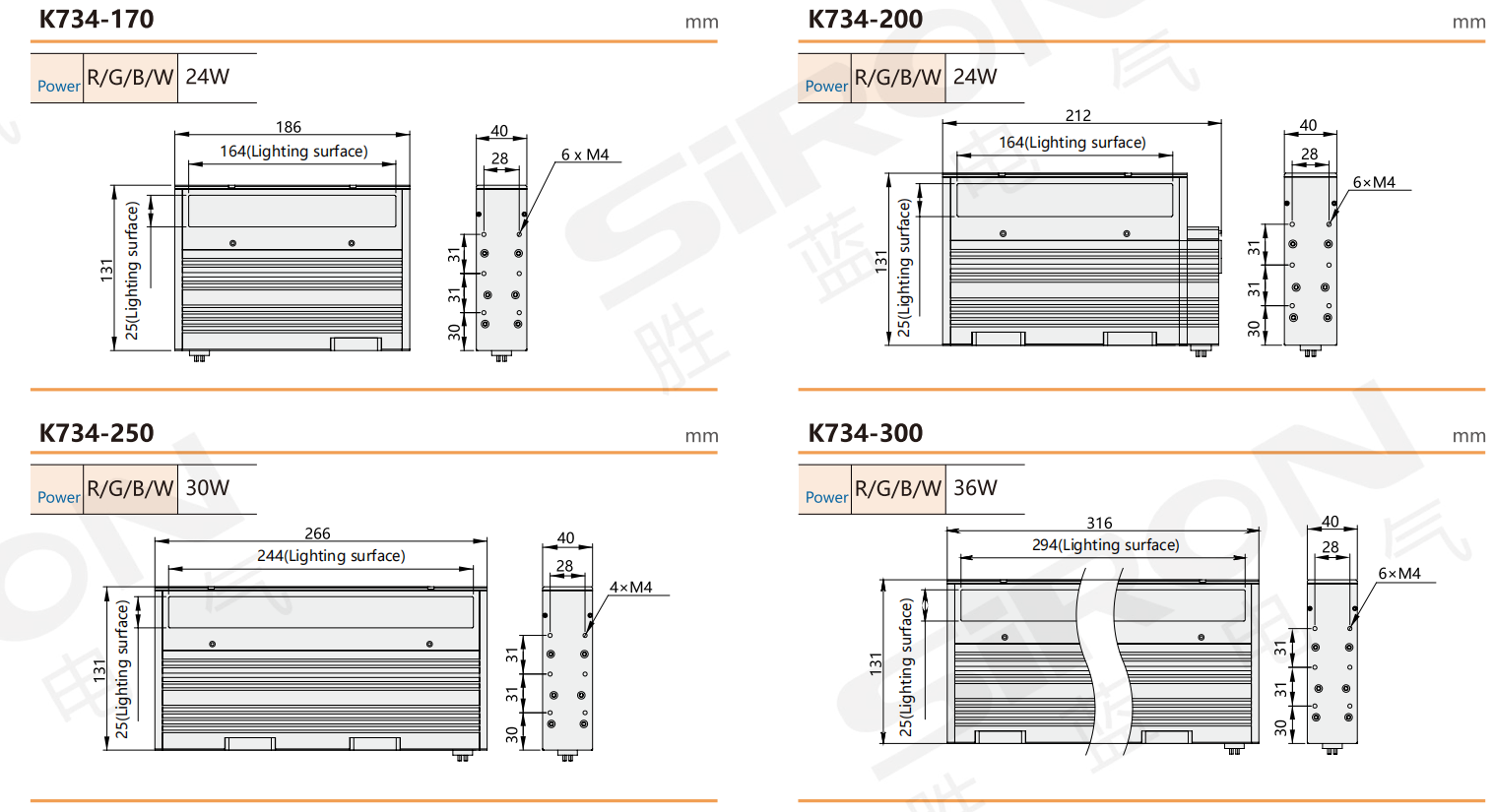

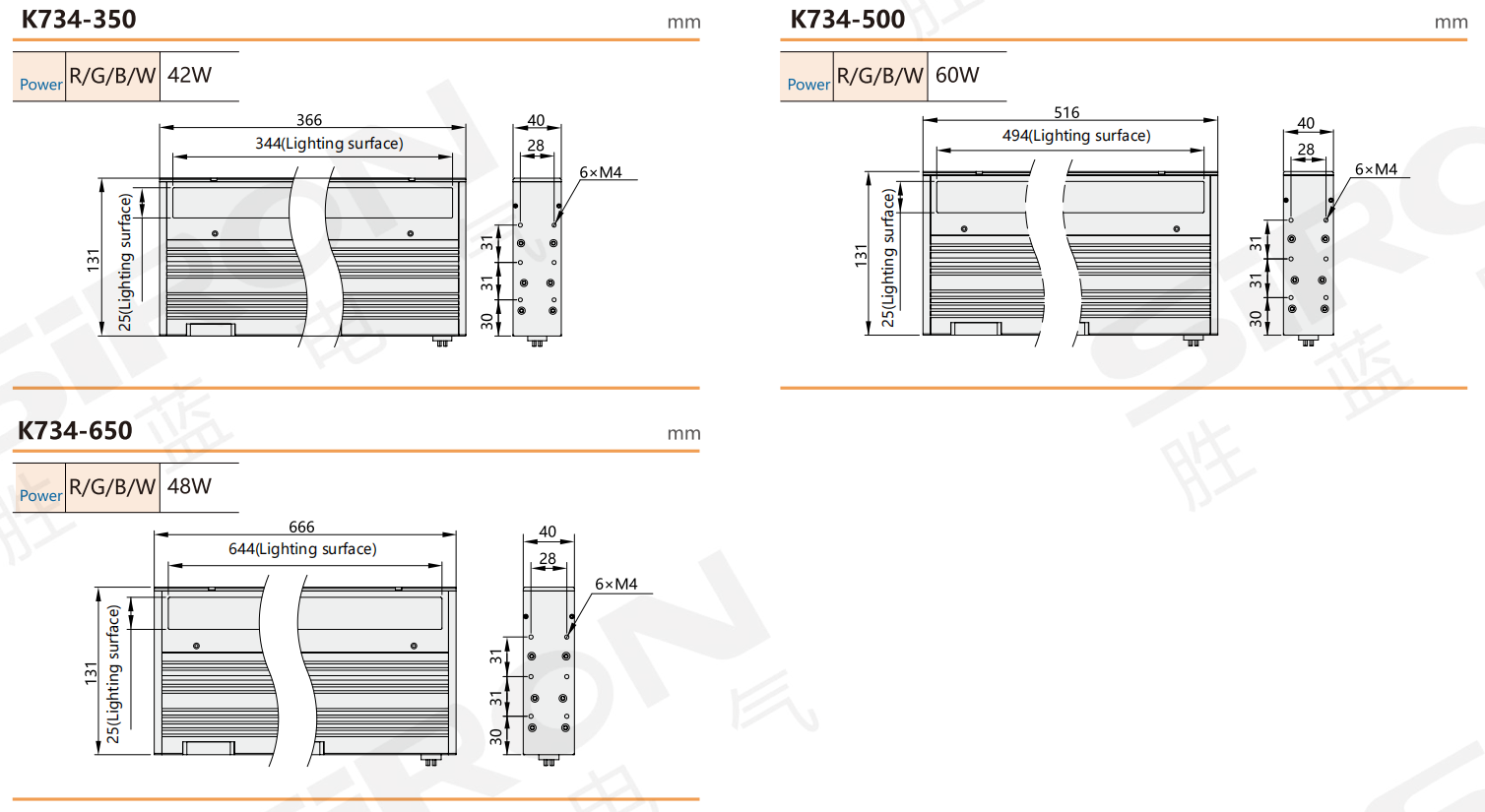

About selection

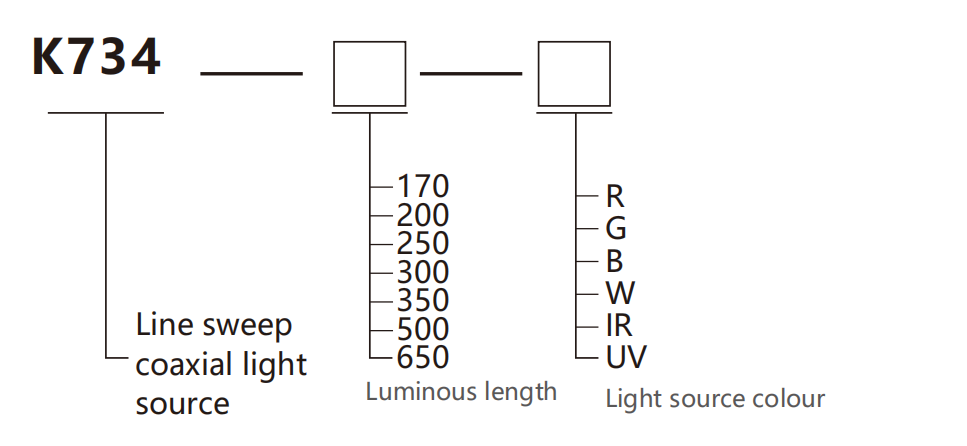

Selection example:

K734-170-R indicates the K734 series,the luminous length is 170mm, and the light source color is red.

Note: 1. R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

Specifications

Name	Line scan coaxial light source

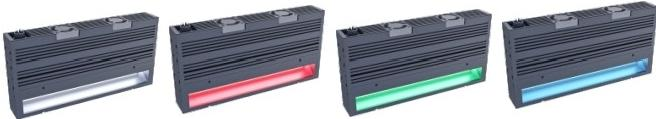

Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	High power 24V constant current controller

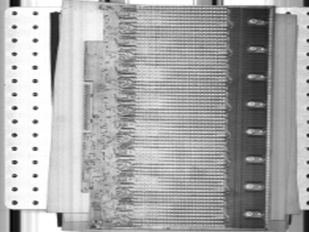

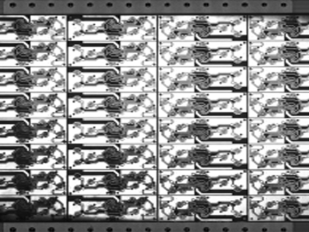

Scope of application	Mobile phone screen detection industry;Steel plate testing industry;Glass scratch detection industry
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
