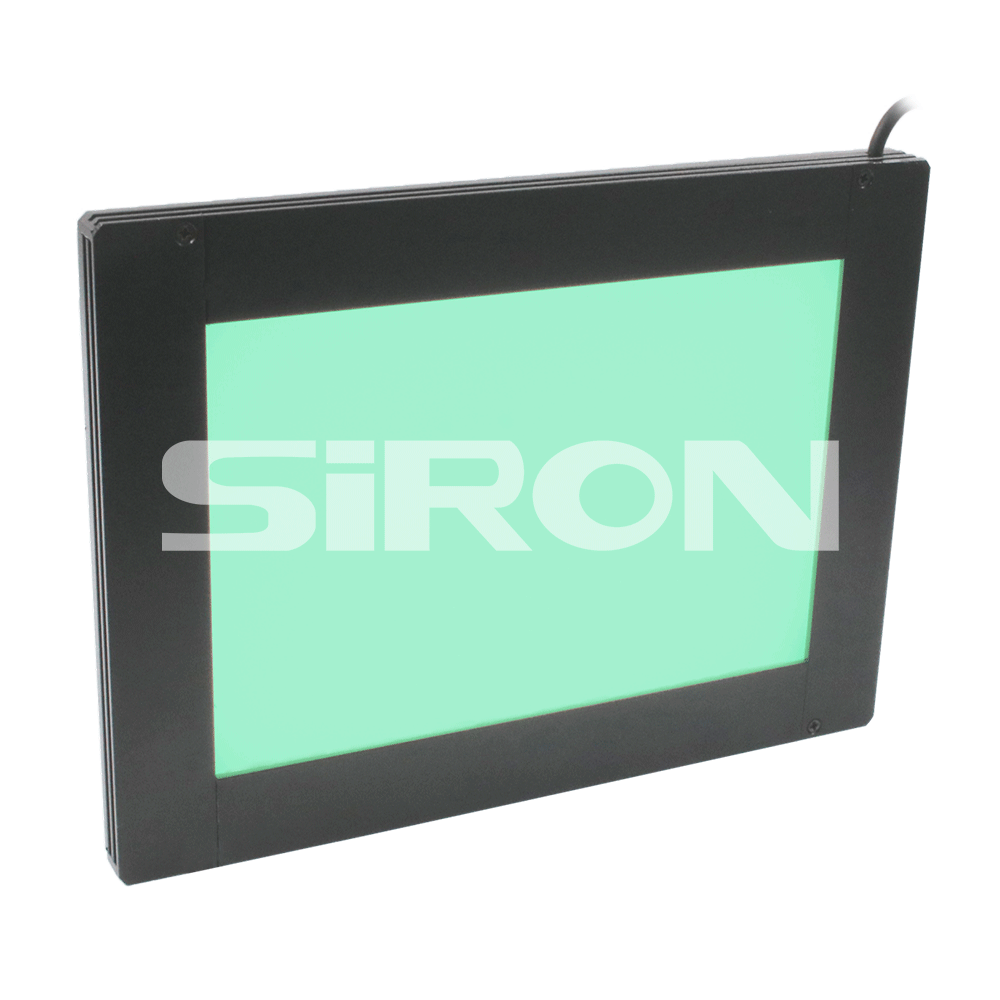

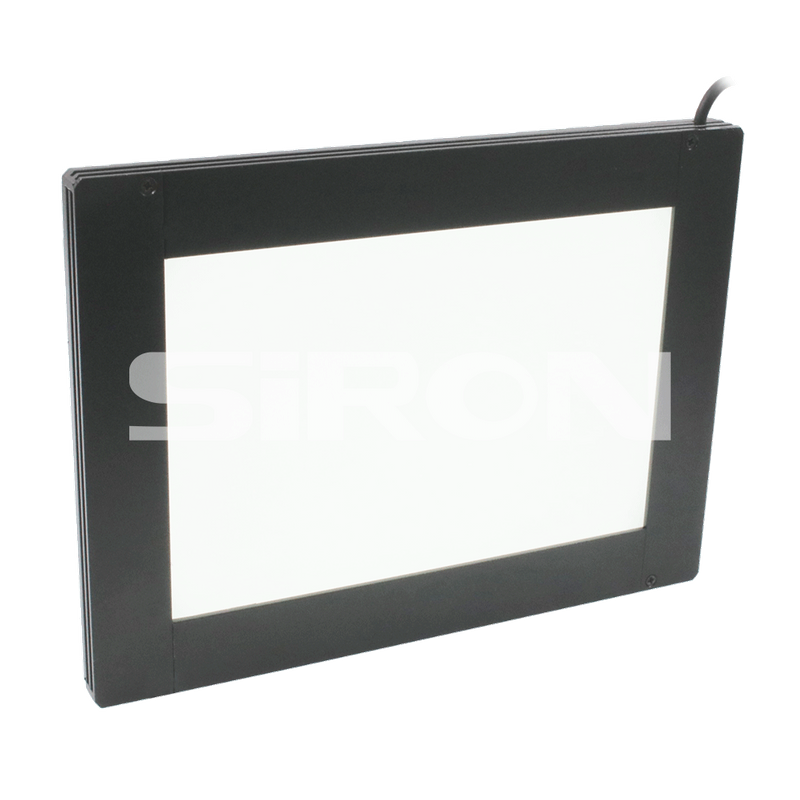

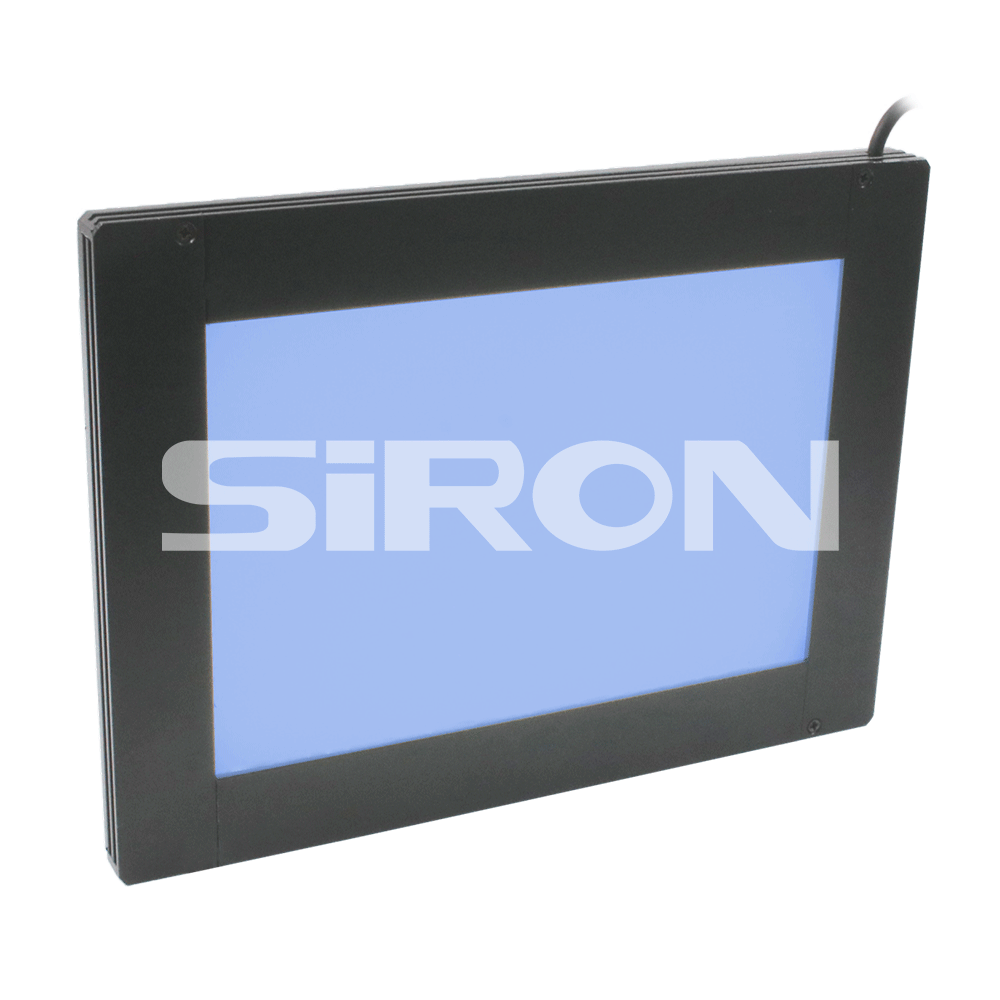

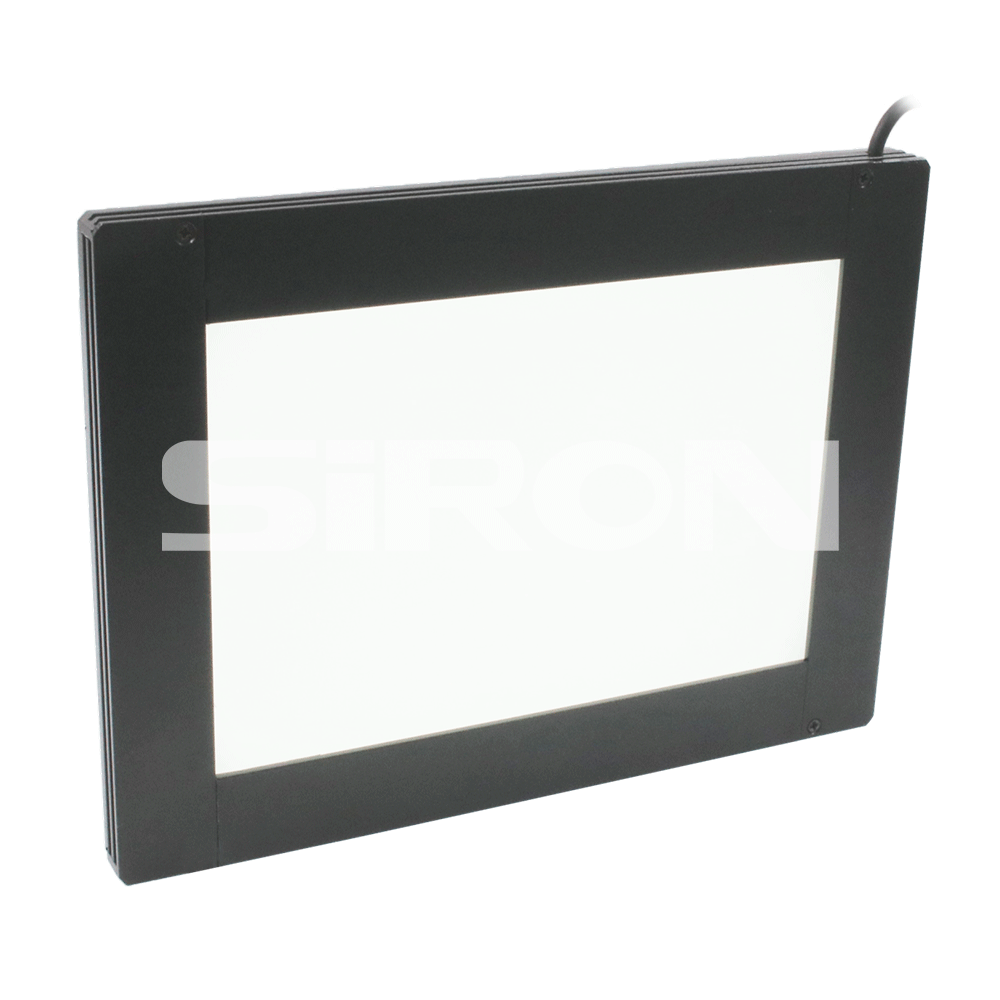

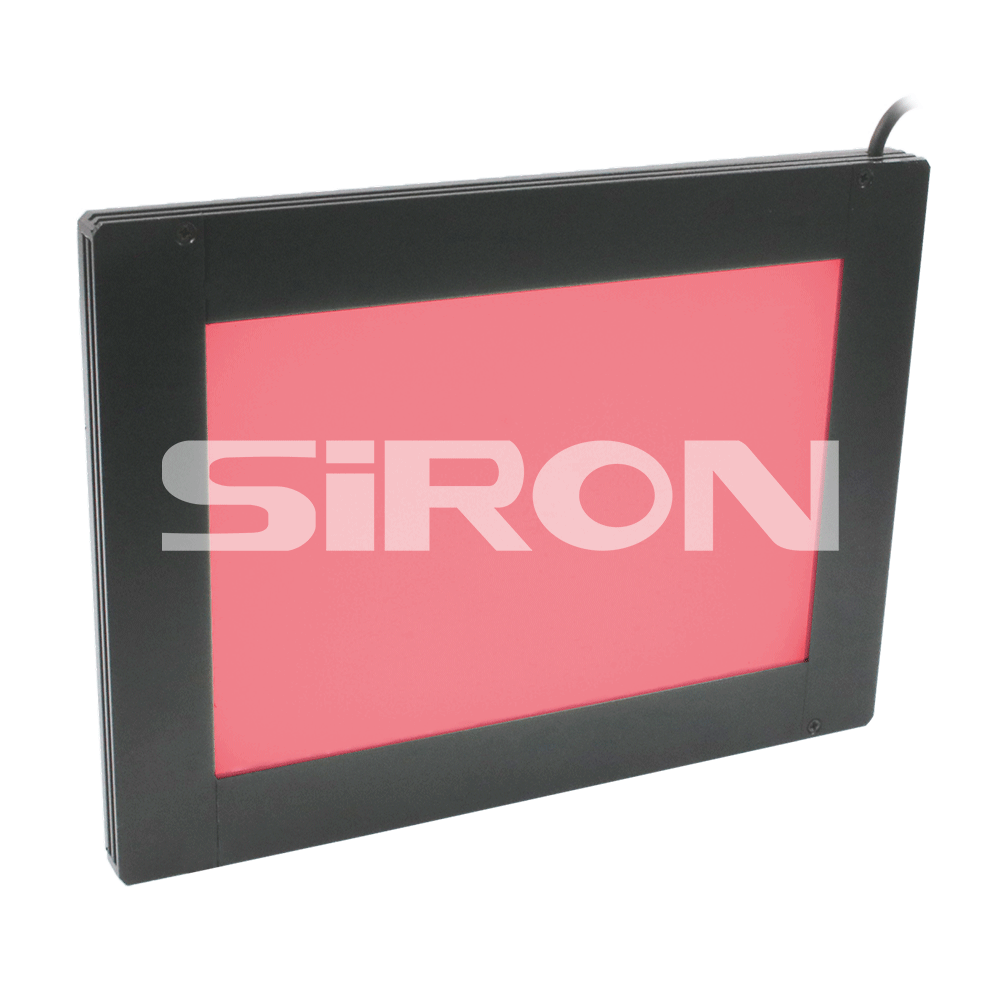

K717 Series
SiRON
8479909090
About selection
Selection example:
K717Z-150100-R indicatesthe K717 series,witha middlepass,the length of the luminous zone is 150mm, the width of the luminous zone is 100mm,and the color of the light source is red.
Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet
Standard Type
mm
| Light Emitting Area Length | 150 | 150 | 200 | 250 | 300 | 300 | 400 |
| Light Emitting Area Width | 150 | 100 | 200 | 250 | 200 | 300 | 400 |
Center Hole Type
mm
| Light Emitting Area Length | 130 | 200 | 300 | 300 | 400 |
| Light Emitting Area Width | 130 | 200 | 200 | 300 | 400 |
Specifications
| Name | Side backlight |

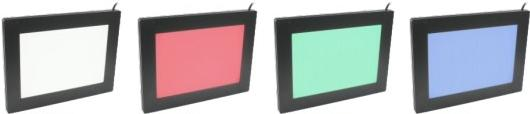

| Appearance |
White Red Green Blue |
| Voltage | 24VDC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | PCB board printing defect detection;Reflective surface defecion |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example
Fixture contour detection Packaging box character detection
Side backlight illumination is applied to Side backlight illumination is used to highlight
highlight the contour and improve character features and enhance contrast.
background contrast.

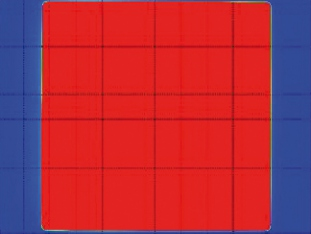

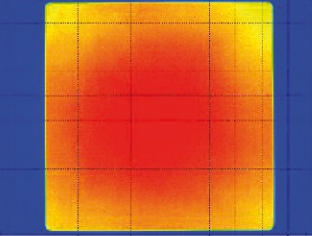

Uniformity distribution map
Dark Field: 100×100 mm Bright Field: 100×100 mm

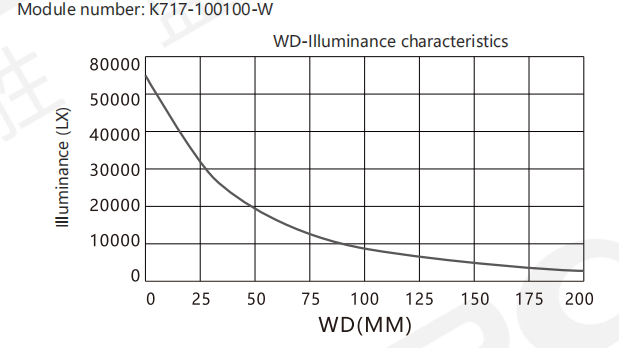

Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

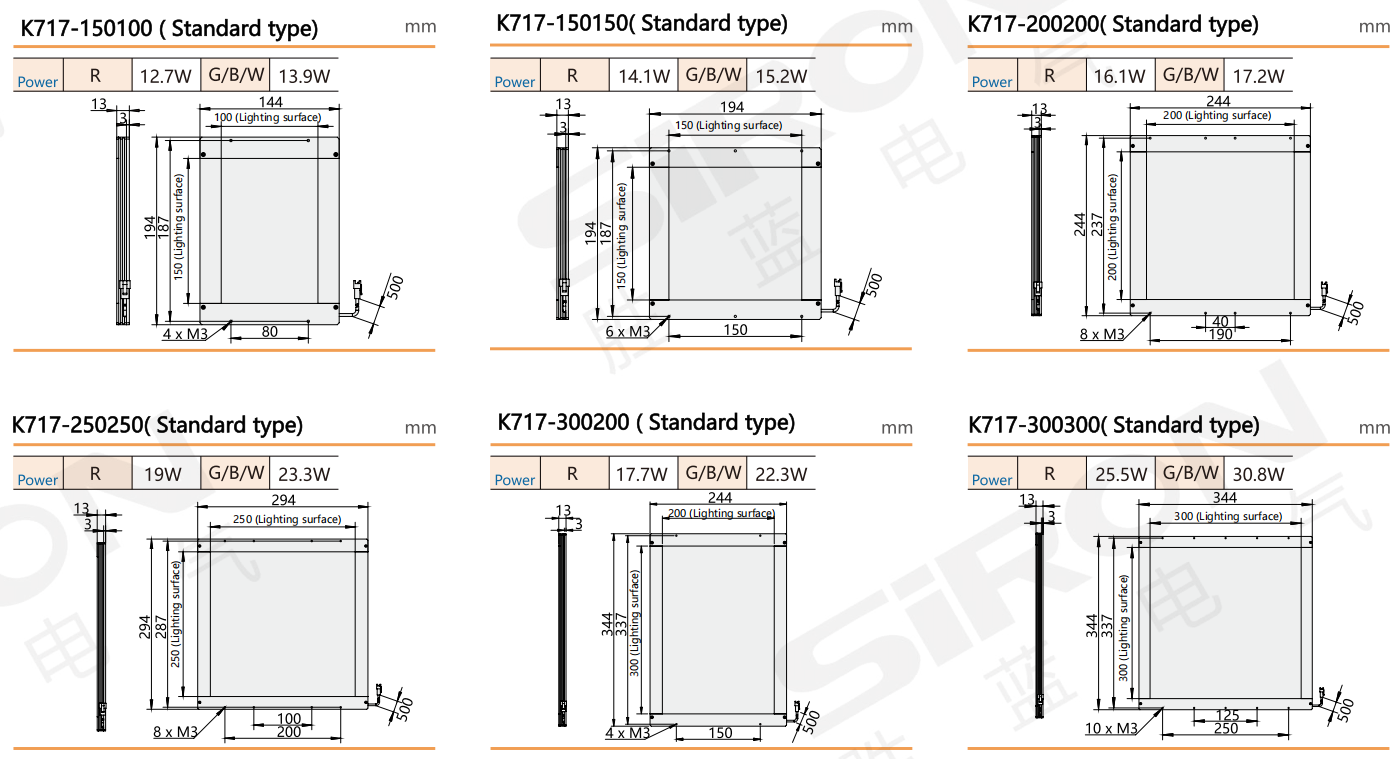

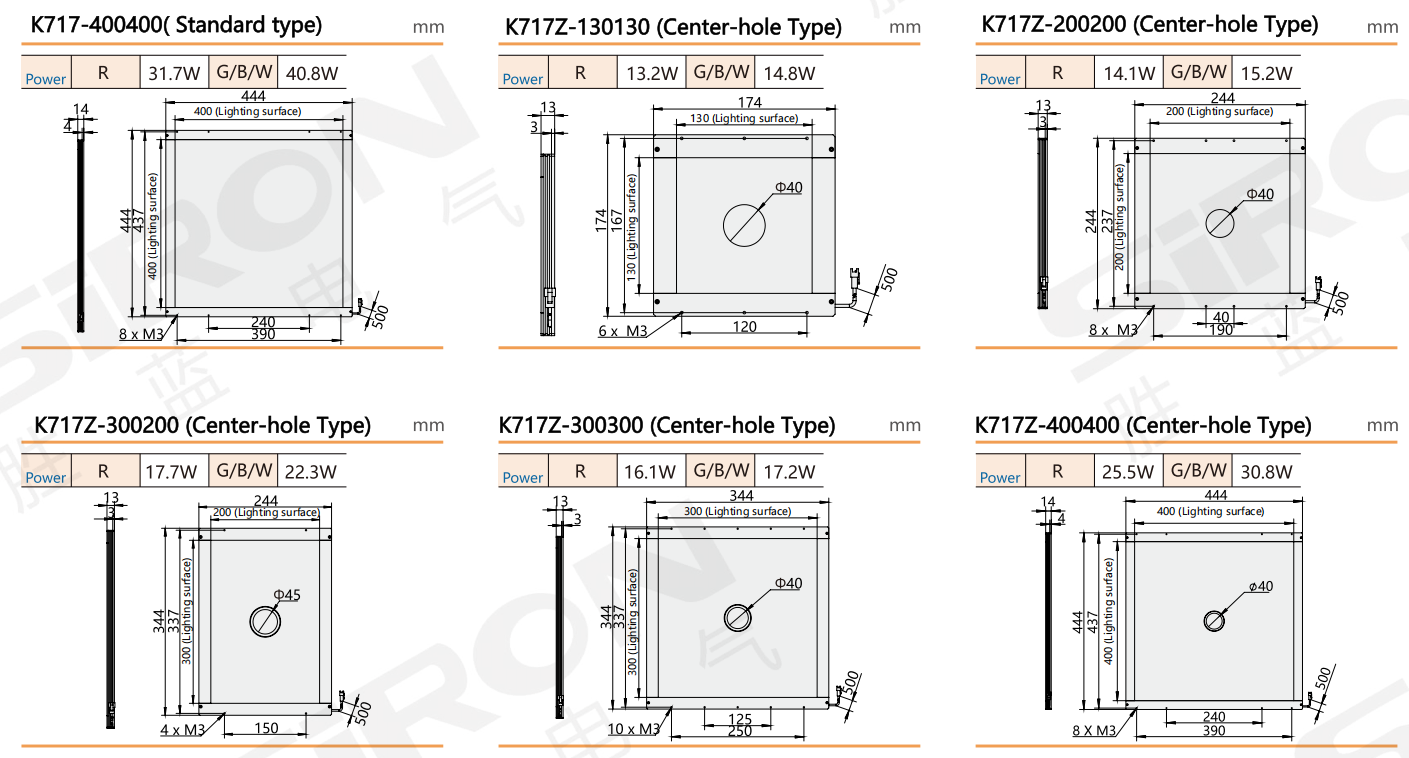

Dimension
