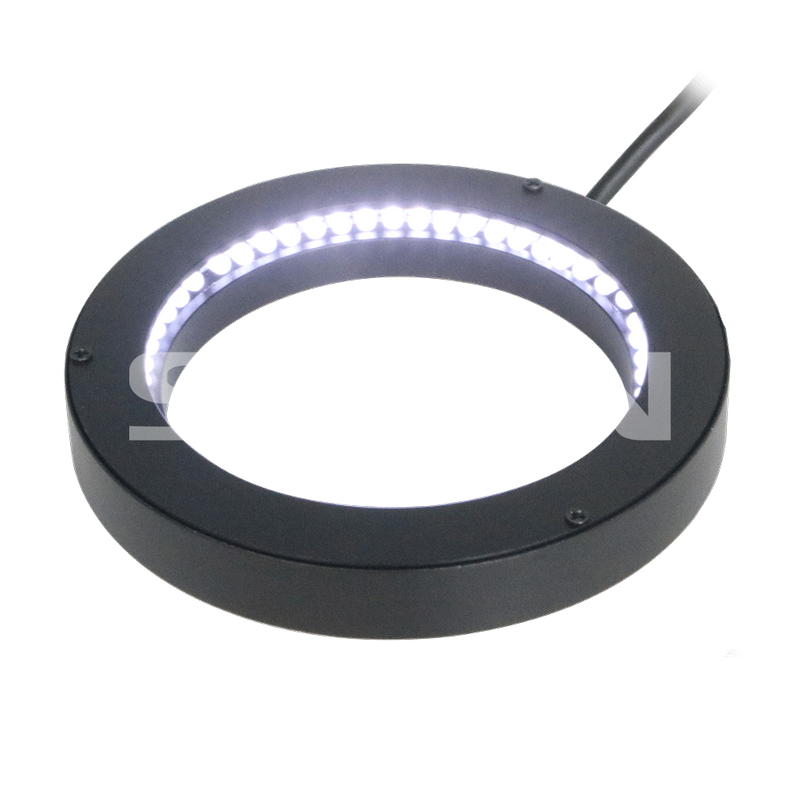

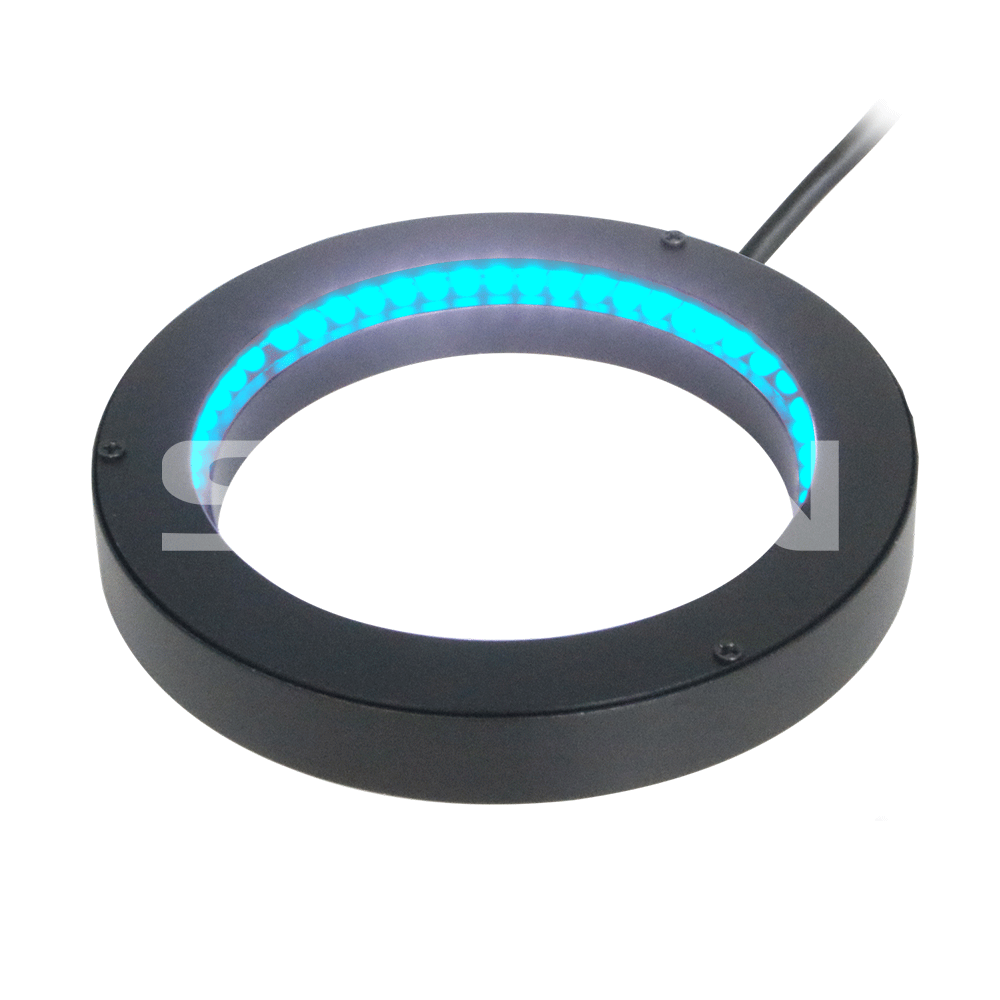

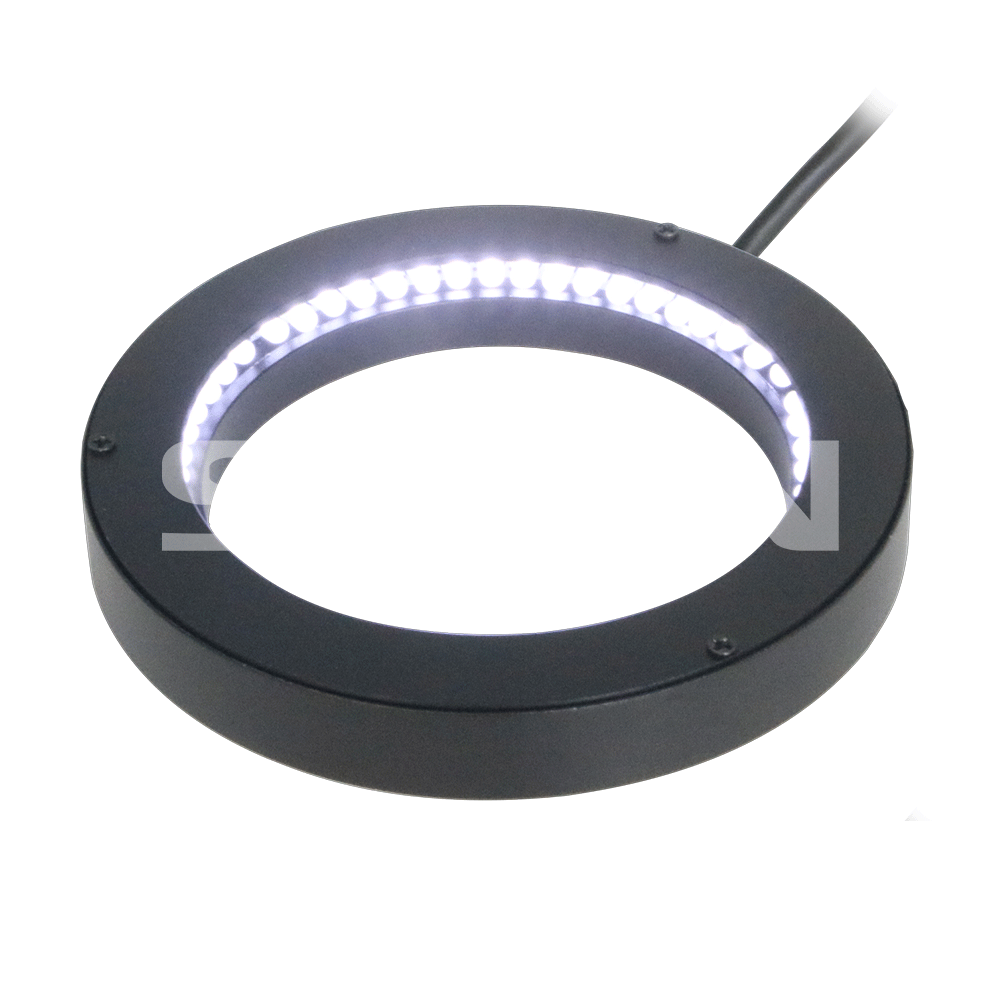

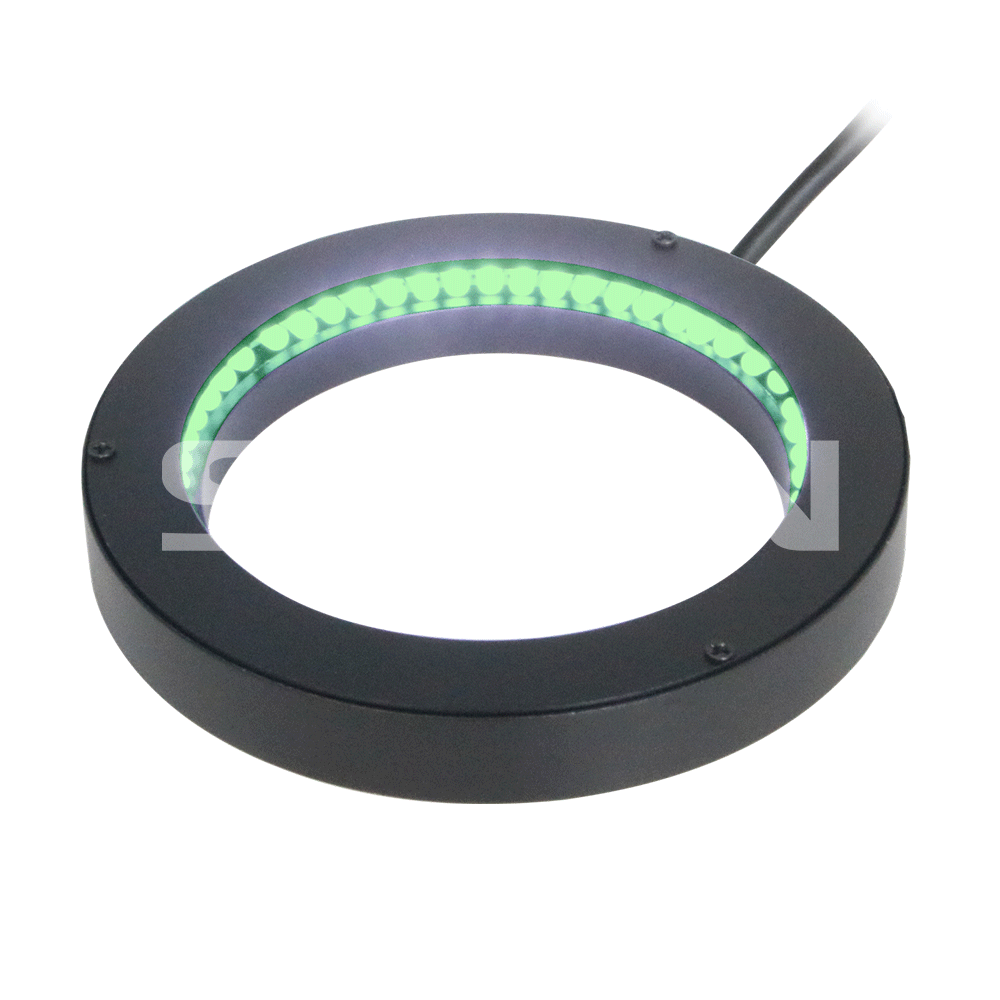

SiRON K700B Series Ring Light

Name: SiRON K700B Series Ring Light
Brand: SiRON
Rating: 5.0 (39 reviews)

Features:

* Check the date on the package;
*Detect objects with bright, reflective surfaces;
*Detect the external dimensions of IPA high precision components;
*Test packaging and labels.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K700B Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Ring Light IP20 Heat resistant long service life

Product Description

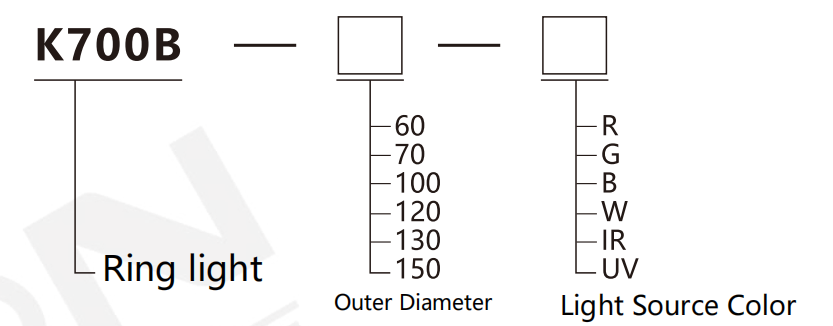

About selection

Selection Example:

K700B-100-R represents the K700B series, with an outer diameter of 100mm and a red light source color.

Note:

1. Cable length: 1M

2. Color code: R- Red, G- Green, B-Blue, W- White, IR- Infrared, UV- Ultraviolet.

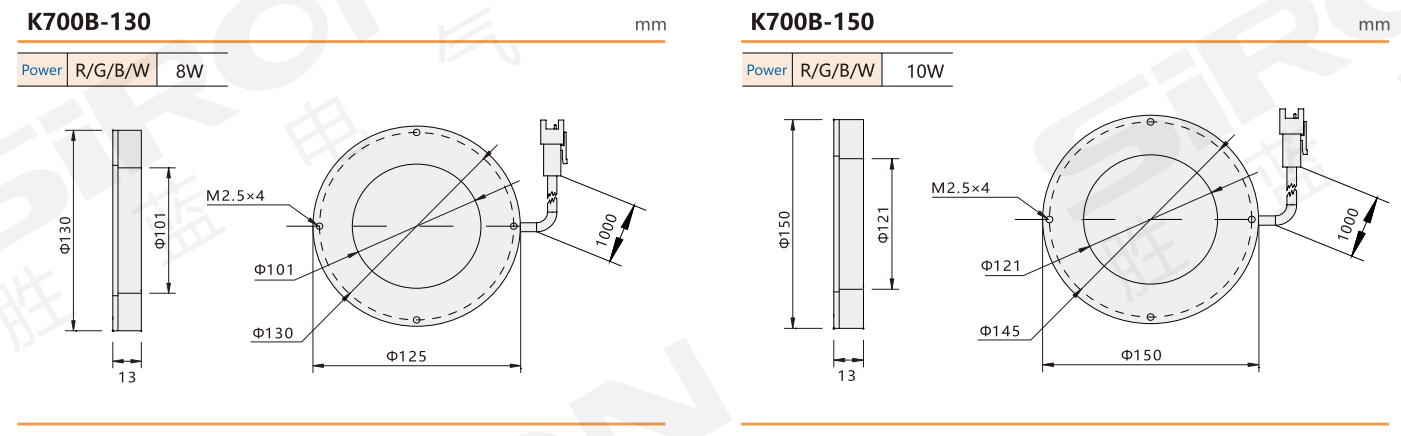

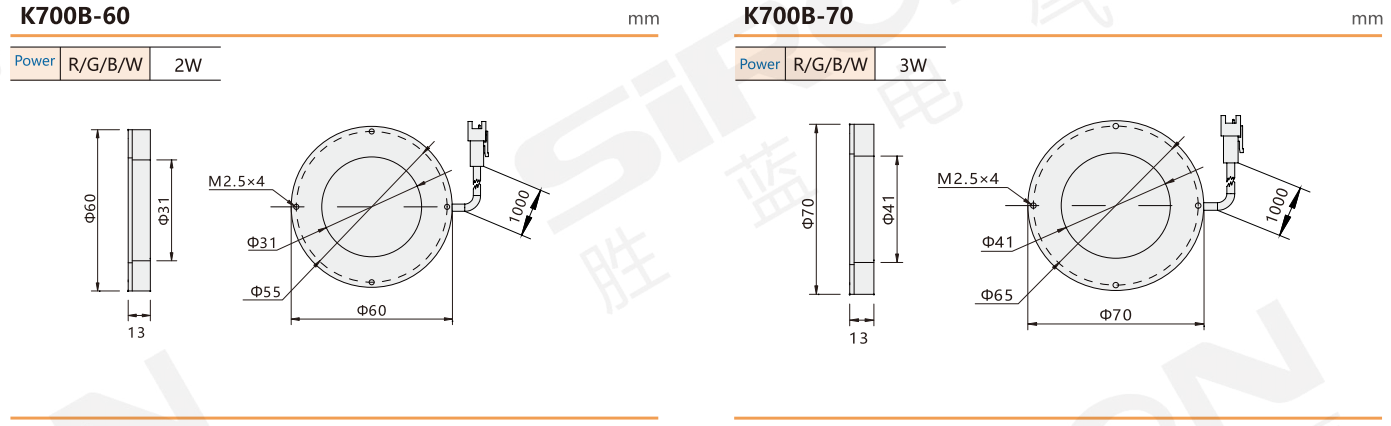

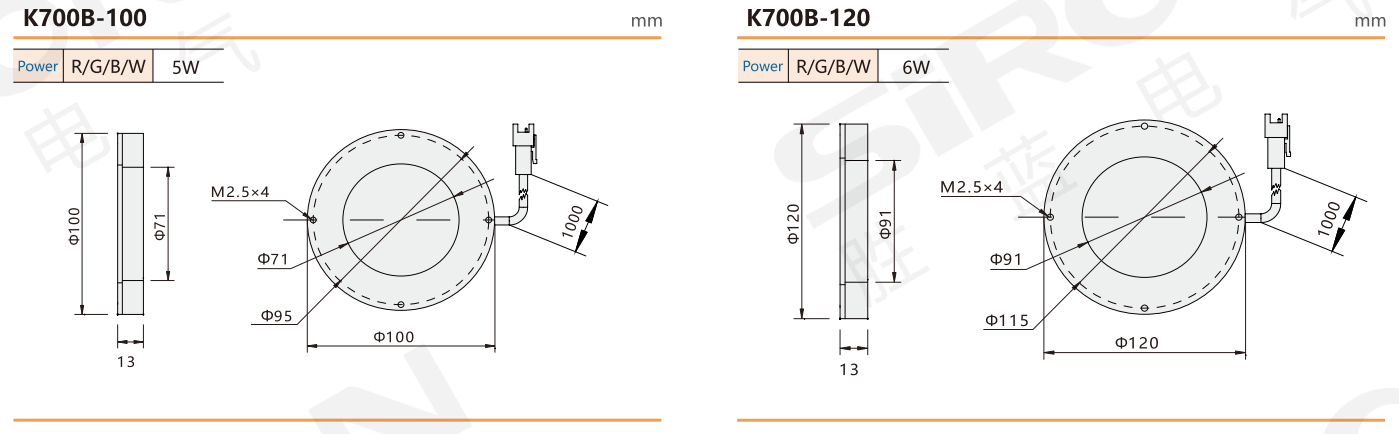

Specifications

Name	Ring light
Appearance	White Red Green Blue
Voltage	24V DC
Bean Angle	≤60°
Operating temperature	-20～+55℃
Working humidity	10~90% (non-condensing)
Controler	Analog Controller; Digital Controller; Strobe Controller
Scope of application	Detect dates on product packaging; detect high-brightness, reflective objects, etc.
Wavelength and color temperature	White : 6 5 0 0 K Blue:465～470nm Red : 6 2 0 ～ 6 3 0 n m Infrared:850～940nm Green : 5 2 5 ～ 5 3 0 n m Ultraviolet : 3 6 5 ～ 3 9 5 n m

Example

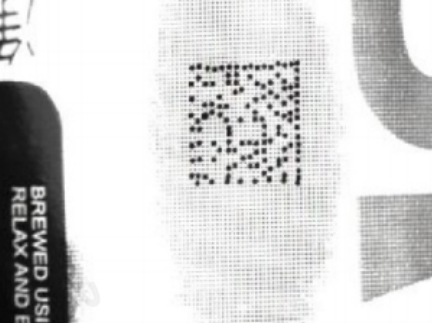

Irregular product positioning and detection Beer bottle QR code inspection Highlight the product's outer contour, Under shadowless lighting, the QR code on
