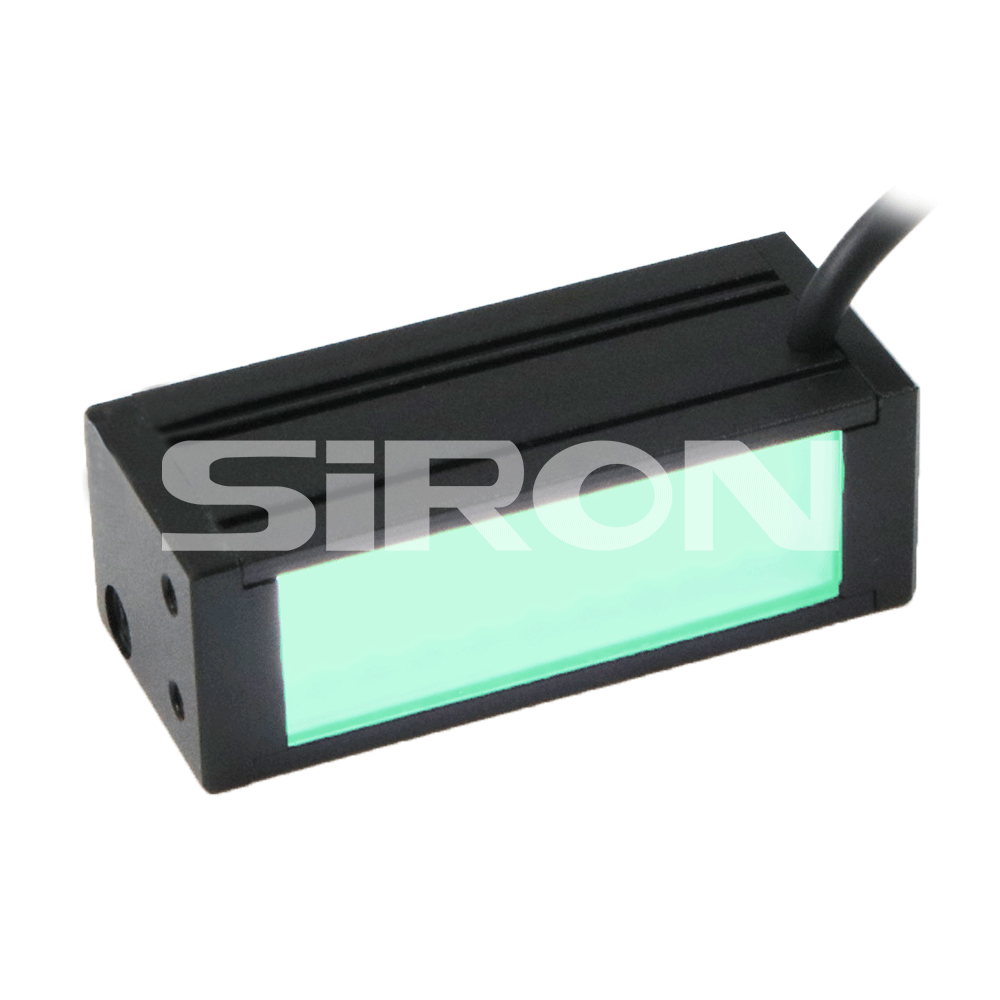

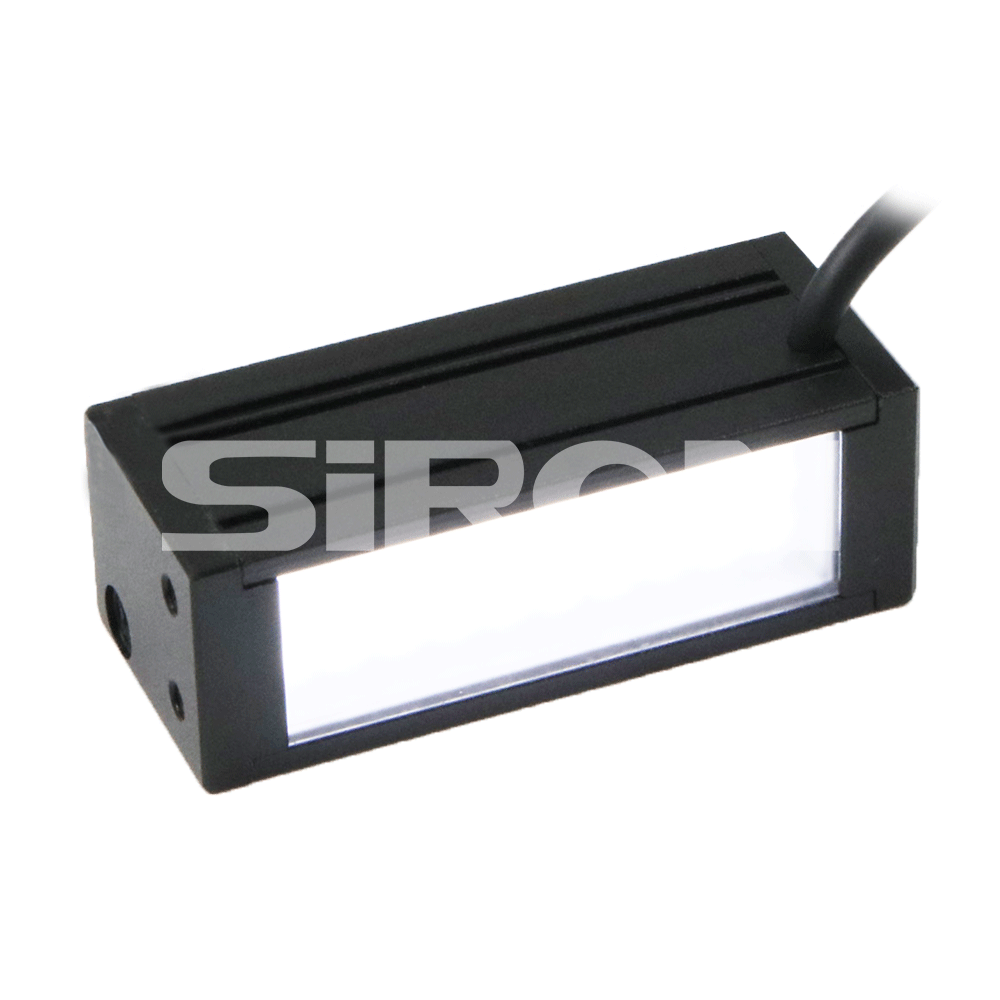

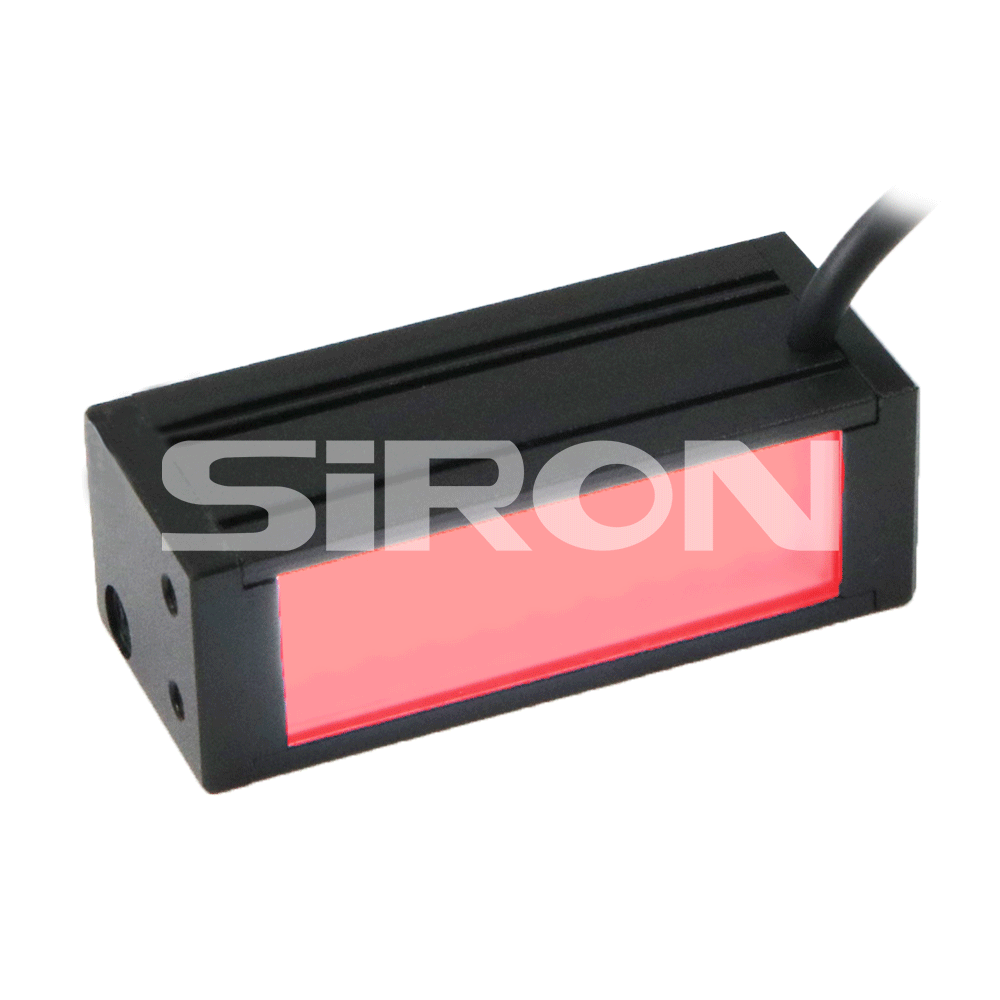

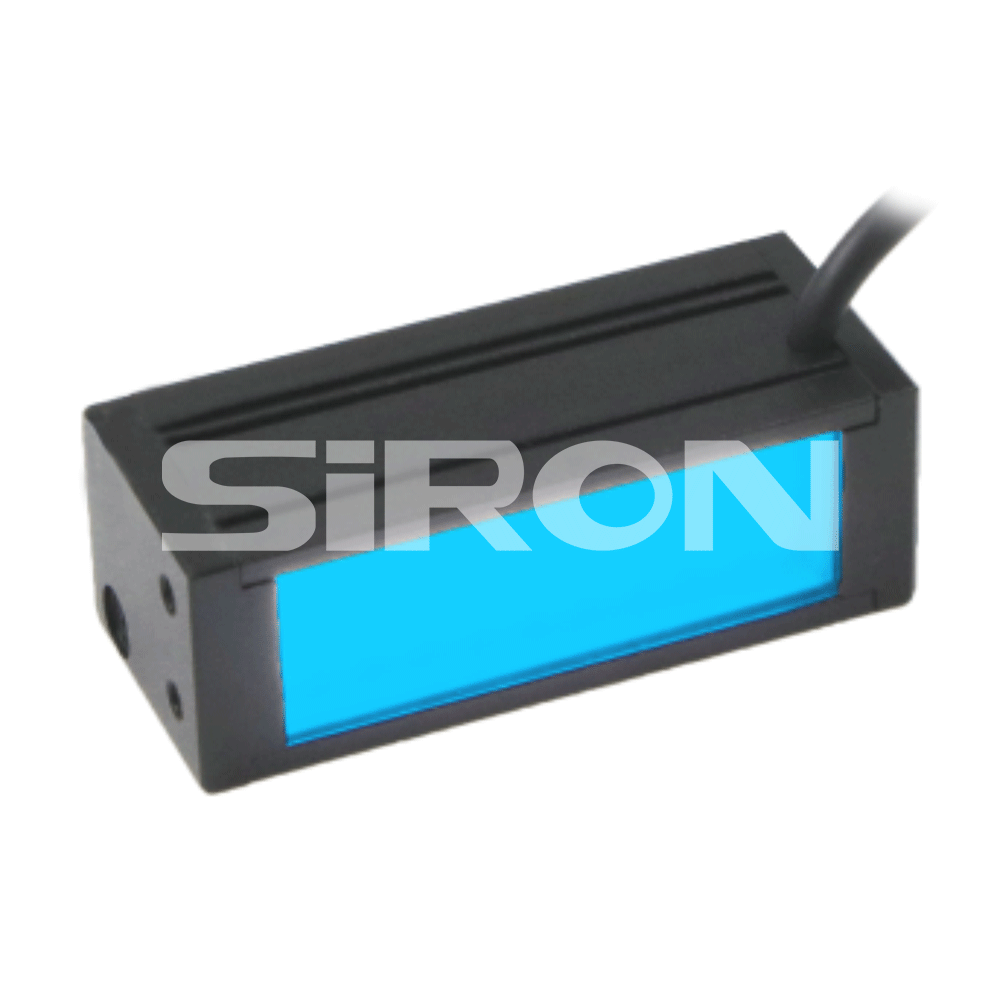

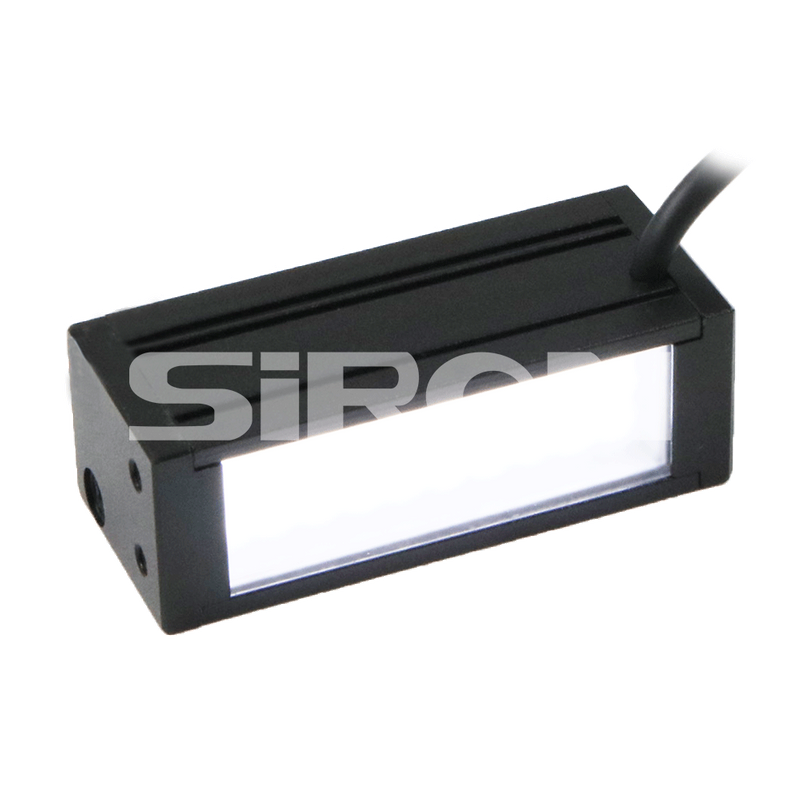

SiRON K710 Series Highlight Bar Light Source

Name: SiRON K710 Series Highlight Bar Light Source
Brand: SiRON
Rating: 5.0 (36 reviews)

Features:

* Suitable for imaging occasions with large-size features;
* The length varies from ten millimeters to several meters;

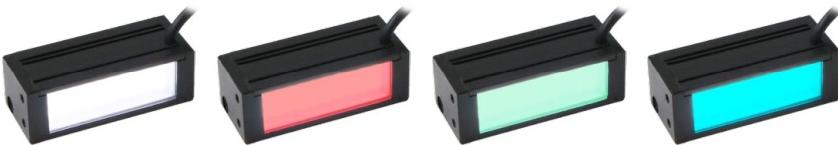

* The color of the light source can be selected according to the needs, and the illumination angle can also be adjusted at will according to the testing needs.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K710 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Highlight Bar Light Source easy to install Fit large Area glazing Angle flexibility

Product Description

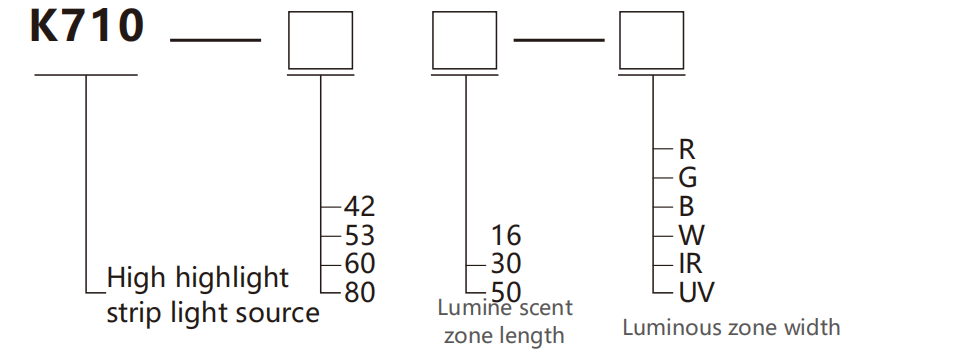

About selection

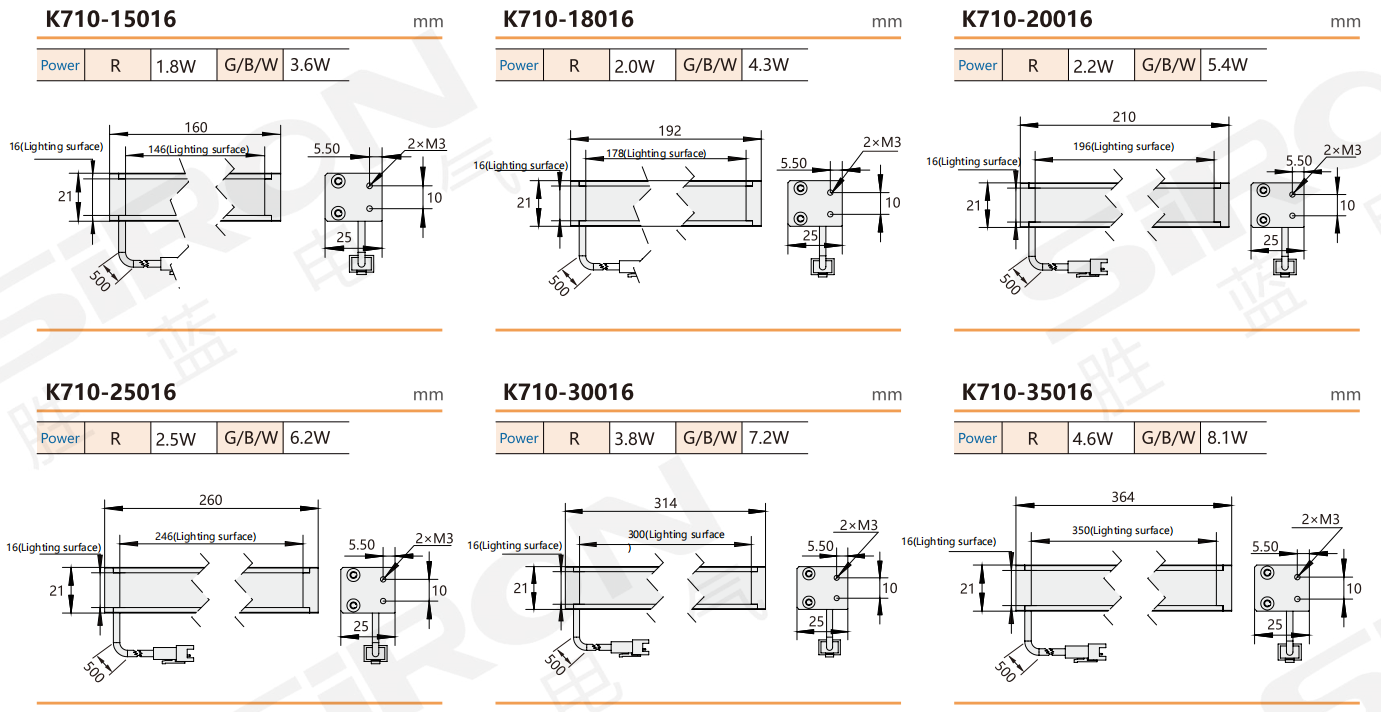

Selection example: K710-4216-R indicatesthe K710 series,thelengthoftheluminouszoneis 42mm,the width of the luminous zone is 16mm,and the color of the light source is red.

Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

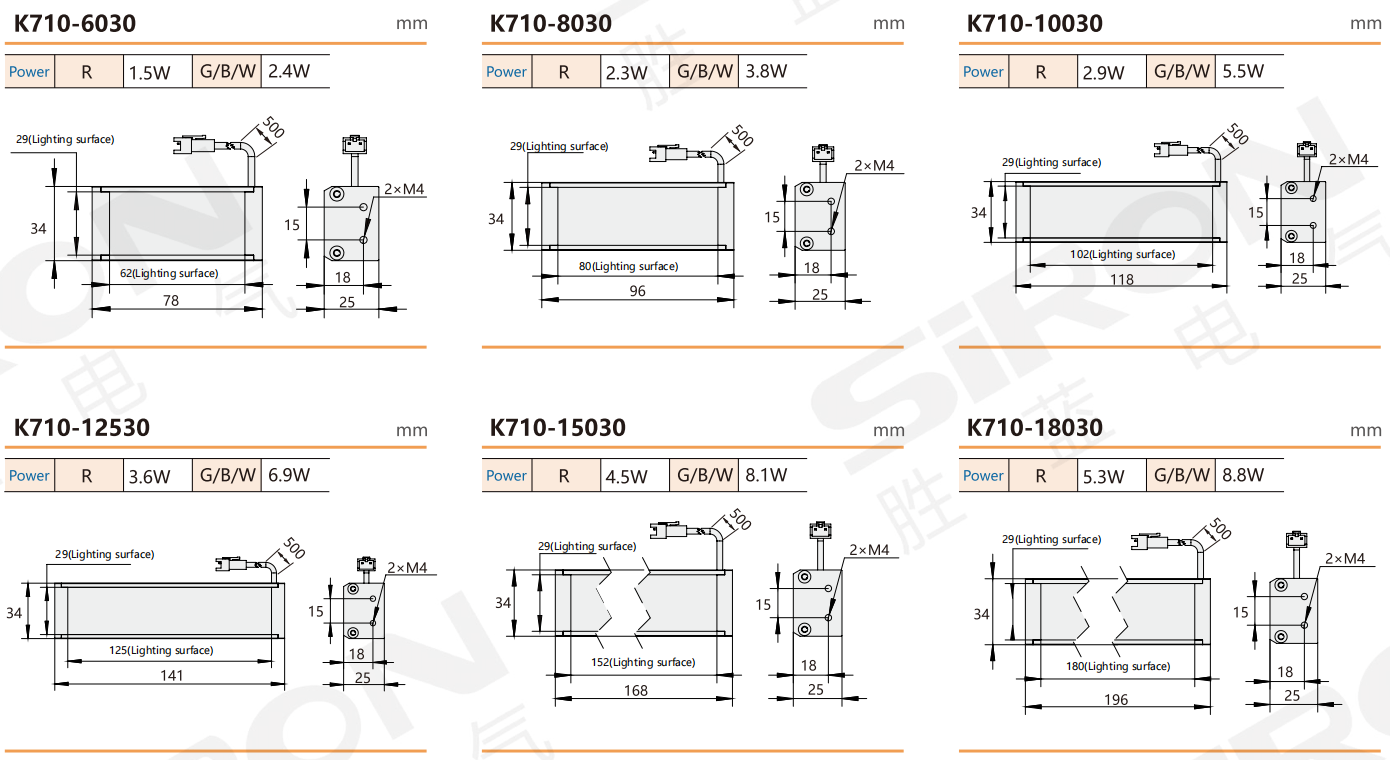

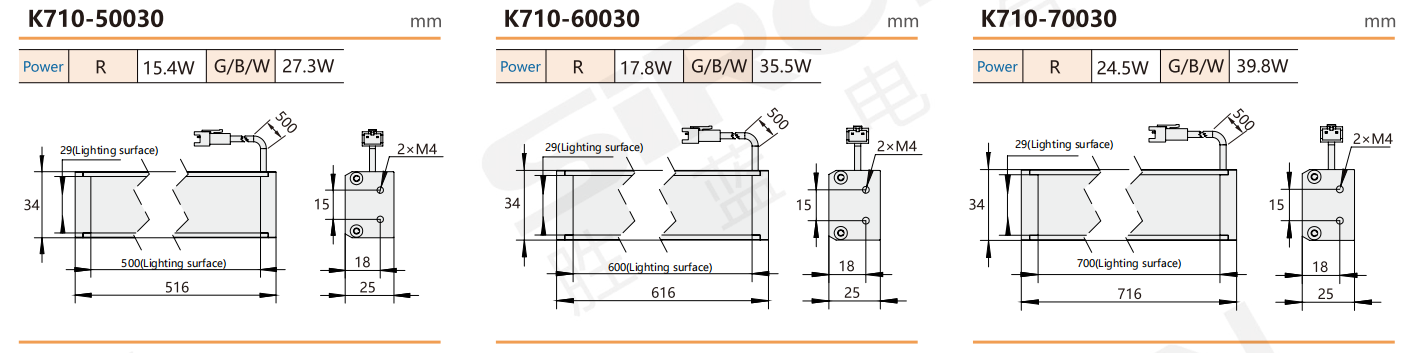

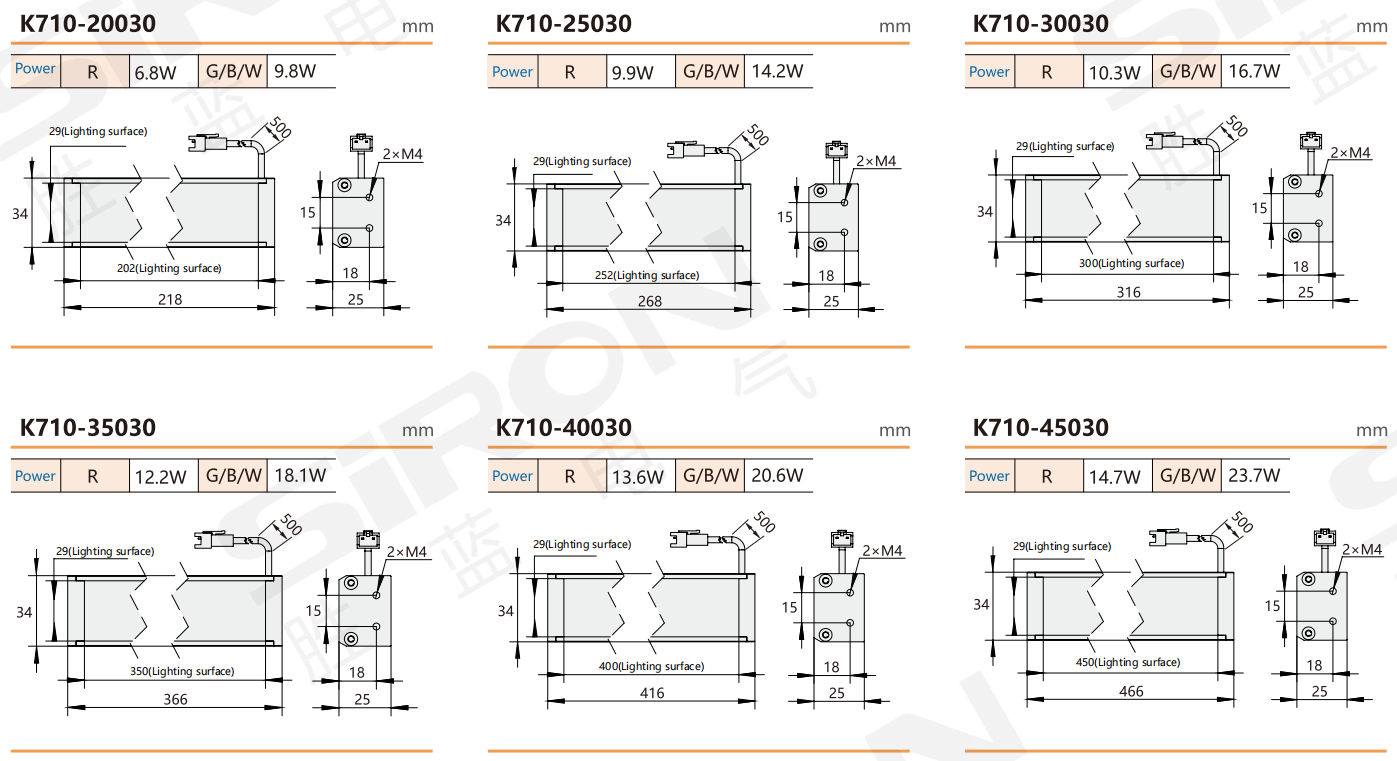

mm

Number of LED rows	3 rows	Number of LED rows	6 rows
Length of light-emitting area	42,53,60,80,100,130,150,180,200, 250,300,350	Length of light-emitting area	60,80,100,125,150,180,200,250, 300,350,400,450,500,600,700
Width of light-emitting area	16	Width of light-emitting area	30

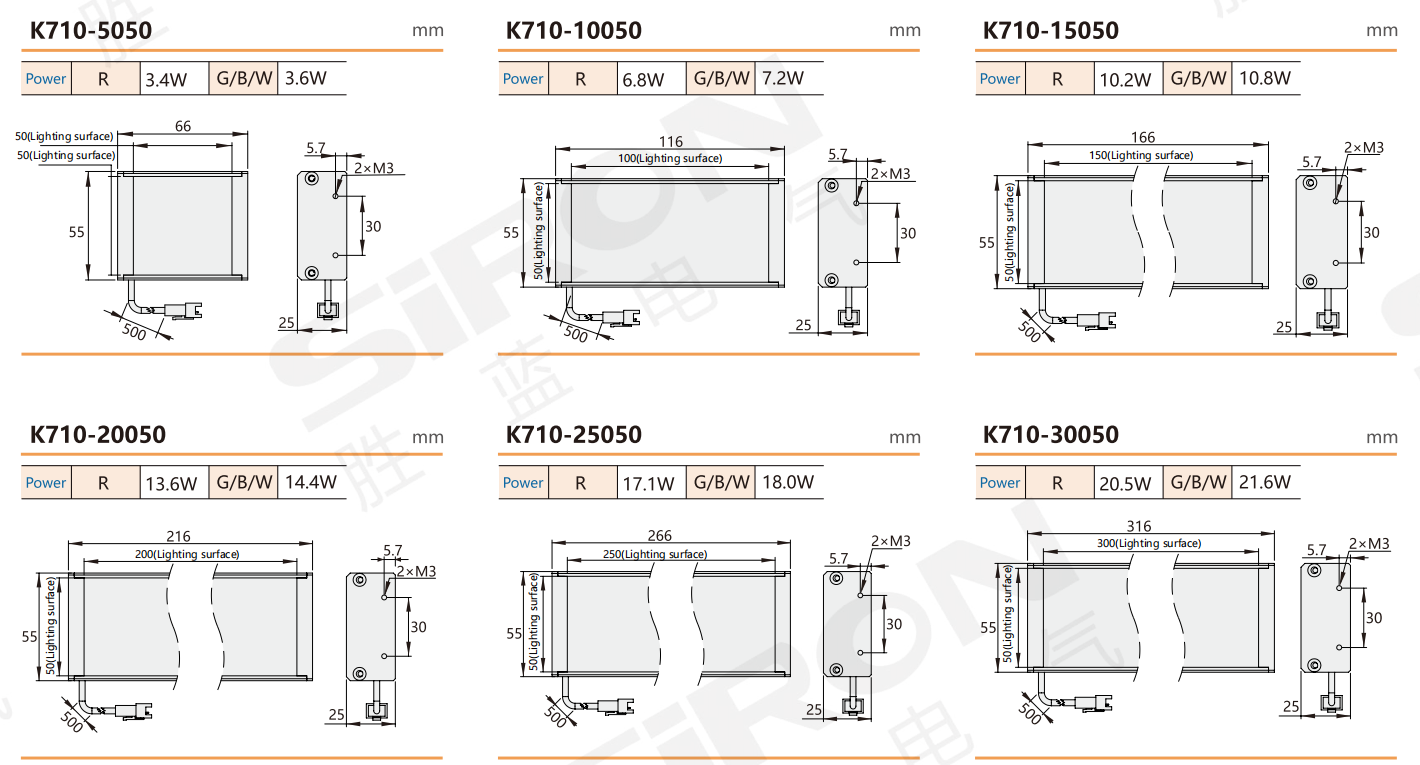

Number of LED rows	10 rows
Length of light-emitting area	50,100,150,200,250,300,350,400,450,500,550,600,
Width of light-emitting area	50

Specifications

Name	Highlight bar light source
Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller
Scope of application	LCD panel defect detection;Surface crack detection; Surface defect detection of fine metal
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
