K708 Series
SiRON
8479909090

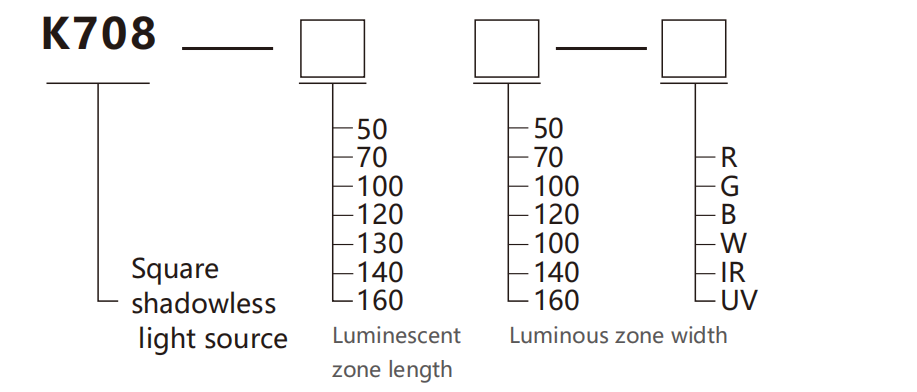

About selection
Selection example: K708-5050-R indicatesthe K708 series,thelengthis 50mm,the width is 50mm,the light source color is red.
Note:
1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-uv.
2, the length of the luminousareaand the width of the luminousareaare one-to-one corresponding, and can not be mixed. For selection, refer to "Shape map".
mm
| Model | K708-5050 | K708-7070 | K708-100100 | K708-120120 | K708-130100 | K708-140140 | K708-160160 |
| luminous surface | 48×48 | 67×67 | 91×91 | 111×111 | 121×91 | 137×137 | 151×151 |
Specifications

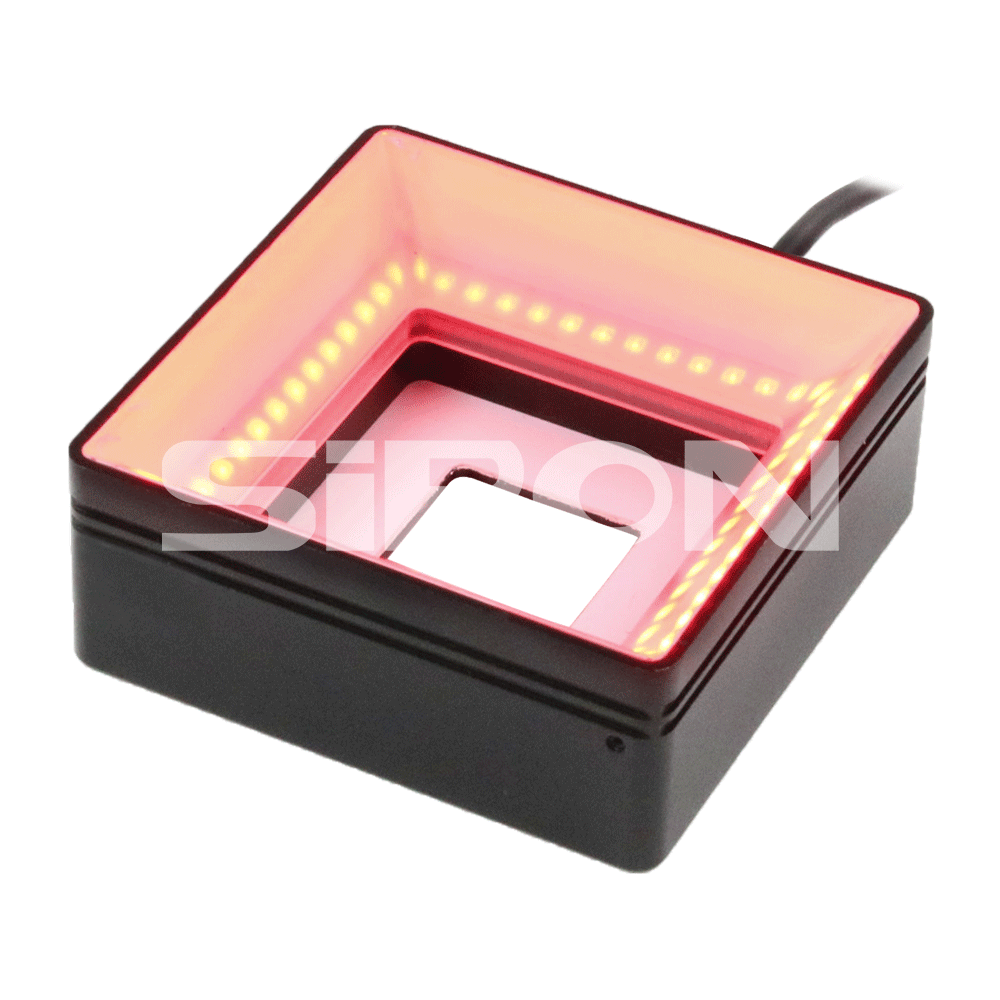

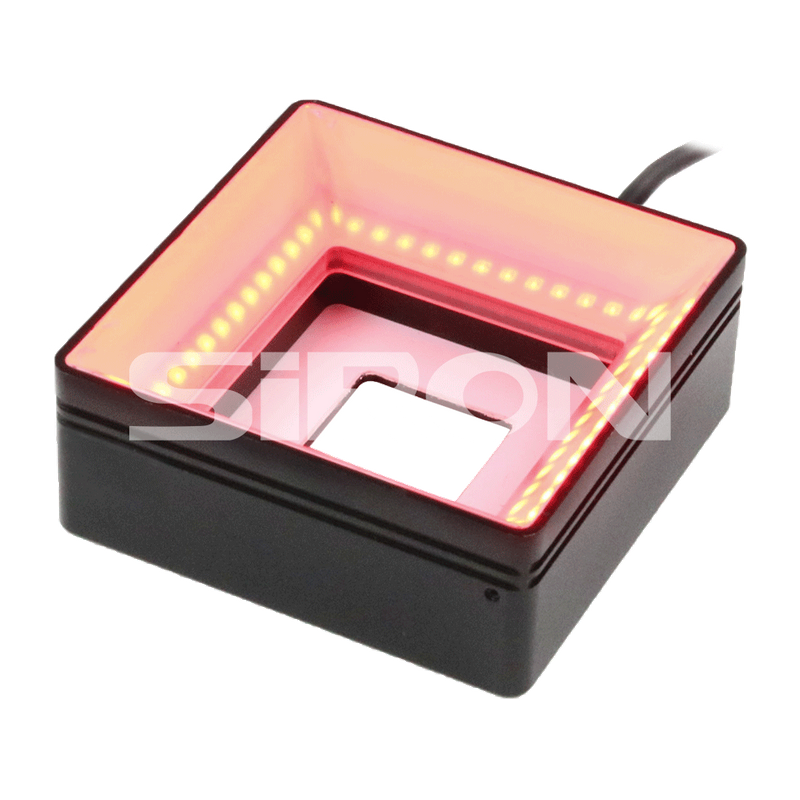

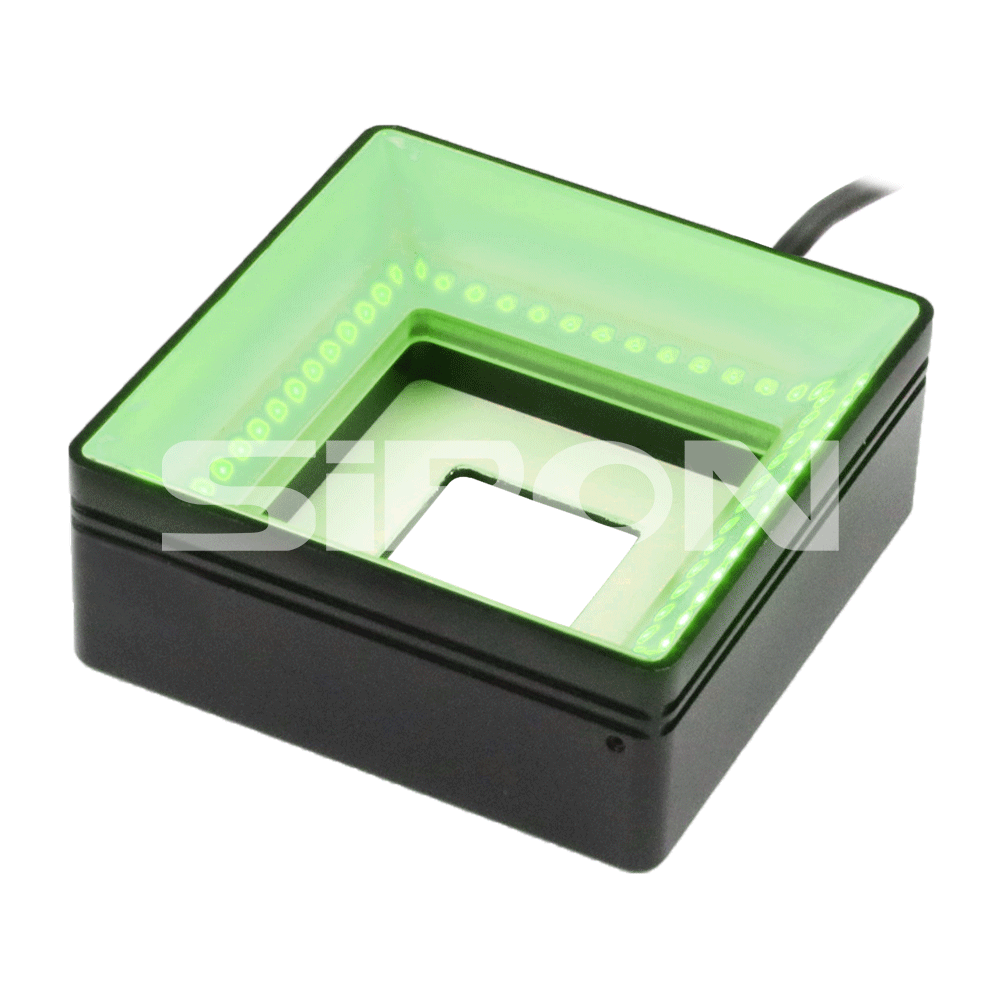

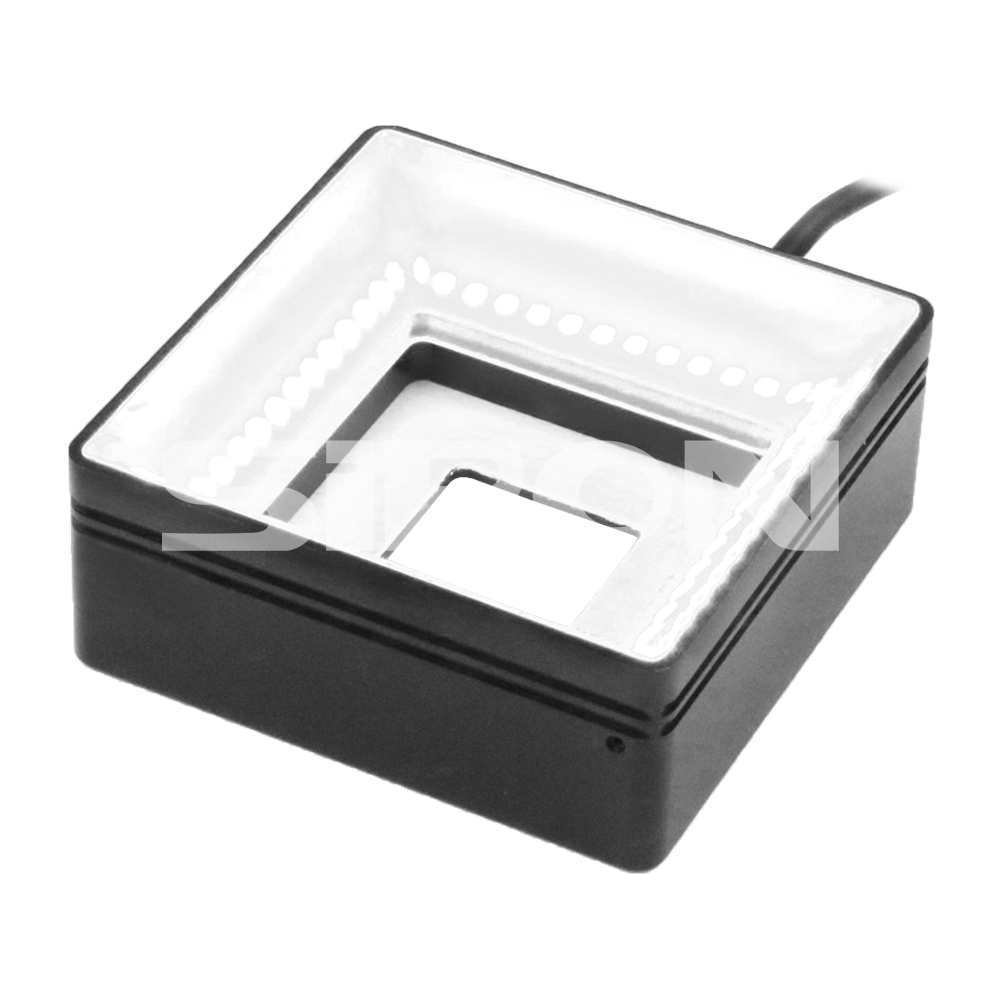

| Name | Square shadowless light source |

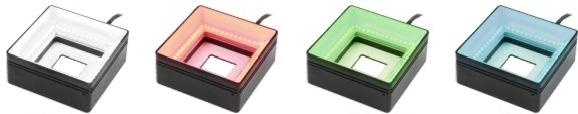

| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Integrated circuit pin character detection,reflective surface detection |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example

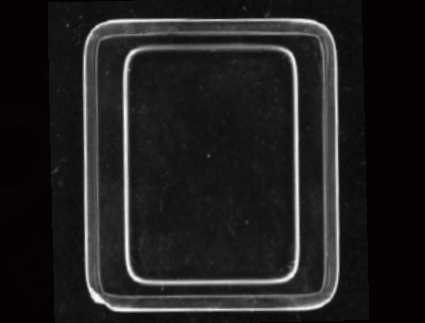

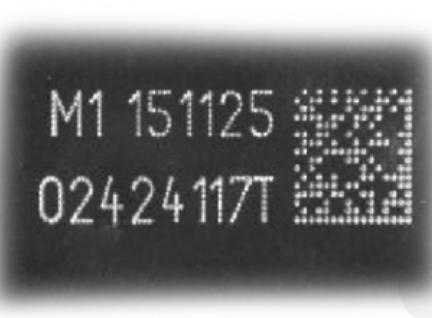

Glass positioning inspection QR code & character inspection
The surface is reflective. Low-angle shadowless The surface is reflective. Low-angle shadowless
lighting is applied to ensure uniform illumination lighting is applied to ensure uniform illumination
and prominent feature contrast. and prominent feature contrast.

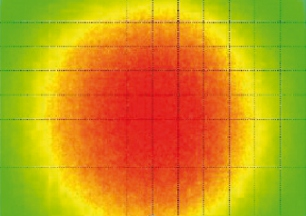

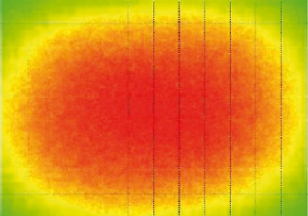

Uniformity distribution map
LWD = 60, Field of View: 106× 80mm LWD = 60, Field of View:130× 100mm

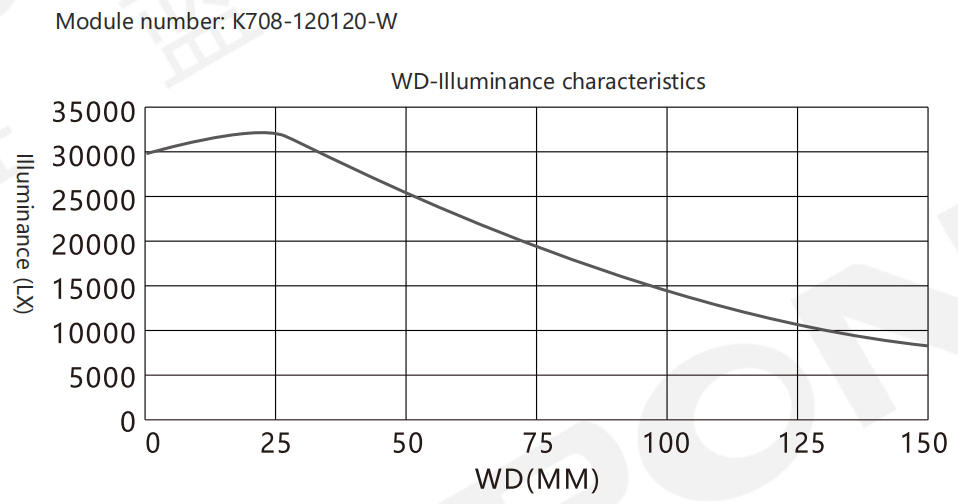

Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

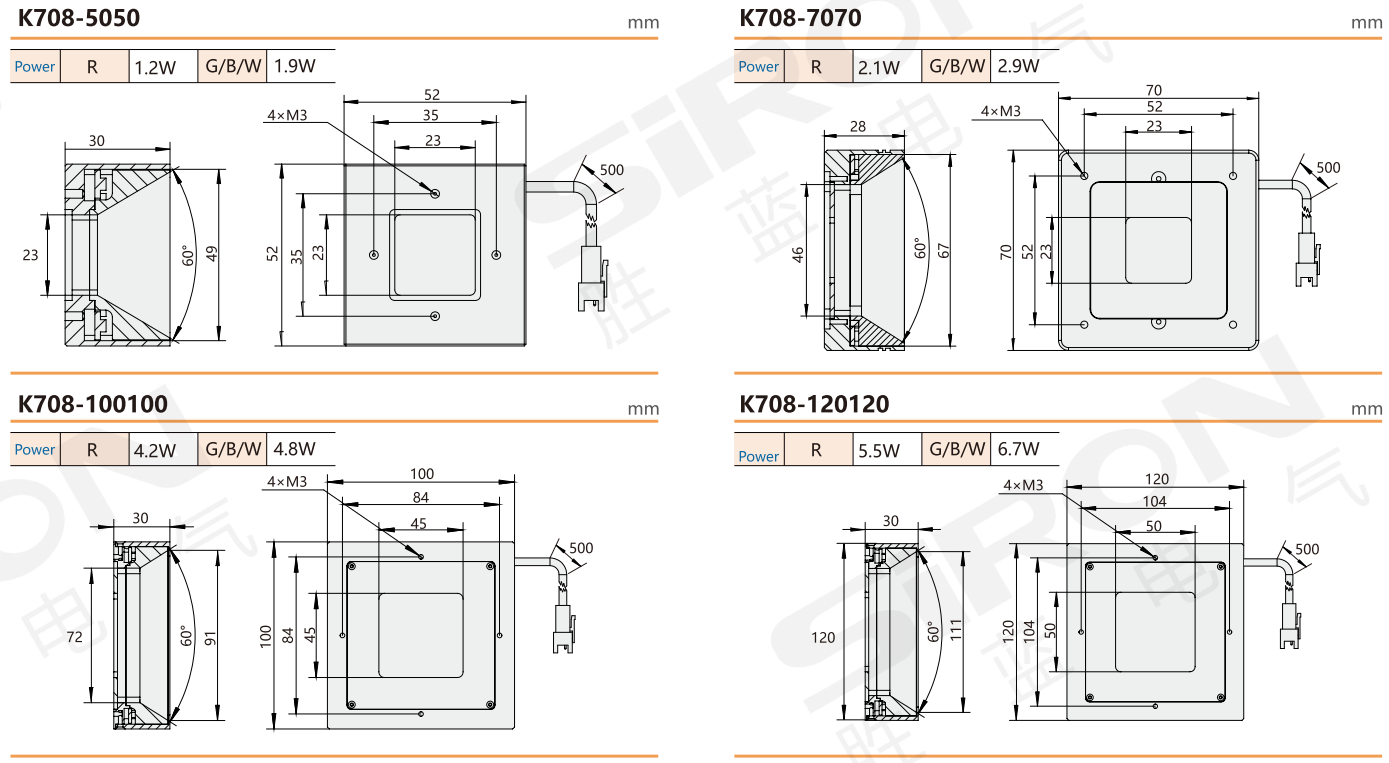

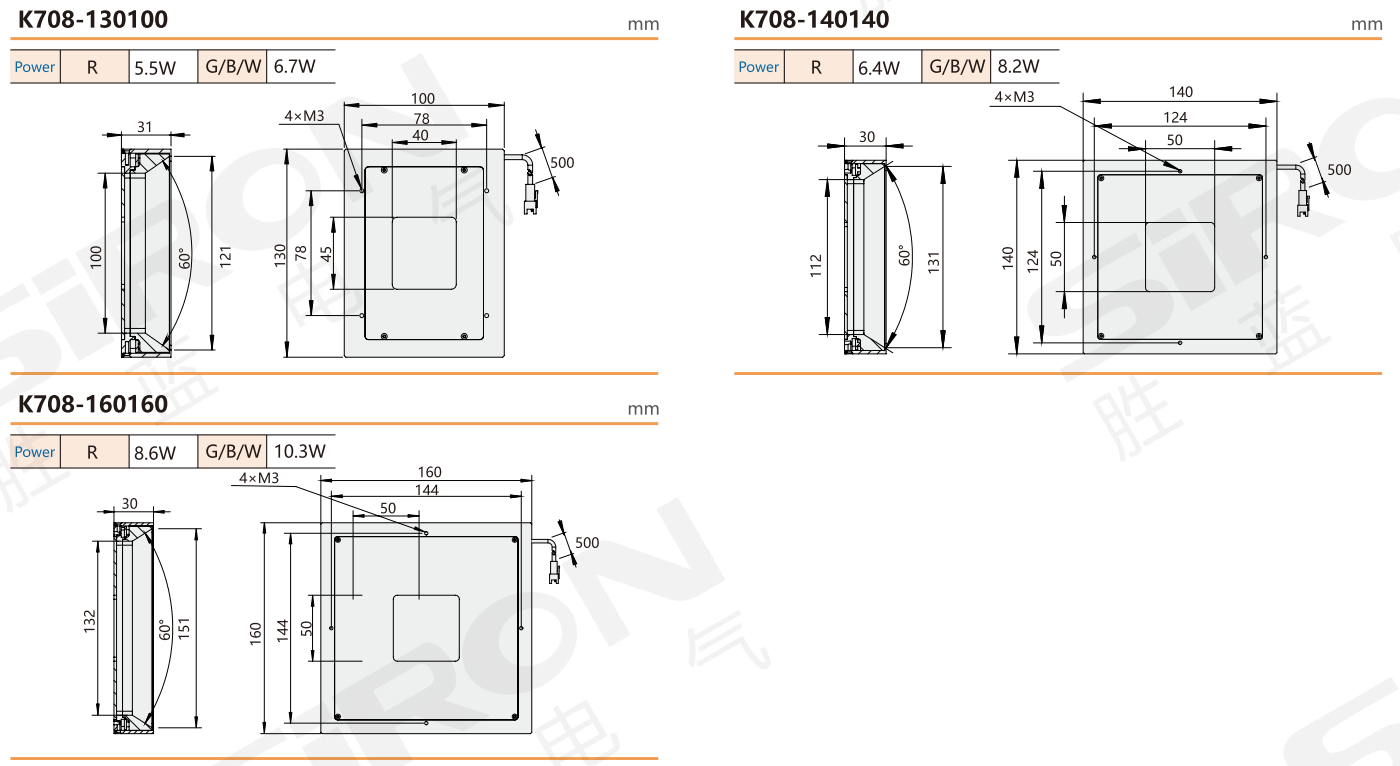

Dimension
