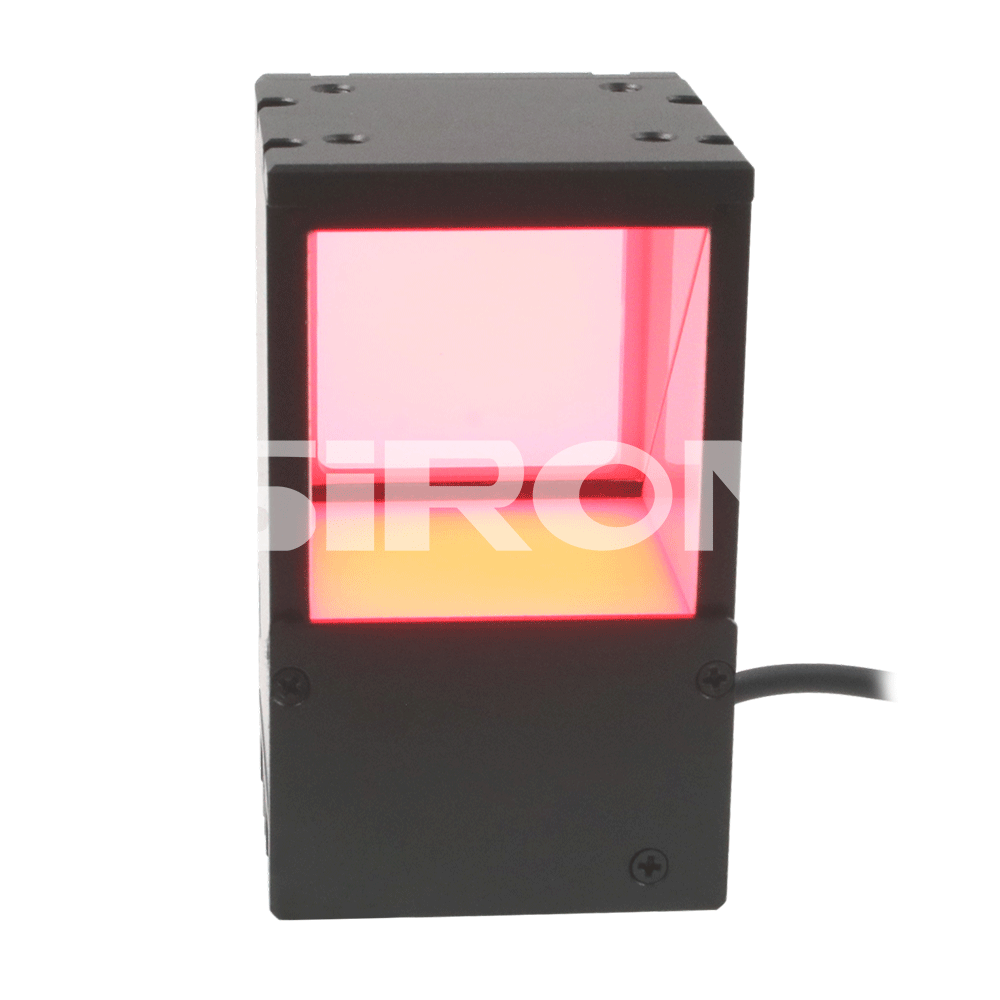

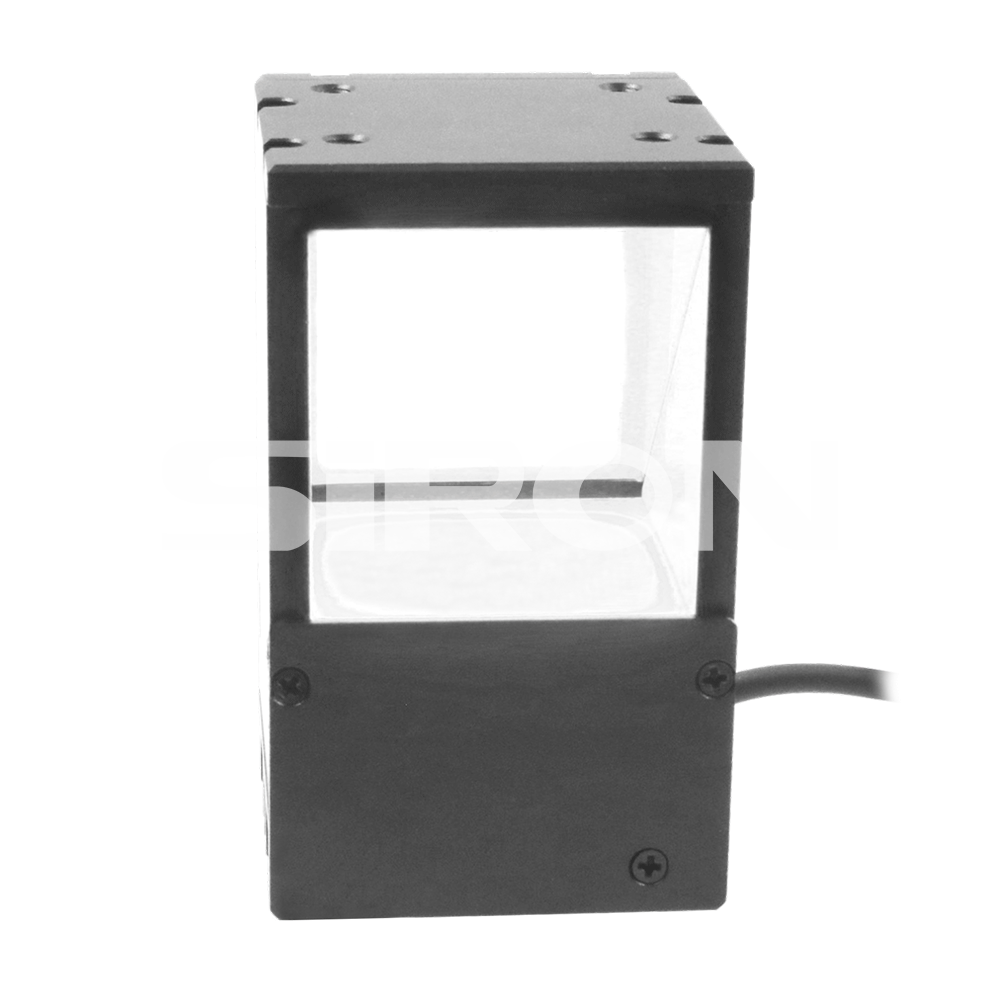

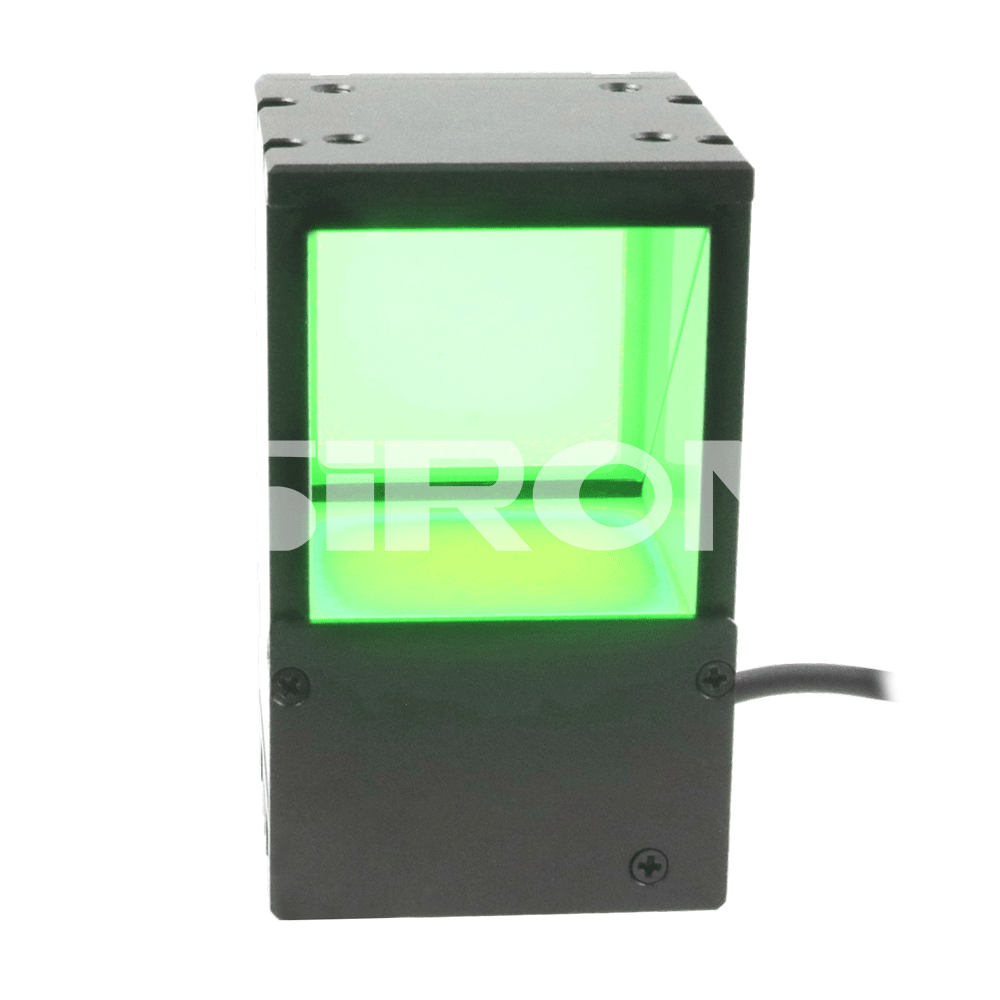

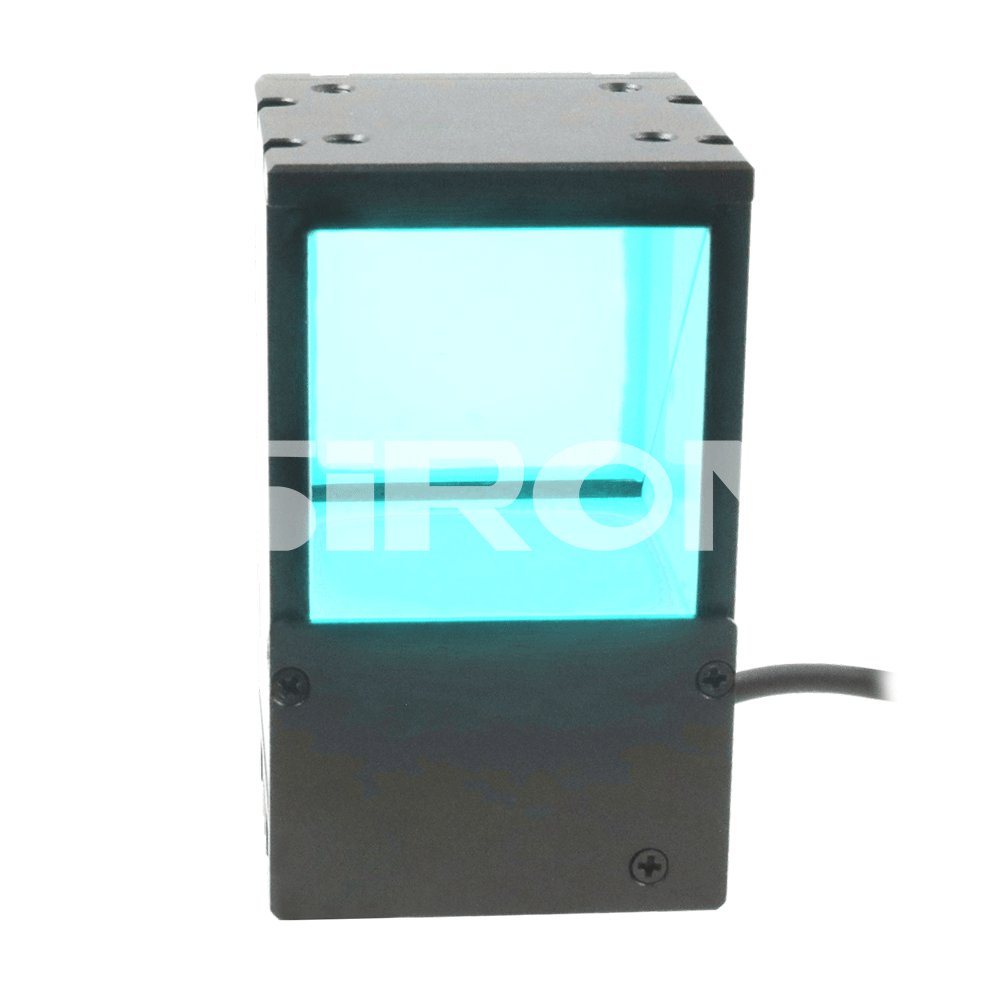

SiRON K720 Series Coaxial Light Source

About selection

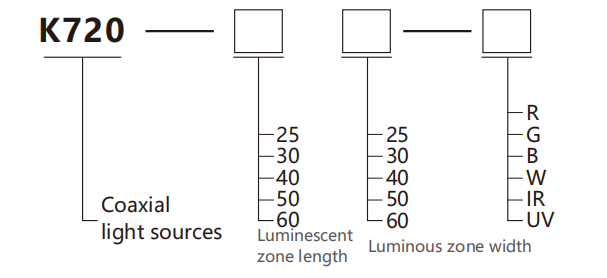

Selection example:

K720-2525-R indicates the K720 series,the length of the luminous area is 25mm,the width of the luminous area is 25mm,and the color of the light source is red.

Note: 1. R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

 Table 1                                                                                                                                                                                               mm

Specifications

Name	Coaxial light source

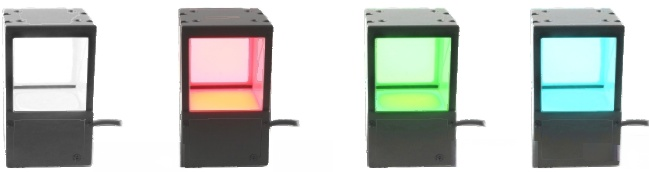

Appearance	White                                 Red                                    Green                                 Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller
Scope of application	Reflective object surface detection; Mark point positioning detection;Object edge location detection
Wavelength and color temperature	W:6500K                          B:465～470nm R:620～630nm                     IR:850～940nm G:525～530nm                     UV:365～395nm

Example

Coin Contour Detection                                                                     Plastic Laser Character Imaging Detection

Coaxial light provides uniform illumination,                                  Coaxial light illumination creates a clear distinction

allowing clear visibility of the                                                             between the embossed/debossed characters  and

coin contour in the image.                                                                  the background, facilitating easy detection.

Related products

Controller				Extension cord
	Analog Controller K790/P.065	Digital Controller K791/P.067	Strobe Controller K792/P.069		K019-2-XXXX (Custom lengths available; confirm length before order)

Dimension
