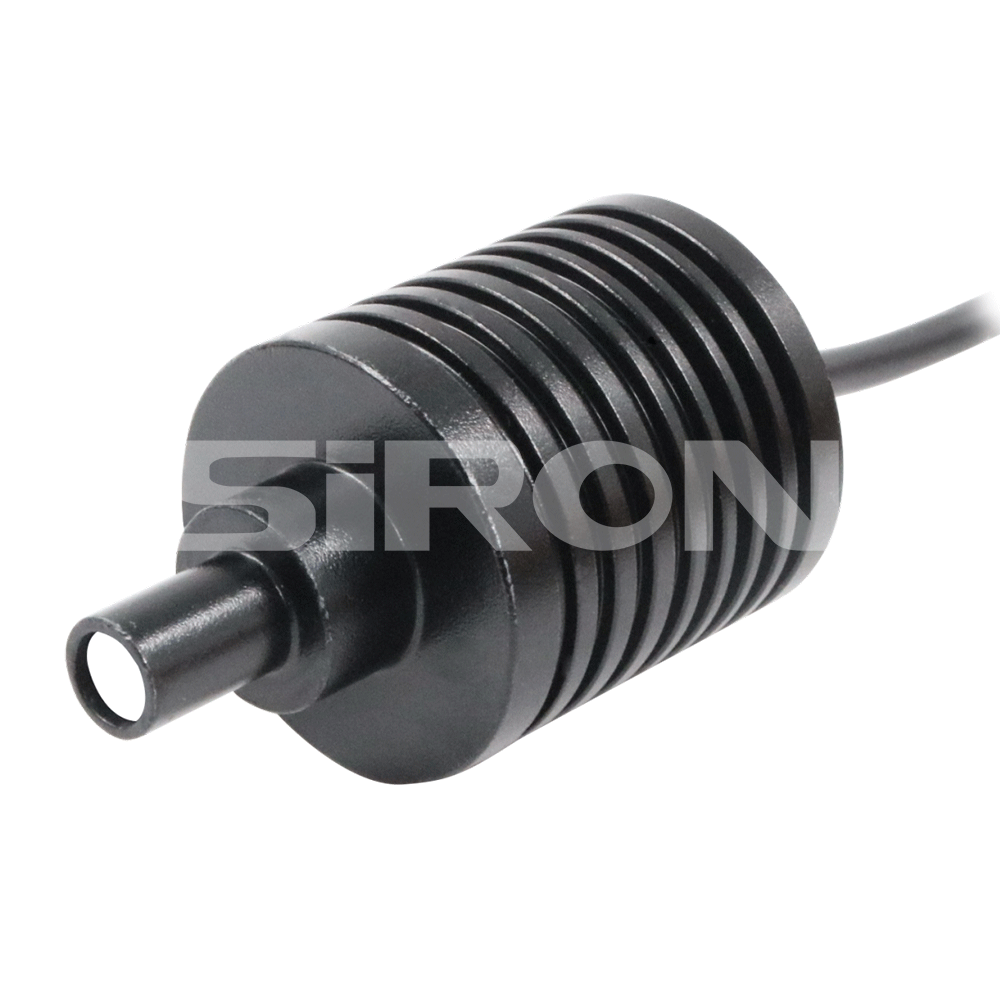

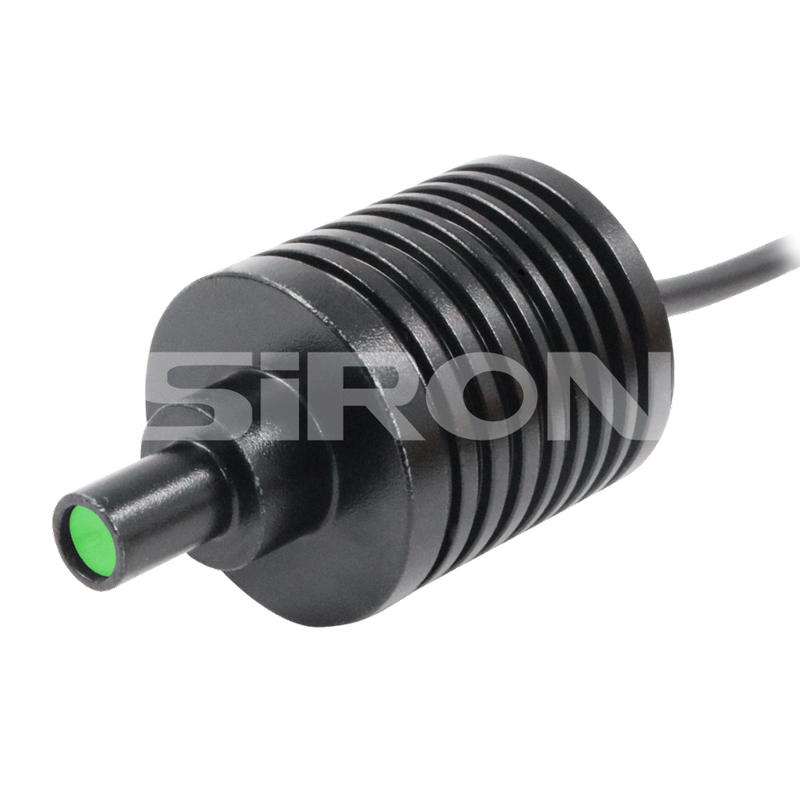

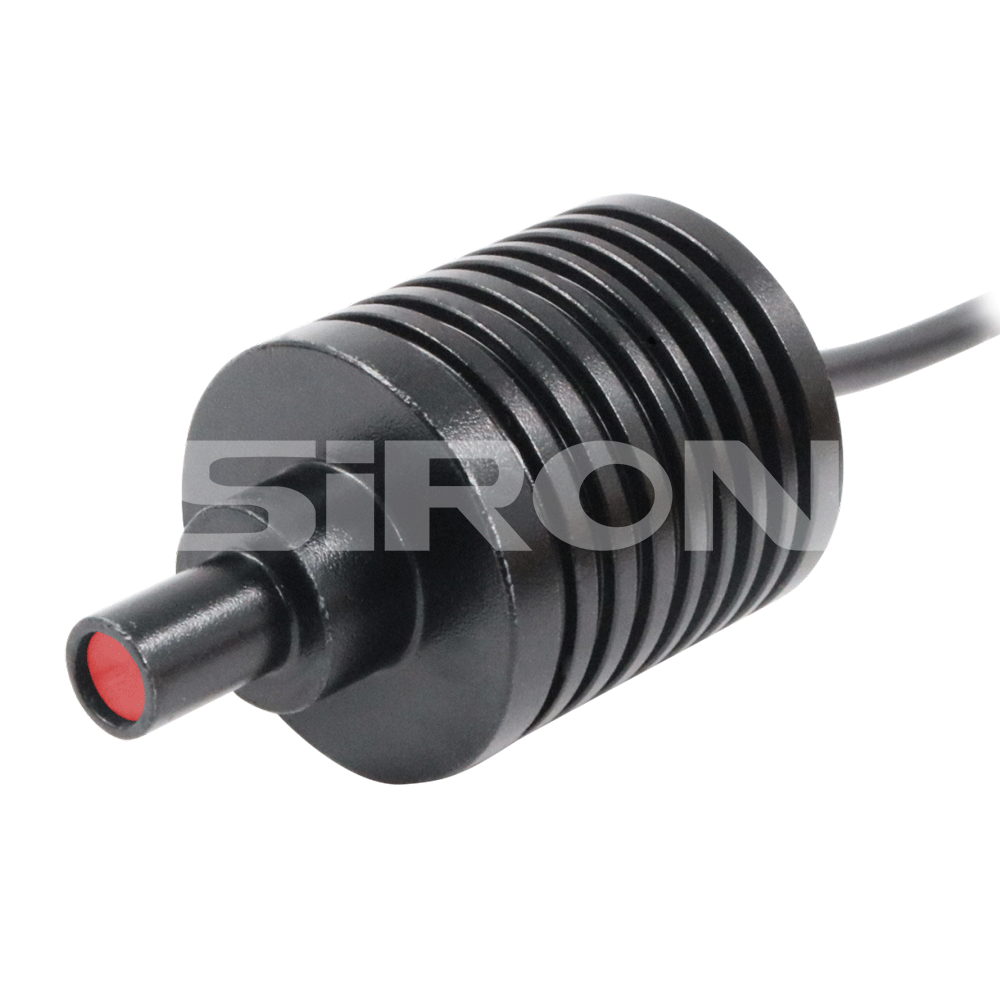

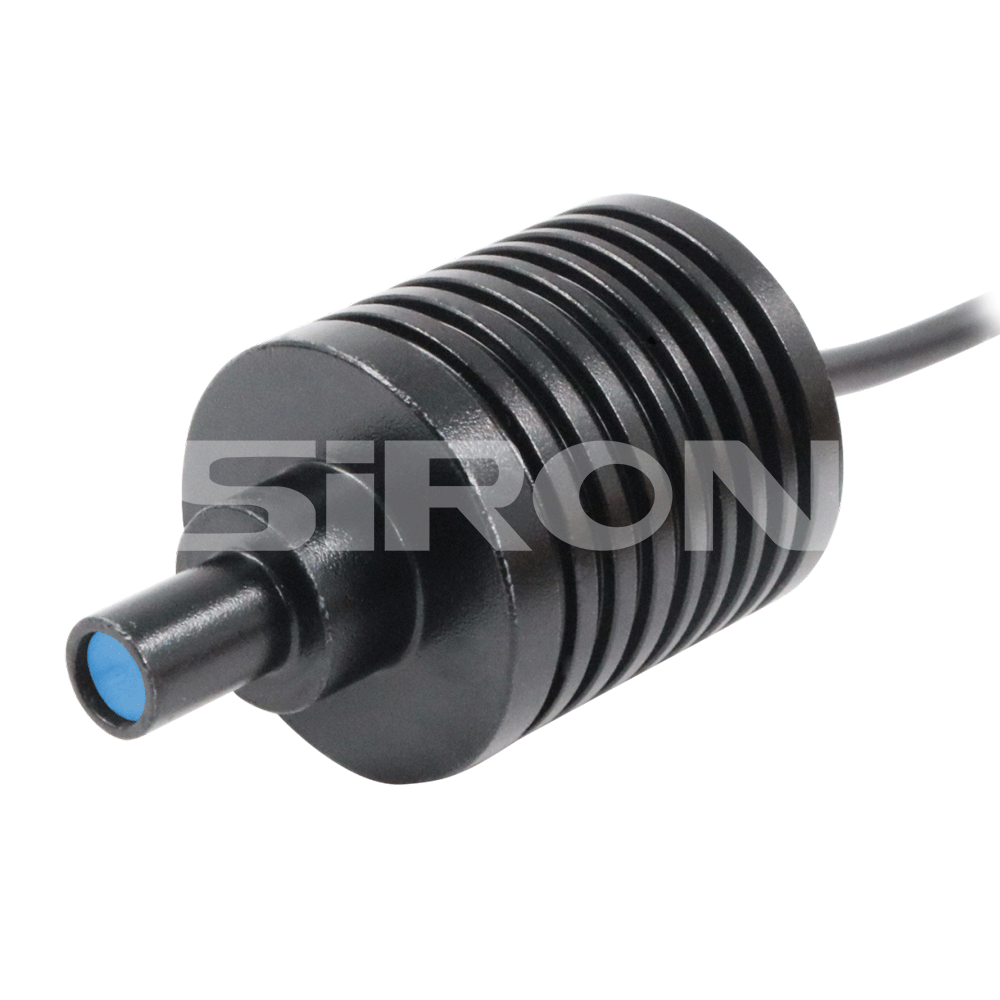

K731 Series
SiRON
8479909090

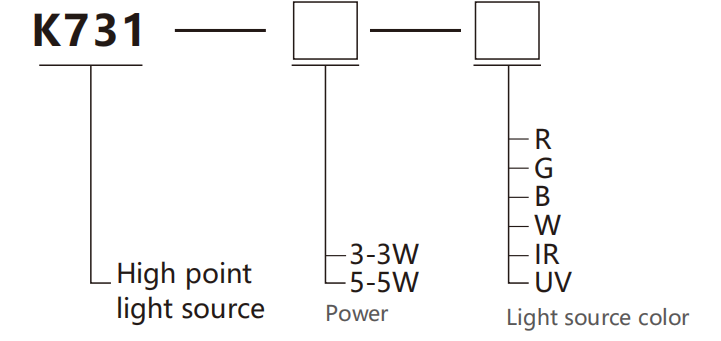

About selection
Selection example: K731-3-R indicates the K731 series, the power is 3W, the light source color is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
Secifications
| Name | Highlight light source |
| Appearance |

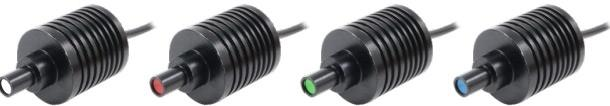

White Red Green Blue |
| Voltage | 5V |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Point light source 5V constant current controller |
| Scope of application | Chip detection;Mark point positioning detection; Level glass base alignment |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example

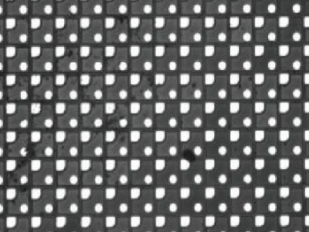

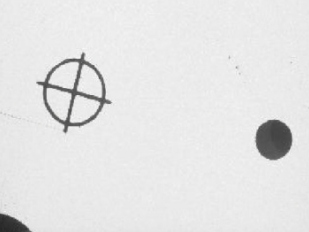

Mark Point Detection Wafer Defect Detection
High-brightness spot light with telecentric lens High-brightness spot light with telecentric lens
illuminationmakes the Mark points prominent, illumination is used to detect wafer defects.
facilitating image positioning.

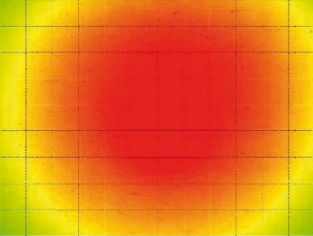

Uniformity distribution map
Field of View: 15×10 mm

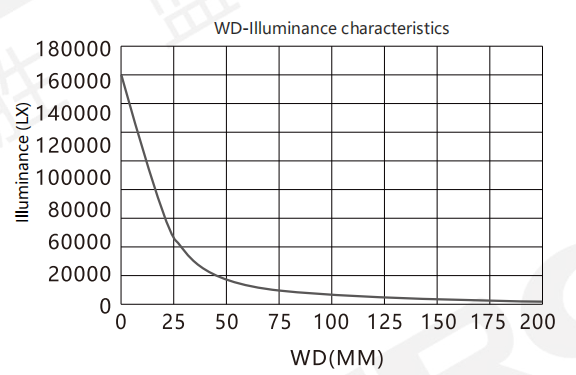

Lllumination characteristic graph
Related products
| Controller |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | K019-2-XXXX (Custom lengths available; confirm length before order) |

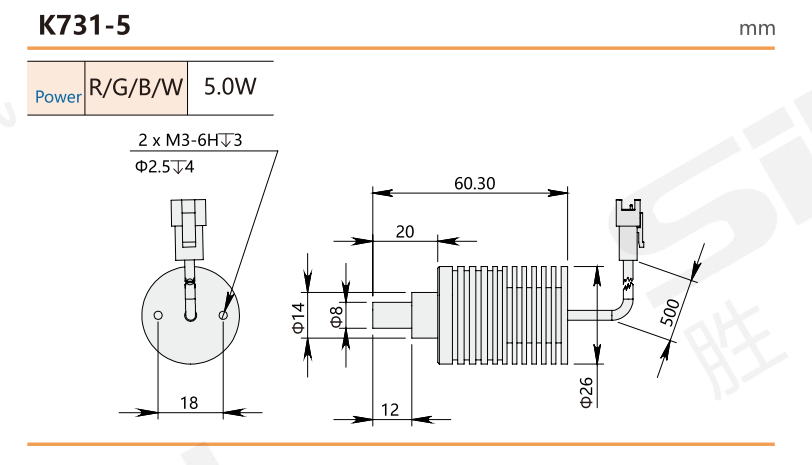

Dimension
