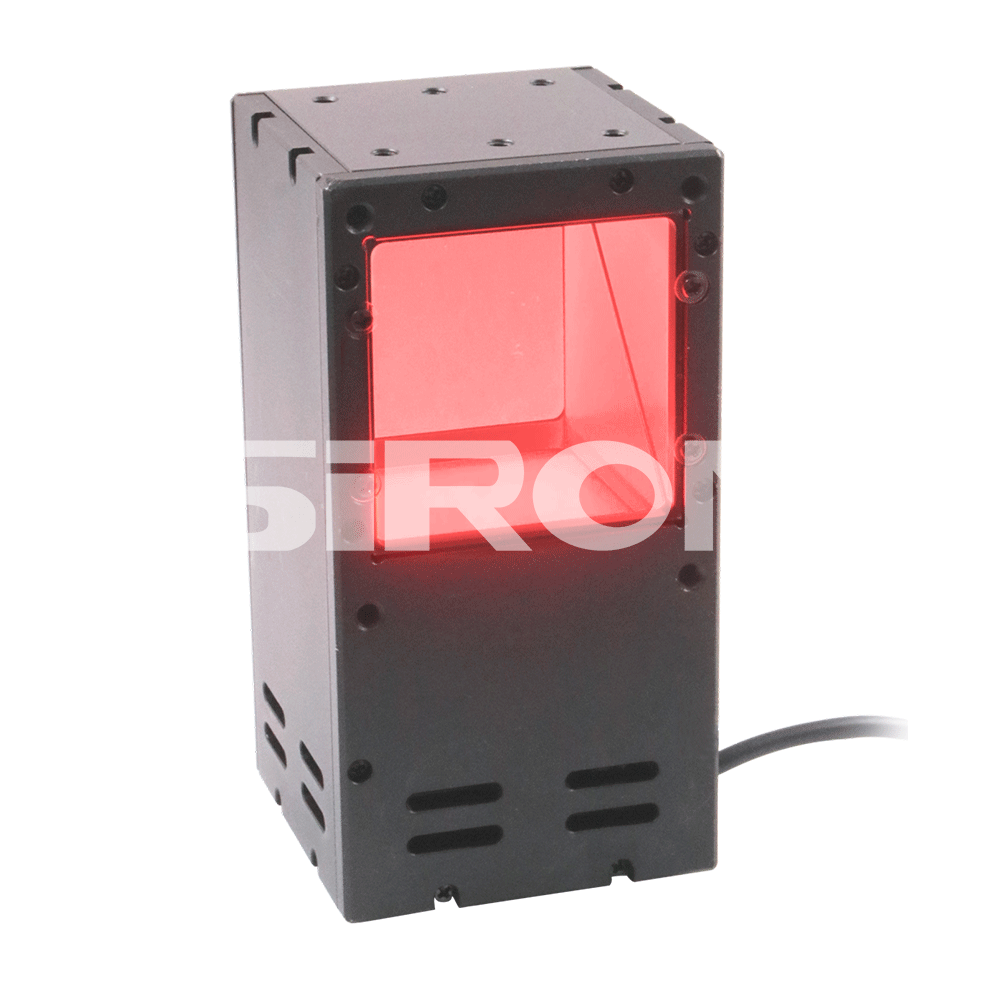

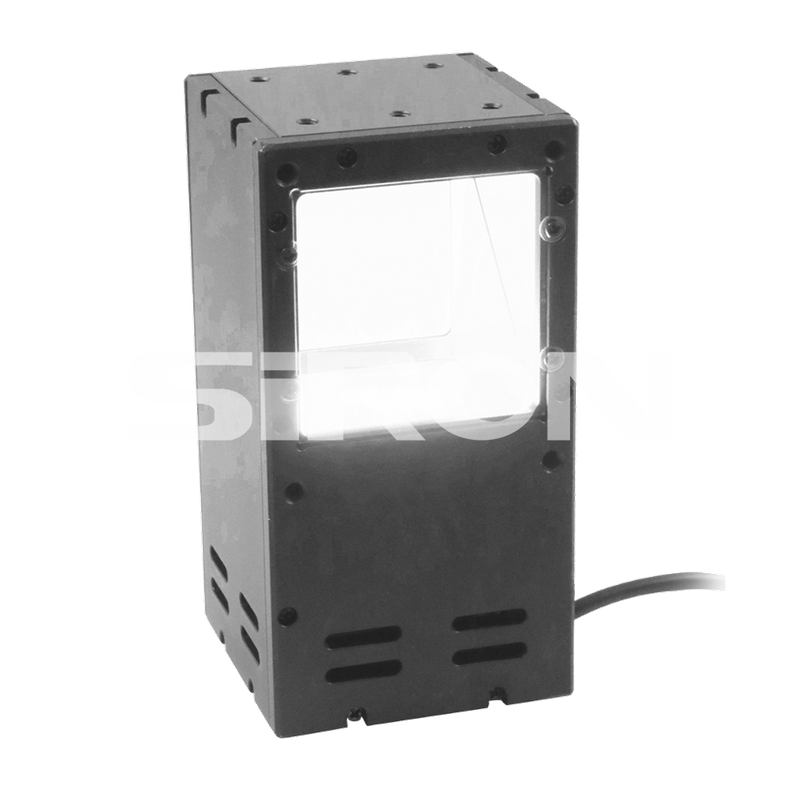

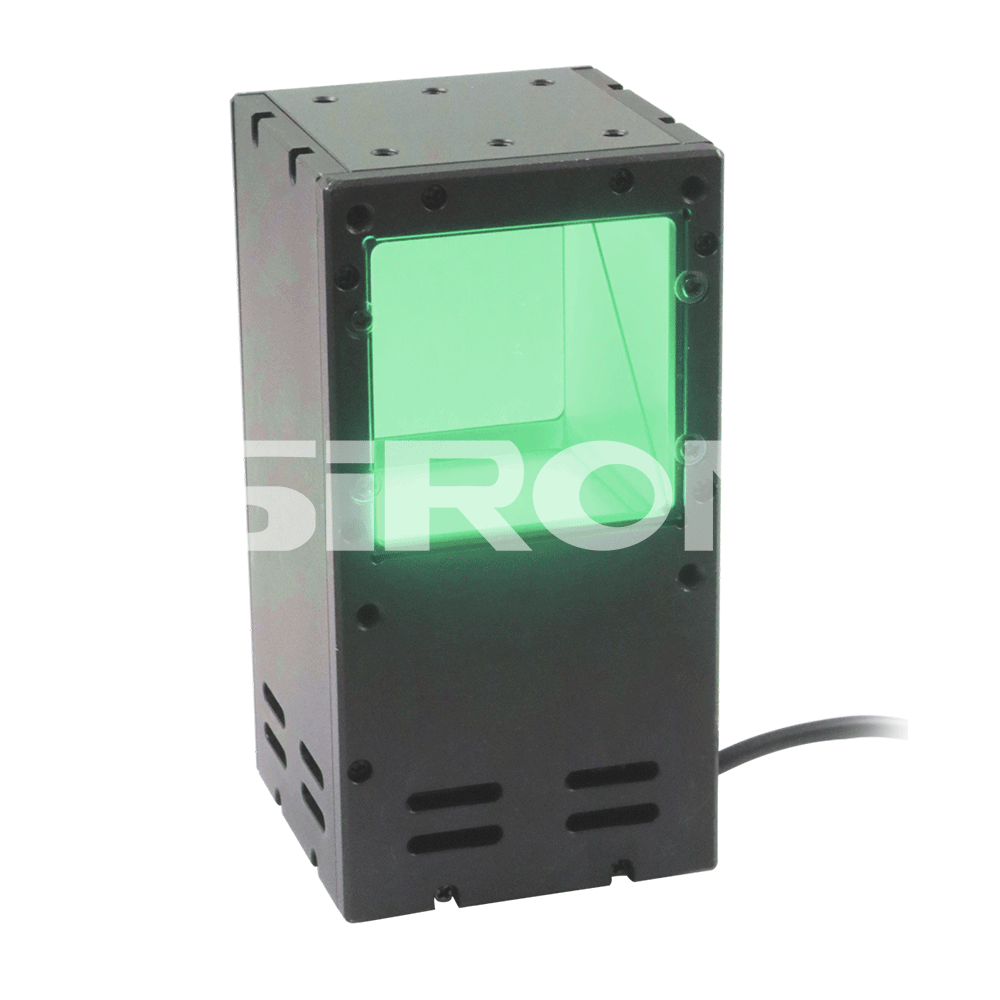

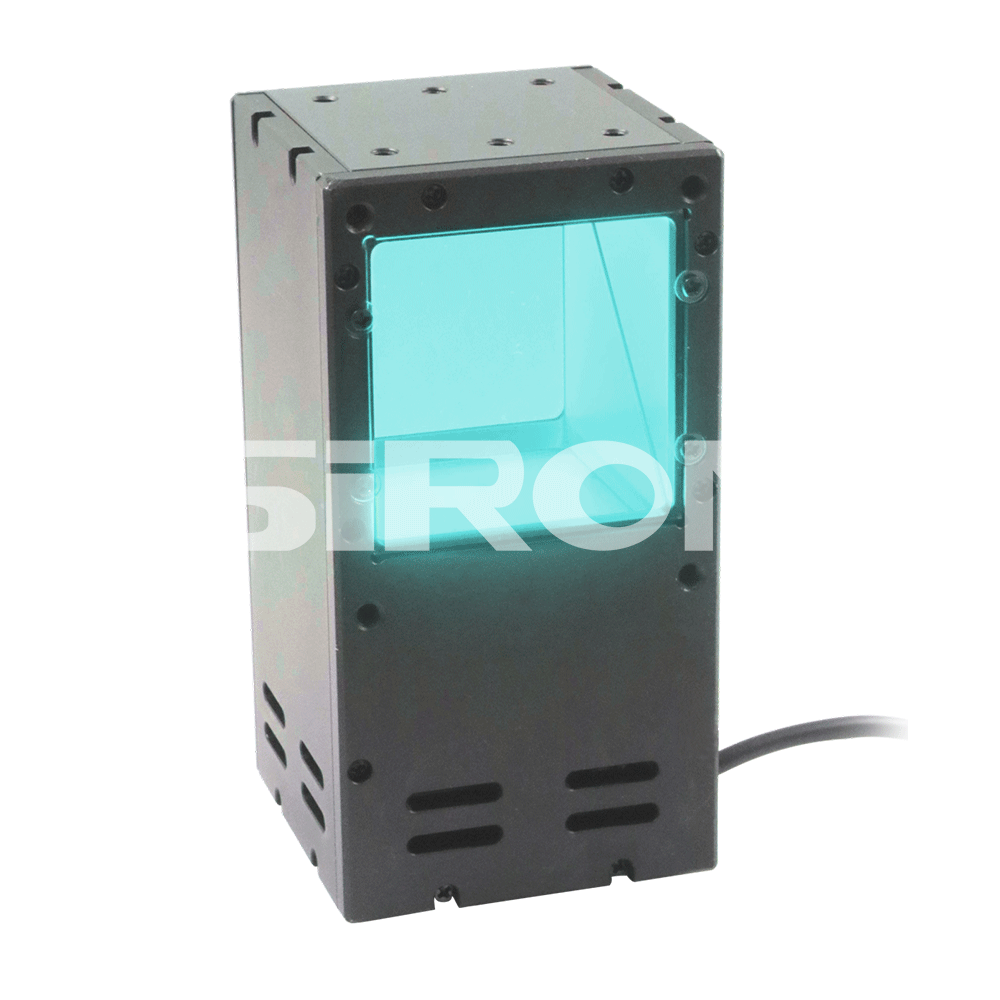

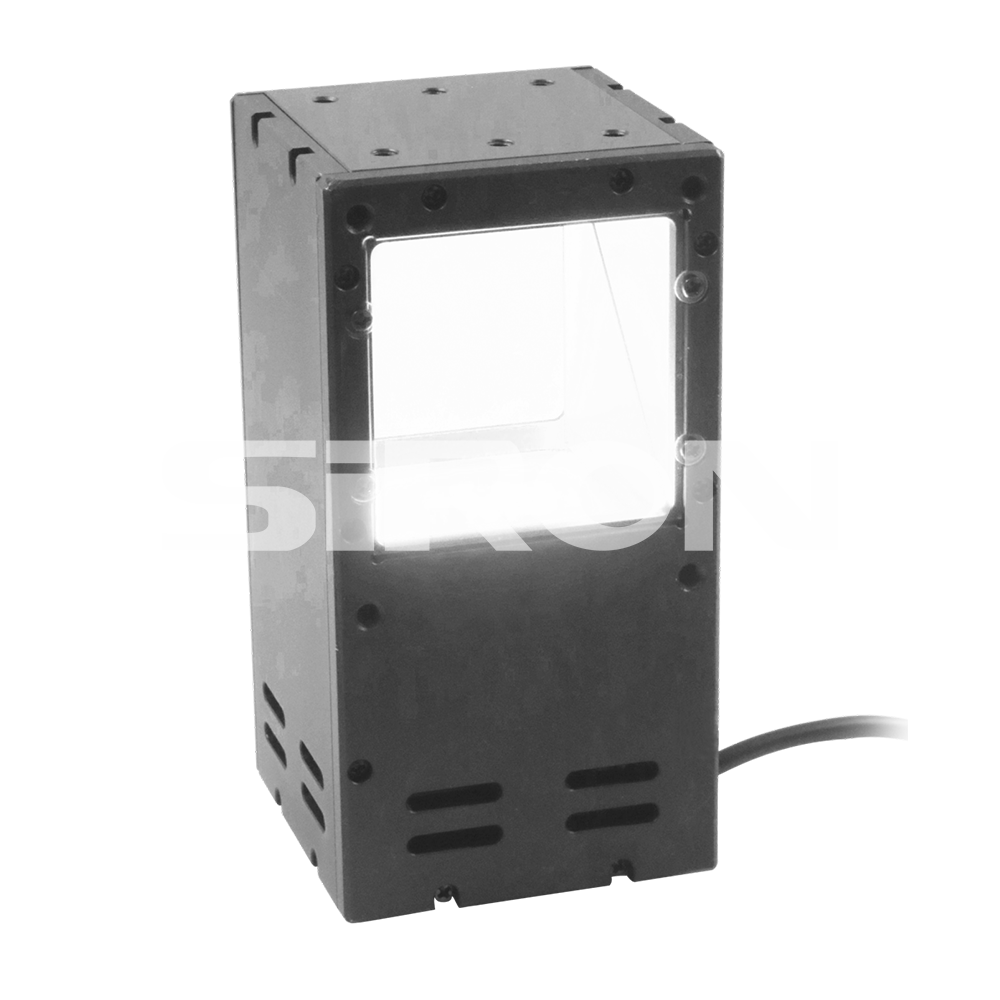

K722 Series
SiRON
8479909090

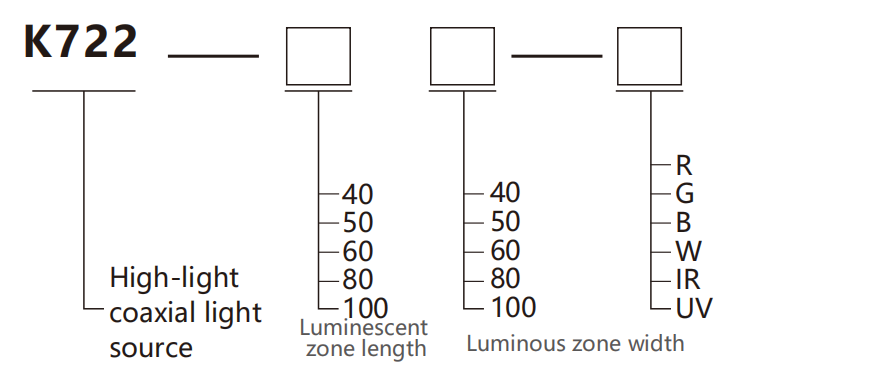

About selection
Selection example:
K722-4040-R indicates the K722 series,the lengthof the luminous area is 40mm,the width of the luminous area is 40mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet. mm
| Model number | K722-4040 | K722-5050 | K722-6060 | K722-8080 | K722-100100 |
| Lighting surface | 38×37.5 | 51×48 | 57×58 | 76×76 | 100×100 |
Specifications
| Name | Bright coaxial light source |

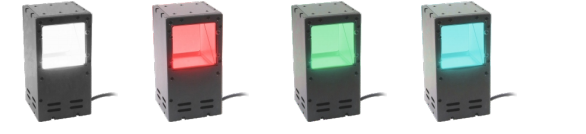

| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Reflective object surface detection;Surface uneven object defect detection;Metal surface scratch detection |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example
Iron Sheet Direction Recognition Detection Metal Shaft Defect Detection
With highly parallel light illumination, the features Under vertical illumination, the flat metal surface
of the detected object are clearly visible. reflects light vertically into the camera, achieving
an obvious imaging effect.
Uniformity distribution map
WD=50, Field of View: 40×80 mm LWD=50, Field of View: 48×48 mm
Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |
Dimension
