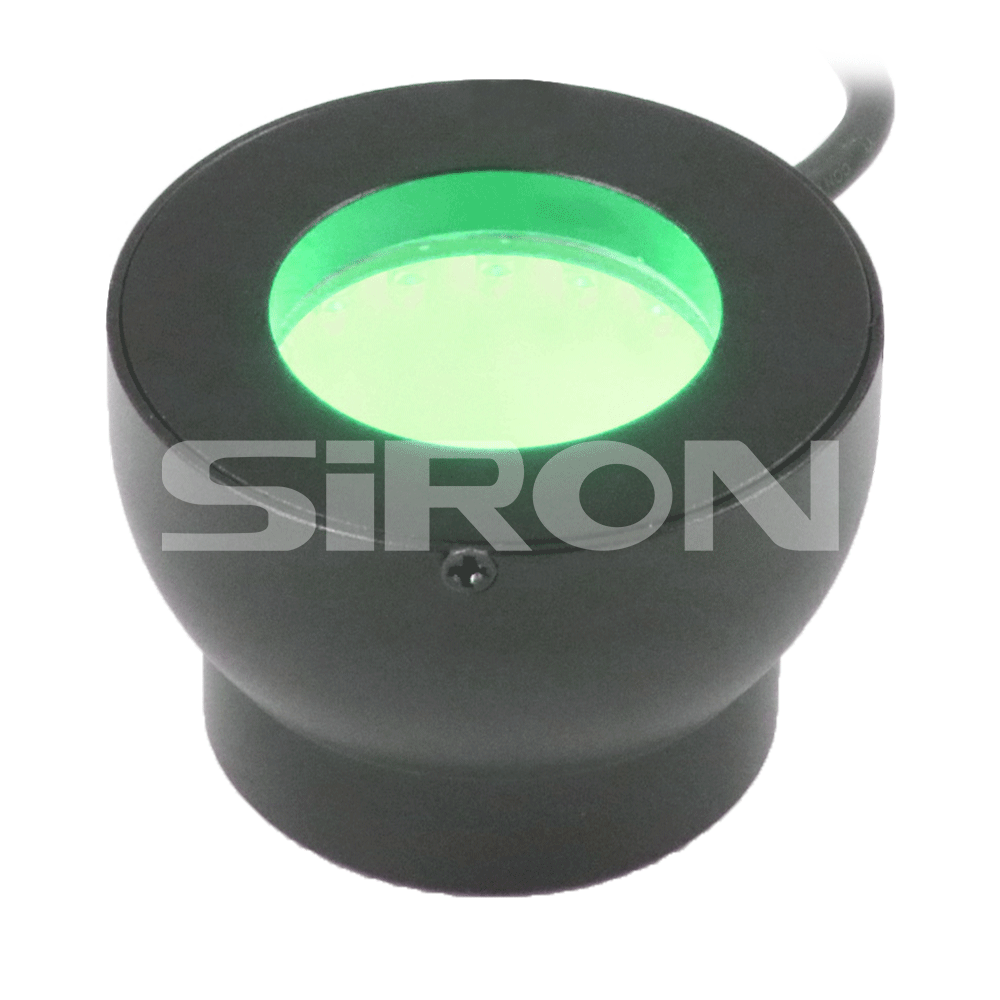

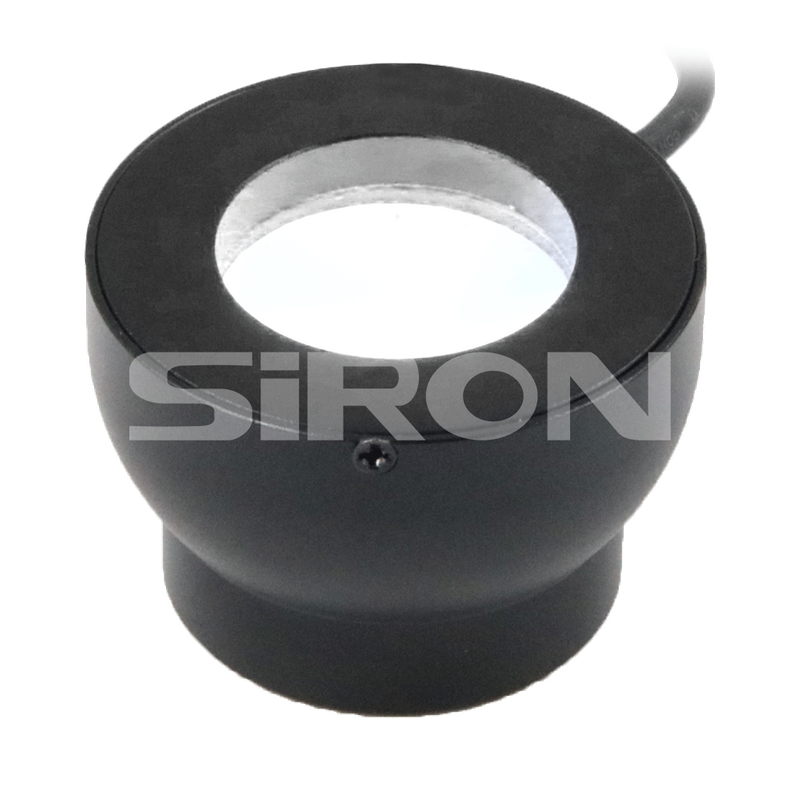

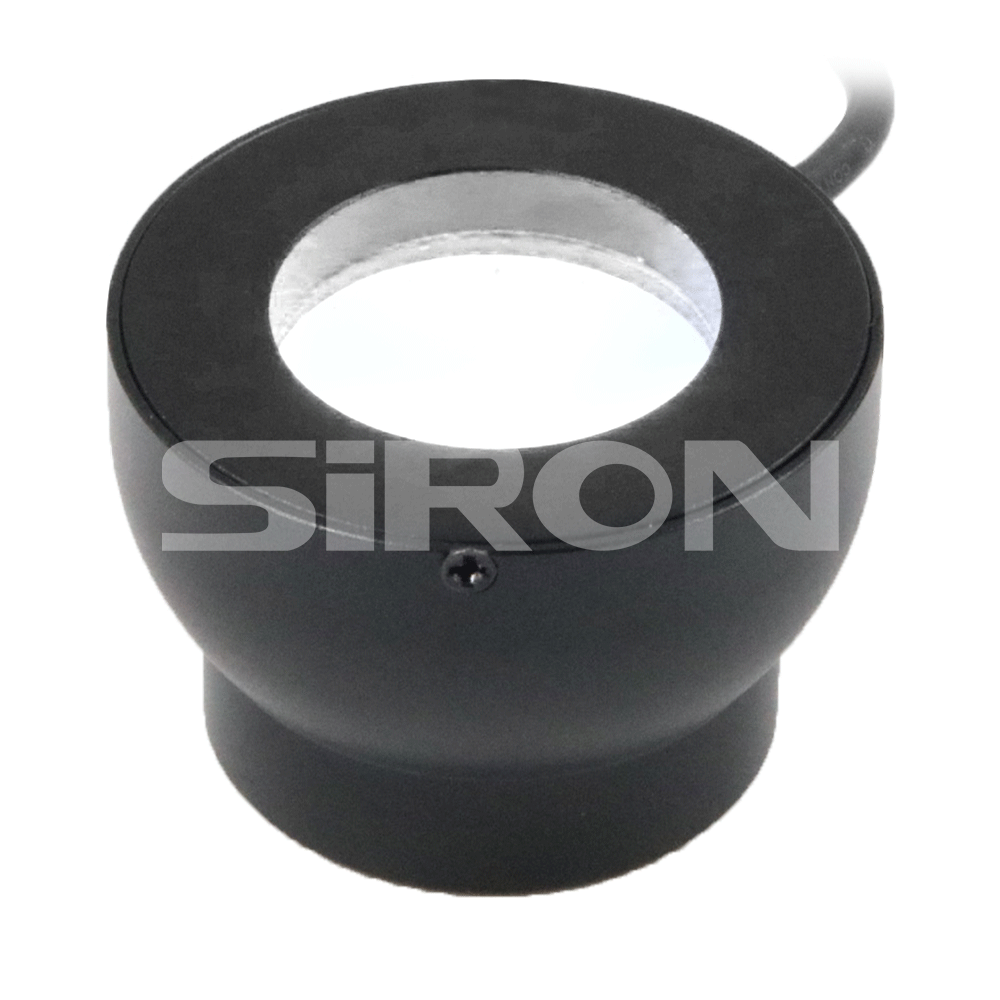

SiRON K730 Series Bowl Light Source

Name: SiRON K730 Series Bowl Light Source
Brand: SiRON
Rating: 5.0 (55 reviews)

Features:

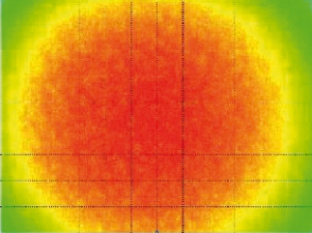

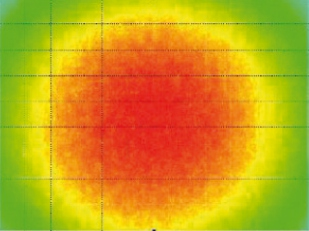

* The bowl light source is a highly uniform light source;
* The light emitted by the LED forms a uniform light after being emitted from the spherical surface;

* Suitable for detecting objects with reflective surfaces and uneven surfaces.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K730 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Bowl Light Source Good uniformity Detect reflect objects Detect uneven objects

Product Description

About selection

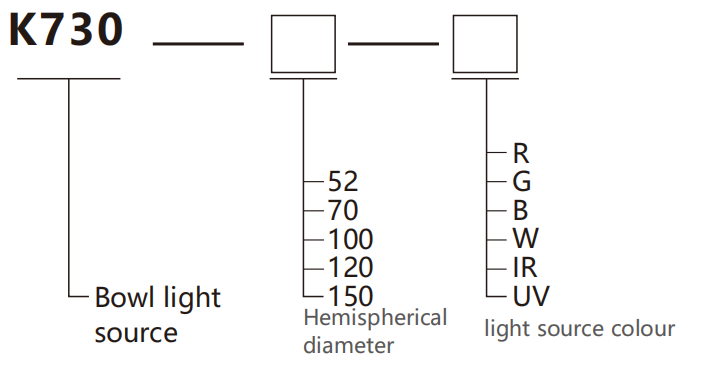

Selection example:

K730-52-R indicates the K730 series, the hemisphere diameter is 52mm, the light source color is red. mm

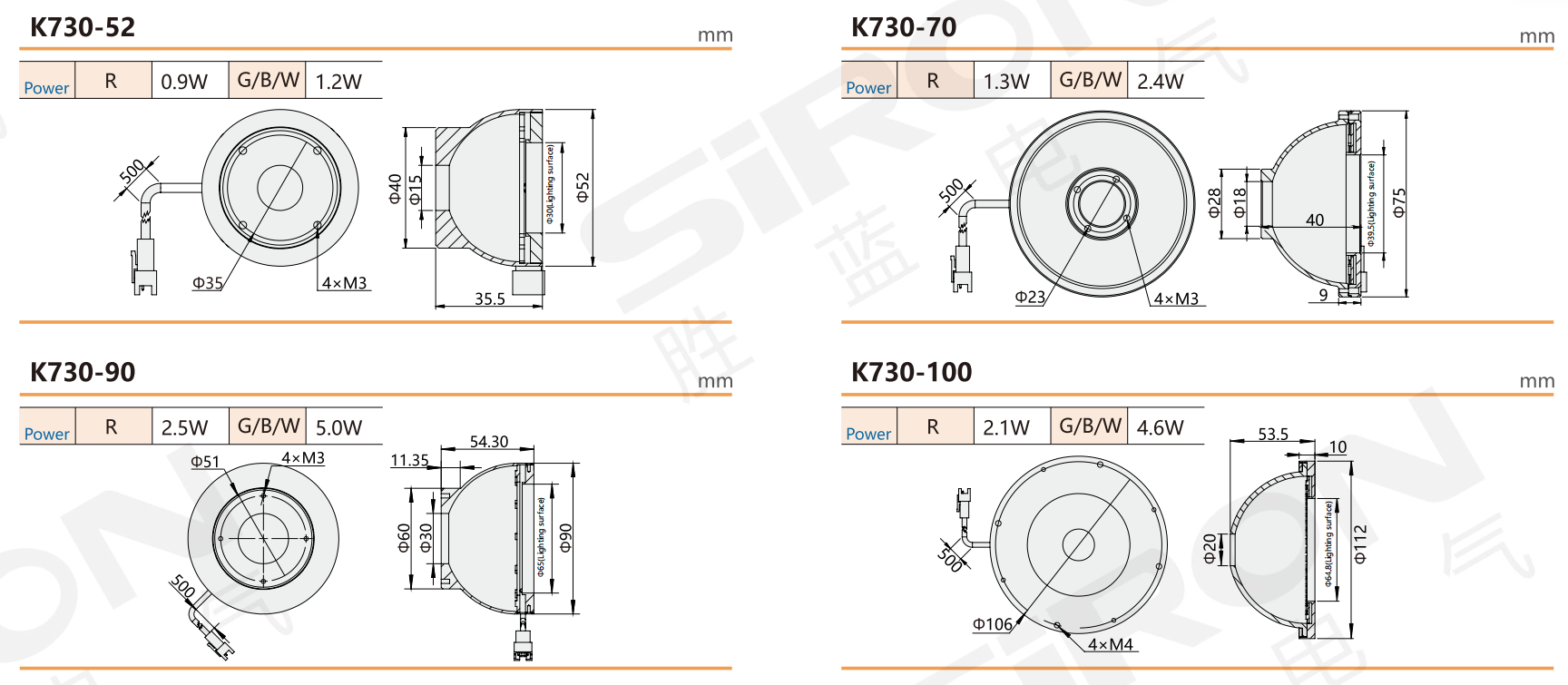

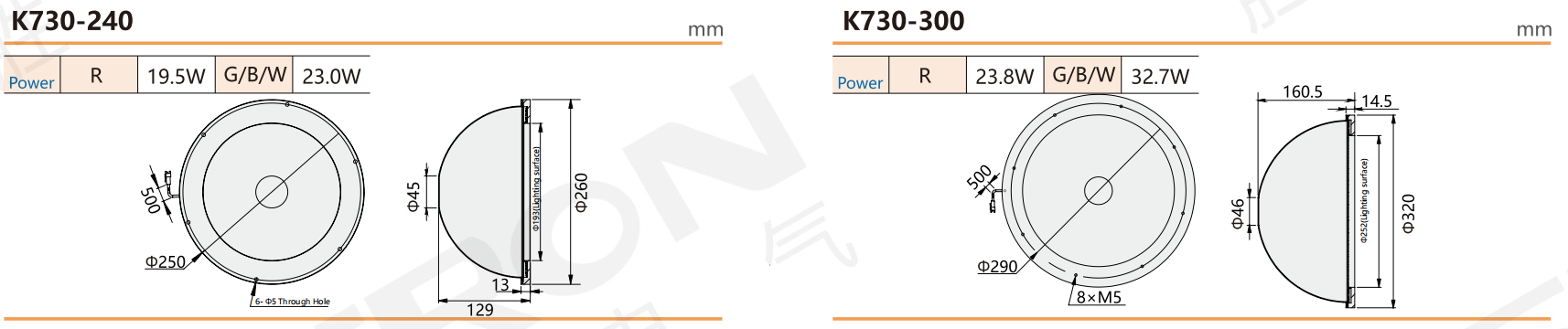

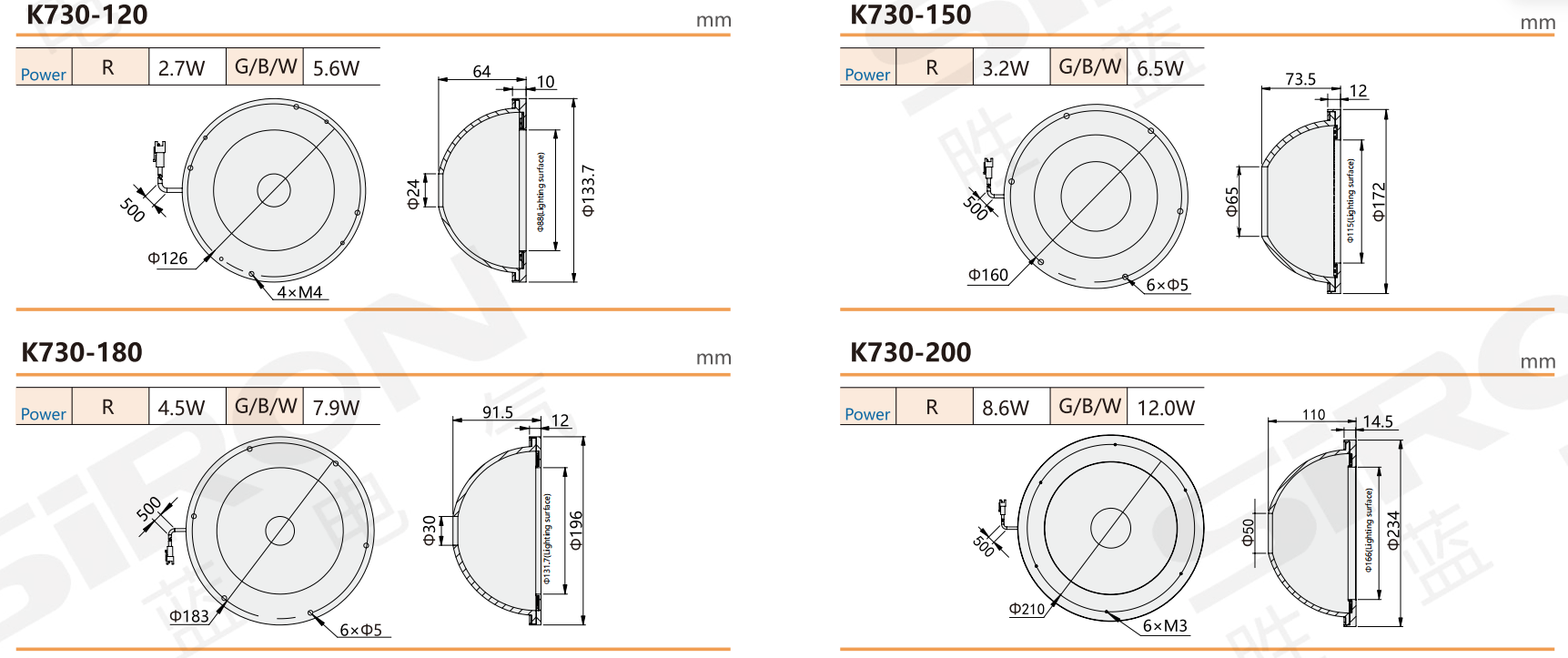

Model number	K730-52	K730-70	K730-90	K730-100	K730-120
Light Emitting Surface (Diameter)	30	39.5	70	64.8	88
Model number	K730-150	K730-180	K730-200	K730-240	K730-300
Light Emitting Surface (Diameter)	115	131.7	166	192	252

Specifications

Name	Bowl light source

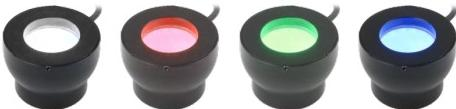

Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller
Scope of application	Reflective object surface detection;Surface uneven object detection;Metal surface scratch detection
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
