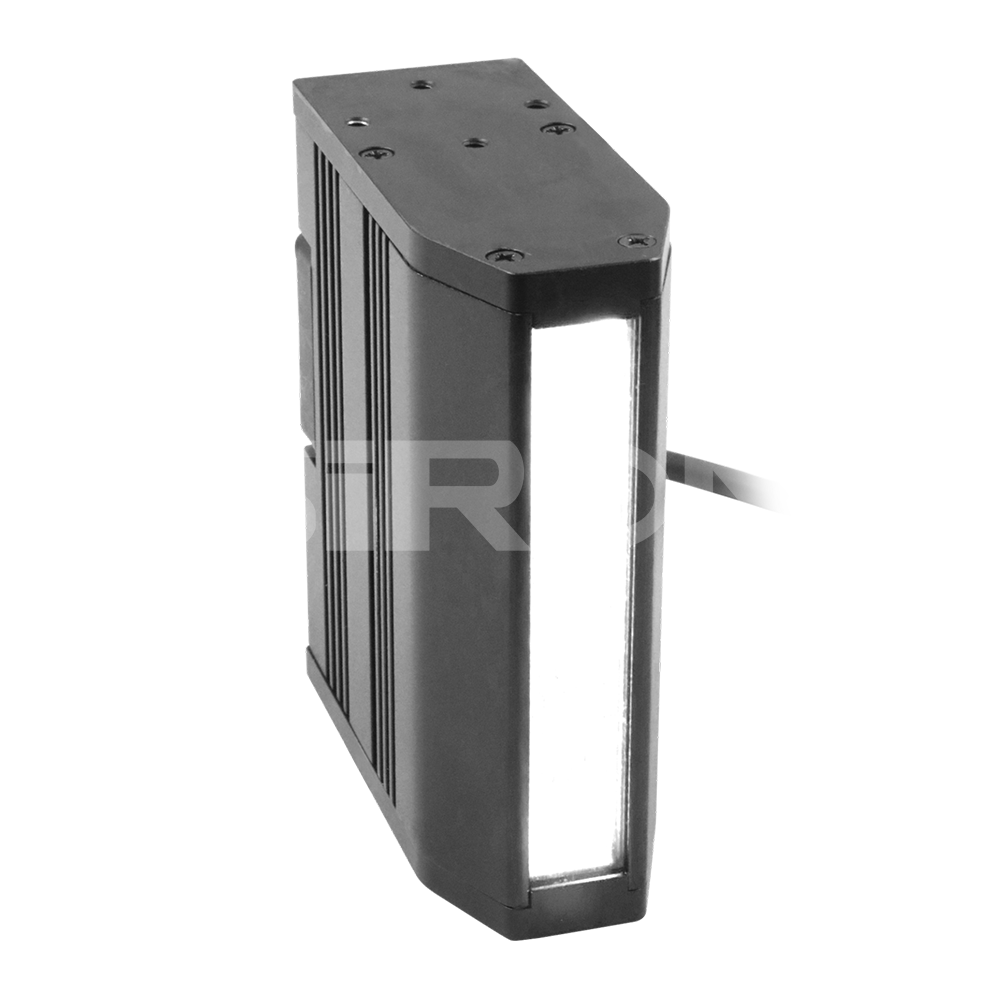

SiRON K733 Series Line Scan Light Source

Name: SiRON K733 Series Line Scan Light Source
Brand: SiRON
Rating: 5.0 (61 reviews)

Features:

* Use a special condenser lens to converge the high-brightness LED into a linear light with high brightness;

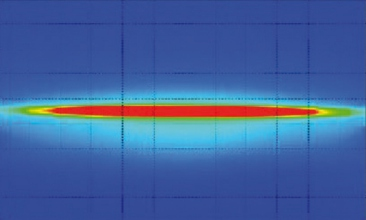

* Illuminated by a special lens to keep the light bright and even and soft;
* Suitable for detecting objects with high reflectivity or printing surfaces.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K733 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Line Scan Light Source Highlight Linear light High bright Linear Light

Product Description

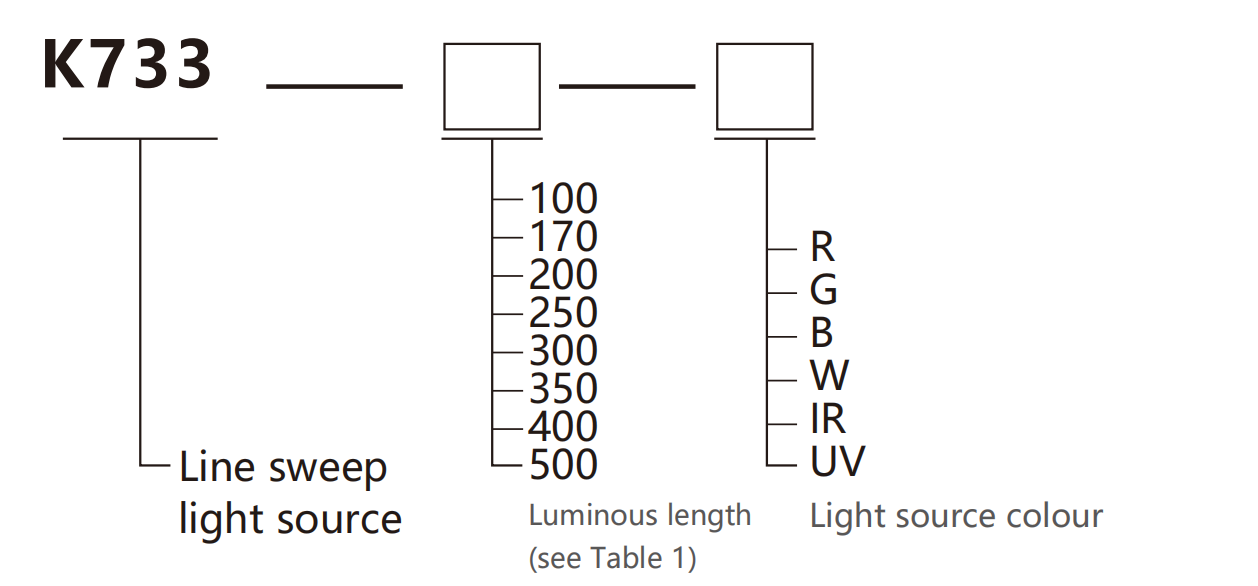

About selection

Selection example: K733-100-R indicates the K733 series, the luminousleng this 100mm,the light source color is red.

Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet. mm

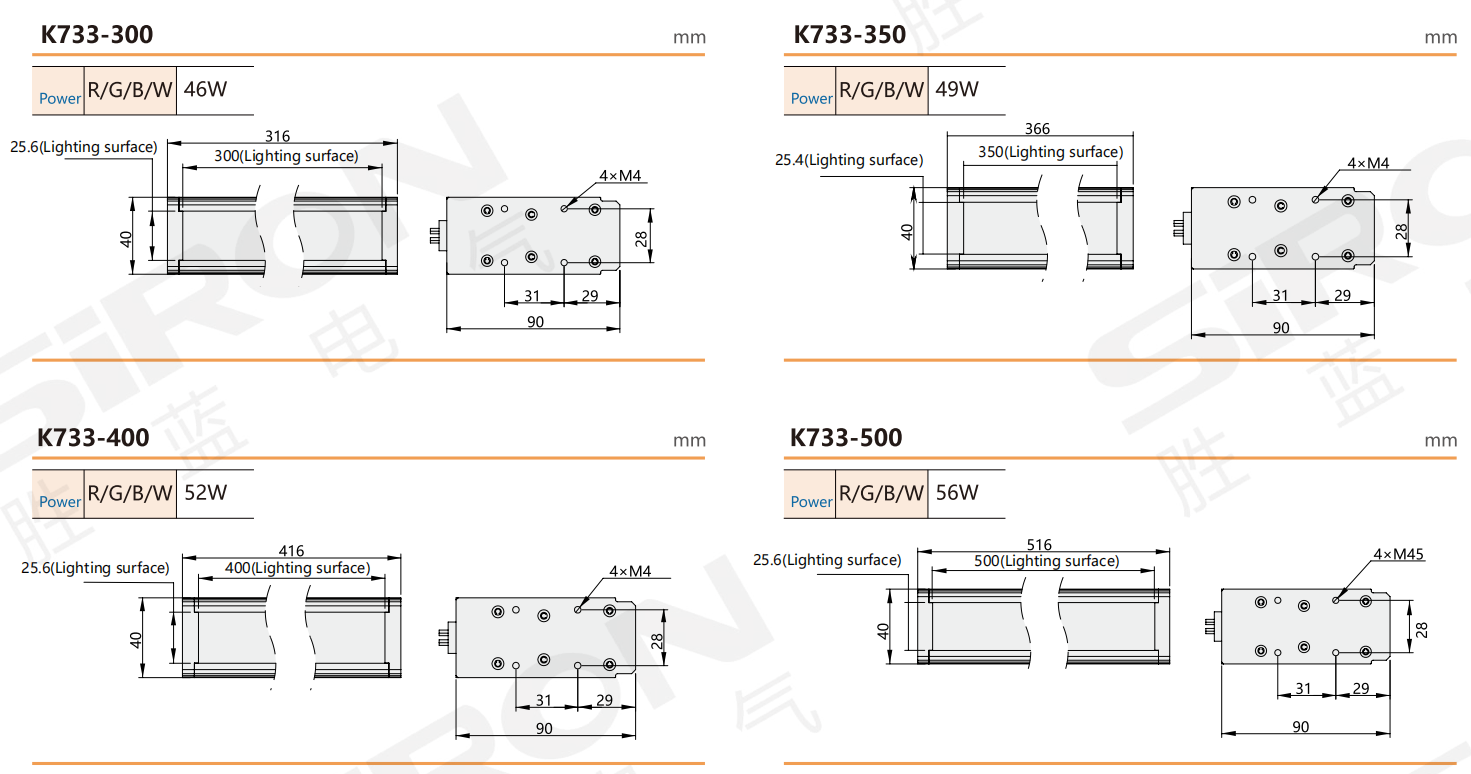

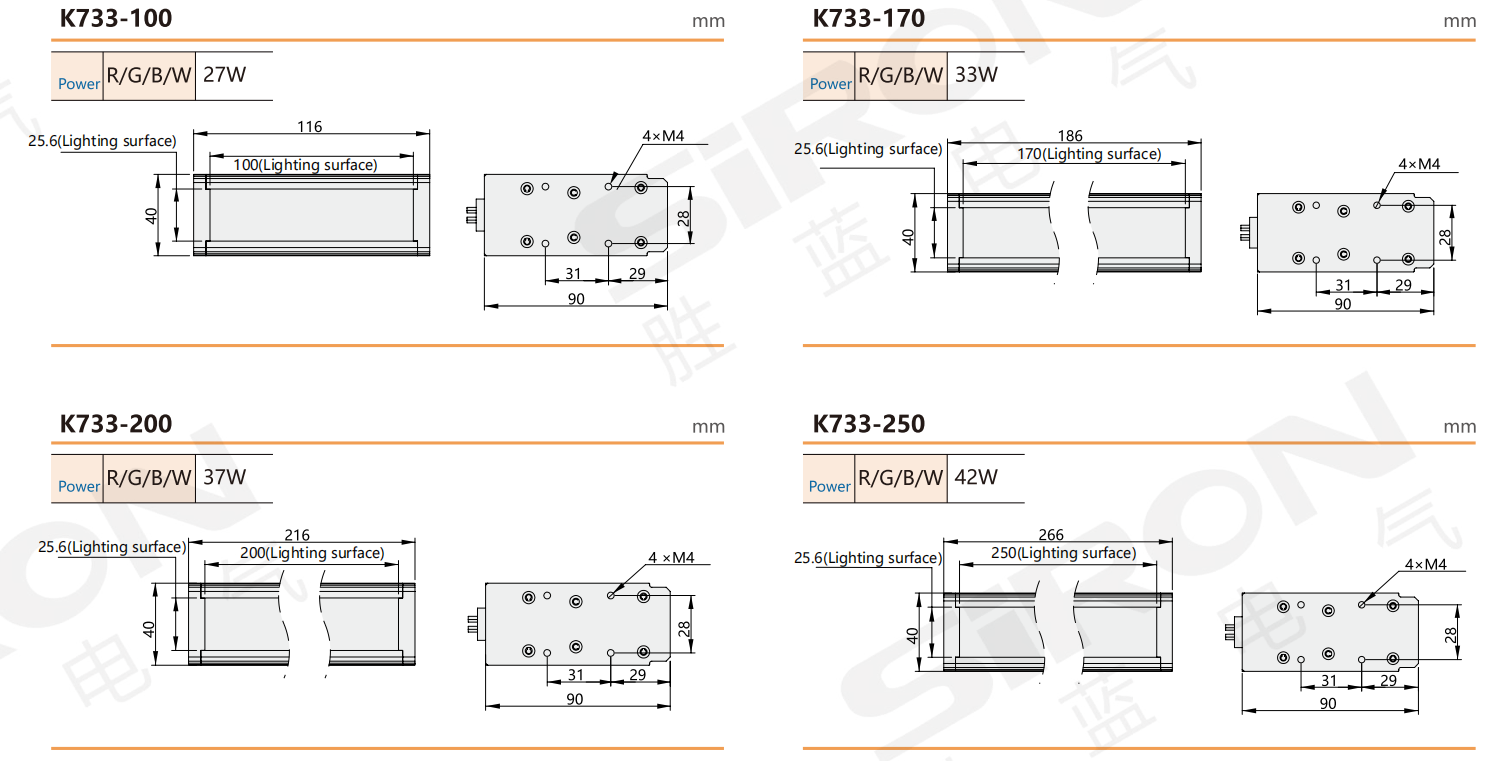

Model number	K733-100	K733-170	K733-200	K733-250	K733-300	K733-350	K733-400	K733-500
Lighting surface	94	164	194	250	294	344	394	494

Specifications

Name	Line scan light source

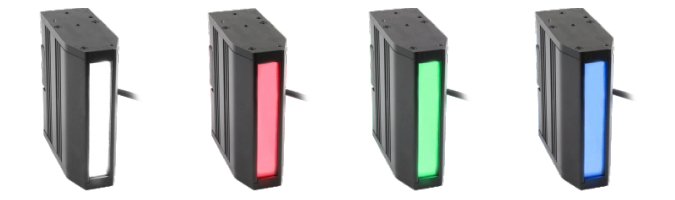

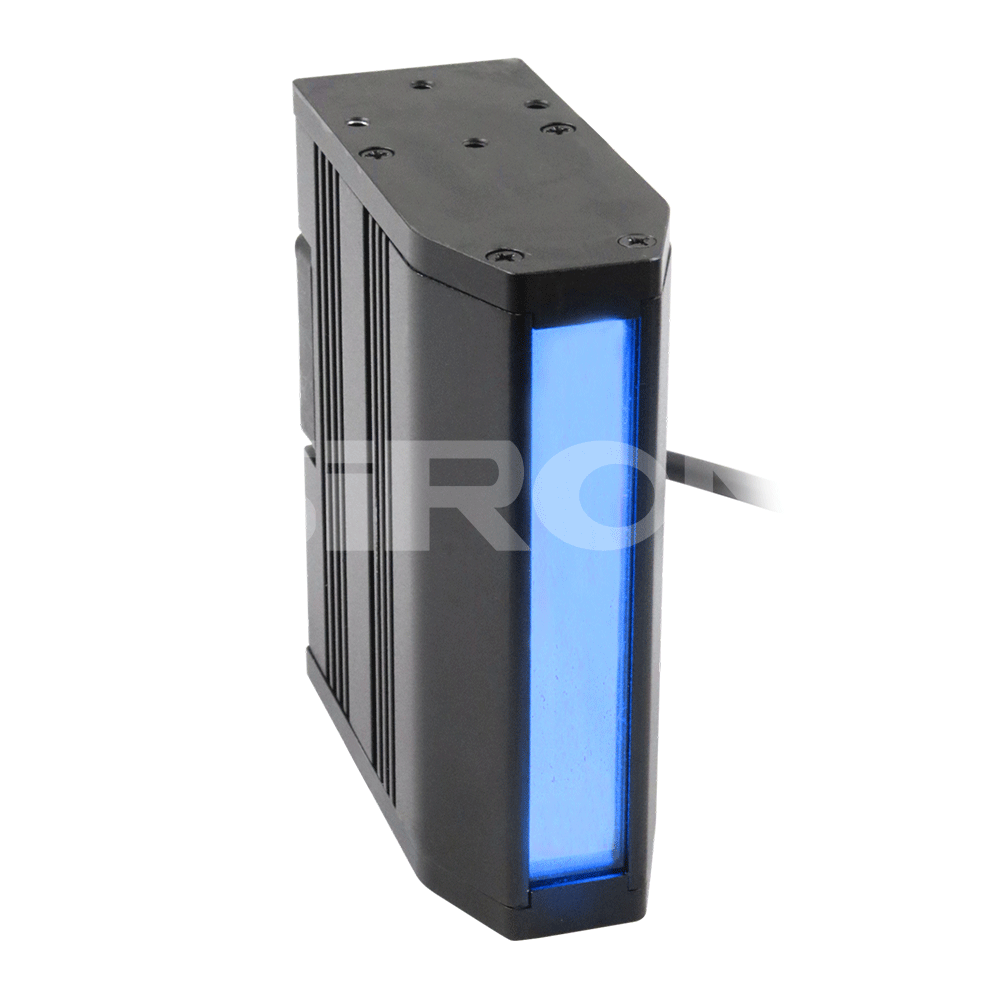

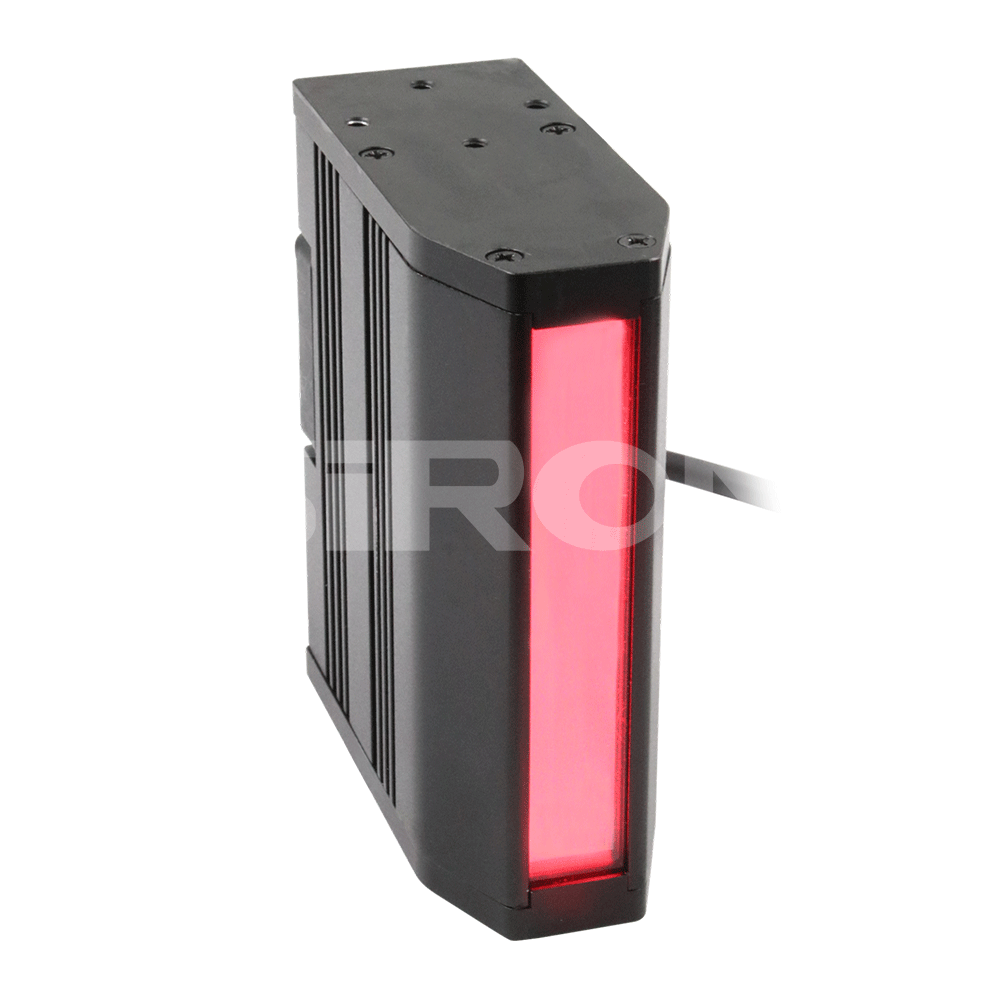

Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	High power 24V constant current controller
Scope of application	Mobile phone screen detection industry;Steel plate testing industry;Glass scratch detection industry
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
