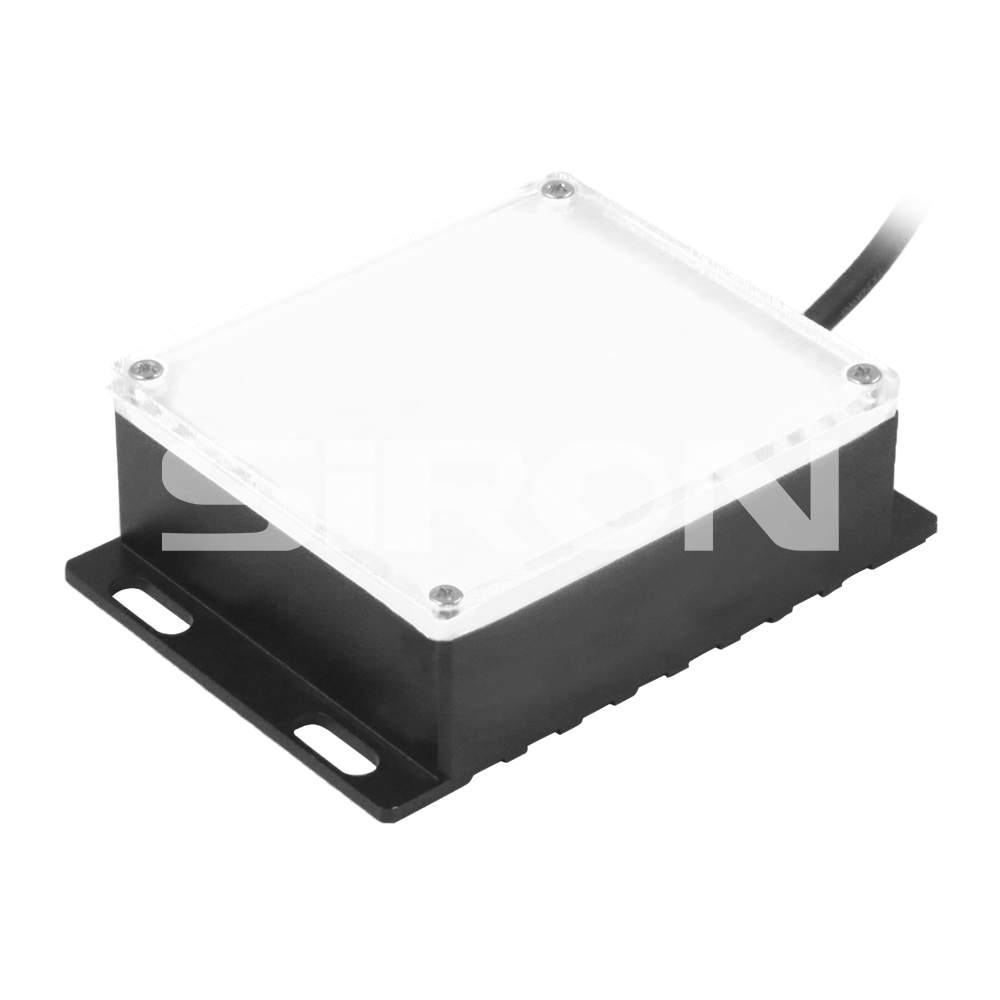

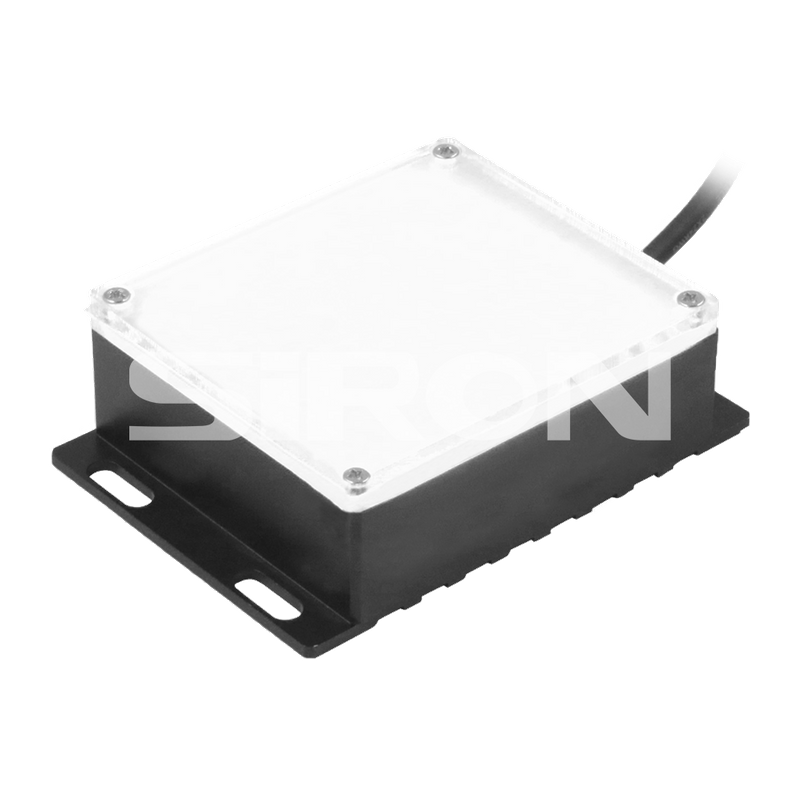

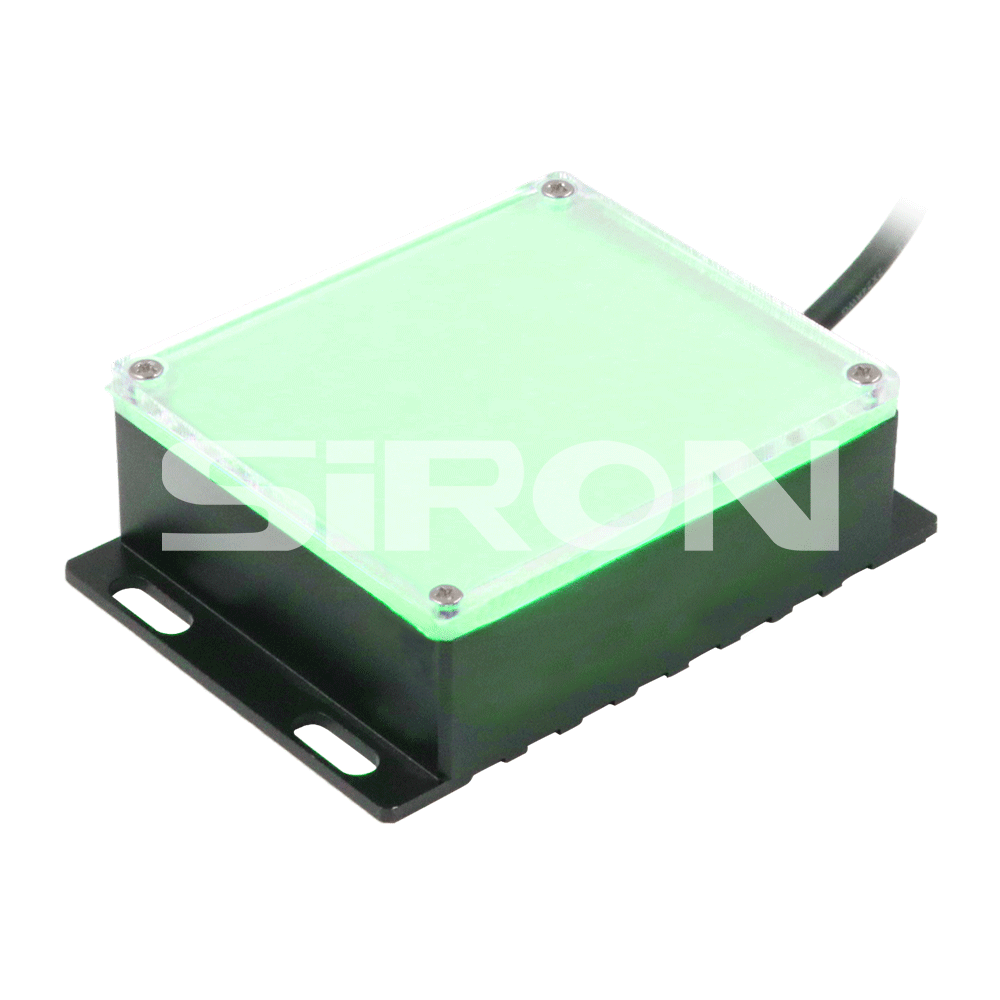

K715 Series
SiRON
8479909090

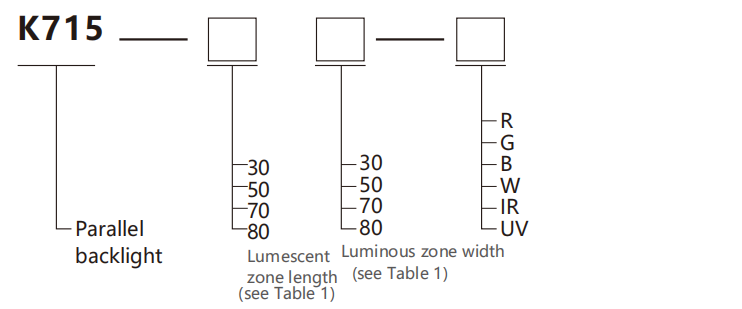

About selection
Selectionexample: K710-3 030-R indicates the K710 series,thelengthof the luminous zone is 30mm,the width of the luminous zone is 30mm,and the color of the light source is red.
Specifications
| Name | Parallel backlight |

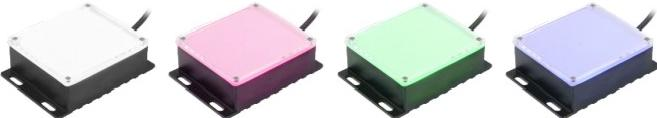

| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operatng temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Metal cylinder profile detection;Glass bottle diameter detection;Screw tooth profile detection |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example

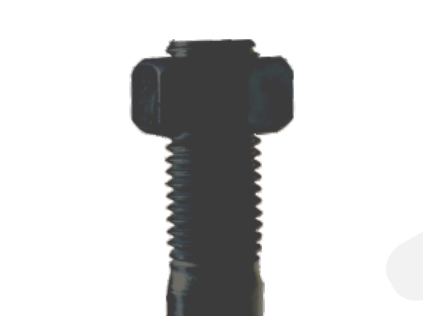

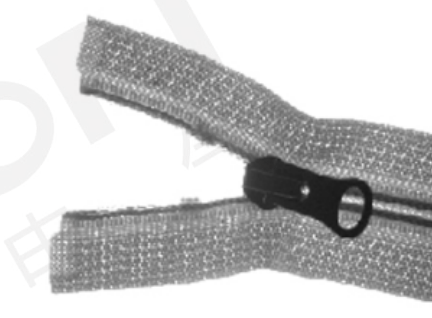

Metal Zipper Contour Detection Hardware Parts Contour Measurement
Infrared wavelength light can well reflect It can clearly highlight the contour of parts,
the contour contrast by penetrating reduce virtual edges, and achieve
through fabric layers. high-precision measurement.

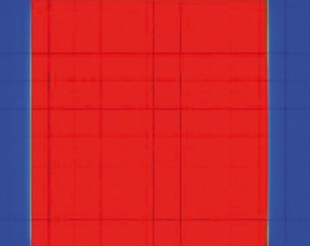

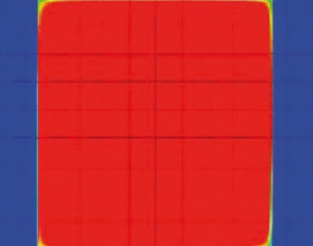

Uniformity distribution map
Dark Field: 100×100 mm Bright Field: 100×100 mm
Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

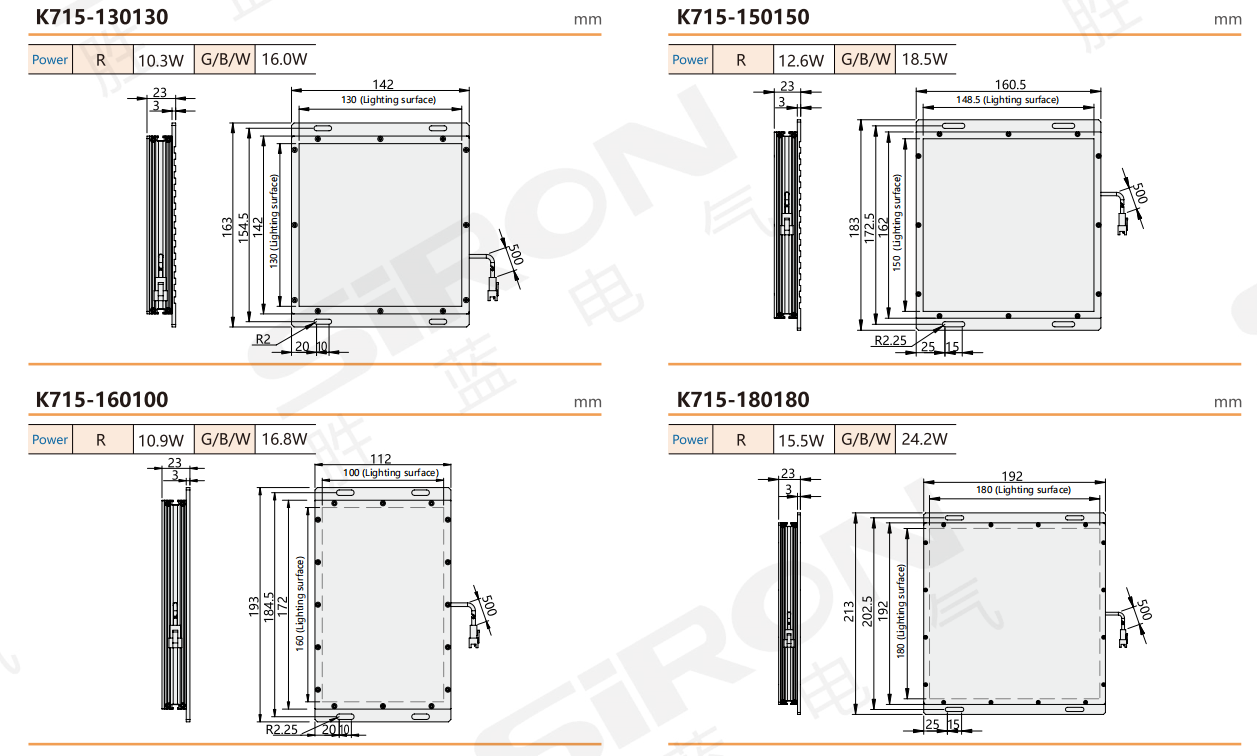

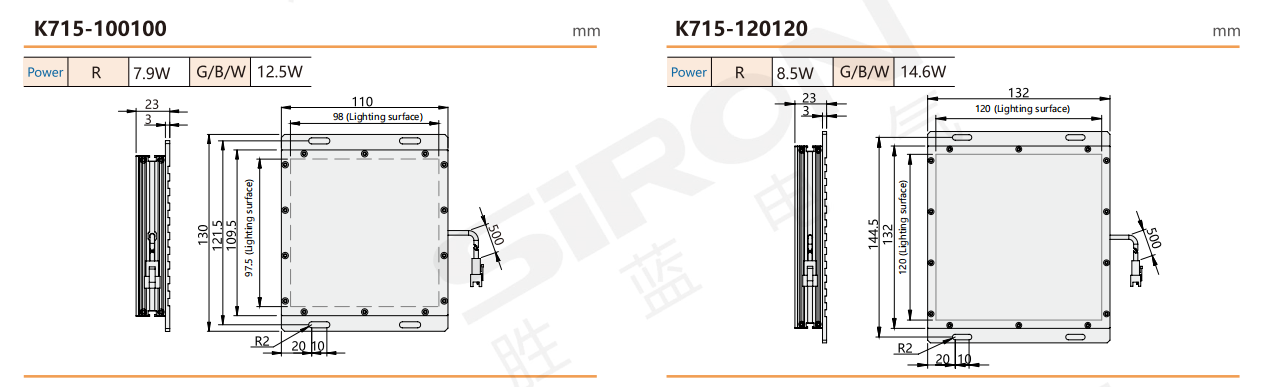

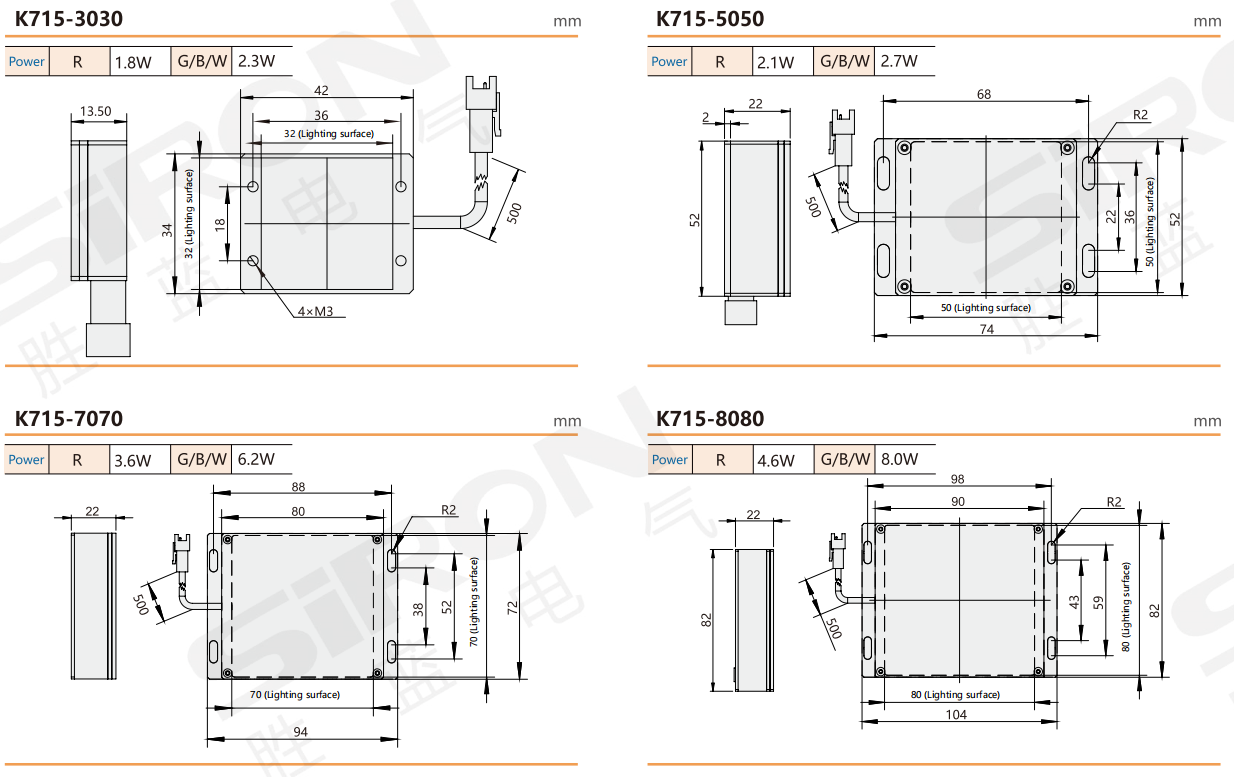

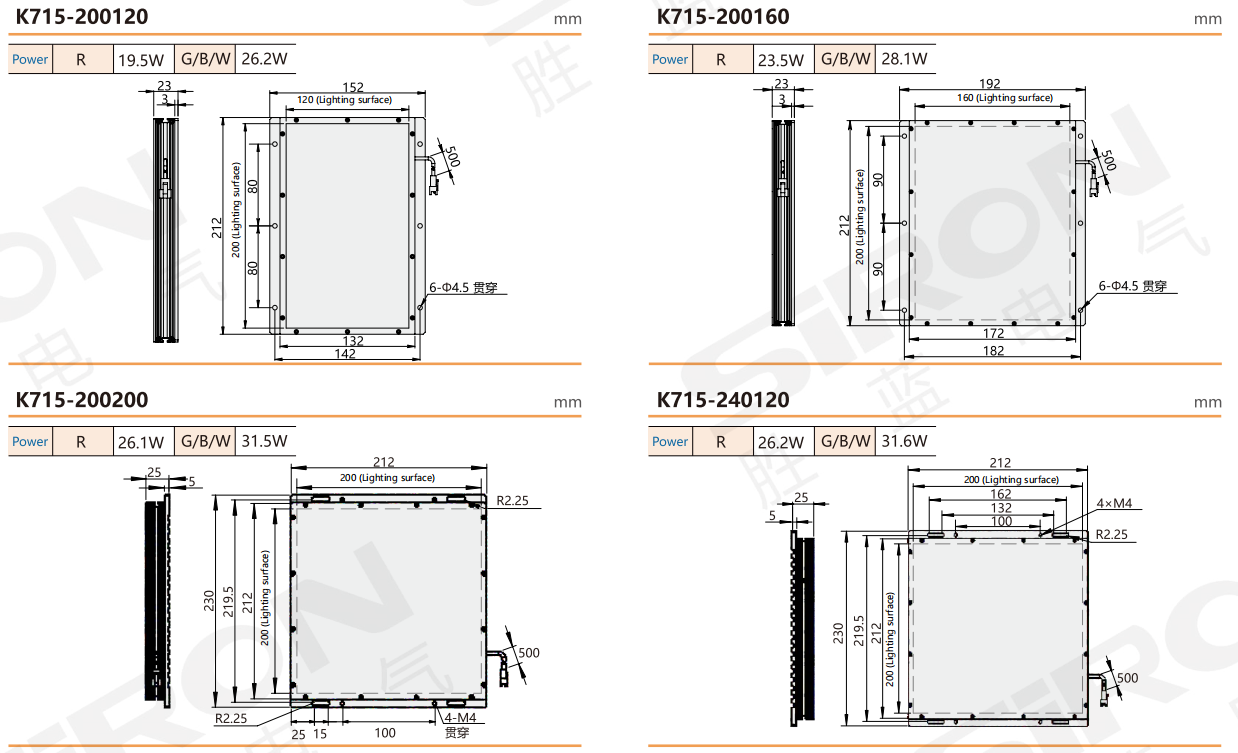

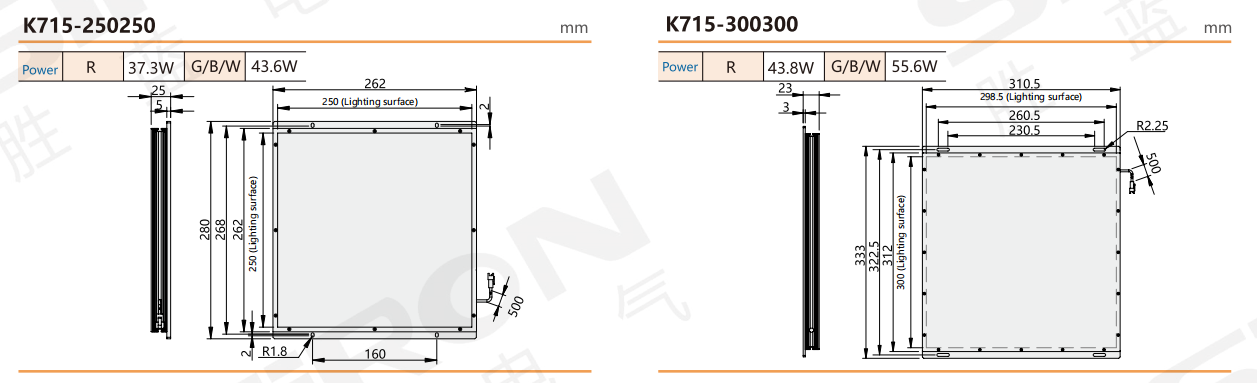

Dimension
