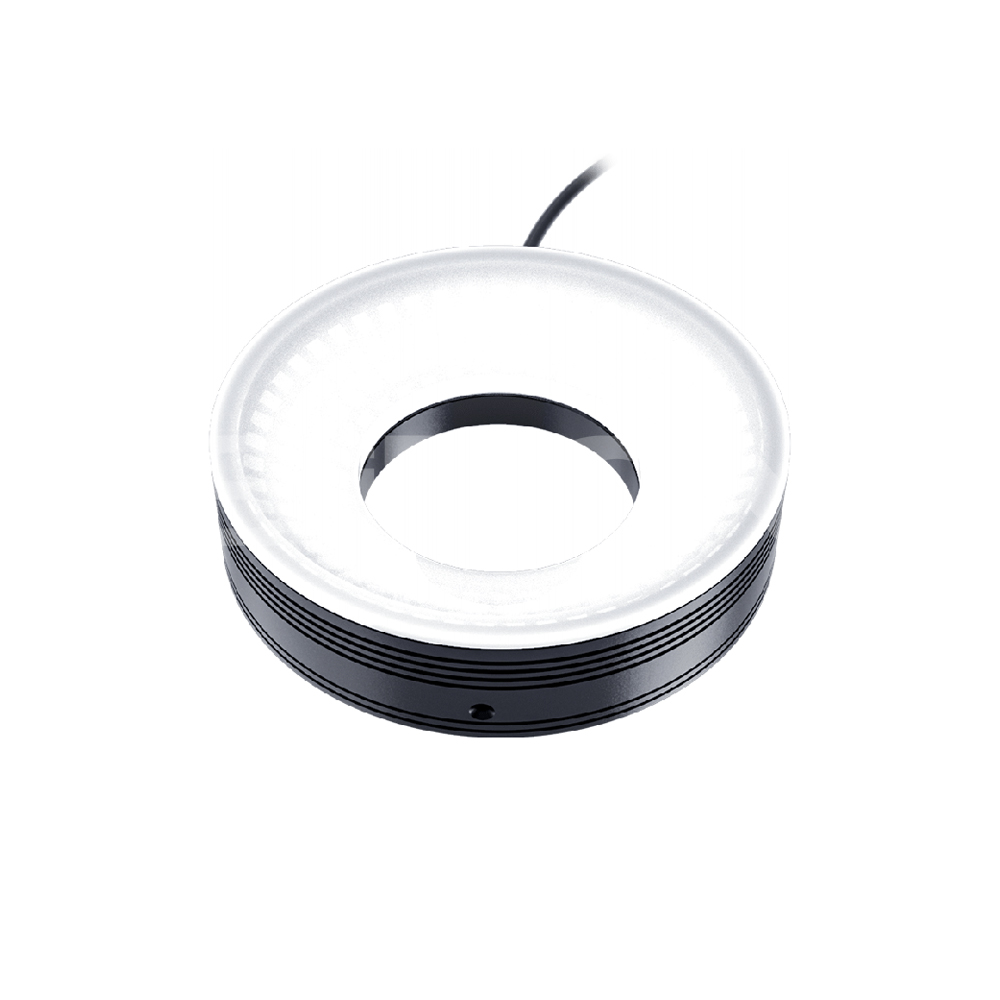

SiRON K702 Series High Uniform Ring Light Source

Name: SiRON K702 Series High Uniform Ring Light Source
Brand: SiRON
Rating: 5.0 (28 reviews)

Features:

* The high-uniform ring light source is designed with a strict angle and uniform gap by the high-brightness SMD LED;
* Highlight the characteristics of the detected object at different angles above the object to be detected;* The standard high uniform diffuser is used to make the light more uniform and soft;

* The uniformity of the raw materials used by the light source is extremely rigorously tested
and verified;* Use automatic welding technology to ensure product quality and reliability.

Quantity:
Availability:





Inquire Add to Basket

Model:
K702 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Ring Light Uniform clearance design Highlighter patch LED Welding process

Product Description

About selection

Selection example: K702-75-00R indicates the K702 series, the outer diameter is 75mm,

the luminous Angle is 0°, and the light source color is red.

Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet

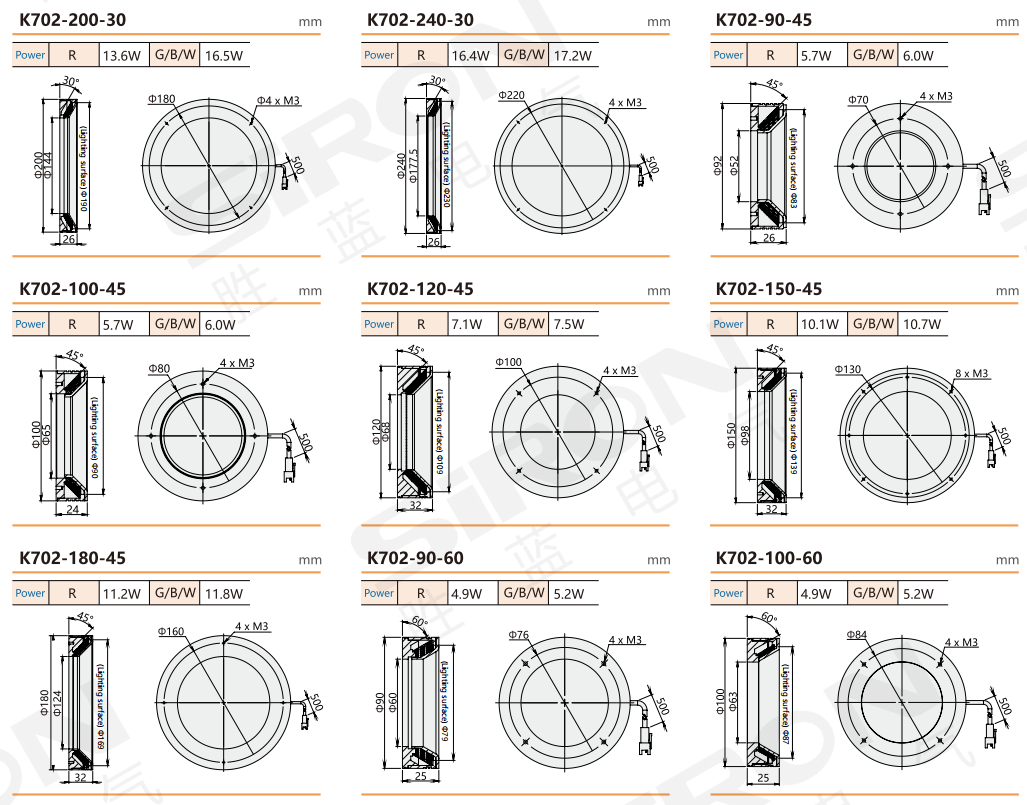

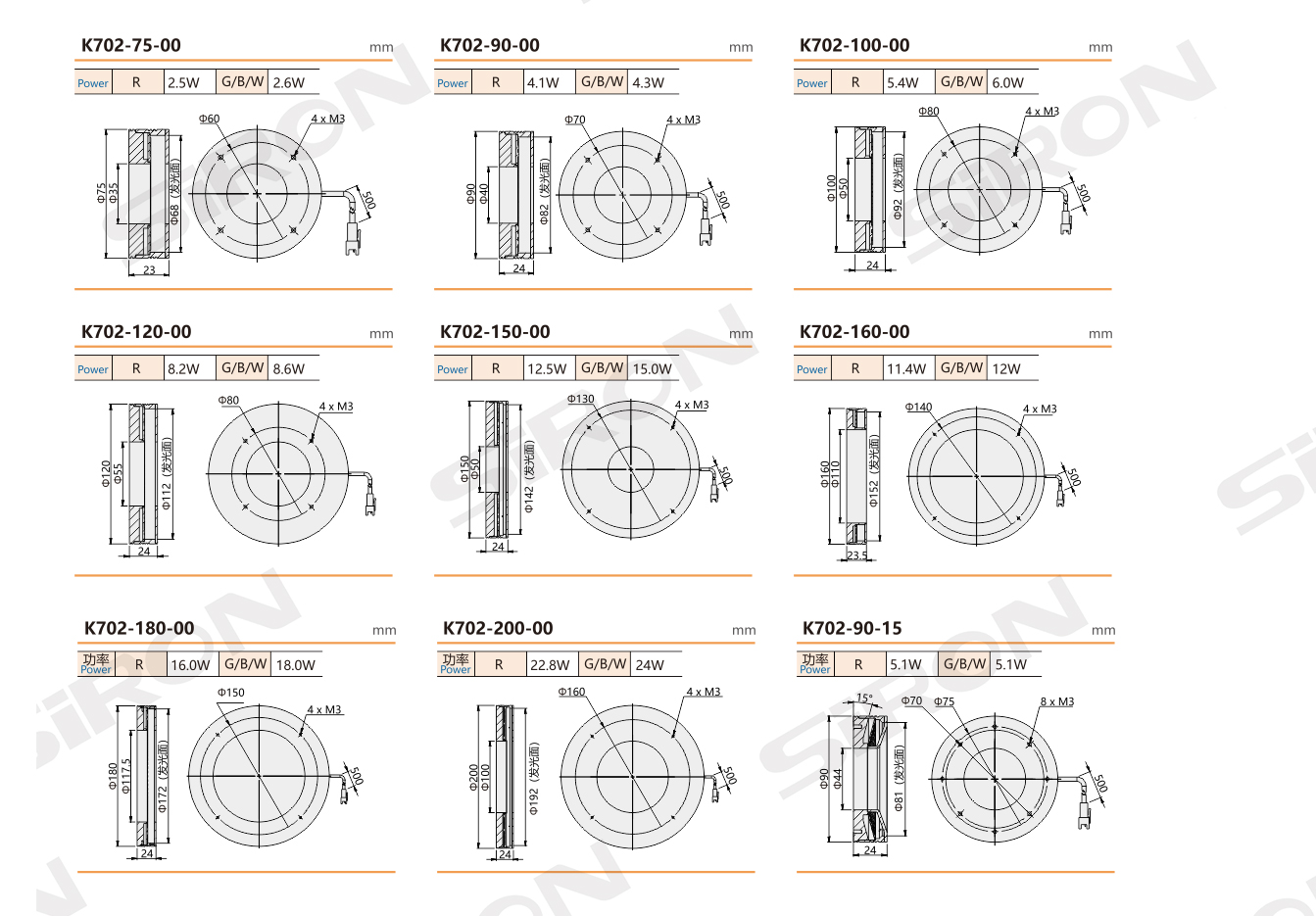

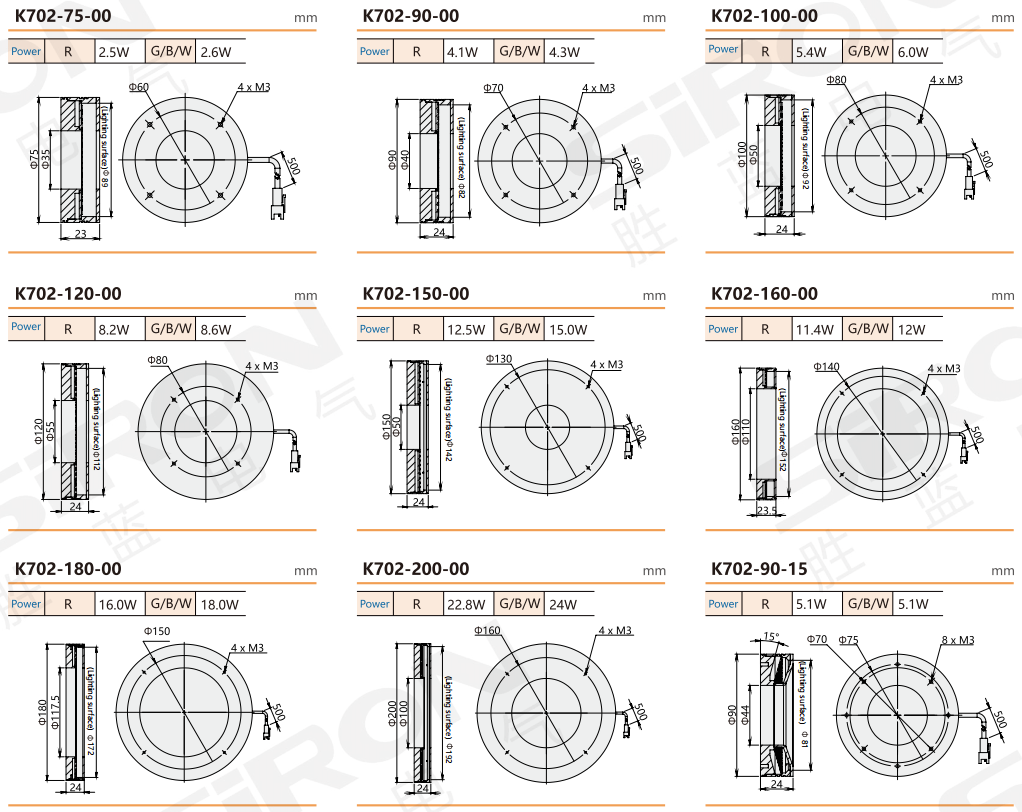

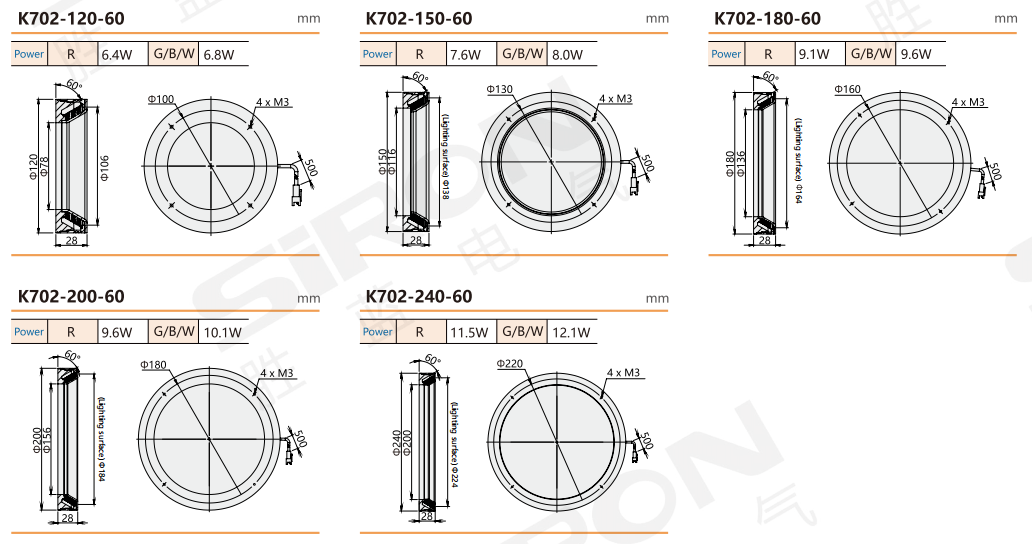

Table 1 mm

Angle	Outer diameter	Angle	Outer diameter
0°	75,90,100,120,150,160,180,200	45°	90,100,120,150,180
15°	90,,120,150,180	60°	90,100,120,150,180,200,240
30°	74,90,100,120,150,180,200,240

Specifications

Name	High uniform ring light source

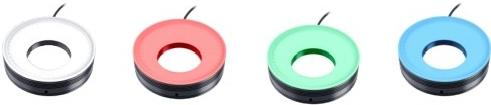

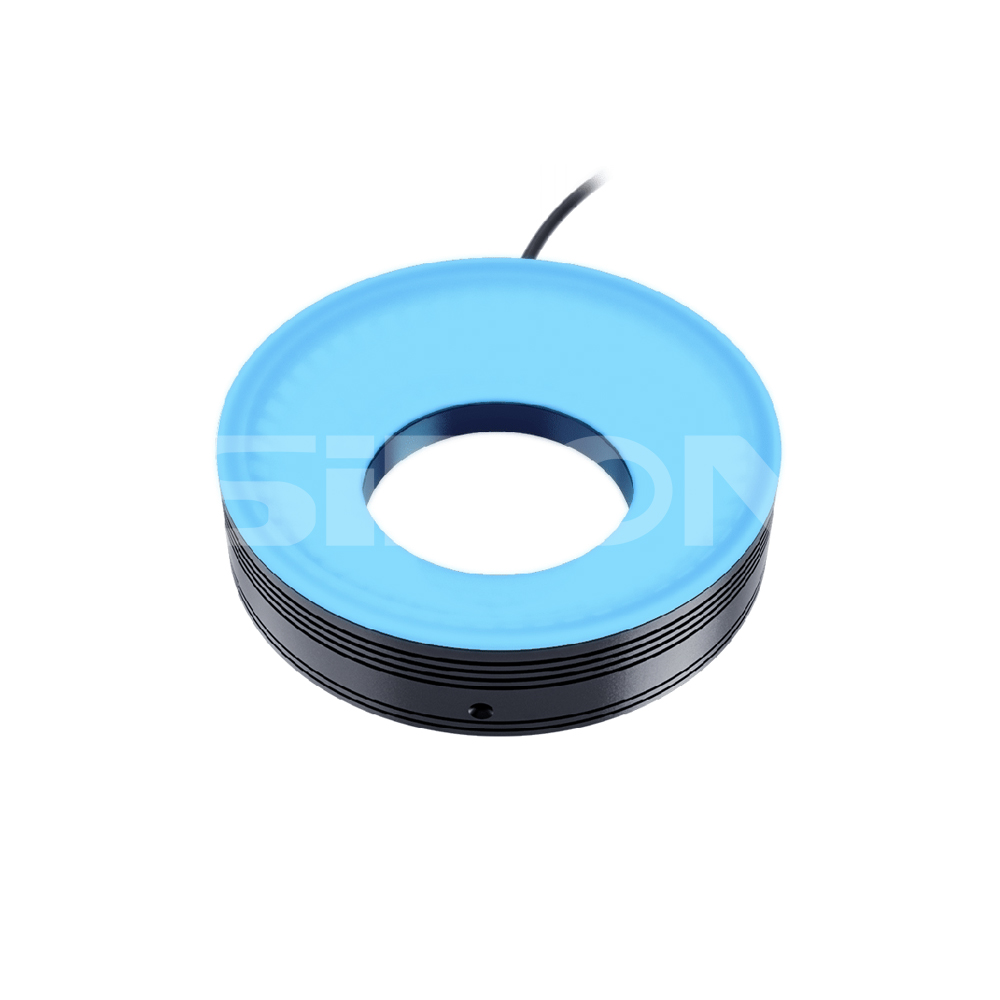

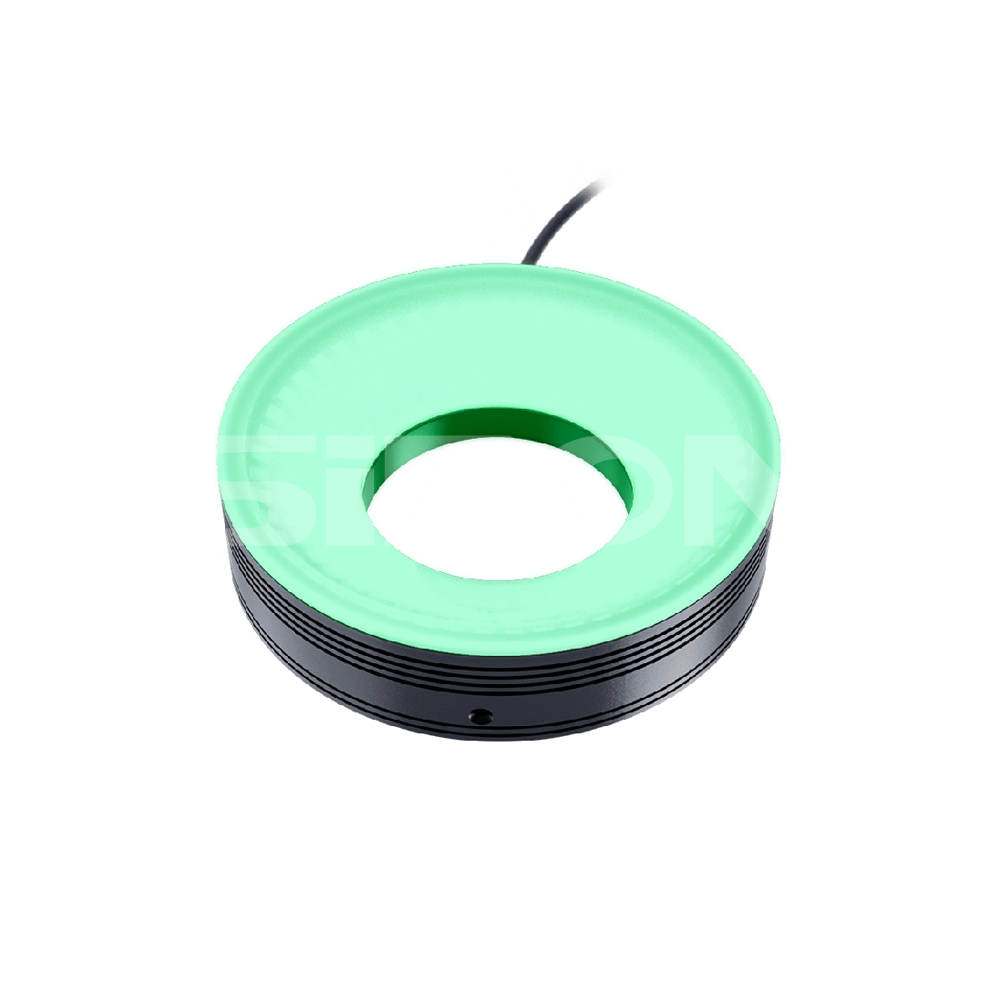

Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller

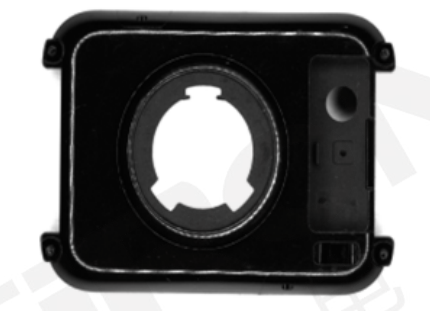

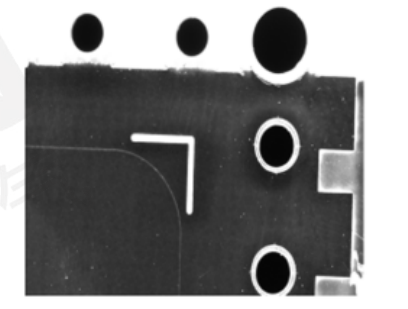

Scope of application	IC chip appearance and character detection.PCB circuit board and components testing. Product packaging appearance,label inspection.Round product size inspection.
Wavelength and color temperature	W:6500K B:465~470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
