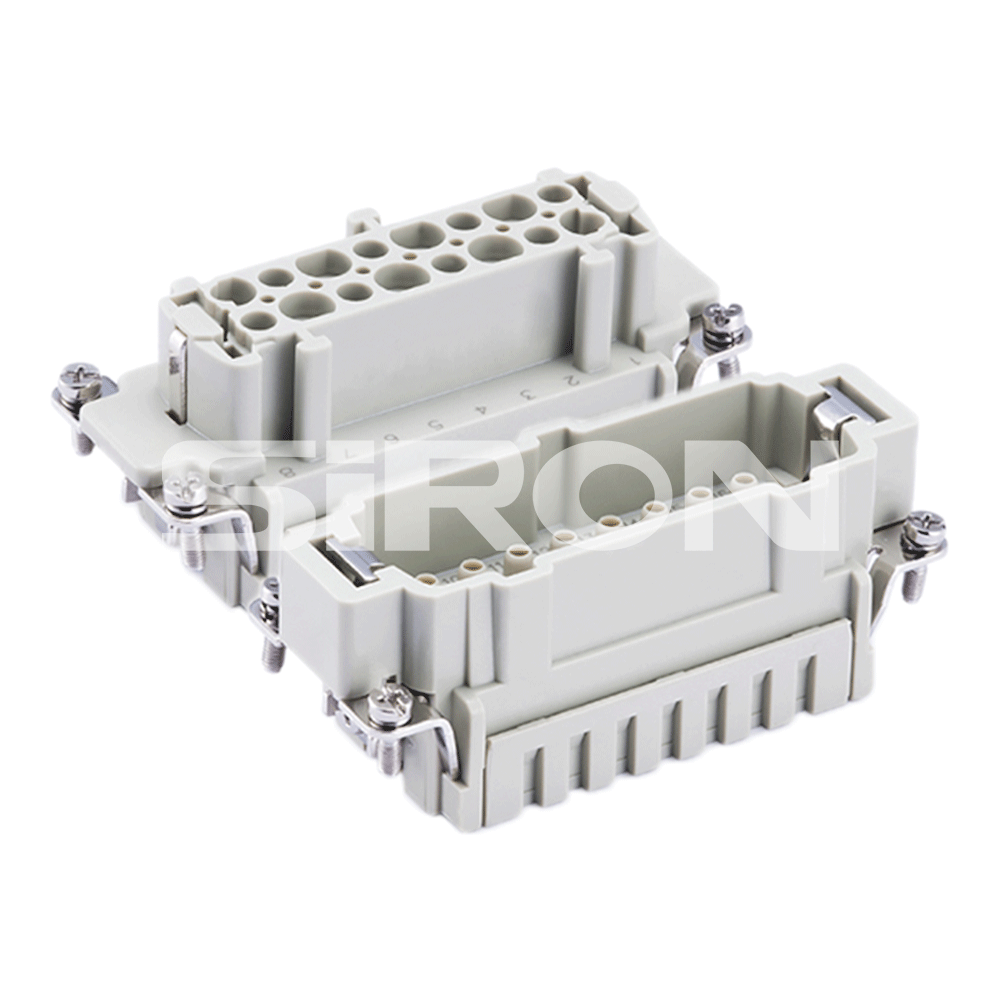

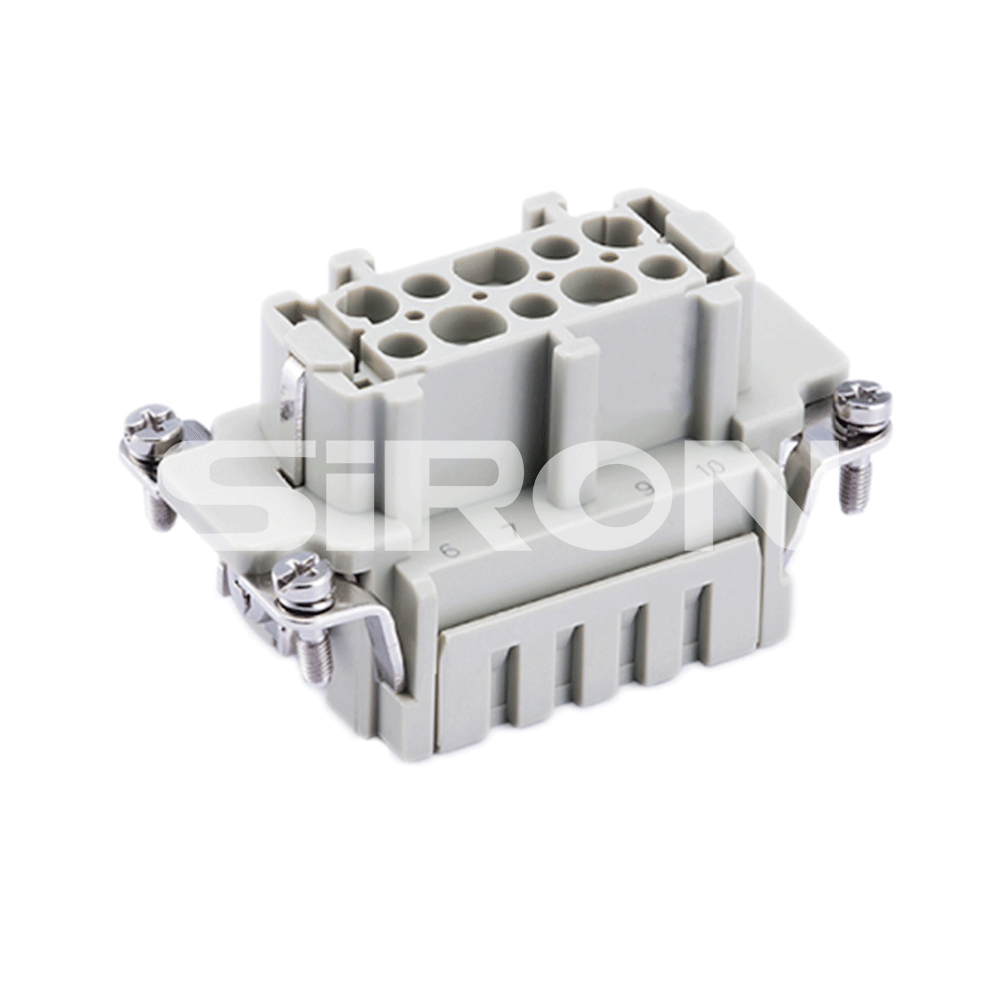

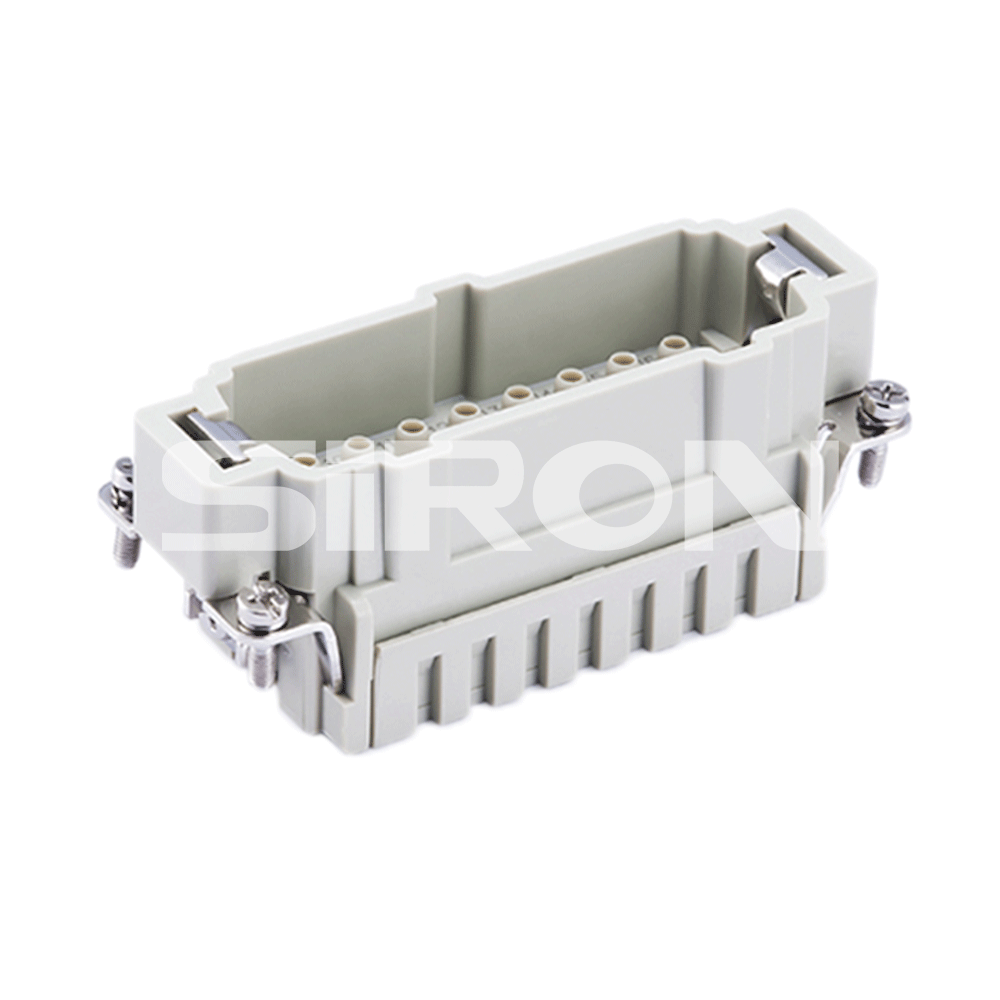

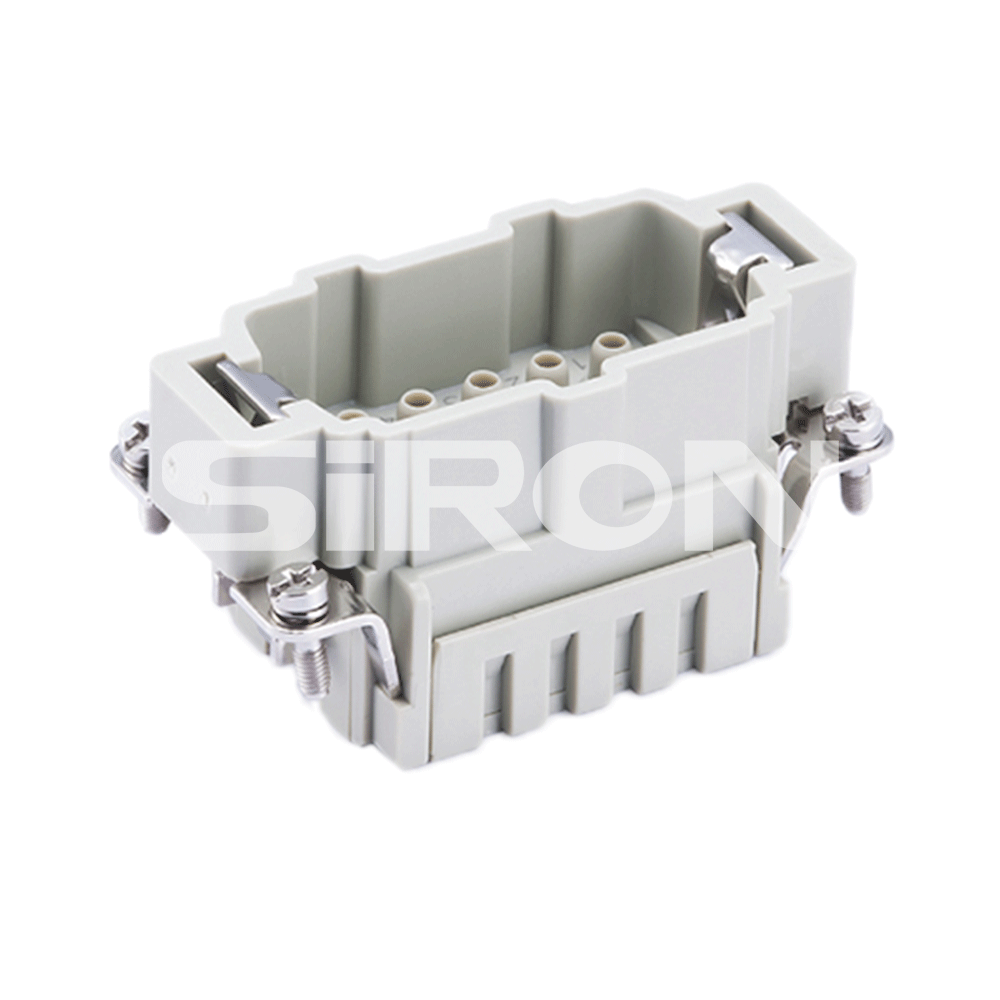

SiRON X904/X938 Series Cold Press Connection HE Connectors

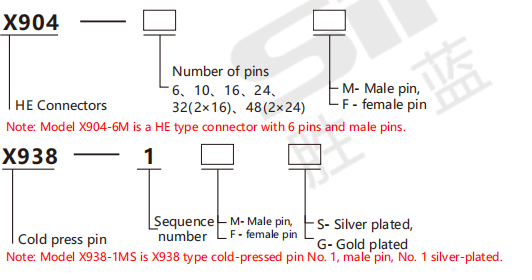

About selection

Technical Features

Rated current	16A	Material		Aluminum alloy
Rated voltage	500V	Surface treatment		Silver plating/gold plating
Rated impulse voltage	6KV	Contact resistance		≤1mΩ
Pollution degree	3	Crimp terminal	Wrie gauge	0.14-4.0mm²
Pollution degree 2 also	16A400/690V   6KV   2		AWG	26-12
Rated voltage acc.to UL	600V		Sripping lenght	7.5mm
Insulation resistance	≥10100
Material	Polycarbonate	Crimp'contacts
Limiting temperatures	-40℃.….+125℃	Cold pressing needle current		16A
Flammability acc.to UL94	0V	Contact resistance		1mQ
Mechanical working life	≥500	/		/

Crimp needle

Crimp needle	Model(male)	Model (female)	Wire gauge		Stripping length
	X938-1M	X938-1F	0.14-0.37mm²	AWG   26-22	7.5mm
	X938-2M	X938-2F	0.5mm²	AWG  20	7.5mm
	X938-3M	X938-3F	0.75mm²	AWG   18	7.5mm
	X938-4M	X938-4F	1.0mm²	AWG   18	7.5mm
	X938-5M	X938-5F	1.5mm²	AWG   16	7.5mm
	X938-6M	X938-6F	2.5mm²	AWG   14	7.5mm
	X938-7M	X938-7F	3mm²	AWG 12	7.5mm
	X938-8M	X938-8F	4mm²	AWG 12	7.5mm

10 pcs/ pack

Note: The cold-pressing needle needs to be ordered separately. Add '2' after the silver-plated model

For S 'gold-plated models, add' G 'after them. When the wire gauge is less than 0.75mm, it is recommended to use an auxiliary needle loading tool

Type selection reference

Model	Pin(Male insert)	X904-6M	X904-10M	X904-16M	X904-24M	X904-32M	X904-48M
	Jack(Female insert)	X904-6F	X904-10F	X904-16F	X904-24F	X904-32F	X904-48F

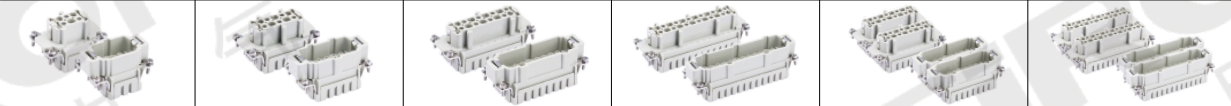

Appearance
Connector core number		6	10	16	24	32(2×16)	48(2×24)
Working current		16A
Working voltage		500V
Apply lid(Upper cover)		X930series         ▶P.031	X931series          ▶P.031	X932series          ▶P.031	X933series          ▶P.031	X934series          ▶P.031	X935series        P.031
Apply the base(lower cover)
