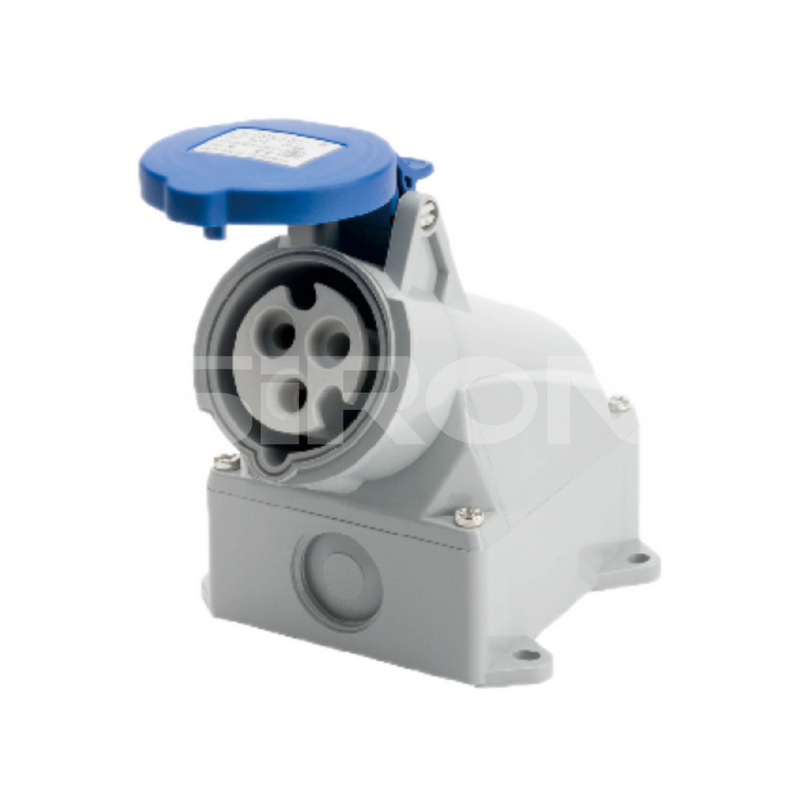

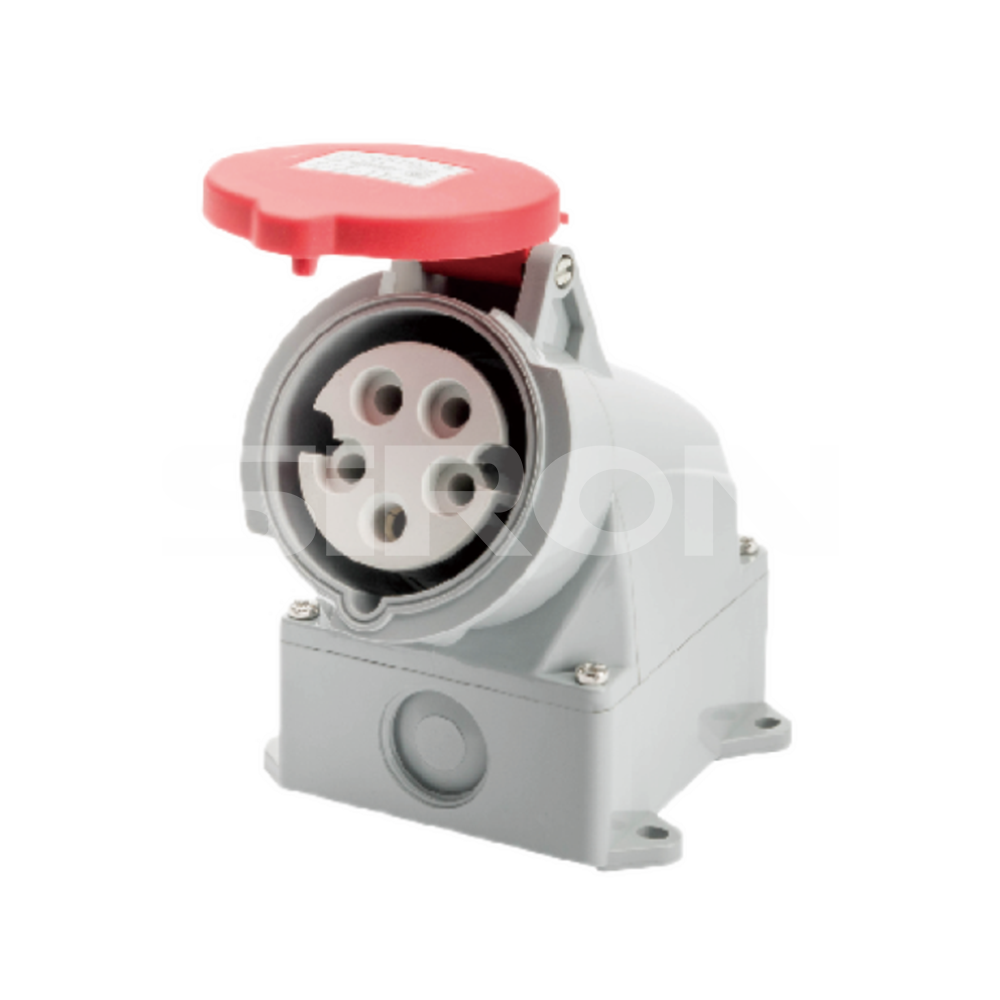

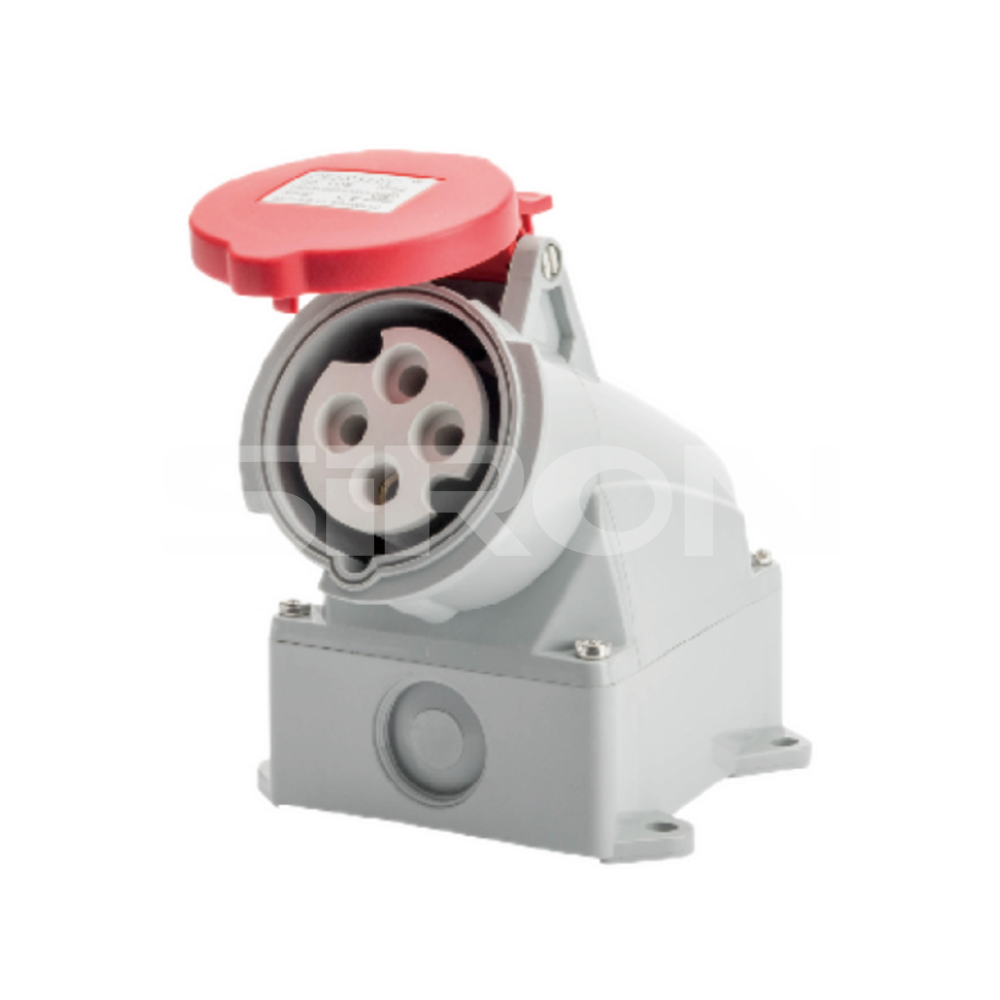

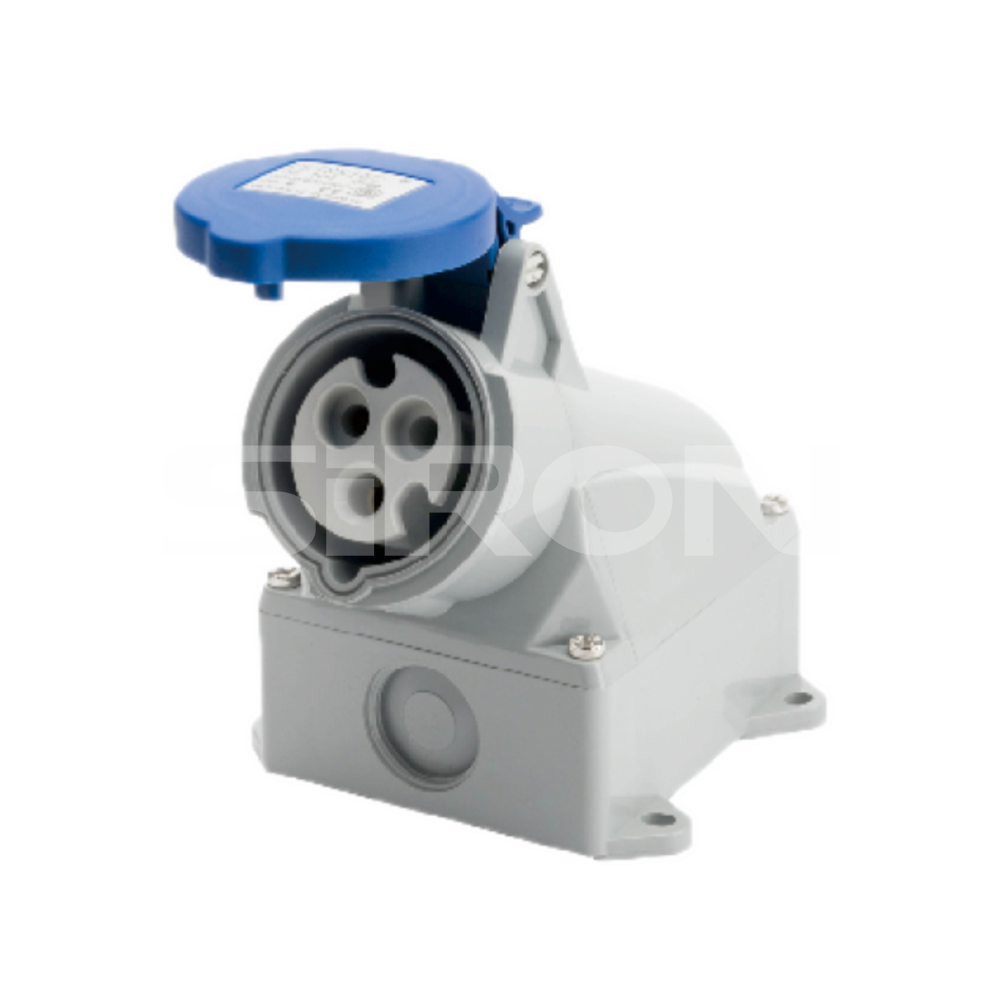

SiRON H602 Series Ip44 Industrial Socket

Order

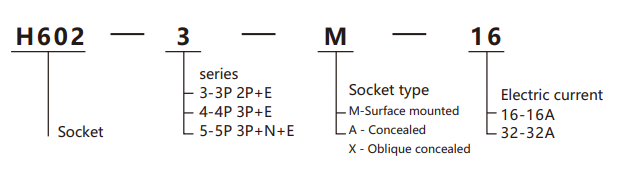

Selection example: H602-3-M-16 is a socket, a 3-pin (2P+E) socket, exposed installation, 16A

Selection reference

Model		H602-3-M/A/X-16/32	H602-4-M/A/X-16/32	H602-5-M/A/X-16/32
Surface mounted
Concealed
Oblique concealed
Number of plug pins		3P(2P+E)	4P(3P+E)	5 P ( 3 P + N + E )
Voltage		220-250V~	380-415V~	220-380V~/240-415V~
Protection level		IP44
Frequency		50-60   Hz
Ground position		6h
Cable crosS-sectional area	Electric current 1 6 A	1.5-4
	Electric current 3 2 A	2.5-6

Note: If you need other voltages, please contact the sales
