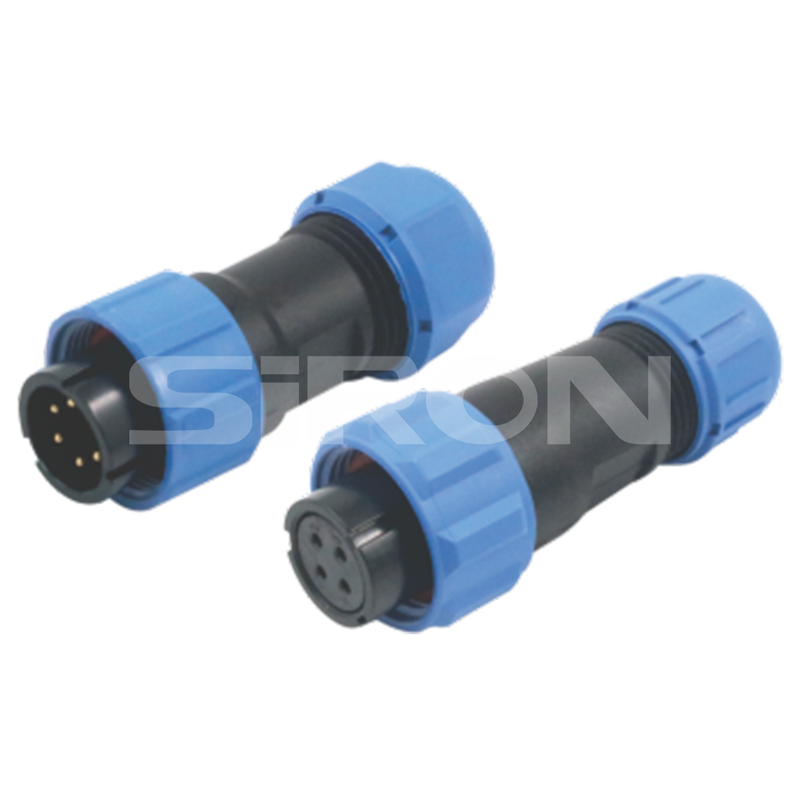

SiRON H620-13 Series Pin/Socket Type Cable Plug

Name: SiRON H620-13 Series Pin/Socket Type Cable Plug
Brand: SiRON
Rating: 5.0 (7 reviews)

Features

Halogen and phosphorus free,Flame retardant grade VO, refer to UL94 standard.
ULF1 standard uvresistance
Nylon cable connector can meet the electrical reguirements of various environments.
Use innovativeechniquesUse high quality raw materials to provide higher grade products;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

c60453bc428d43974405ecd488d50241

Specifications

Couoing	Screw-threaded coupling
Shcoll material	Thermoplastic Pa66, flame retardant grade: VO
Insert material	The hot wire material PPS can withstand high temperatures up to 260° C
Contact material	Gold-platedbrass
Termination	Weld
Cable outer diameter range	GM13: A4-6.5mm (unmarked) B5-8mm; GM17: 7-10mm (unmarked) GM21: A4.5-7mm, B7-12mm (unmarked)
IP rating	IP68
Mating cyclc	More than 500 times
Temperature range	-25℃~+85℃
MΩ Insulation resistancem	2000

Note: If you need other voltages, please contact the sales

Specification

Cable plug-pin type	H620-13-2P	H620-13-3P	H620-13-4P	H620-13-4BP	H620-13-5P	H620-13-6P	H620-13-6BP	H620-13-7P	H620-13-9P
Cable plug-jack type	H620-13-2S	H620-13-3S	H620-13-4S	H620-13-4BS	H620-13-5S	H620-13-6S	H620-13-6BS	H620-13-7S	H620-13-9S
Number of cores	2	3	4	4B	5	6	6B	7	9

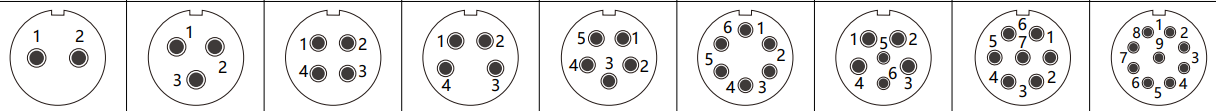

Pin Insulator Front View
Rated current	13A	13A	5A	13A	5A	5A	13A	5A	3A
Contact diameter	φ1.6*2	φ1.6*3	φ1.0*4	φ1.6*4	φ1.0*5	φ1.0*6	φ1.64 φ1.02	φ1.0*7	Φ0.7*9
Operating Voltage	250V	250V	200V	250V	180V	125V	250V 125V	125V	125V
(AC.V)1min Withstand voltage (AC.V)1min	1500V	1500V	1500V	1500V	1000V	1000V	1500V	1000V	1000V
mΩ Contact resistance m	2 Ω	2	5	2	5	5	2	5	10
mm²/AWG Welding wire gauge mm²AWG	≤2/14	≤2/14	≤0.785/18	≤2/14	≤0.785/18	≤0.785/18	≤2/14	≤0.785/18	≤0.785/18

Selection reference

Number of cores		2	3	4	4B	5	6	6B	7	9

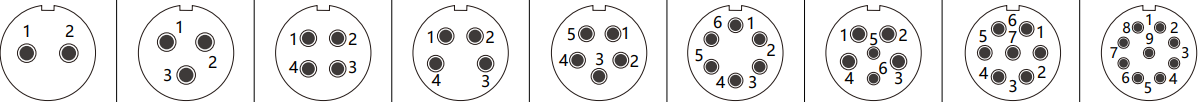

Pin Insulator Front View
Cable Plug - Pin Type Compatibility List
Cable plug-pin type		H620-13-2P	H620-13-3P	H620-13-4P	H620-13-4BP	H620-13-5P	H620-13-6P	H620-13-6BP	H620-13-7P	H620-13-9P
Applicable socket	Apair of plug sockets	H621-13-2S	H621-13-3S	H621-13-4S	H621-13-4BS	H621-13-5S	H621-13-6S	H621-13-6BS	H621-13-7S	H621-13-9S
Applicable socket	Nut type socket	H622-13-2S	H622-13-3S	H622-13-4S	H622-13-4BS	H622-13-5S	H622-13-6S	H622-13-6BS	H622-13-7S	H622-13-9S
Cable Plug - Socket Type Compatibility List
Cable plug-jack type		H620-13-2S	H620-13-3S	H620-13-4S	H620-13-4BS	H620-13-5S	H620-13-6S	H620-13-6BS	H620-13-7S	H620-13-9S
Applicable socket	Apair of plug sockets	H621-13-2P	H621-13-3P	H621-13-4P	H621-13-4BP	H621-13-5P	H621-13-6P	H621-13-6BP	H621-13-7P	H621-13-9P
Applicable socket	Nut type socket	H622-13-2P	H622-13-3P	H622-13-4P	H622-13-4BP	H622-13-5P	H622-13-6P	H622-13-6BP	H622-13-7P	H622-13-9P
