H608
SiRON
8538900000
Order

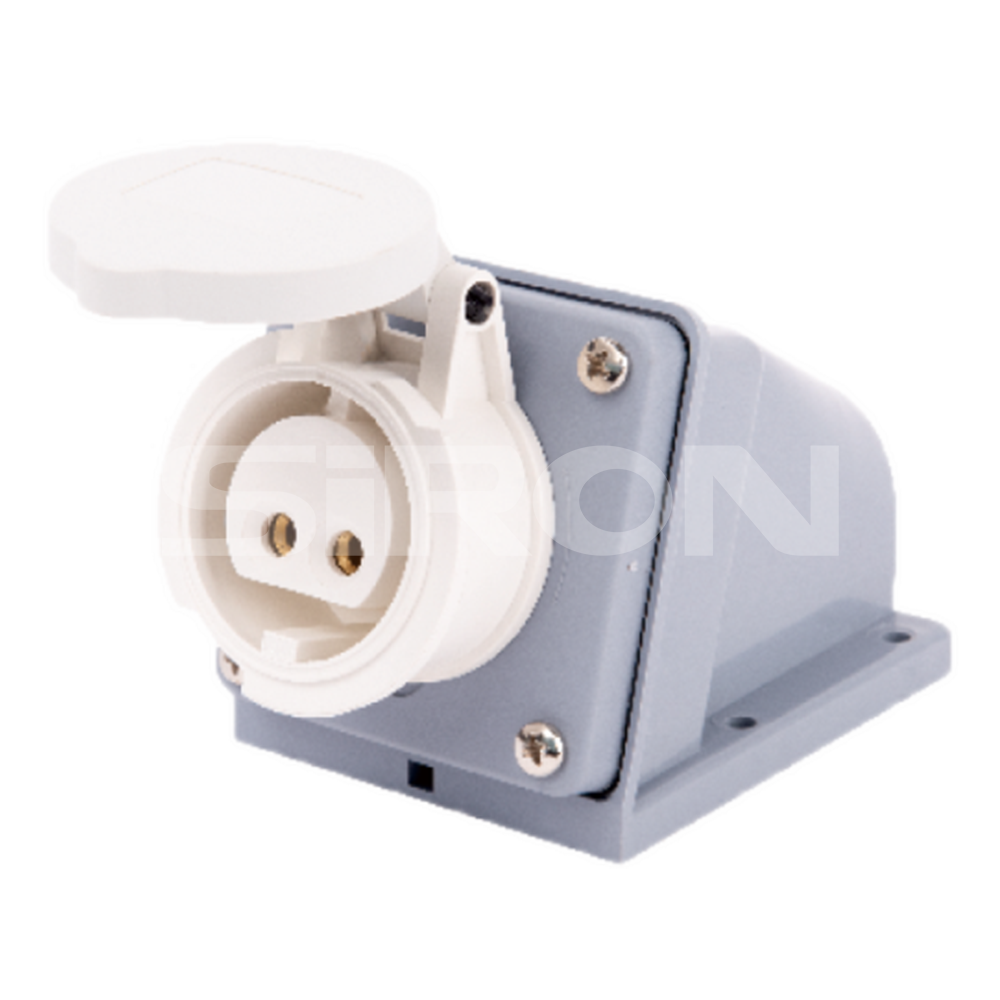

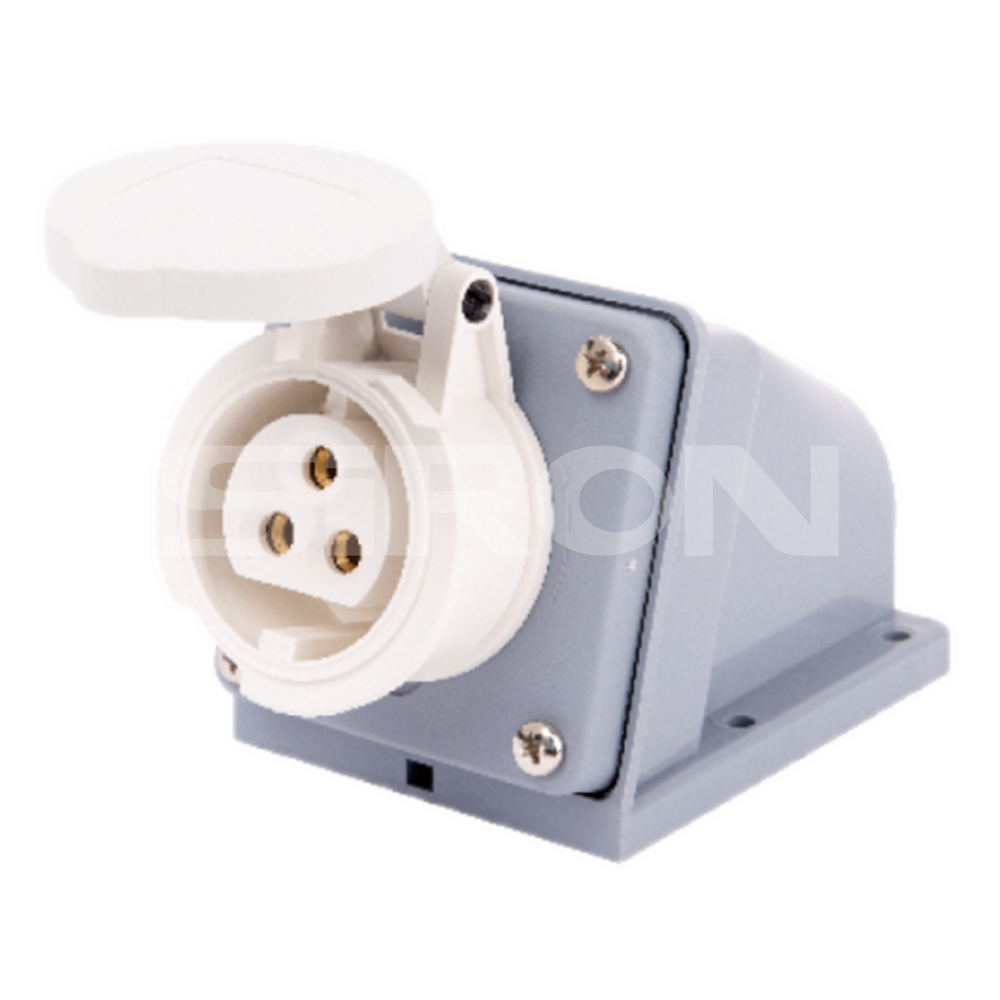

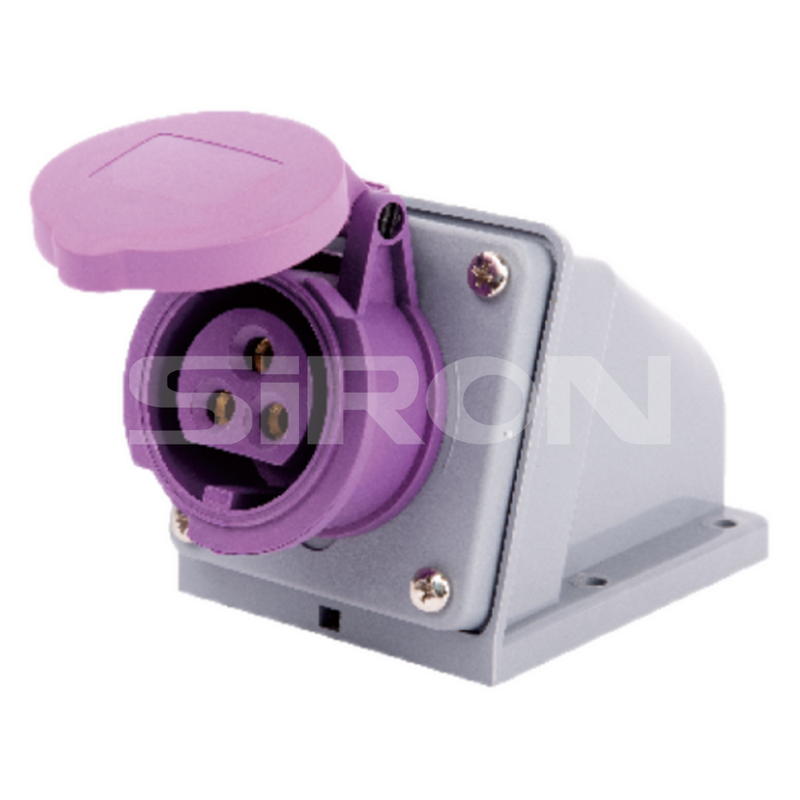

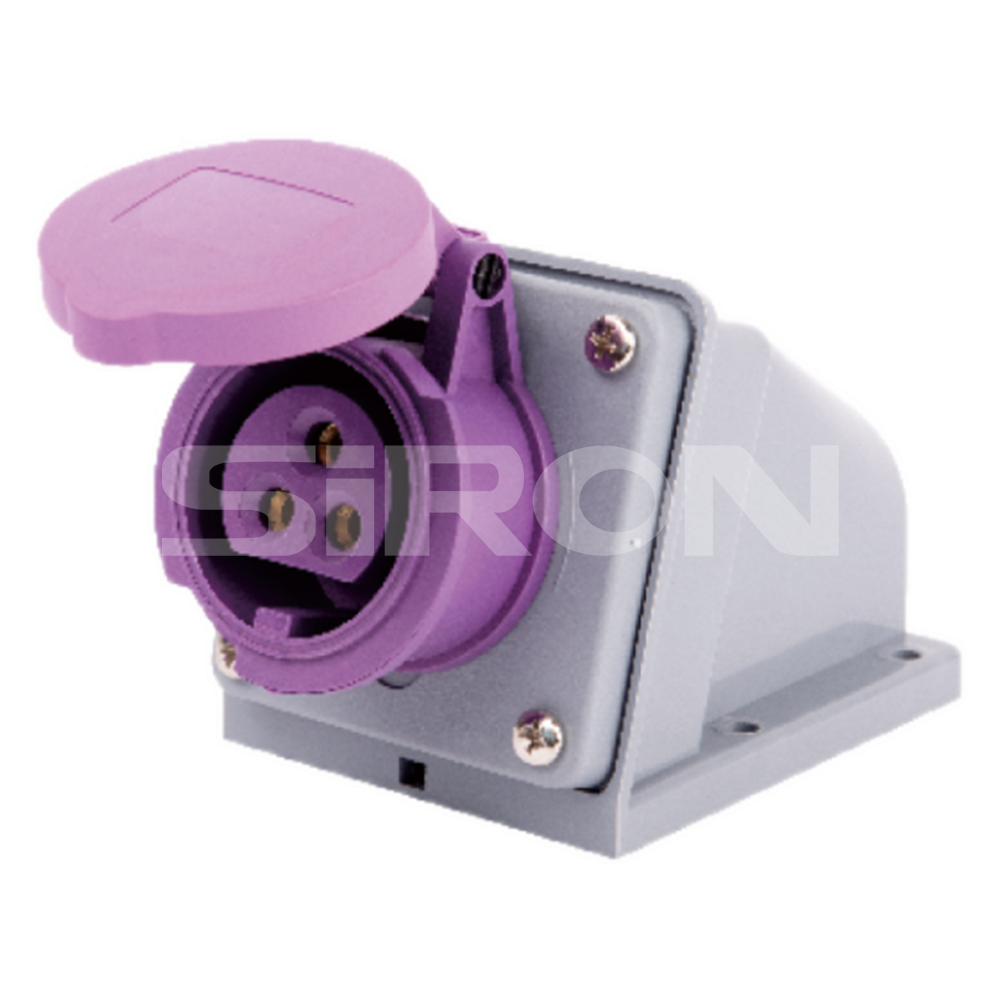

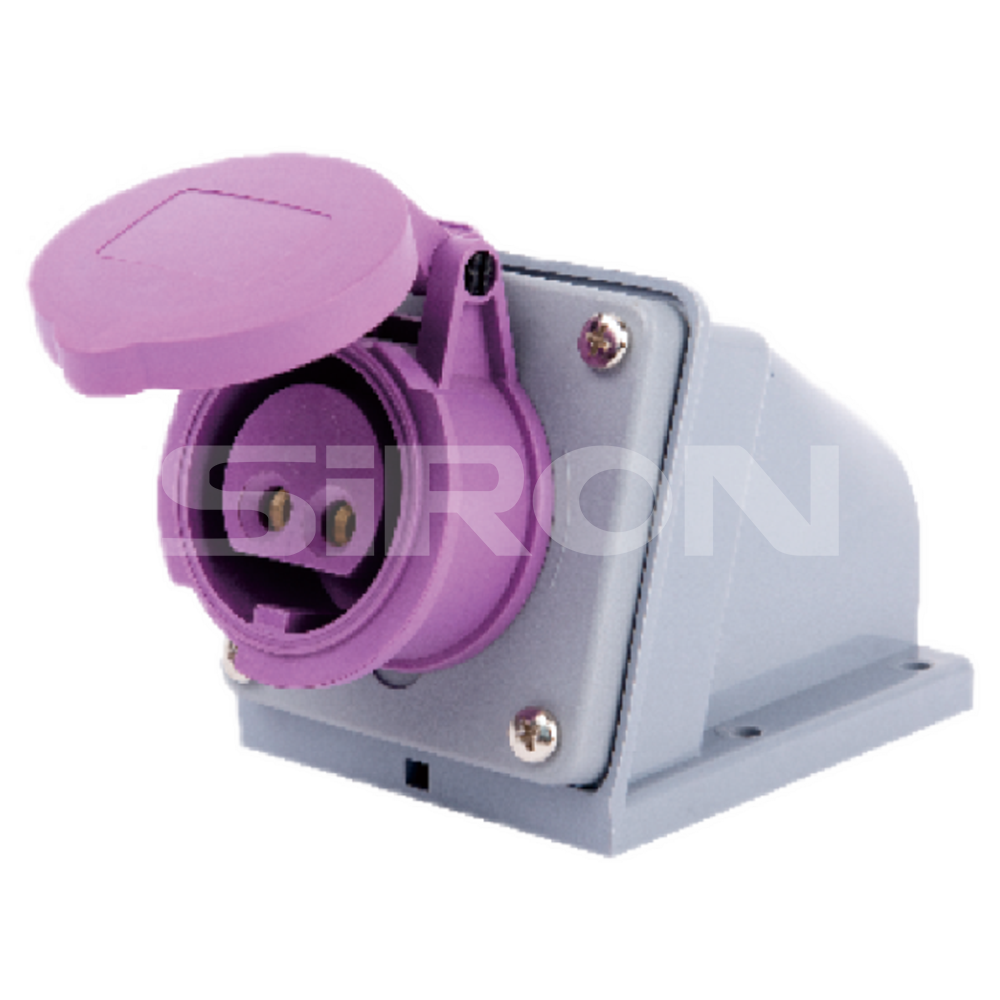

Selection example: H608-2-M-16P is a socket, a 2-pin (2P) exposed socket, 16A, purple-gray, voltage 20-25V;
Selection reference
| Model | H608-2-M/A-16/32P | H608-3-M/A-16/32P | H608-2-M/A-16/32W | H608-3-M/A-16/32W | |
| Surface mounted |  | ||||
| Concealed | |||||
| Number of plug pins | 2PIN(2P) | 3PIN(2P+E) | 2PIN(2P) | 3PIN(2P+E) | |
| Voltage | 20-25V～ | 40-50V～ | 20-25V～ | 40-50V～ | |
| Protection Tevel | IP44 | ||||
| Frequency | 50-60 Hz | ||||
| Ground position | / | 12h | / | 12h | |
| Cable cross-sectional area | electric current 16A | 1.5-2.5 Surface mounted - 1.2-2.5 Concealed | |||
| electric current 32A | 4-6 | ||||
Note: If you need other voltages, please contact the sales
