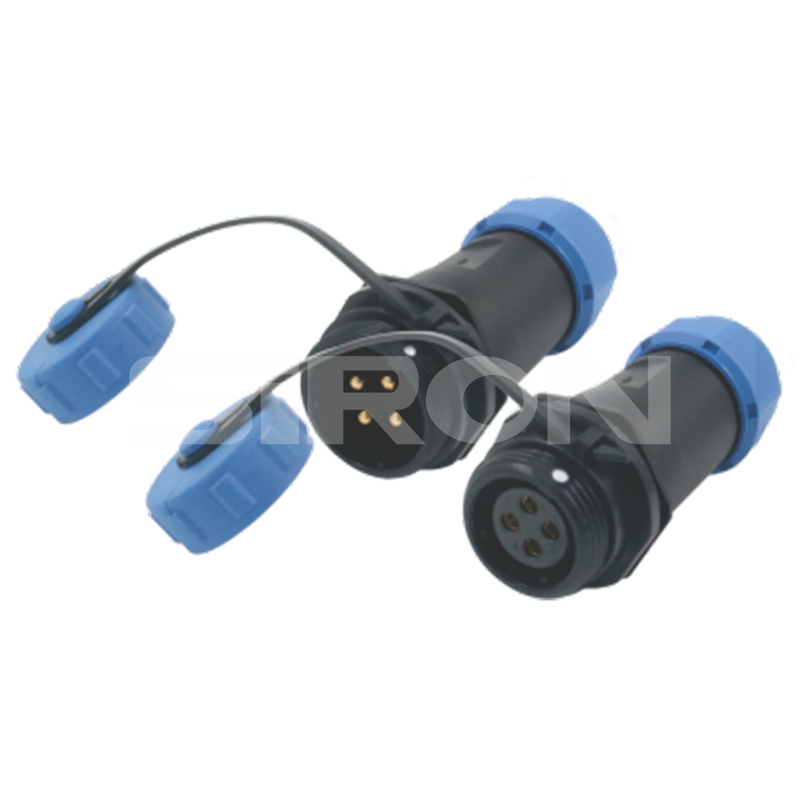

H621-21
SiRON
8538900000
Order
Specifications
| Couoing | Screw-threaded coupling |
| Shcoll material | Thermoplastic Pa66, flame retardant grade: VO |
| Insert material | The hot wire material PPS can withstand high temperatures up to 260° C |
| Contact material | Gold-platedbrass |
| Termination | Weld |
| Cable outer diameter range | GM13: A4-6.5mm (unmarked) B5-8mm; GM17: 7-10mm (unmarked) GM21: A4.5-7mm, B7-12mm (unmarked) |
| IP rating | IP68 |
| Mating cyclc | More than 500 times |
| Temperature range | -25℃~+85℃ |
| MΩ Insulation resistancem | 2000 |
Note: If you need other voltages, please contact the sales

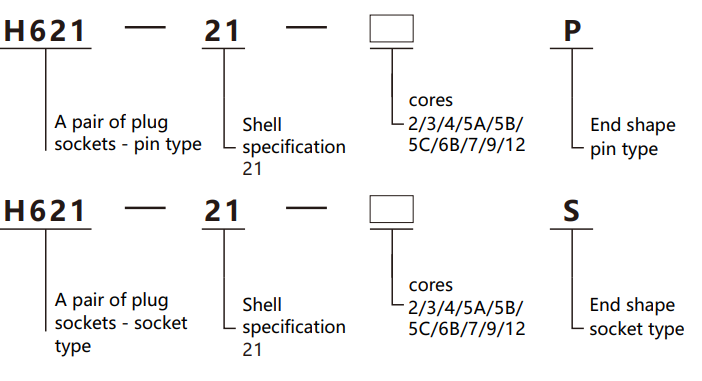

Selection reference
| Counter socket-pin type | H621-21-2P | H621-21-3P | H621-21-4P | H621-21-5AP | H621-21-5BP | H621-21-5CP | H621-21-6BP | H621-21-7P | H621-21-9P | H621-21-12P |
| Counter socket-Socket type | H621-21-2S | H621-21-3S | H621-21-4S | H621-21-5AS | H621-21-5BS | H621-21-5CS | H621-21-6BS | H621-21-7S | H621-21-9S | H621-21-12S |
| Number of cores | 2 | 3 | 4 | 5A | 5B | 5C | 6B | 7 | 9 | 12 |

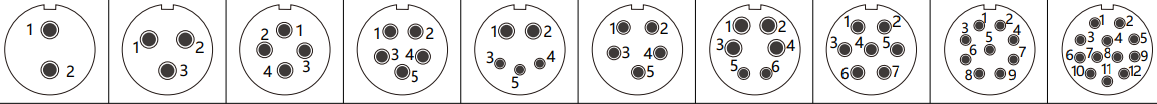

| Pin insulator Front View |  | |||||||||
| Rated current | 30A | 30A | 30A | 30A | 5A/30A | 15A | 30A/5A | 15A | 5A | 5A |
| Contact diameter | φ3.0*2 | Φ3.0*3 | Φ3.0*4 | φ3*5 | φ1.0*3 φ3.0*2 | φ2.0*5 | φ3.0*4 φ1.0*2 | Φ2.0*7 | Φ1.0*9 | Φ1.0*12 |
| Operating Voltage | 500V | 500V | 500V | 500V | 500V | 500V | 500V/400V | 500V | 500V | 400V |
| Withstand voltage(AC.V)1min | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1200V |
Contact resistance mQ | 1 | 1 | 1 | 1 | 5/1 | 2.5 | 1/5 | 2.5 | 5 | 5 |
Welding wire gauge mm²/AWG | ≤4.17/11 | ≤4.17/11 | ≤4.17/11 | ≤4.17/11 | ≤0.785/18 ≤4.17/11 | ≤2/14 | ≤1.5/15 | ≤2/14 | ≤0.785/18 | ≤0.785/18 |
Selection reference
| Number of cores | 2 | 3 | 4 | 5A | 5B | 5C | 6B | 7 | 9 | 12 |
| Pin Insulator Front View |  | |||||||||
| A list of Pin-type compatible plug-in sockets | ||||||||||
| Counter socket-pin type | H621-21-2P | H621-21-3P | H621-21-4P | H621-21-5AP | H621-21-5BP | H621-21-5CP | H621-21-6BP | H621-21-7P | H621-21-9P | H621-21-12P |
| Applicable cable plug (jack) | H620-21-2S | H620-21-3S | H620-21-4S | H620-21-5AS | H620-21-5BS | H620-21-5CS | H620-21-6BS | H620-21-7S | H620-21-9S | H620-21-12S |
| A list of compatible socket types for plug-in sockets | ||||||||||
| Counter socket-Socket type | H621-21-2S | H621-21-3S | H621-21-4S | H621-21-5AS | H621-21-5BS | H621-21-5CS | H621-21-6BS | H621-21-7S | H621-21-9S | H621-21-12S |
| Suitable cable plug(pi | H620-21-2Pn) | H620-21-3P | H620-21-4P | H620-21-5AP | H620-21-5BP | H620-21-5CP | H620-21-6BP | H620-21-7P | H620-21-9P | H620-21-12P |
