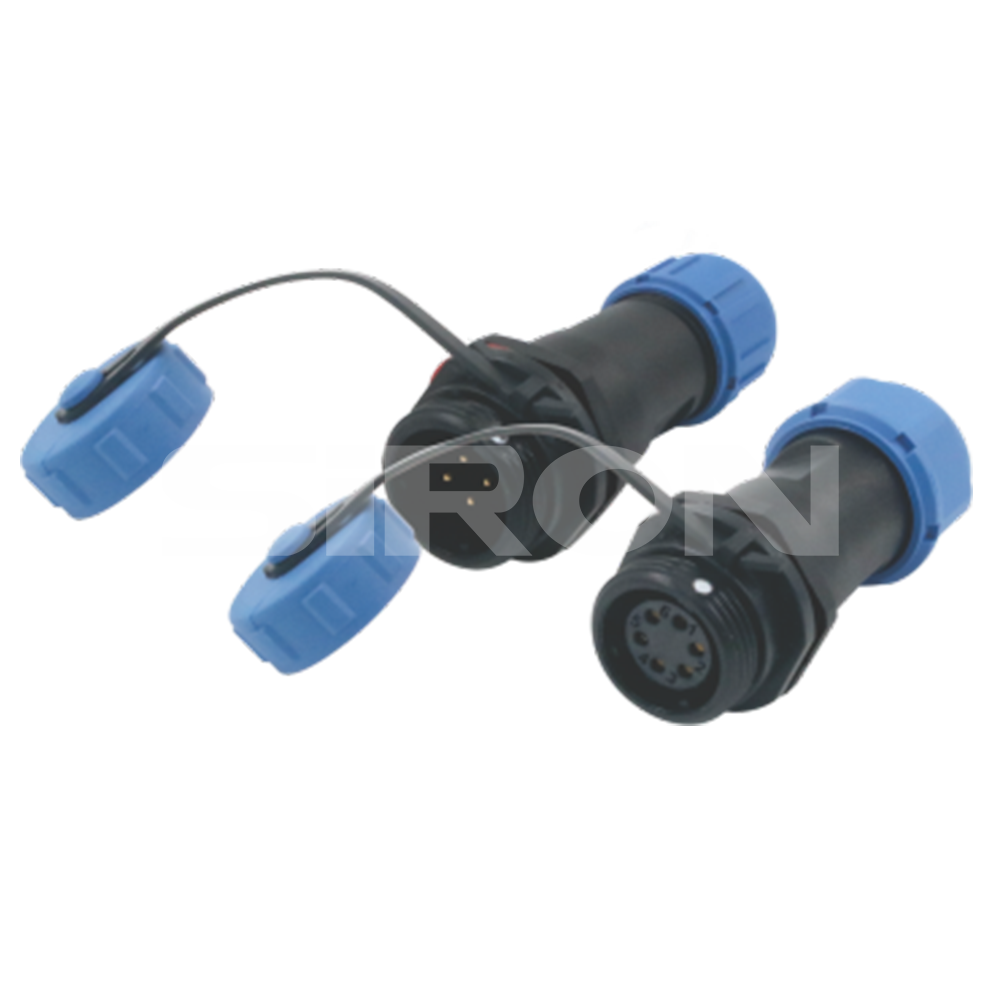

H621-13
SiRON
8538900000
Order
Specifications
| Couoing | Screw-threaded coupling |
| Shcoll material | Thermoplastic Pa66, flame retardant grade: VO |
| Insert material | The hot wire material PPS can withstand high temperatures up to 260° C |
| Contact material | Gold-platedbrass |
| Termination | Weld |
| Cable outer diameter range | GM13: A4-6.5mm (unmarked) B5-8mm; GM17: 7-10mm (unmarked) GM21: A4.5-7mm, B7-12mm (unmarked) |
| IP rating | IP68 |
| Mating cyclc | More than 500 times |
| Temperature range | -25℃~+85℃ |
| MΩ Insulation resistancem | 2000 |
Note: If you need other voltages, please contact the sales

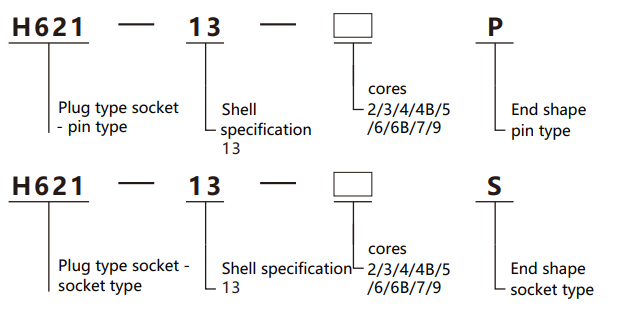

Selection reference
| Counter socket-pin type | H621-13-2P | H621-13-3P | H621-13-4P | H621-13-4BP | H621-13-5P | H621-13-6P | H621-13-6BP | H621-13-7P | H621-13-9P |
| Counter socket-Socket type | H621-13-2S | H621-13-3S | H621-13-4S | H621-13-4BS | H621-13-5S | H621-13-6S | H621-13-6BS | H621-13-7S | H621-13-9S |
| Number of cores | 2 | 3 | 4 | 4B | 5 | 6 | 6B | 7 | 9 |

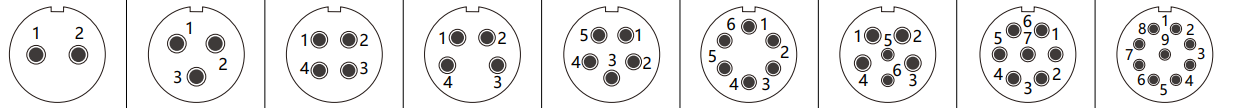

| Pin Insulator Front View |  | ||||||||
| Rated current | 13A | 13A | 5A | 13A | 5A | 5A | 13A | 5A | 3A |
| Contact diameter | φ1.6*2 | φ1.6*3 | φ1.0*4 | φ1.6*4 | φ1.0*5 | φ1.0*6 | φ1.6*4 Φ1.0*2 | φ1.0*7 | Φ0.7*9 |
| Operating Voltage | 250V | 250V | 200V | 250V | 180V | 125V | 20v | 125V | 125V |
| With stand voltage (AC.V)1min | 1500V | 1500V | 1500V | 1500V | 1000V | 1000V | 1500V | 1000V | 1000V |
| Contact resistance mΩ | 2 | 2 | 5 | 2 | 5 | 5 | 2 | 5 | 10 |
| Welding wire gauge mm²/AWG | ≤2/14 | ≤2/14 | ≤0.785/18 | ≤2/14 | ≤0.785/18 | ≤0.785/18 | ≤2/14 | ≤0.785/18 | ≤0.785/18 |
