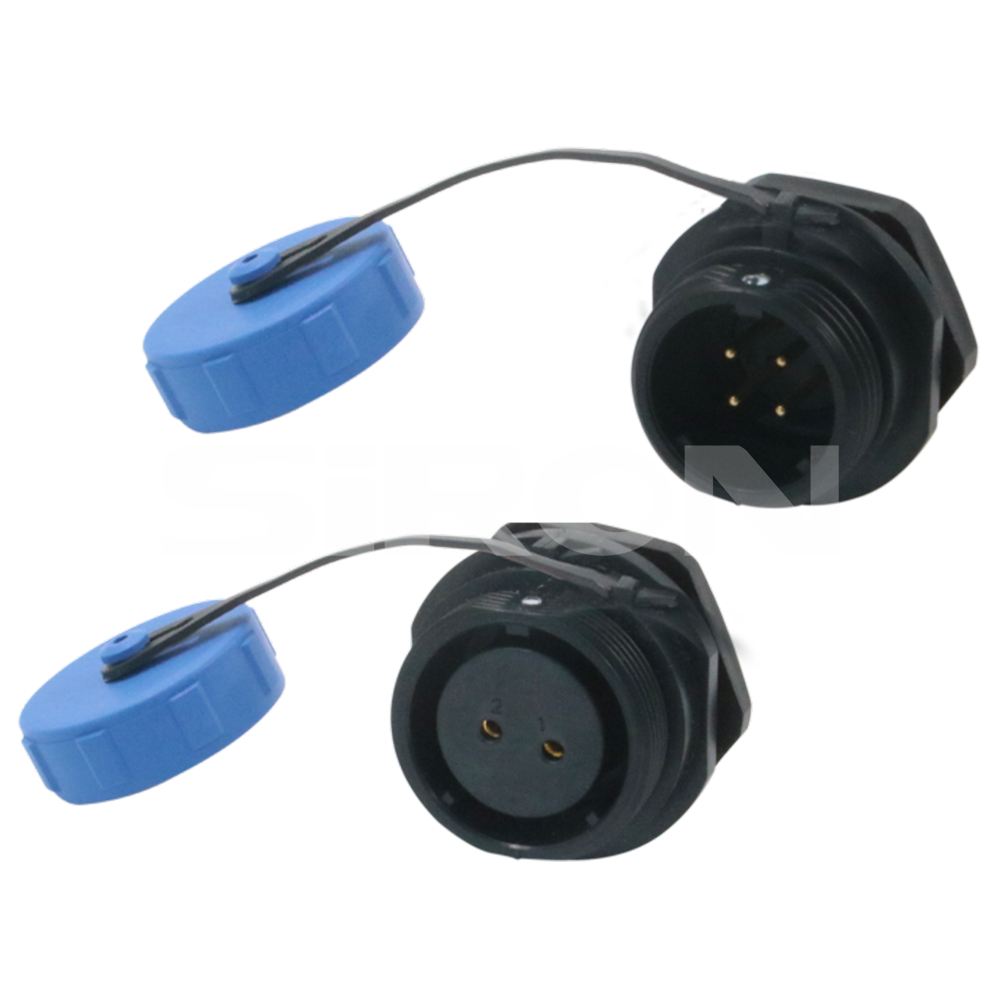

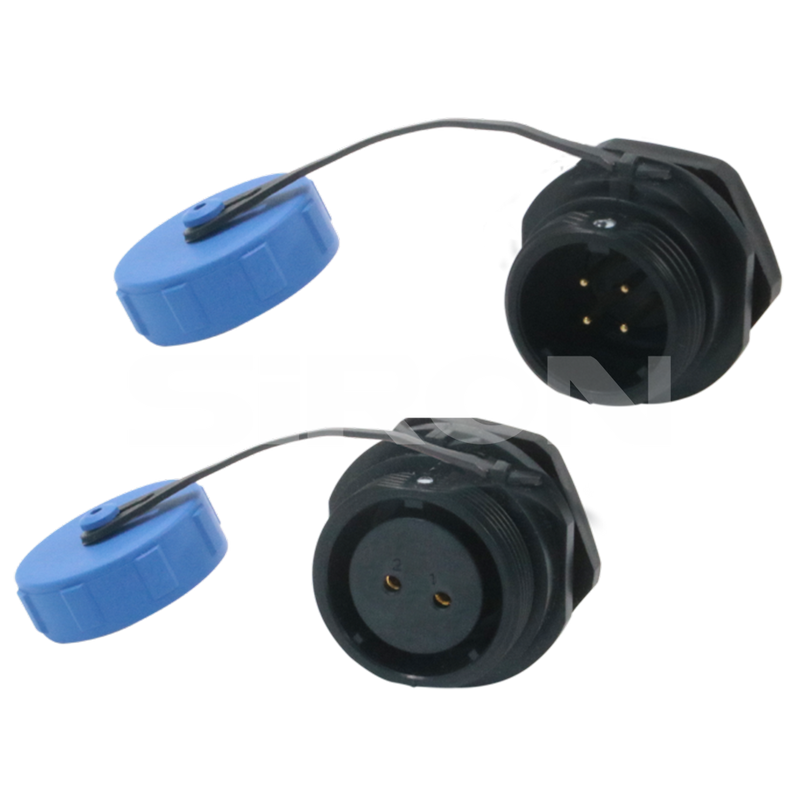

H622-13
SiRON
8538900000
Order
Specifications
| Couoing | Screw-threaded coupling |
| Shcoll material | Thermoplastic Pa66, flame retardant grade: V0 |
| Insert material | The hot wire material PPS can withstand high temperatures up to 260° C |
| Contact material | Gold-platedbrass |
| Termination | Weld |
| Cable outer diameter range | GM13: A4-6.5mm (unmarked) B5-8mm; GM17: 7-10mm (unmarked) GM21: A4.5-7mm, B7-12mm (unmarked) |
| IP rating | IP68 |
| Mating cyclc | More than 500 times |
| Temperature range | -25℃~+85℃ |
| MΩ Insulation resistancem | 2000 |
Note: If you need other voltages, please contact the sales

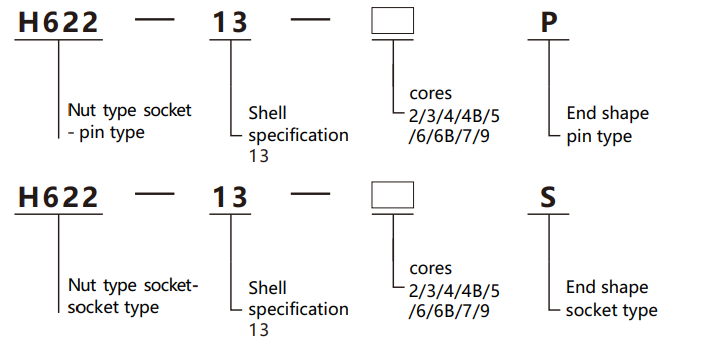

Selection reference
| Nut type socket-pin type | H622-13-2P | H622-13-3P | H622-13-4P | H622-13-4BP | H622-13-5P | H622-13-6P | H622-13-6BP | H622-13-7P | H622-13-9P |
| Nut type socket-Socket type | H622-13-2S | H622-13-3S | H622-13-4S | H622-13-4BS | H622-13-5S | H622-13-6S | H622-13-6BS | H622-13-7S | H622-13-9S |
| Number of cores | 2 | 3 | 4 | 4B | 5 | 6 | 6B | 7 | 9 |

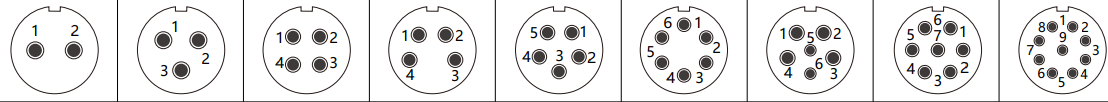

| Pin Insulator Front View |  | ||||||||
Rated current | 13A | 13A | 5A | 13A | 5A | 5A | 13A | 5A | 3A |
Contact diameter | Φ1.6*2 | φ1.6*3 | φ1.0*4 | φ1.6*4 | φ1.0*5 | φ1.0*6 | φ1.6*4 φ1.0*2 | φ1.0*7 | Φ0.7*9 |
Operating Voltage | 250V | 250V | 200V | 250V | 180V | 125V | 250V 125V | 125V | 125V |
Withstand voltage (AC.V)1min | 1500V | 1500V | 1500V | 1500V | 1000V | 1000V | 1500V | 1000V | 1000V |
Contact resistance mΩ | 2 | 2 | 5 | 2 | 5 | 5 | 2 | 5 | 10 |
Welding wire gauge mm²/AWG | ≤2/14 | ≤2/14 | ≤0.785/18 | ≤2/14 | ≤0.785/18 | ≤0.785/18 | ≤2/14 | ≤0.785/18 | ≤0.785/18 |
Selection reference
| Number of cores | 2 | 3 | 4 | 4B | 5 | 6 | 6B | 7 | 9 |
| Pin Insulator Front View |  | ||||||||
| Nut Socket - Pin Type Compatibility List | |||||||||
| Nut type socket-pin type | H622-13-2P | H622-13-3P | H622-13-4P | H622-13-4BP | H622-13-5P | H622-13-6P | H622-13-6BP | H622-13-7P | H622-13-9P |
| Applicable cable plug (jack) | H620-13-2S | H620-13-3S | H620-13-4S | H620-13-4BS | H620-13-5S | H620-13-6S | H620-13-6BS | H620-13-7S | H620-13-9S |
| List of Nut Socket - Socket Type Compatibility | |||||||||
Nut type socket-Socket type | H622-13-2S | H622-13-3S | H622-13-4S | H622-13-4BS | H622-13-5S | H622-13-6S | H622-13-6BS | H622-13-7S | H622-13-9S |
Suitable cable plug(pin) | H620-13-2P | H620-13-3P | H620-13-4P | H620-13-4BP | H620-13-5P | H620-13-6P | H620-13-6BP | H620-13-7P | H620-13-9P |
