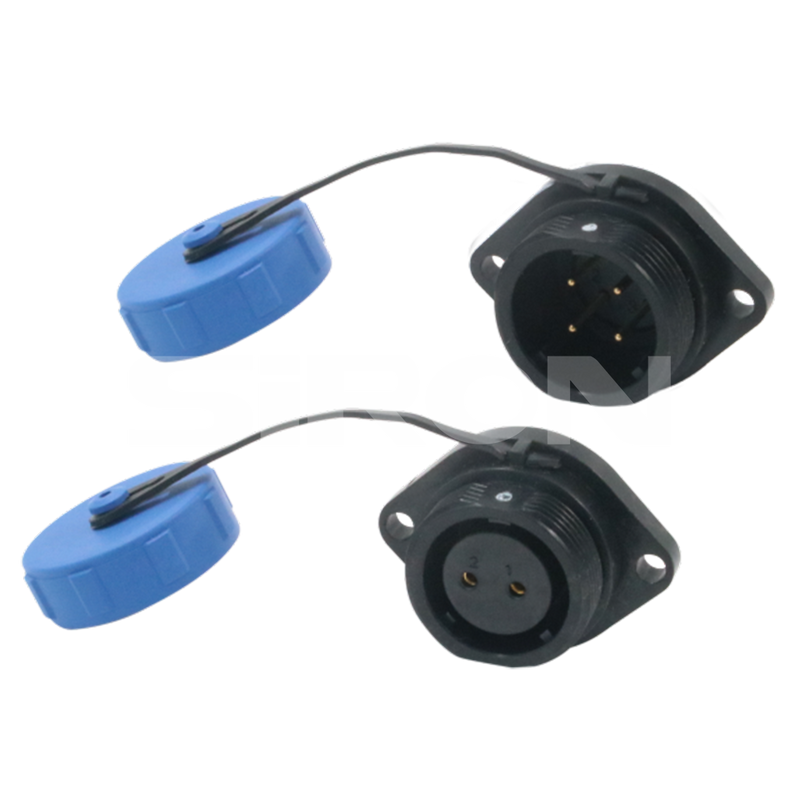

H622-17
SiRON
8538900000
Order
Specifications
| Couoing | Screw-threaded coupling |
| Shcoll material | Thermoplastic Pa66, flame retardant grade: VO |
| Insert material | The hot wire material PPS can withstand high temperatures up to 260° C |
| Contact material | Gold-platedbrass |
| Termination | Weld |
| Cable outer diameter range | GM13: A4-6.5mm (unmarked) B5-8mm; GM17: 7-10mm (unmarked) GM21: A4.5-7mm, B7-12mm (unmarked) |
| IP rating | IP68 |
| Mating cyclc | More than 500 times |
| Temperature range | -25℃~+85℃ |
| MΩ Insulation resistancem | 2000 |
Note: If you need other voltages, please contact the sales

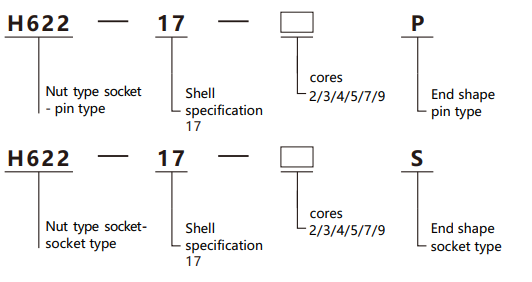

Selection reference
| Nut type socket-pin type | H622-17-2P | H622-17-3P | H622-17-4P | H622-17-5P | H622-17-7P | H622-17-9P |
| Nut type socket-Socket type | H622-17-2S | H622-17-3S | H622-17-4S | H622-17-5S | H622-17-7S | H622-17-9S |
| Number of cores | 2 | 3 | 4 | 5 | 7 | 9 |
| Pin Insulator Front View |  | |||||
| Rated current | 10A | 10A | 5A | 5A | 5A | 5A |
| Contact diameter | φ1.5*2 | φ1.5*3 | φ1.0*4 | φ1.0*5 | φ1.0*7 | φ1.0*9 |
| Operating Voltage | 500V | 500V | 500V | 500V | 400V | 400V |
| Withstand voltage(AC.V)1min | 1500V | 1500V | 1500V | 1500V | 1200V | 1200V |
| Contact resistance mΩ | 2.5 | 2.5 | 5 | 5 | 5 | 5 |
| Welding wire gauge mm²/AWG | ≤2/14 | ≤2/14 | ≤0.785/18 | ≤0.785/18 | ≤0.785/18 | ≤0.785/18 |
Selection reference
| Number of cores | 2 | 3 | 4 | 5 | 7 | 9 |
| Pin Insulator Front View |  | |||||
| Nut Socket - Pin Type Compatibility List | ||||||
| Nut type socket-pin type | H622-17-2P | H622-17-3P | H622-17-4P | H622-17-5P | H622-17-7P | H622-17-9P |
| Applicable cable plug (jack) | H620-17-2S | H620-17-3S | H620-17-4S | H620-17-5S | H620-17-7S | H620-17-9S |
| Nut Socket - Socket Type Compatibility | ||||||
| Nut type socket-Socket type | H622-17-2S | H622-17-3S | H622-17-4S | H622-17-5S | H622-17-7S | H622-17-9S |
| Suitable cable plug(pin) | H620-17-2P | H620-17-3P | H620-17-4P | H620-17-5P | H620-17-7P | H620-17-9P |
Note: Nut socket - pin type (P) with cable plug - socket type (S), nut socket - socket type (S) with cable plug - pin type (P);
