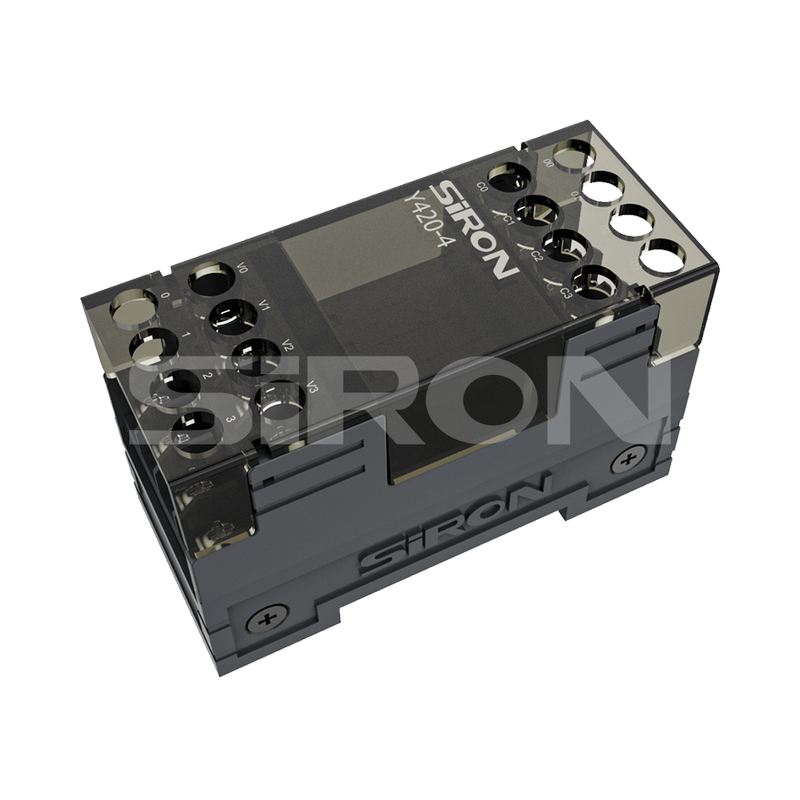

Y420-4/8
SiRON
8536901100
Note
Before ordering , please confirm the load type and size, choose the suitable way to control.
Contact protection scheme ,please refer to this chapter products
When PLC connection,Please be sure to use the corresponding special cable developed by our company.
Type selection reference

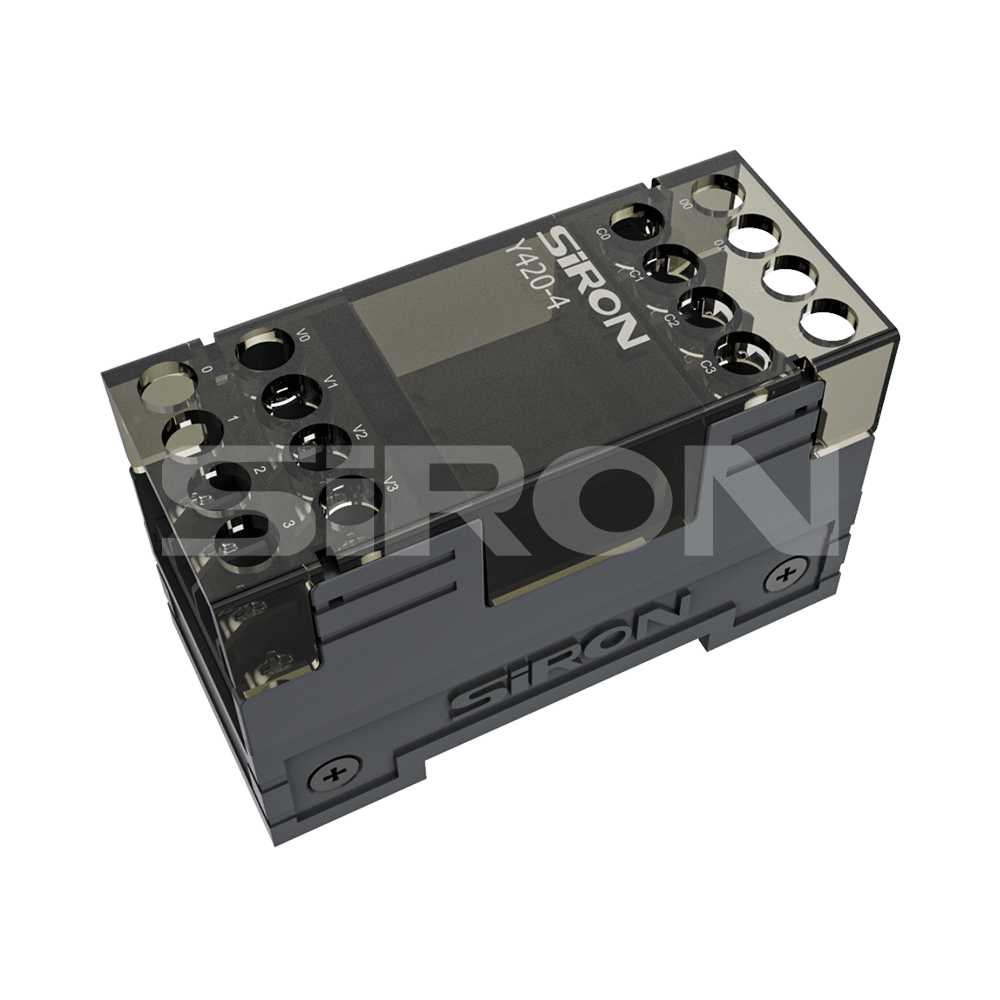

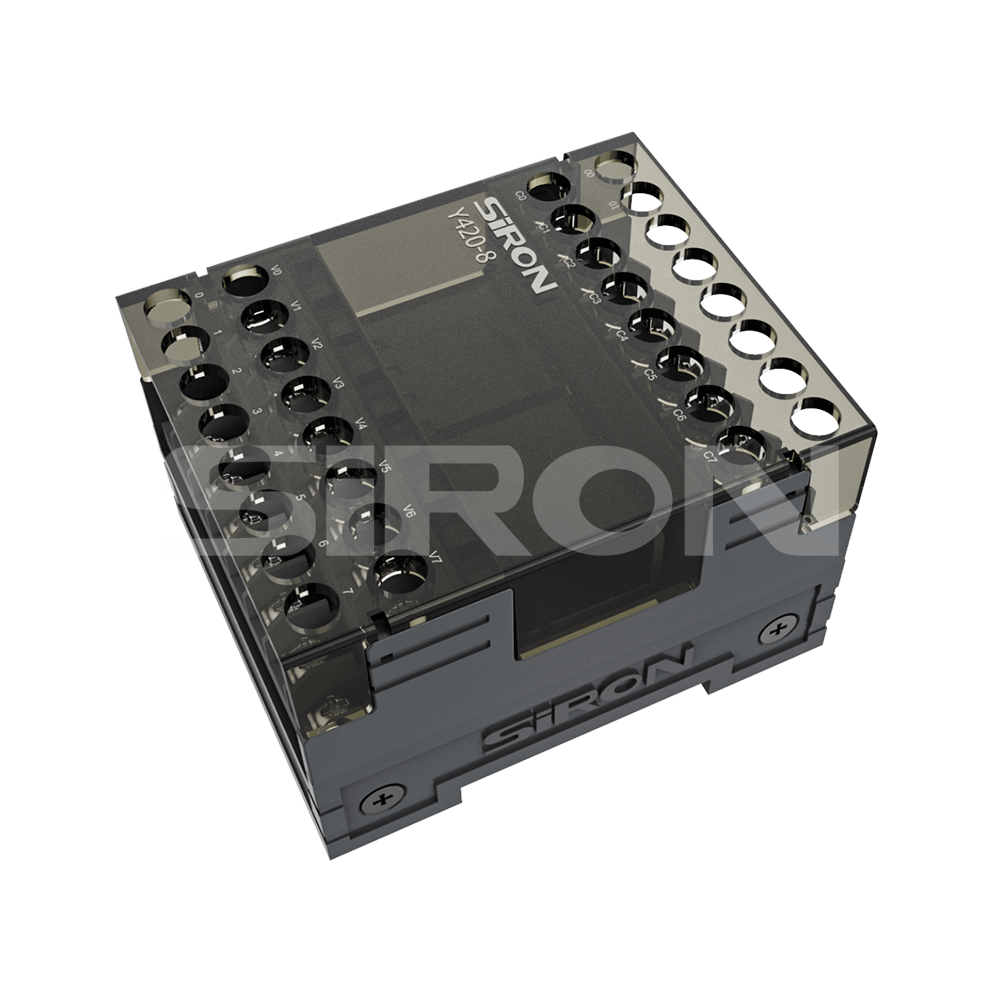

| Name | 4-bit signal relay module (Panasonic relay) | 8-bit signal relay module (Panasonic relay) |
| Model | Y420-4-0 | Y420-8-0 |
| Name | 4-bit signal relay module (Omron relay) | 8-bit signal relay module (Omron relay) |
Specifications
| Relay Coil Specifications | |||
| input | Nominal coil voltage | DC 24V | |
| Nominal operating current | 7.5mA | ||
| Coil resistance | 3200Q | ||
| Pick-up Voitage | Rated voltage70% | ||
| Drop-out Voltage | Rated voltage5% | ||
| Max.allowable voltage | Rated voltage120% | ||
| Nominal operating power | 180 MW | ||
| Output | Switch Circuit | ||
| Contact Specifications | Arrangement | 1a | |
| initial contact resistance | 30mΩ(Voltage drop through the DC6V1A France) | ||
| Nominal switching capacity (resistive load) | 5A 250VAC,5A30V DC | ||
| Max.switching power(resistiveload) | 1250VA,150W | ||
| Max.switching voitage | 5A | ||
| Max.switching capacity | 250VAC;110V DC | ||
| Min.switching capacity | DC 100mv 100uA | ||
| COM port | Max.switching capacity | 5A | |
| Expeded Life | Mechanical | More than 20 million times(Off frequency of 180 times/min) | |
| Electrial | 100,000 times or more(3A250AC,30VDC,Resistive load) | ||

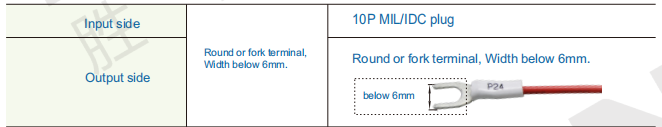

Suitable terminal
Type selection reference
Wiring Diagram
| Corresponding output Devices | Solenoid,Warning Light,Relay or Contactor. | ||
| Electrical properties | Action time | 10ms | |
| Teset time | 5ms | ||
| suoundings | Operating temperature | -40℃~70℃ | |
| Use humidity | 5%～85% | ||
At the same time, the corresponding P N P interface is Y420-P/Y421-P
Suitable terminal

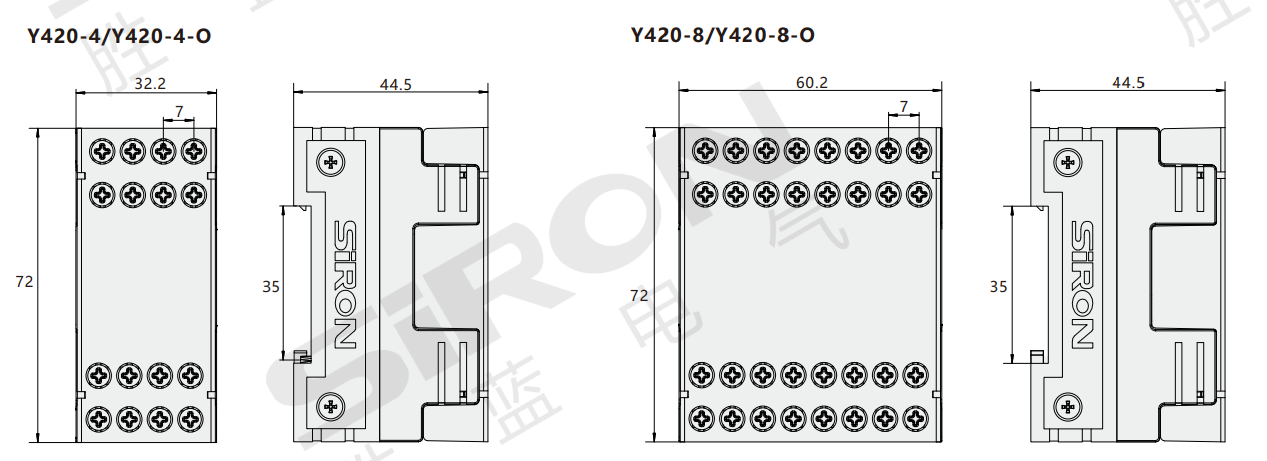

Dimensions

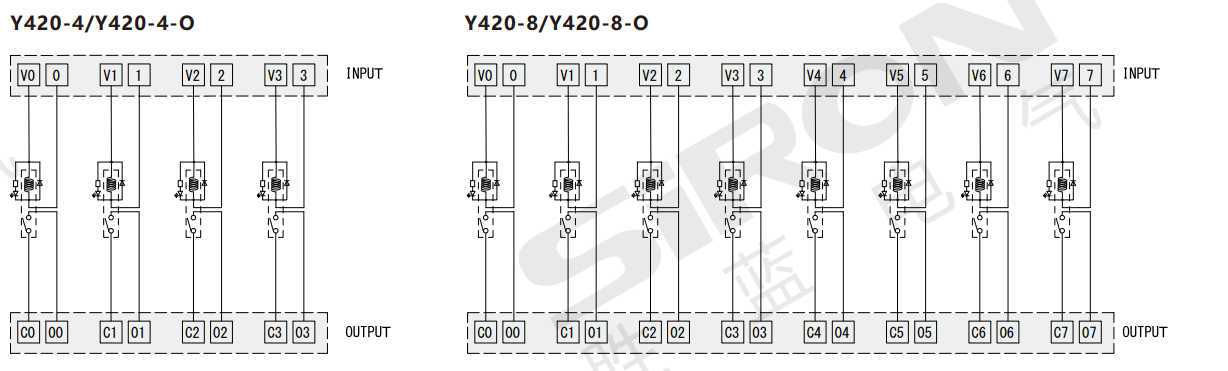

Wiring Diagram

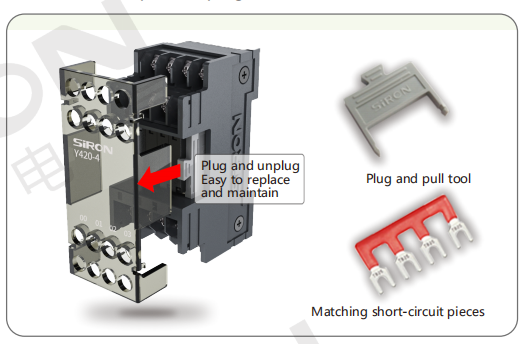

Can pull out plug
