Relay contact parameters

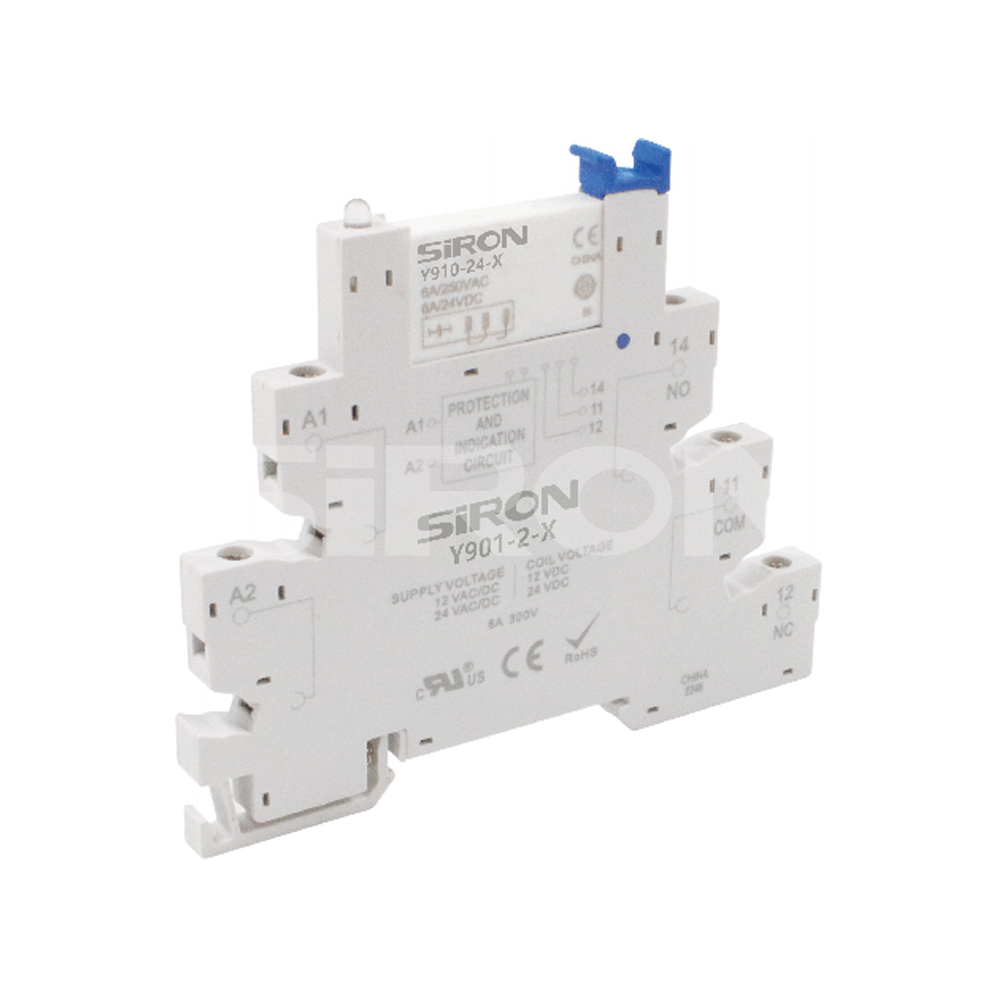

| Model | Y910-24-X |
| Contact form | 1A/1C: 1 group normally open type /1 group conversion type |
| Contact resistance | Below 100mΩ (under the condition of 6VDC and 1A) |
| Contact materials | Silver-tin oxide alloy |
| Contact load (resistance) | NO:6A 277VAC,COSφ=1.0
NO:6A 24VDC,L/R=0
NC:6A 277VAC,COSφ=1.0
NC:6A 24VDC,L/R=0 |
| Max.switching voltage | 277VAC/30VDC |
| Max.switching current | 6A |
| Max.switching power | 1662VA/180W |
| Min.switching load | 10mA24V |
| Mechanical endurance | More than 10 million
|
| Applicable base | Y901-2-X/Y901-2-X1 |
| Electrical endurance | On-off time: 1 second on /9 seconds off, normal temperature.
NO:6A250VAC, resistive load, over 30,000 cycles
NO:6A24VDC, resistive load, over 30,000 cycles
NC:6A250VDC, resistive load, over 10,000 cycles
NC:6A24VDC, resistive load, over 10,000 cycles
|
Relay characteristic parameter
| Model | Y910-24-X |
| Insulation resistance | 1000MΩ(at 500VDC) |
| Dielectric strength | Coil and contact: 5000V(1 minute) Open contact: 1000V(1 minute) |
| Operate time | Below 8ms (at rated voltage) |
| Release time | Below 4ms (at rated voltage) |
| vibration resistance | Frequency: 10Hz- 55Hz, dual amplitude: 1mm |
| Shock resistance | Functionality: 100m/s ² and above. Strength: above 1000m/s ² |
| Ambient temperature | -40℃ to 85℃ |
| Humidity | 5%to 85%RH |
| Termination | PCB Installation type |
| Unit weight | About 5g |
| Construction | Solder mask type or plastic sealing type |
Coil specification sheet
| Rated voltage | Coil resistance | Operate voltage | release voltage | Allowable voltage
range in coil | (approx.W)
Nominal coil power |
|
|
| %of rated voltage |
| 3 | 52.5×(1±10%) | 80%MAX. | 5%MIN. | 95-120% | 0.17 |
| 5 | 145×(1±10%) |
| 6 | 210×(1±10%) |
| 9 | 475×(1±10%) |
| 12 | 845×(1±10%) |
| 15 | 1320×(1±10%) |
| 18 | 1905×(1±10%) |
| 24 | 3385×(1±10%) |
