You are here: Home / Products / Industrial Connector / Relay Module / SiRON Y931-24-X Series Electromagnetic Relay And Socket

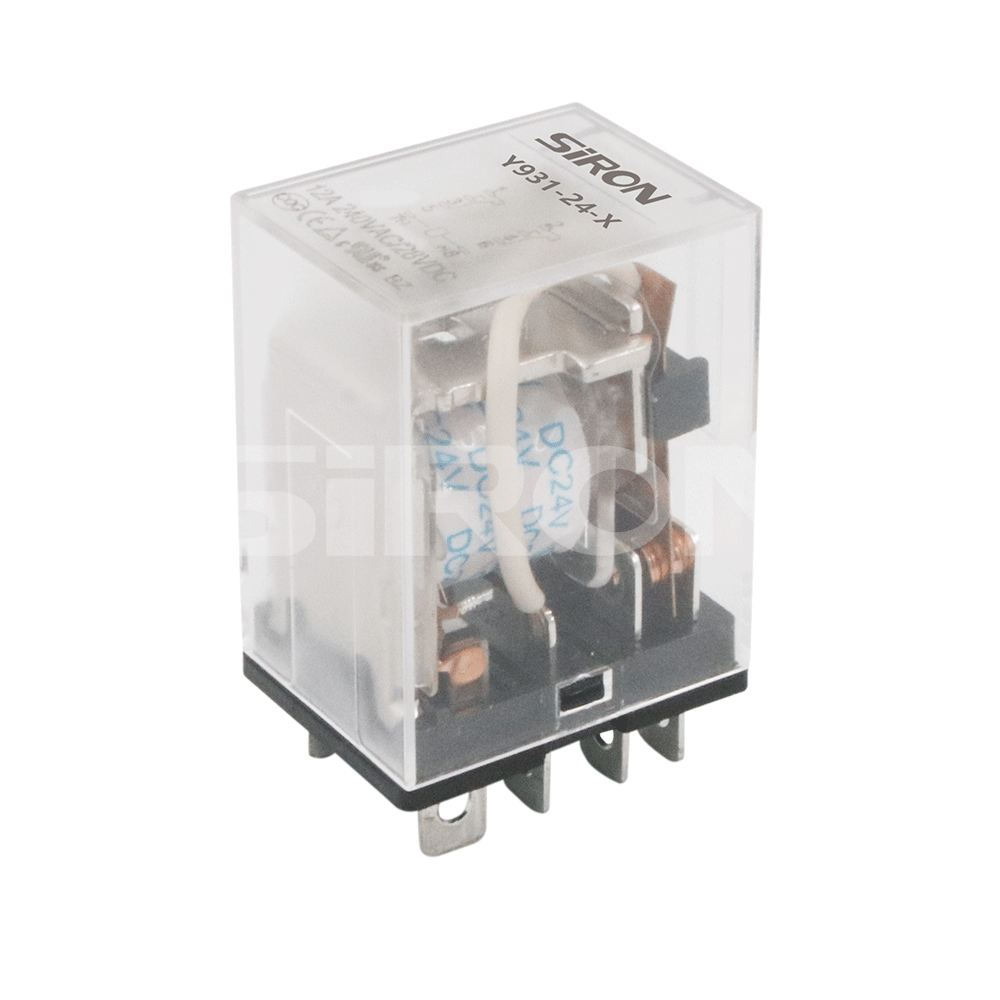

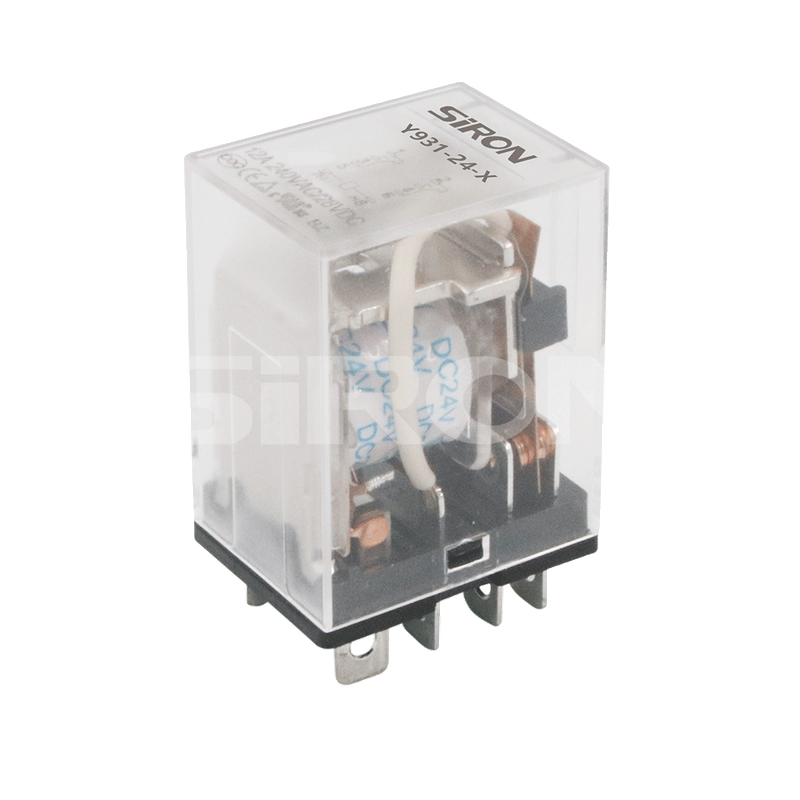

SiRON Y931-24-X Series Electromagnetic Relay And Socket

Name: SiRON Y931-24-X Series Electromagnetic Relay And Socket
Brand: SiRON
Rating: 5.0 (67 reviews)

Features

Electromagnetic relay is an automatic switch element with isolation function, widely used in remote control, telemetry, communication,automatic control, machine
Electricalintegration and power electronic equipment, is one of the most important control components;
Can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure,speed,light, etc.)inductionMechanism(input part);
There is an actuator (output part) that can realize "on" and "off" control ofthe controlled circuit;Between the input part and the output part ofthe relay,there are input coupling isolation, function processing and the output part
Theintermediate mechanism for driving (the driving part).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Specifications

Model	Y931-24-X	Y933-24-X
Appearance
Overall dimension	27.3×21×35
Contact form	A set of conversions	Group Two Conversion
Contact load	15A	12A
Switching voltage	240VAC/28VDC
Contact material	silver alloy
Coil power	DC:0.9W
Coil voltage	DC24V
Electrical life	≥100000 time
Installation mode	PCB printed plate type, socket type

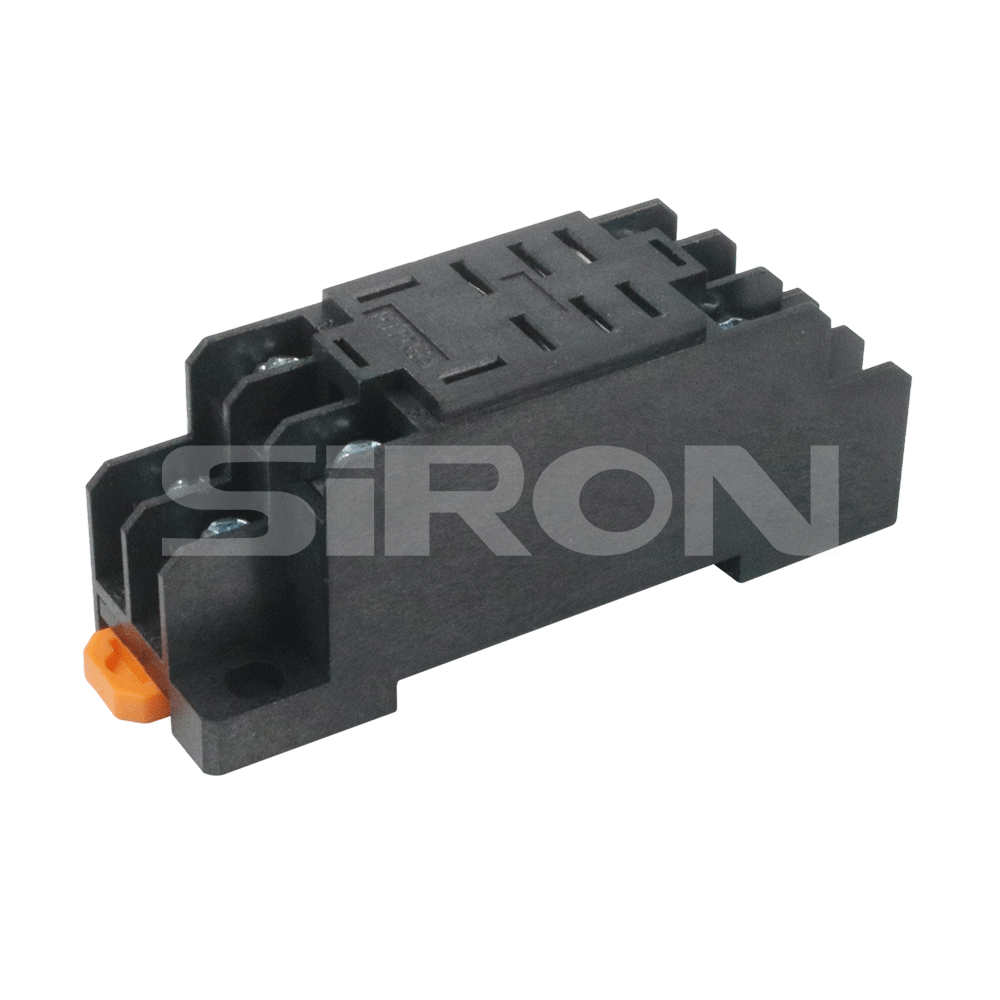

Suitable base	Y902-8-X
