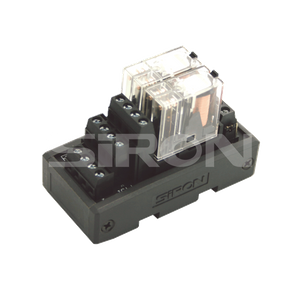

SiRON Y430-O~Y435-O Series Wide Base Type Power Relay Module

Name: SiRON Y430-O~Y435-O Series Wide Base Type Power Relay Module
Brand: SiRON
Rating: 5.0 (87 reviews)

Features

Inputloutput side with surge absorbing circuit, which can effectively extend the life of the relay contact, and canslow the instantaneous impact current of load side.
NPN/PNP bipolar input coresponding, and the indicator light will also follow the input signal of different and bright color ;
Green - NPN .Red-the PNP.
Input side wrong line protection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

965d96ecce847a5167b5e547e960e6ab

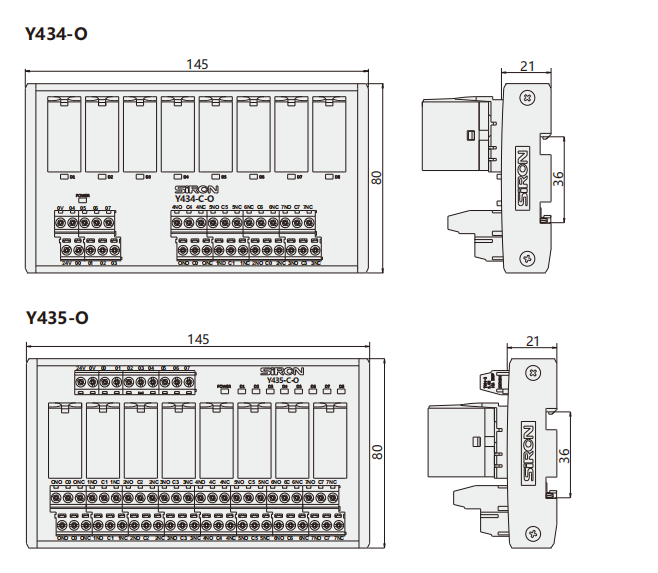

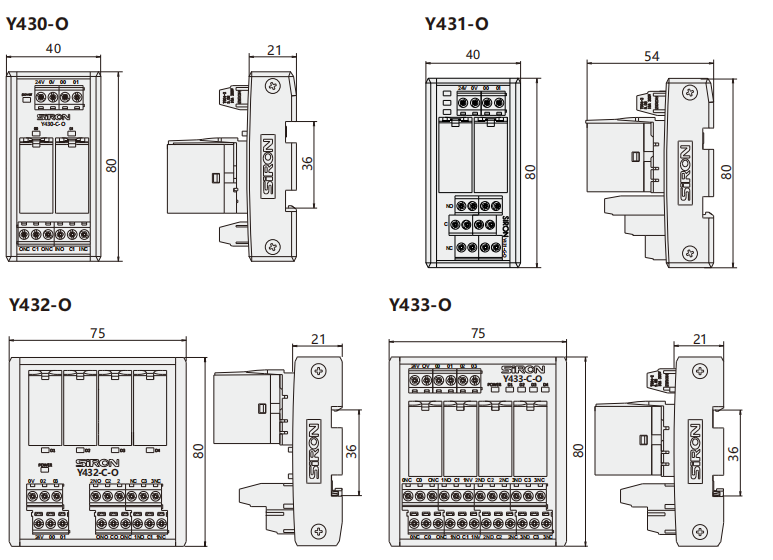

Dimensions

80ed60f6-27da-442c-ba5b-71136cb14f8f

cbfd2dcc-725c-48f6-aebd-d1b53a5b287e

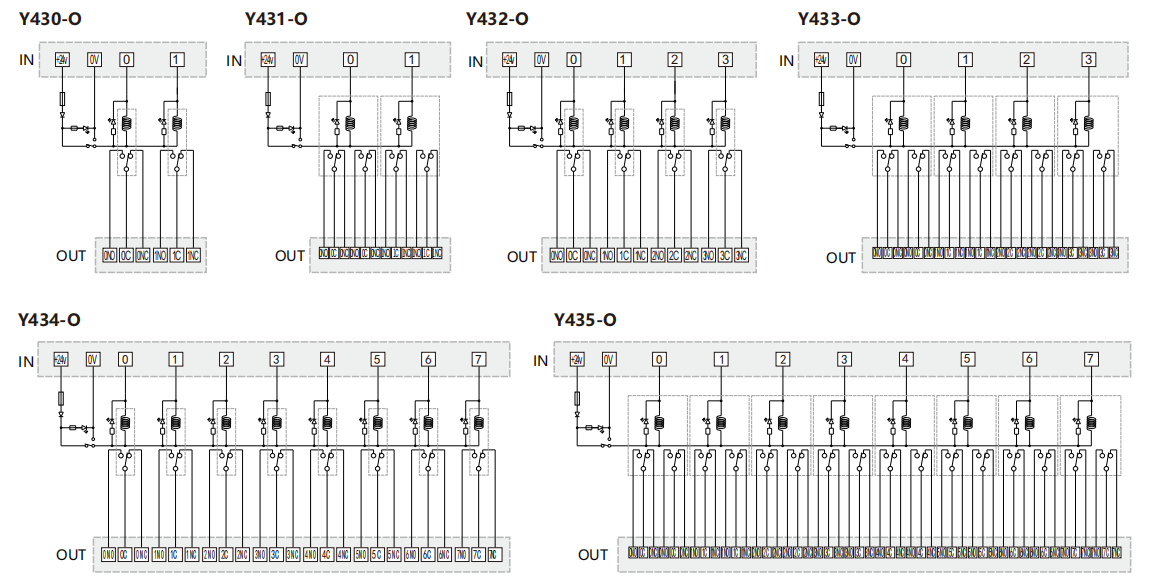

Wiring Diagram

9f151bfe-b61d-4aef-b43f-91a4abc9c507

Type selection reference

Model	Y430-0	Y431-0	Y432-0	Y433-0	Y434-0	Y435-0

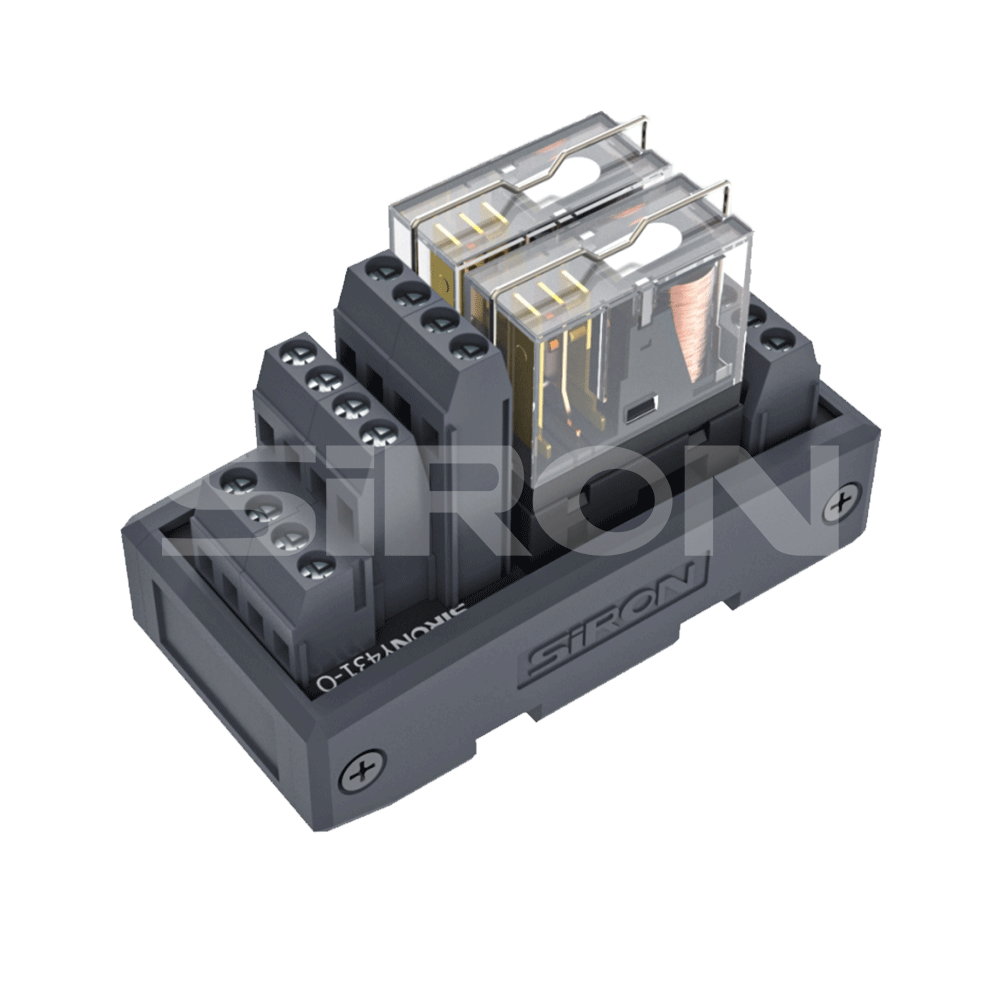

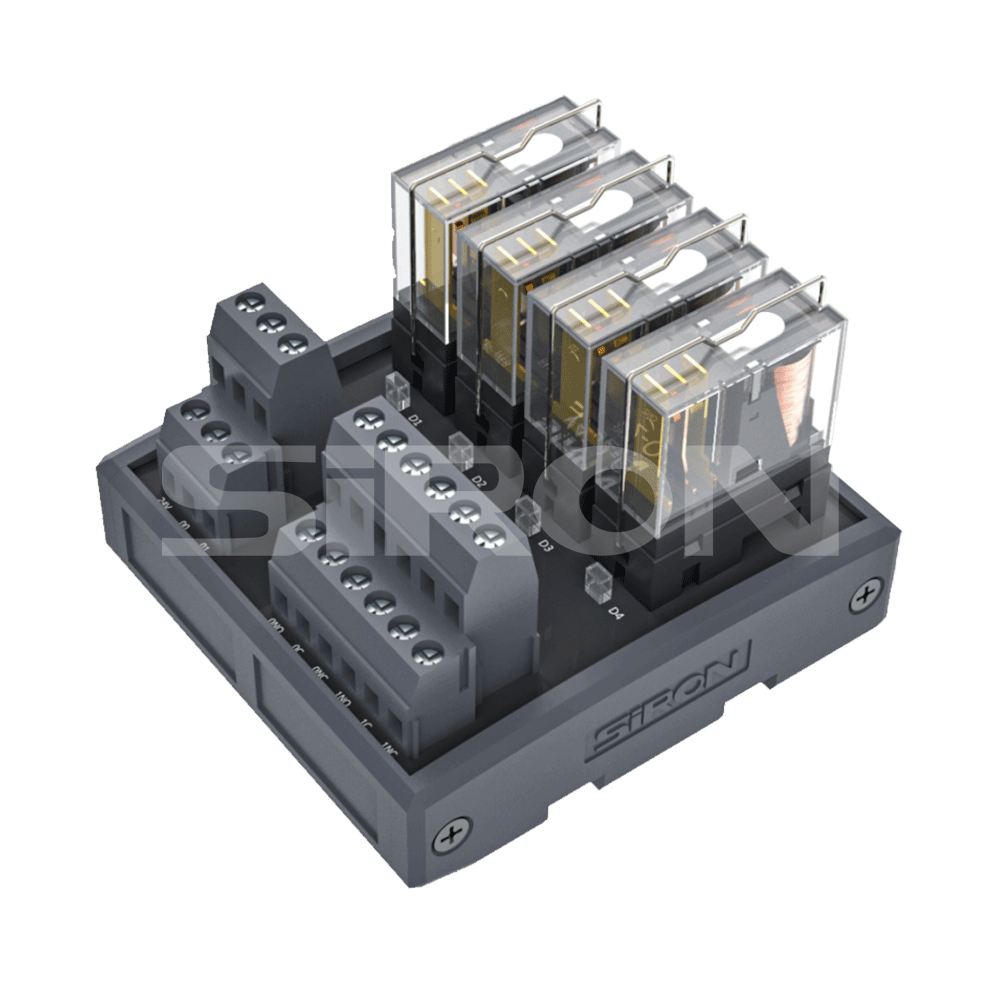

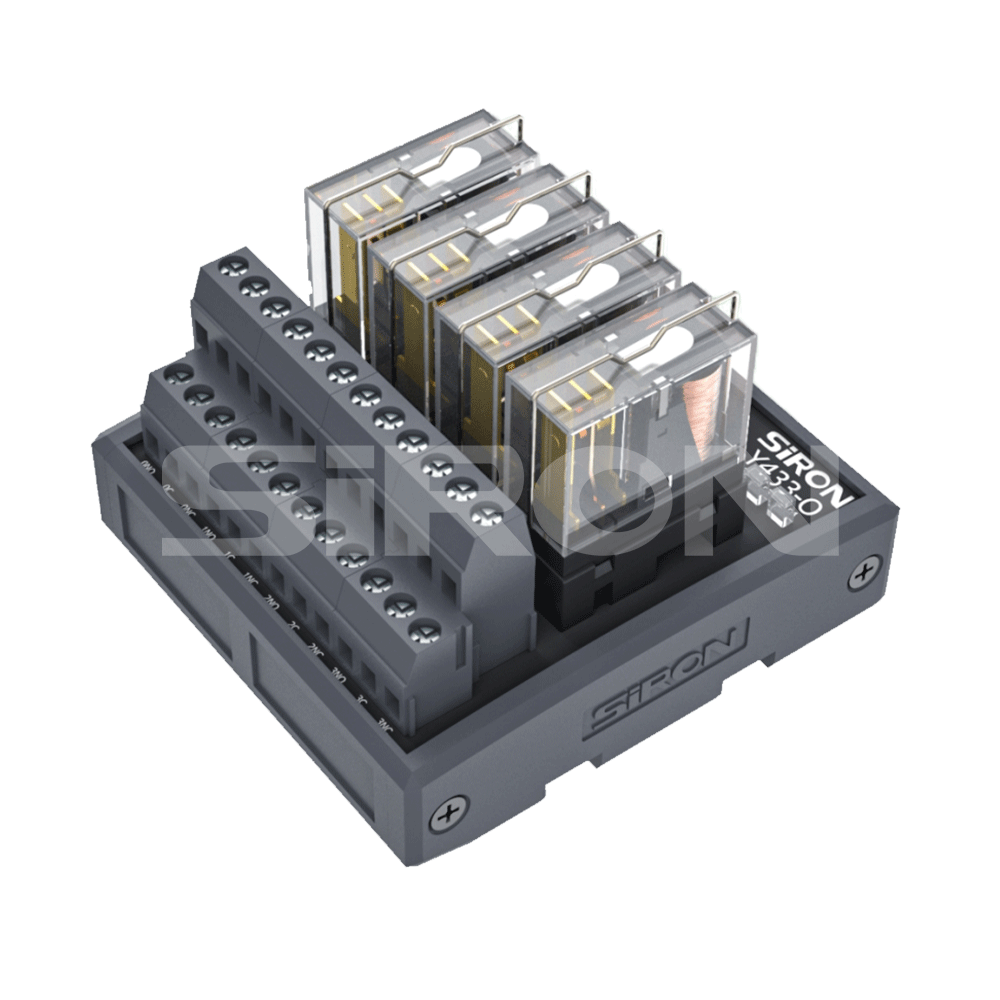

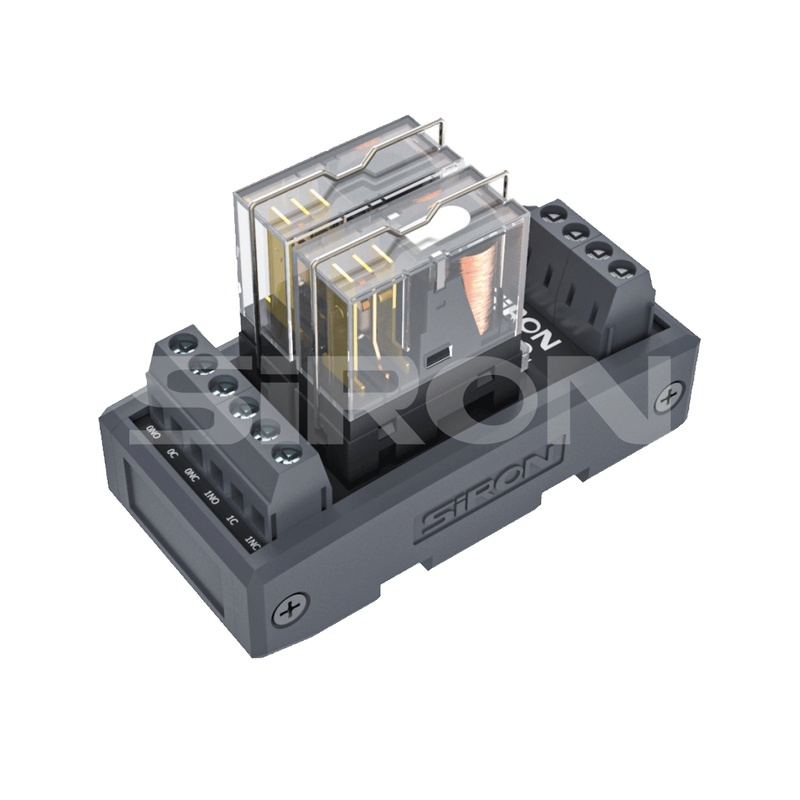

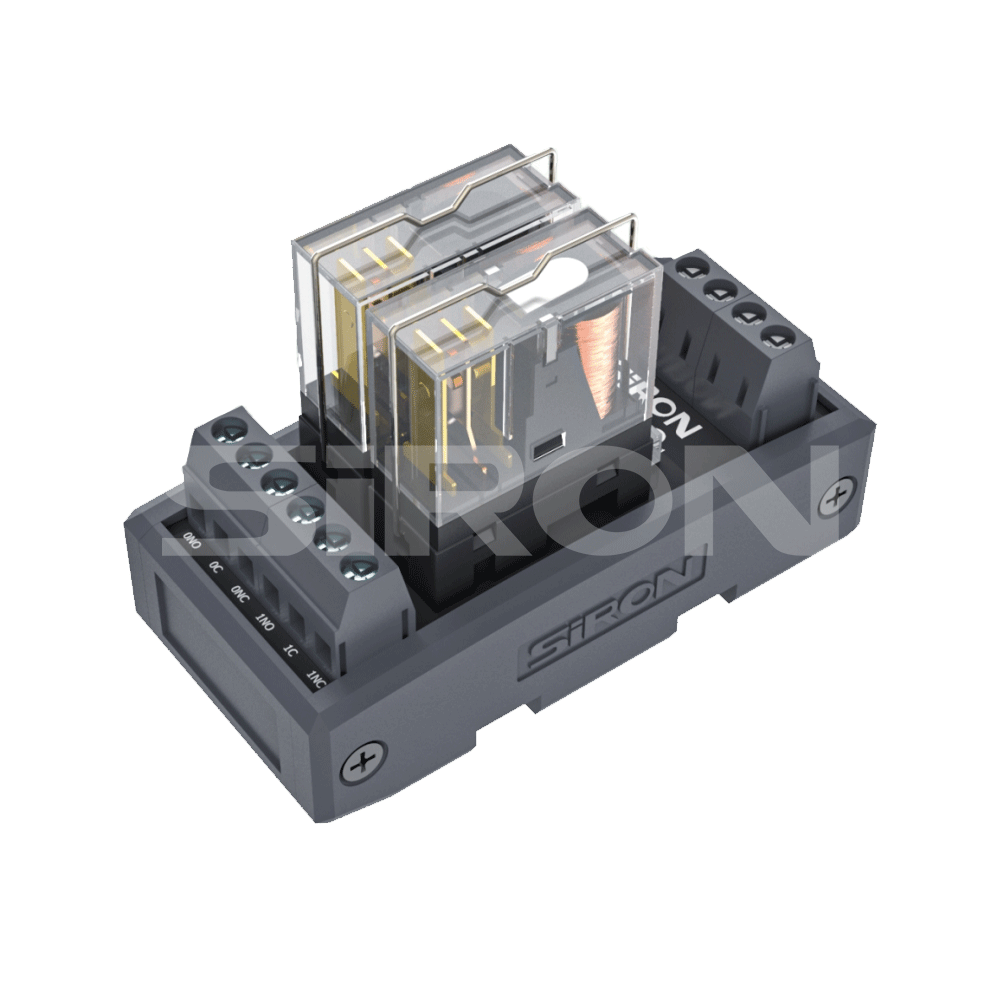

Name	2-bit 1C power Relay module	2-bit 2C power Relay module	4-bit 1C power Relay module	4-bit 2C power Relay module	8-bit 1C power Relay module	8-bit 2C power Relay module

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

Model			Y430-0 Y432-0 Y434-0	Y431-0 Y433-0 Y435-0
Input	Relay Coil Specifications
	(V)Nominal coil voitage		DC 24V
	(MA)Nominal operating curent		25.7mA(DC24V)
	(Ω)Coi resistance		1080Ω(DC24V)
	(V)Pick-up Volitage		More than 80% (AC) and more than 70% (DC) of the rated voltage
	Drop-out Voltage		More than 80% (AC) and more than 70% (DC) of the rated voltage
	Max.alowable voitage		140% of the rated voltage
	(MW)Nomnal operatng powe		900MW(AC),530MW(DC)
Output	Contact
	contact Specification	Contact structure	1C	2C
		Contact Materilal	Silver-nickel	Au-flashed AgNi type
		Contact reslstance	100mΩBy (through the DC 6V1A voltage drop method)	Below 50mΩ (by the DC 6V 1A voltage drop method)
		Rated control capacity	NO contact: 12A,NC contact: 12A(AC250V),6A(30V)	5A 250VAC、5A30V DC
		Rated control capacity	NO contact: 6A,NC contact:6A(AC250V),3A(30V)
		Rated control capacity	NO contact: 3000V(AC),360W(DC); NC contact:3000V(AC),180W(DC)
		maximum alowable voltage	AC250V,DC110V
		maximum allowable voltage	DC100mA,DC5V
Electnical propertles	Action time		15ms
	Teset time		10ms
Suroundings	Operating temperature		-40℃~70℃
	Use humidity		5%～85%
Life	Mechanical		30 million times (on-off frequency 180 times per minute)
	Electrial		More than 100,000 times
