SiRON Y410~Y413 Series 8 Bit Relay Module

Name: SiRON Y410~Y413 Series 8 Bit Relay Module
Brand: SiRON
Rating: 5.0 (61 reviews)

Features

Y410/Y410-P module is an output module corresponding to all PLC with terminal block connection ; A single-strip terminal connection is used for both the input and output;

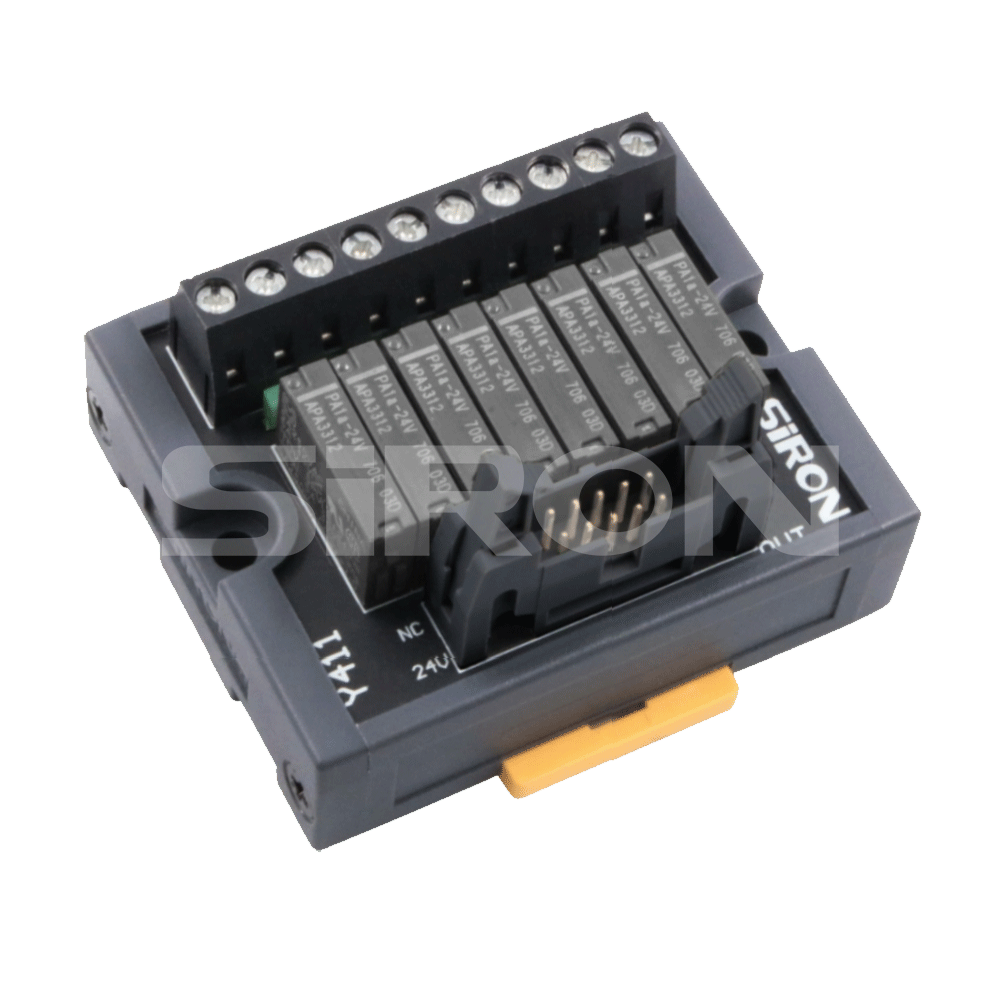

Y411/Y411-P module is an output module corresponding to all PLC with terminal block connection;A single-strip terminal black as the input end and a 10P MIL connector as the output end;
Y412/Y412-P utilizes a 10P MIL connector as the input end and a single-strip terminal black as the output end, output of electric shock are independent of each COM port
Y413/Y413-P utilizes MIL connection socket for both the input and output, facilitating remote wiring connection;
Utilizes an 8 bit relay module for compact design to save space;Utilizes LED display, so all input and output statuses are visible;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y410~Y413
Brand:
SiRON
Code:
8536901100

Y410~Y413 Series Relay Module MIL connection socket relay module 8-bit pluggable Relay module Economical type Relay Module

Product Description

Note

Before ordering , please confirm the load type and size, choose the suitable way to control.

Contact protection scheme ,please refer to this chapter products

When PLC connection,Please be sure to use the corresponding special cable developed by our company.

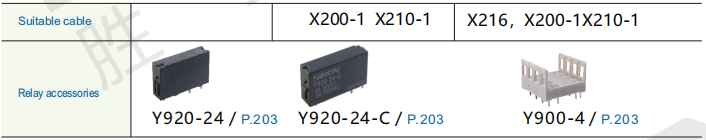

Suitable wire

965d96ecce847a5167b5e547e960e6ab

Specifications

Model	Y410/Y410-P/Y410-T Y410-C/Y410-P-C Y410-T-C	Y410-A/Y410-D/Y410-AT Y410-A-C/Y410-D-C Y410-AT-C	Y411/Y411-P Y411-C Y411-P-C	Y412/Y412-P Y412-C Y412-P-C	Y413/Y413-P Y413-C Y413-P-C
Name	8-bit Relay module	8-bit pluggable Relay module	8-bit Relay module	8-bit Relay module	8-bit Relay module

"C" after the model number for economical type, such as "Y410-C" 2. Add "O" after the model number for Omron exclusive use, such as "Y410-O" 3. For Omron pluggable, such as "Y410-A-O", please consult the relevant sales staff for details.

Suitable PLC

No limit on brand	No limit on PLC
Panasonic		FP0-C16T/C16CT(OUT) FPO-C16P/C16CP(OUT) FPO-C32T/C32CT/T32CT(OUT) FPO-C32P/C32CP/T32CP(OUT) FPO-E16T/P(OUT) FPO-E32T/P(OUT)	FP0-E8YT FPO-E16YT Fp -C32(OUT) Fp -C28(OUT
No limit on brand	No limit on PLC	No limit on PLC

Specifications

Input	Relay Coil Specifications
	Nominal ooil voitage		DC 24V
	Nominal operating current		7.5mA
	Coil resistance		3200Ω
	Pick-up Voltage		Rated voltage 7 0 %
	Drop-out Voitage		Rated voltage 5 %
	Max.alowable voltage		Rated voltage 1 2 0 %
	Nominal operating power		180 MW
Output	Switch Circuit
		Arrangement	(1NO)
		nitial contact resisiance	30mΩ(Voltage drop through the DC6V1A France)
		Nominal switchin capacity(resistive lcad)	5A 250VAC,5A30V DC
		Max.switching power(resistiveload)	1250VA,150W
		Max.Switching voltage	5A
		Max.switching capacity	250VAC;30VDC
		Min.switching capacity	DC 100mv 100uA
	COM port	Max.switching capacity	12A
	Expected Life	Mechanical	200,000 times (on-off frequency 180 times per minute)
		Electrial	100,000 times (on-off frequency 20 times per minute)
Corresponding output Devices			Solenoid,Warning Light,Relay or Contactor.
Electrical properties		Action time	10ms
		Teset time	5ms
suroundings		Oprating temperature	-40℃~70℃
		Use humidity	5%～85%
