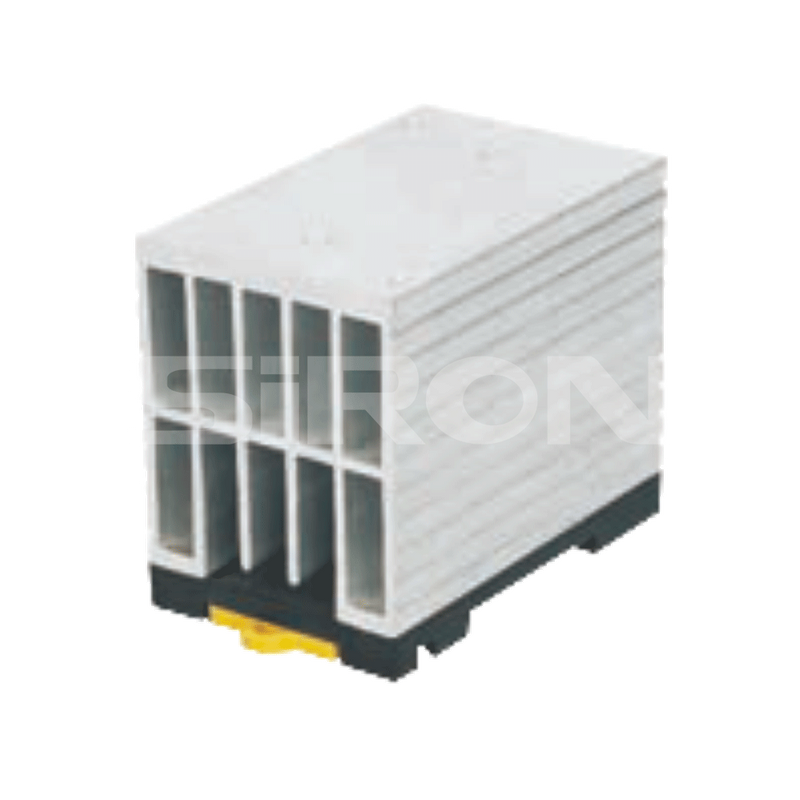

SiRON Y990～Y995 Series Solid State Relay Radiator

Name: SiRON Y990～Y995 Series Solid State Relay Radiator
Brand: SiRON
Rating: 5.0 (37 reviews)

Features

without burning and damage due to high temperature; dissipate the heat generated by the solid state relay to secure the solid state relay
Stable and reliable operation under the best conditions
The temperature of the bottom plate of the solid state relay does not exceed 80℃.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y990～Y995
Brand:
SiRON
Code:
8536411090

Y990～Y995 Series Radiator Y990-50W Radiator Aluminum material Radiator SSR Radiator

Product Description

For Selection

b8c6cfa5c588cb2facd5fe7a24c81325

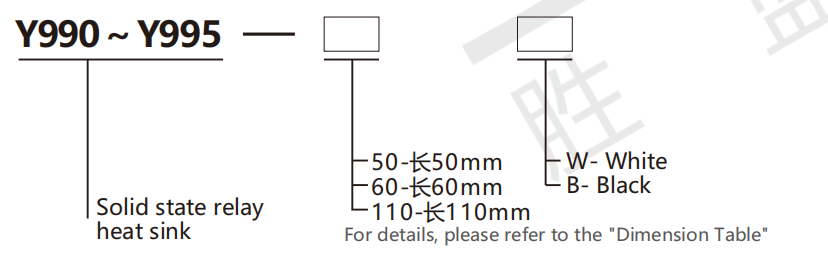

Selection example :Y990-50W(Solid state relay heat sink, 50mm in length, white.) Note: For 10A and below, those with good heat dissipation conditions may not need to add a heat sink; for others, a heat sink must be used in conjunction.

Specifications

Model	Long	Wide	High	Operation Current
Y990-50W/B	50	60	50	5~20A

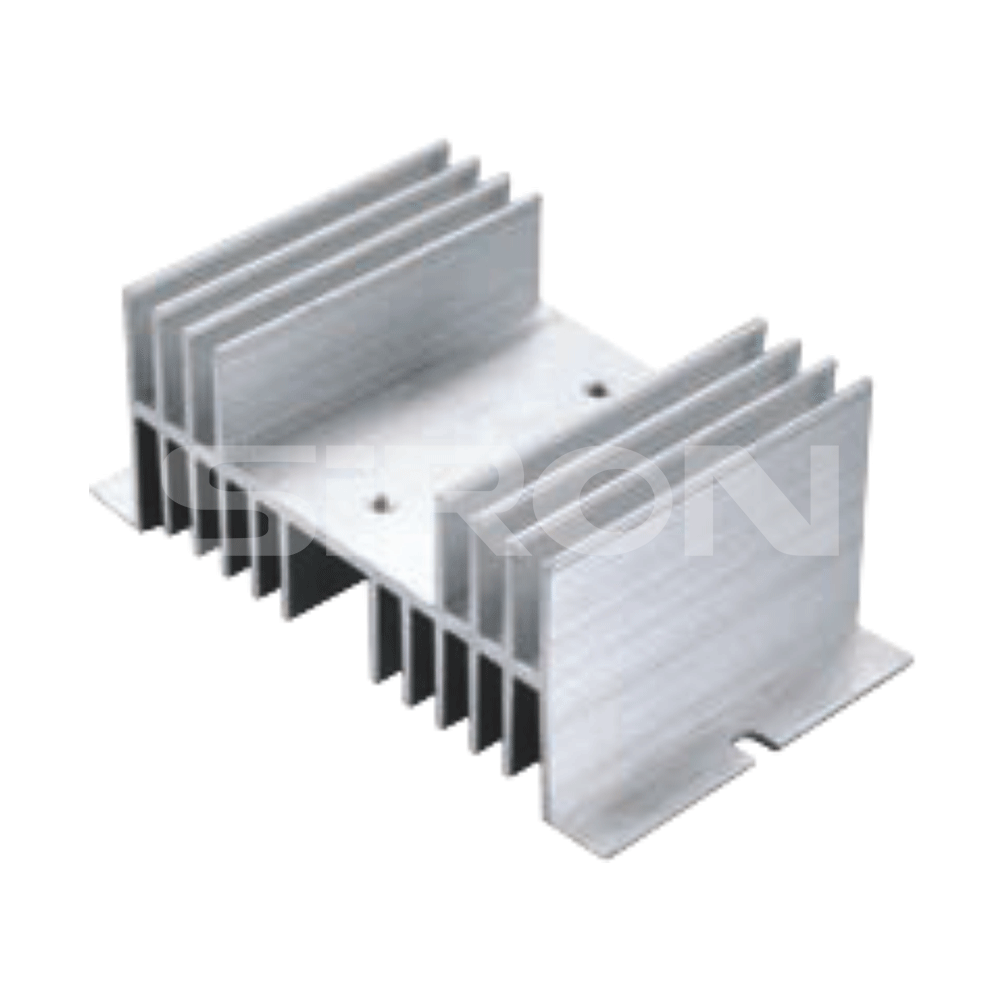

Y991-60	60	125	50	10～100A
Y991-70	70	125	50
Y991-110	110	125	50
Y991-150	150	125	50

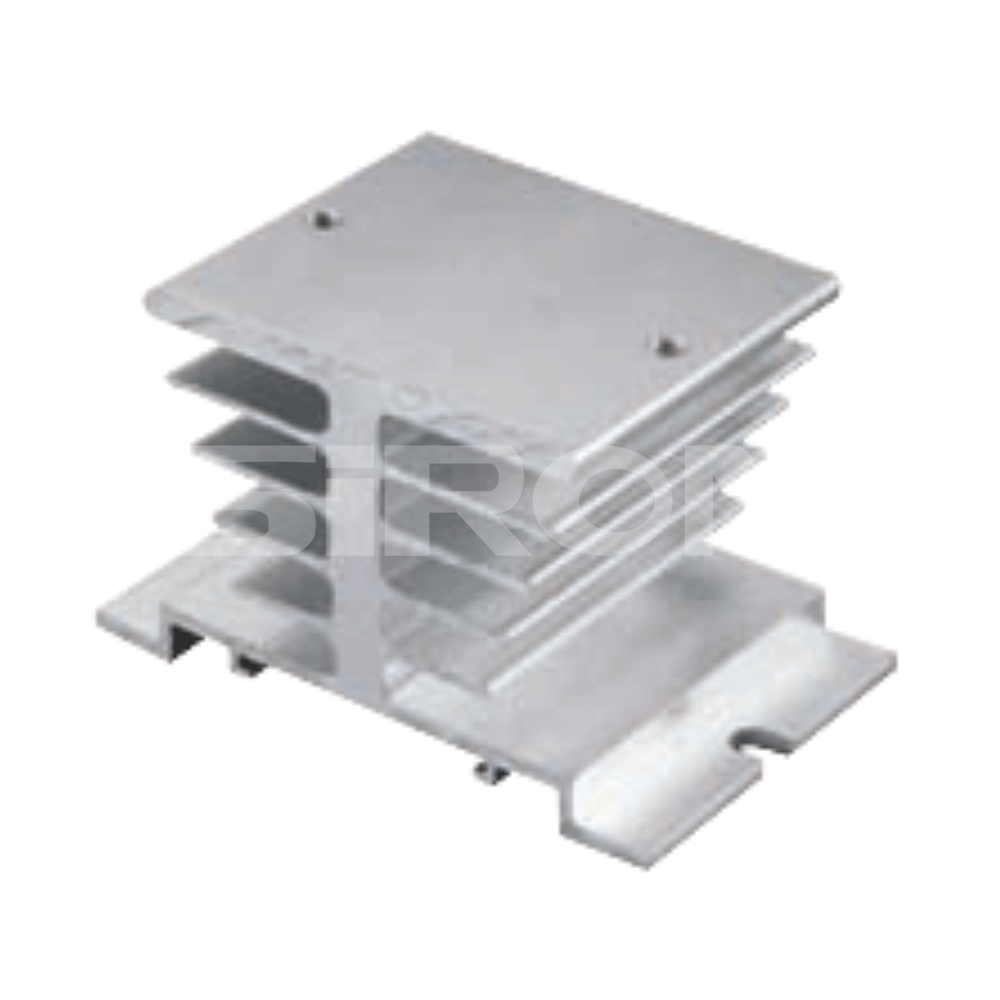

Y992-66	66	68	80	10～100A
Y992-110	110	68	80
Y992-132	132	68	80
Y993-110	110	80	80	10～100A
Y993-132	132	80	80
Y993-150	150	80	80

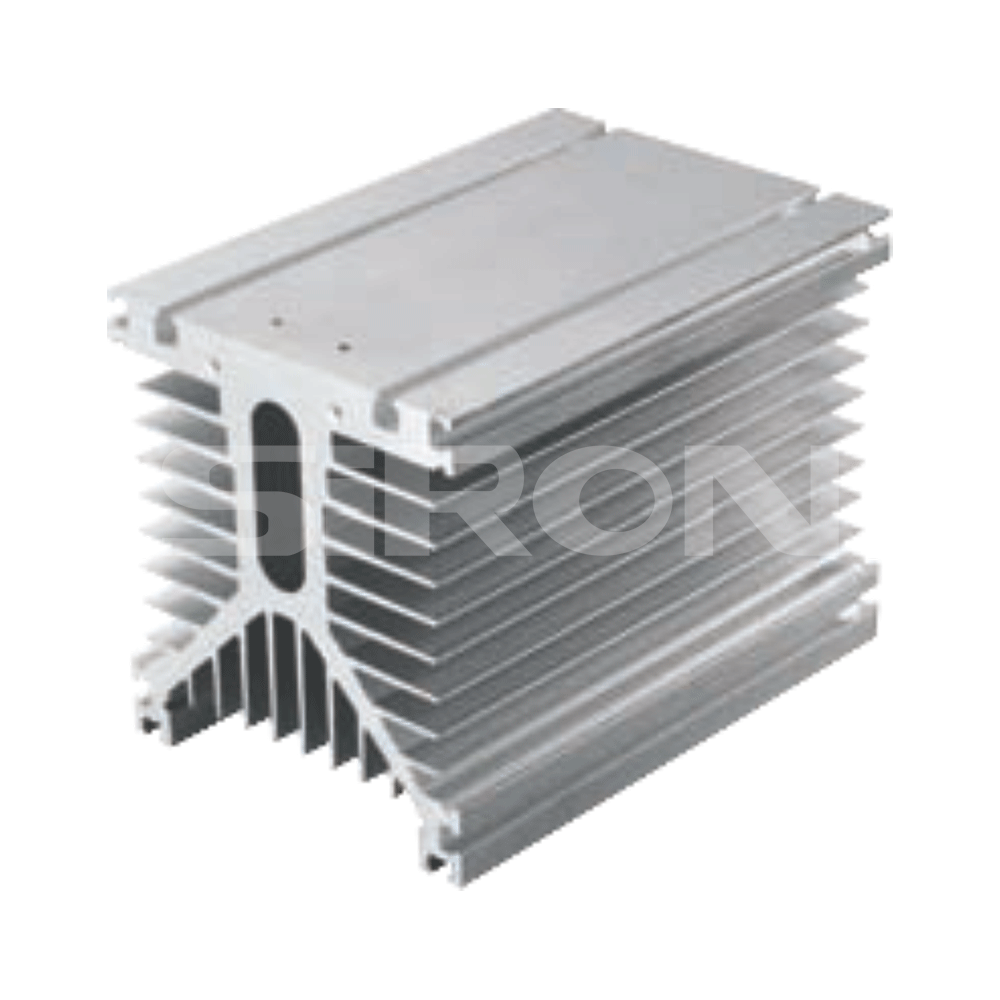

Y994-130	130	125	135	100～600A
Y994-160	160	125	135
Y994-180	180	125	135
Y994-200	200	125	135
Y994-220	220	125	135
Y995-75	75	48	55	5～20A
