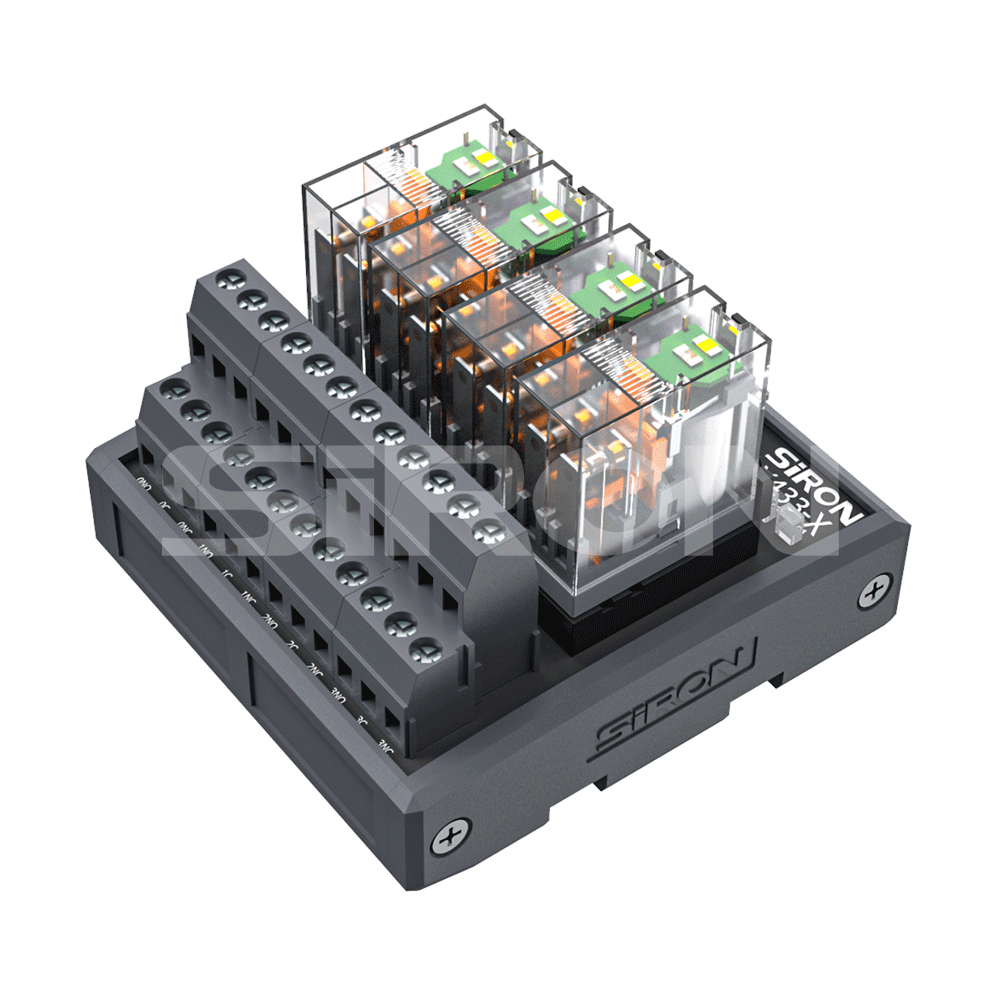

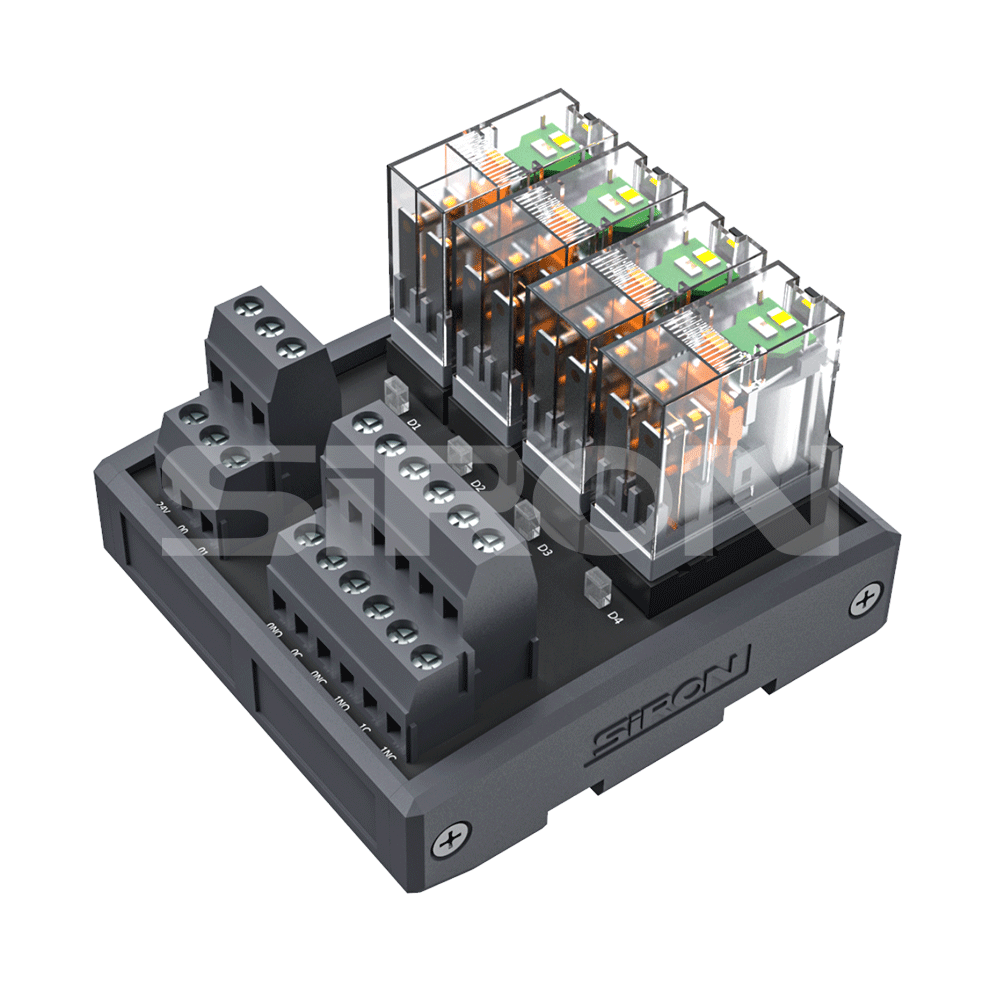

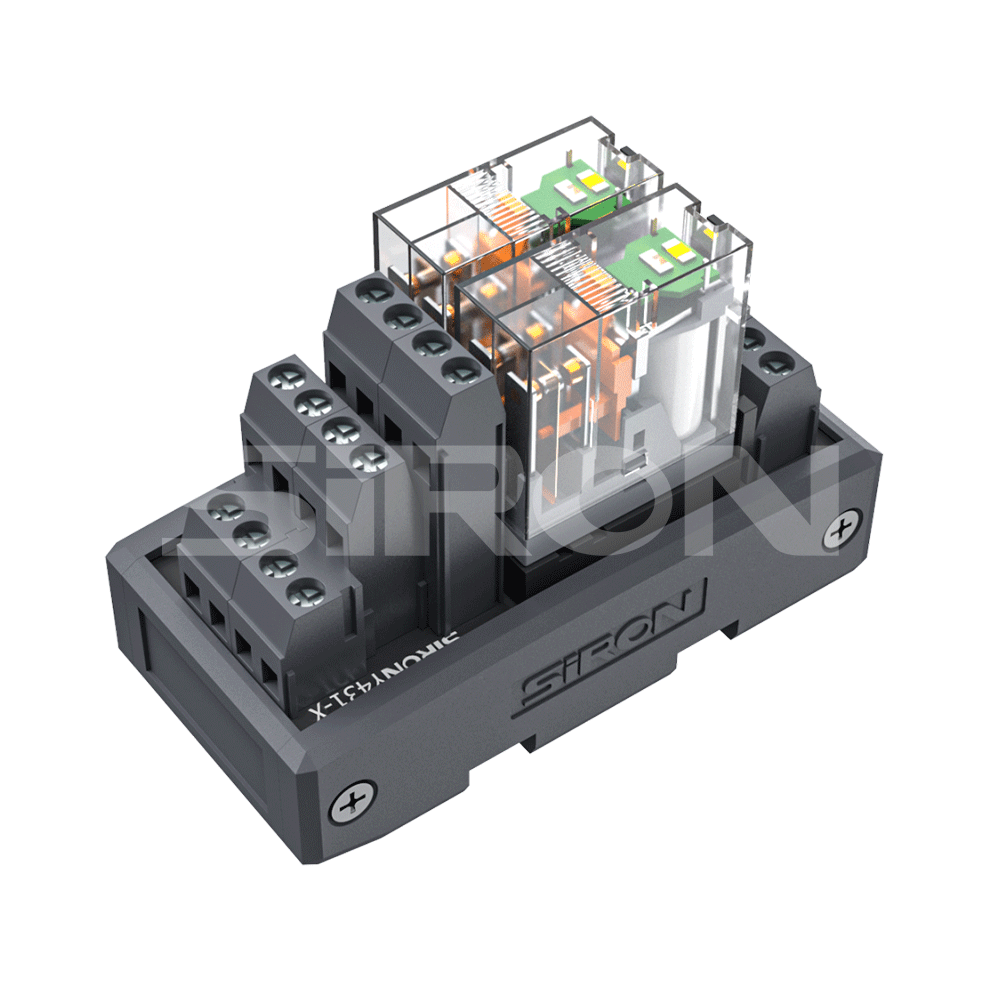

SiRON Y430-X~Y435-X Series Wide Base Type Power Relay Module

Name: SiRON Y430-X~Y435-X Series Wide Base Type Power Relay Module
Brand: SiRON
Rating: 5.0 (36 reviews)

Features

Inputloutput side with surge absorbing circuit, which can effectively extend the life of the relay contact, and canslow the instantaneous impact current of load side.
NPN/PNP bipolar input coresponding, and the indicator light will also follow the input signal of different and bright color ;
Green - NPN .Red-the PNP.
Input side wrong line protection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

965d96ecce847a5167b5e547e960e6ab

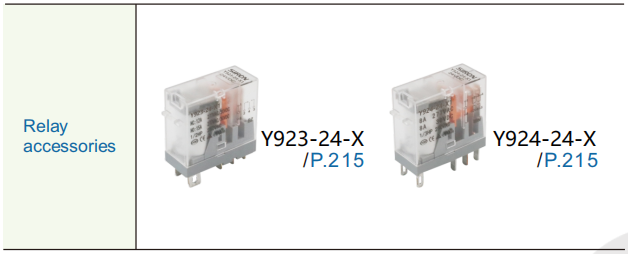

Related products

企业微信截图_17656141271479

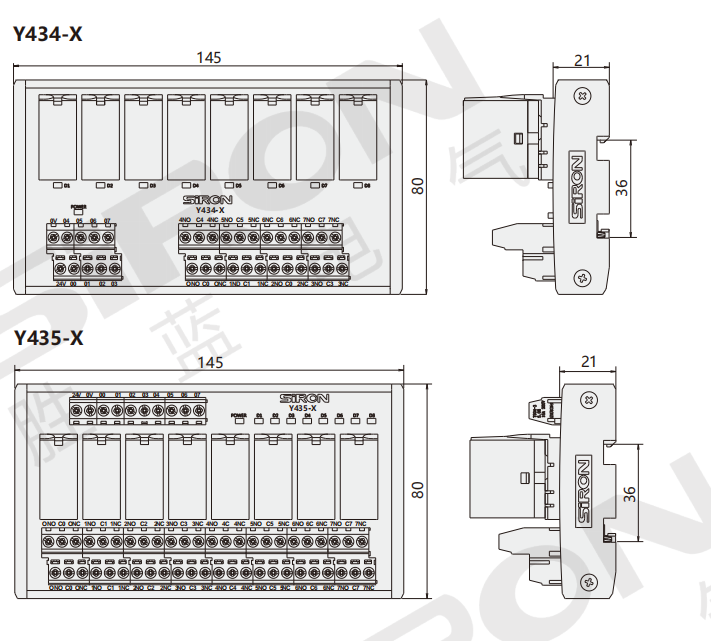

Dimensions

企业微信截图_17656141919324

366909519805674c7d3aed3461a0f1a3

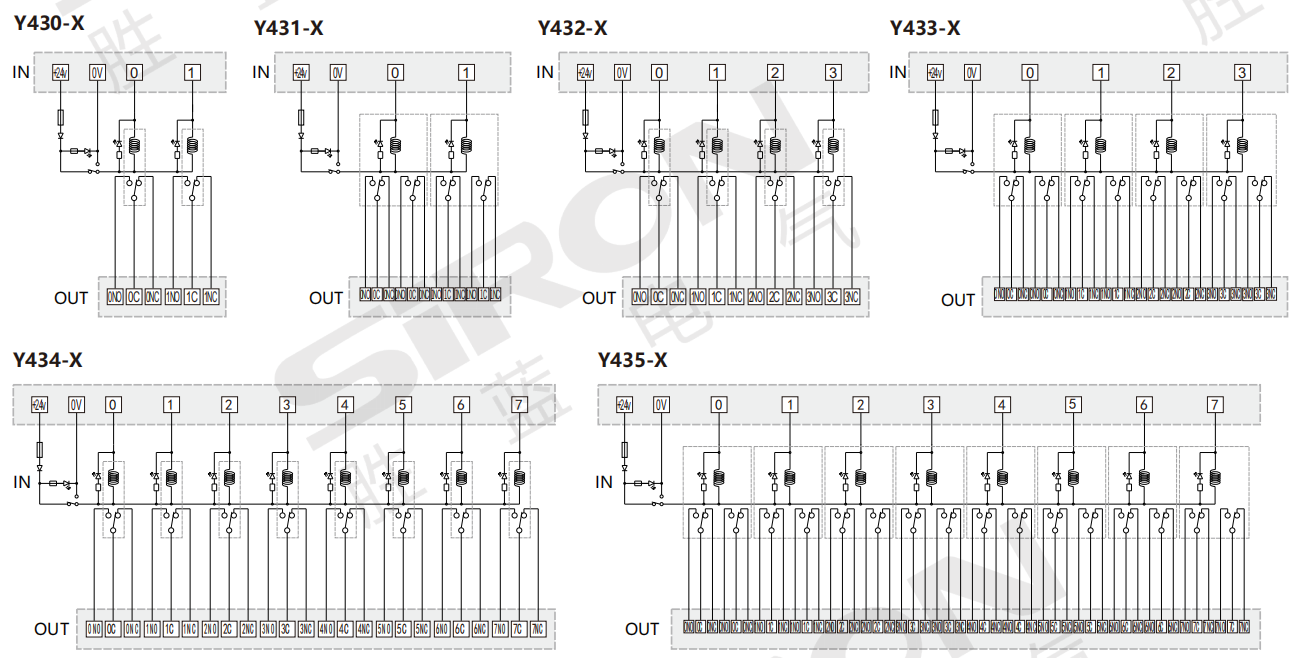

Wiring Diagram

effa95dfb8d33ca4791fe04fca916db1

Type selection reference

Model	Y430-X	Y431-X	Y432-X	Y433-X	Y434-X	Y435-X
Name	2-bit 1C power Relay module	2-bit 2C power Relay module	4-bit 1C power Relay module	4-bit 2C power Relay module	8-bit 1C power Relay module	8-bit 2C power Relay module

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

Model			Y430-X Y432-X Y434-X	Y431-X Y433-X Y435-X
Input	Operate the coil (each point of the relay)		Relay Coil Specifications
	Nominal ooil voitage		DC 24V
	Nominal operating current		22mA(DC24V)
	Coil resistance		1090Ω(DC24V)
	Pick-up Voitage		More than 75% of the rated voltage(DC)
	Drop-out Voltage		More than 10% of the rated voltage(DC)
	Max.allowable woitage		110% of the rated voltage
	Nominal operatng power		530MW(DC)
Output	Contact
	cortad Speifcafcn	Contact structure	1C	2C
		Contact Material	silver alloy	Au-flashed AgNi type
		contact resistance	≤100mΩ	50mΩbelow(By the DC 6V 1A voltage drop method)
		Rated control capacity	NO contact: 12A,NC contact: 12A(AC250V),6A(30V)	5A 250V AC、5A30V DC
		Rated control capacity	NO contact: 6A,NC contact: 6A(AC250V),3A(30V)
		Rated control capacity	NO contact: 3000V(AC),360W(DC); NC contacts: 3000V(AC),180W(DC)
		maximum aliowable voltage	AC250V,DC110V
		maximum allowable voltage	DC100mA,DC5V
Electrical properties	Action time		≤20ms
	Teset time		≤10ms
surroundings	Operating temperature		-40℃~70℃
	Use humidity		30%～80%
Life	Mechanical		≥10’(Frequency: 300 times per minute)
	Electrial		≥10⁵(The frequency is 1 second on and 1 second off)
