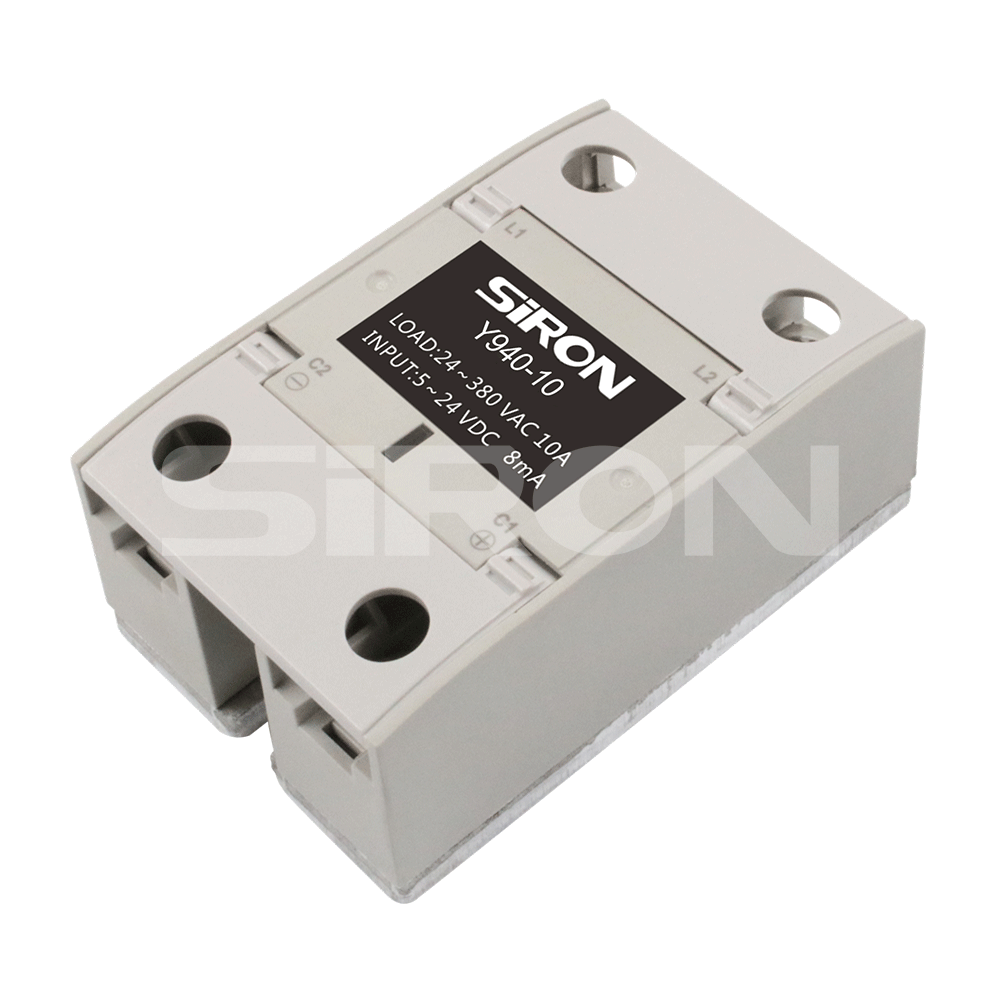

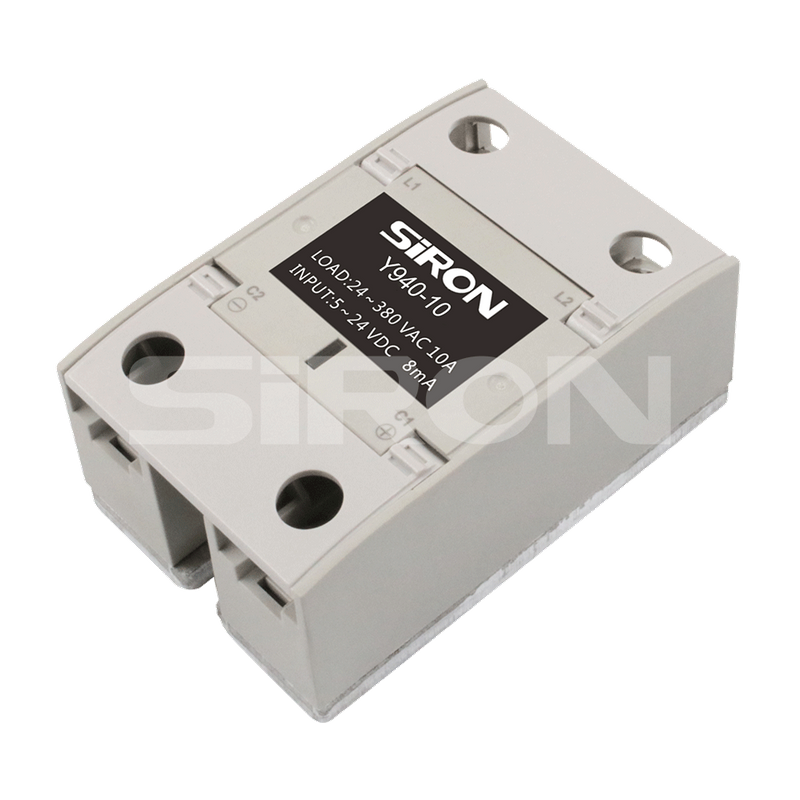

Y940 ～Y943
SiRON
8536411090

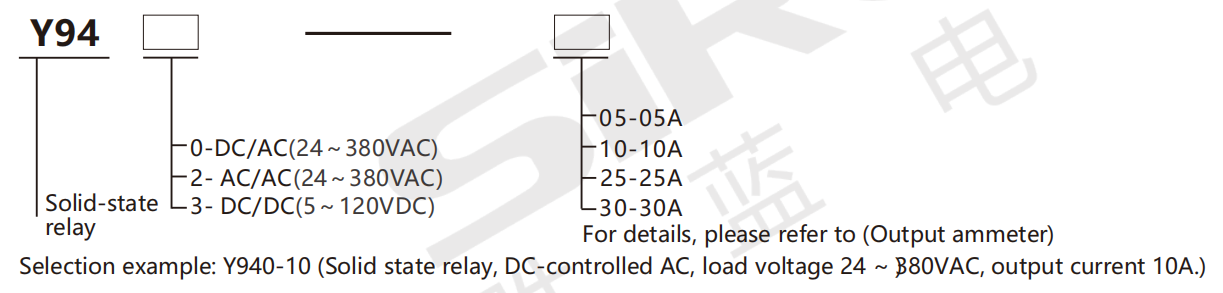

For Selection
Specification parameters of accessories
| Model | (A)Current output | ||||||
| Y940 | / | 10 | 25 | 30 | 40 | 55 | 70 |
| Y942 | / | 10 | 25 | 30 | 40 | 55 | 70 |
| Y943 | 05 | 10 | 25 | / | 40 | 55 | 70 |
Specification
| Model | Y940Series (DC Controlled AC | Y942Series (AC Control AC | |
load | Service load voltage | 24～380VAC | |
| Peak voltage(non-repetitive) | 1200V | 600V | |
| Resistant to surges | / | 800V(10A);1200V(25～70A) | |
| Rated load current | 10A 25A 30A 40A 55A 70A | ||
| Input current(8.3ms non-repetitive) | 160A 250A 400A 400A 520A 520A | ||
| Frequency | 50/60Hz(common ) | ||
| Leakage current | ≤20mA | ||
| Output ON voltage drop | 1.6V(R.M.S)以下 | ||
Input | The rated voltage | 5~24VDC | 100~240 VAC |
| Service voltage range | 4.6～32 VDC | 70~264 VAC | |
| impedance | 4kΩ以下 | ||
| Operating voltage | 4.6VDC以上 | 70VAC以上 | |
| Input currentWeight | Constant current mode8mA(±3) | 220VAC;8mA | |
| 1/2 Cycle+1ms max. ("R" type under 1ms) | |||
| Response speed | |||
| Insulation impedance | 500VDC,100MΩ(Between the input, output and the housing) | ||
| Withstand voltage | 2500VAC(Between the input, output and the housing) | ||
| Resistance to vibration | 10 ~ 55Hz, dual amplitude: 1.5mm, 2 hours each in X, Y and Z directions | ||
| Impact resistance | 1000m/s⊃2;, three times in the X, Y, and Z directions | ||
| Keep the temperature | -30～90℃ | ||
| Environment temperature | -5~40℃(But it does not condense) | ||
| Environmental humidity | 45～85%RH | ||
| Pollution level | Level 2 | ||
| Use | Resistance | ||
| Use the specifications | IEC62314 | ||
| Weight | about 8 8 g | ||
| Model | Y943 Series (DC Controlled DC) | |||||
| Rated current | 05A max | 10A max | 25A max | 40A max | 55A max | 70A max |
| Breakout current | 15A max | 30A max | 50A max | 90A max | 150A max | 225A max |
| Breakout voltage | 300VDC | 600VDC | ||||
| The output voltage | 5~60VDC | 5~120VDC | ||||
| The reaction time | 1.0ms | |||||
| The input voltage | 4~32VDC | |||||
| Close the voltage | <3.0VDC | |||||
| Trigger current | 12mA max | |||||
| The control mode | Random | |||||
| Leakage current | 1.0mA | |||||
| Input breakout resistance | 2KV(EN61000-4-4) | |||||
| Dielectric strength | 4KVrms(EN60950/VDE0805) | |||||
| Dielectric strength | 100MΩ/500VDC(EN60950/VDE0805) | |||||
| The work environment | -40℃~+80℃;35~85%RH | |||||
| Weight About 88g | ||||||
