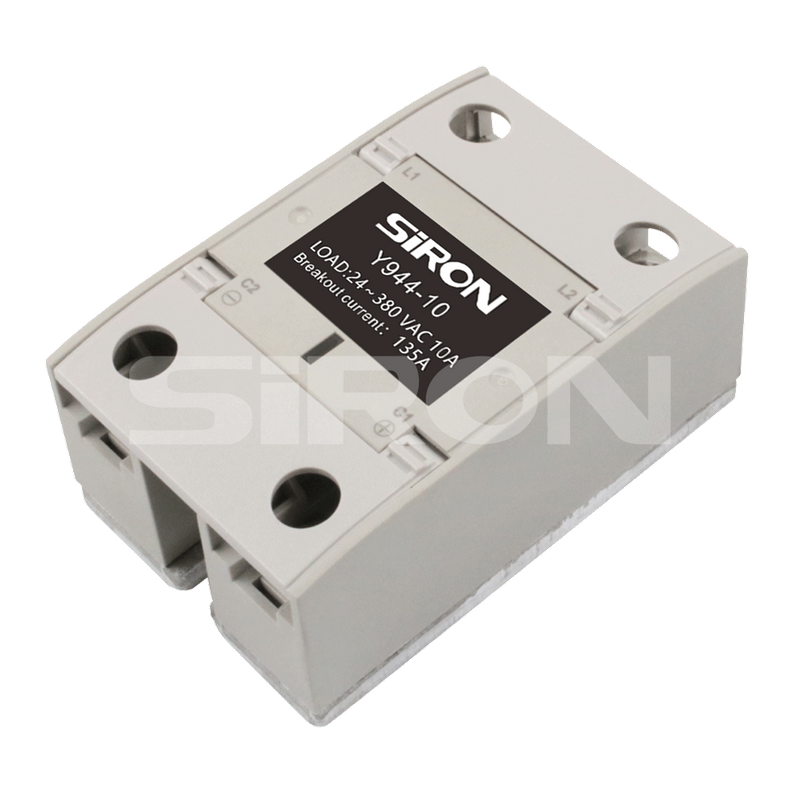

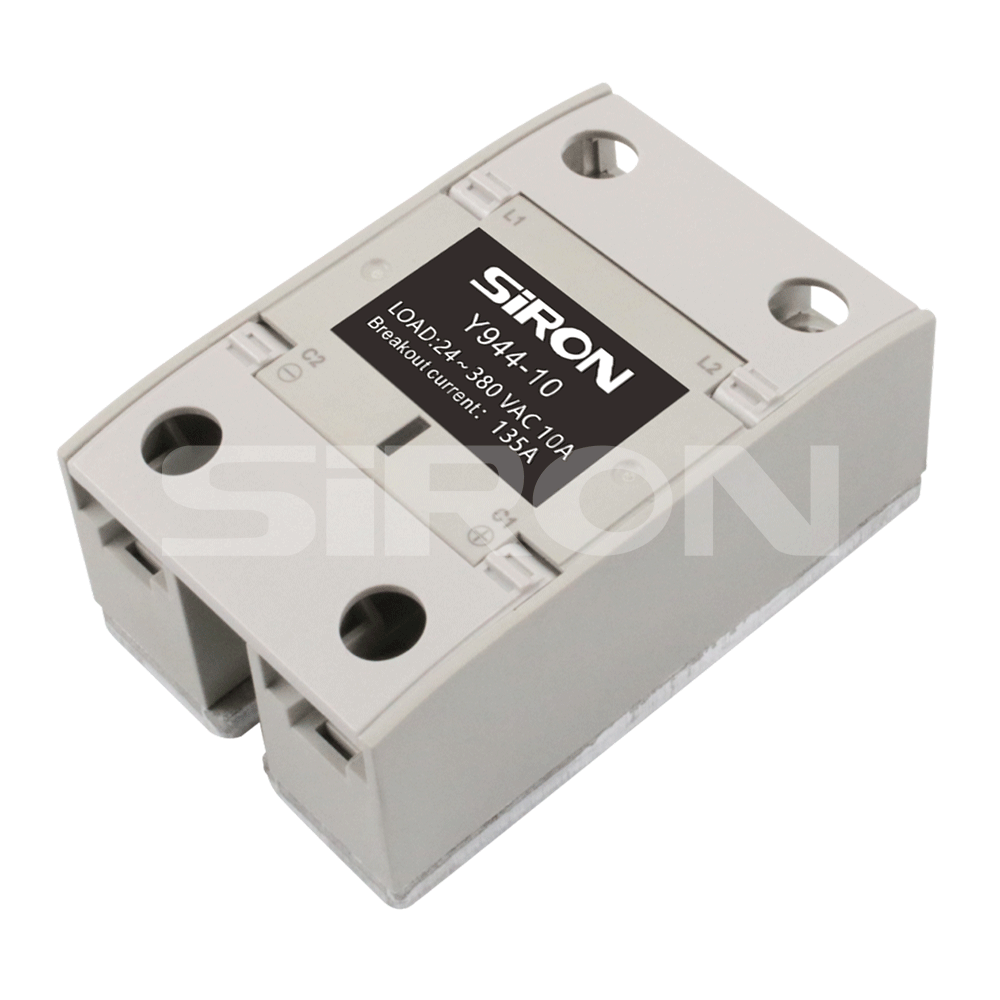

Y944/Y945
SiRON
8536411090

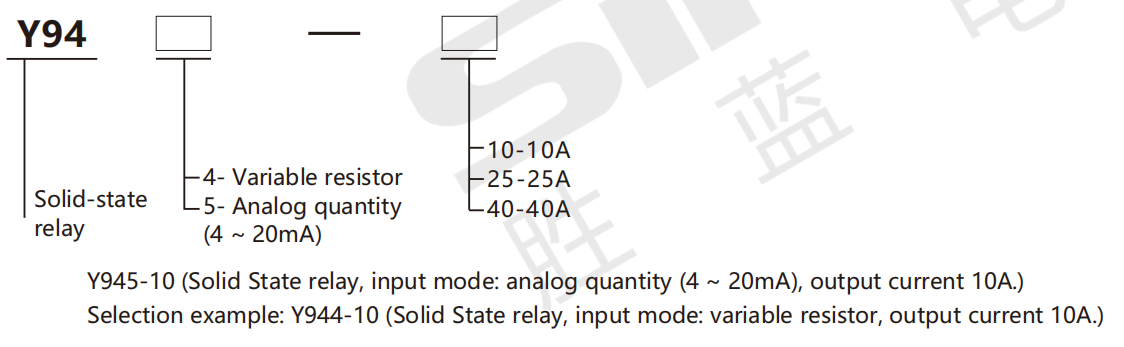

For Selection
Specification parameters of accessories
| Model | Y944series(variable resistor) | Y945Series (Analog quantity) | ||||
| Rated current | 10A max | 25A max | 40A max | 10A max | 25A max | 40A max |
| A fuse | 144A⊃2;S | 259A⊃2;S | 664A⊃2;S | 144A⊃2;S | 259A⊃2;S | 664A⊃2;S |
| Breakout current | 135A | 275A | 410A | 135A | 275A | 410A |
| Breakout voltage | 1200VAC min | 1200VAC min | ||||
| The output voltage | 24~380VAC | 90~250VAC | ||||
| The input voltage | variable resistor | / | ||||
| Input mode | / | 4~20mA | ||||
| The input impedance | 250KΩ/110VAC;500KΩ/220VAC;1MΩ/380VAC | 约1.2KΩ | ||||
| VR power | 1/4W min | / | ||||
| The control mode | phase control | phase control | ||||
| Leakage current | 5.0mA max | 0.5% of the maximum load | ||||
| The reaction time | 1.0ms max | 1.0ms max | ||||
| input surge resistance | 2KV(EN61000-4-4) | 4KVrms(EN60950/VDE0805) | ||||
| Dielectric strength | 4KVrms(EN60950/VDE0805) | 100MΩ/500VDC(EN60950/VDE0805) | ||||
| Dielectric strength | 100MΩ/500VDC(EN60950/VDE0805) | 100MΩ/500VDC(EN60950/VDE0805) | ||||
| Shell material | / | fireproofing ABS(UL:94V0) | ||||
| The work environment | -40℃~+80℃;35~85%RH | -40℃~+80℃;35～85%RH | ||||
