SiRON Y96 Series Solid-state Relay

Name: SiRON Y96 Series Solid-state Relay
Brand: SiRON
Rating: 5.0 (96 reviews)

Features

Bolt-.mounted - horizontal, single-phase AC/Dc solid state relay, Two-way SCR/ONE-WAY SCR inverse parallel, normally open output;
DC-AC/DC-DC DC signal control AC load /AC-AC AC signal control load;
Y950, Y951, Y952 for photoelectric device isolation;
Y953 for transformer isolationZero crossinglrandom triggering form, SMD mountingprocess: Built-in RCabsorptionloop and varistorprotection.LED indicator working state.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

For Selection

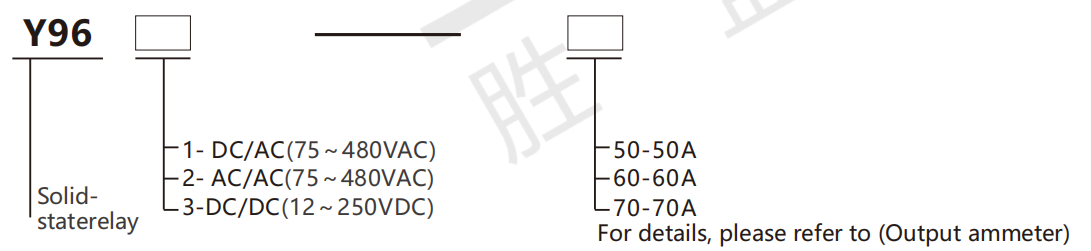

Selection example: Y961-60 (Solid state relay, DC-controlled AC, load voltage 75 ~ 480VAC, output current 60A.)

The electricity flow table

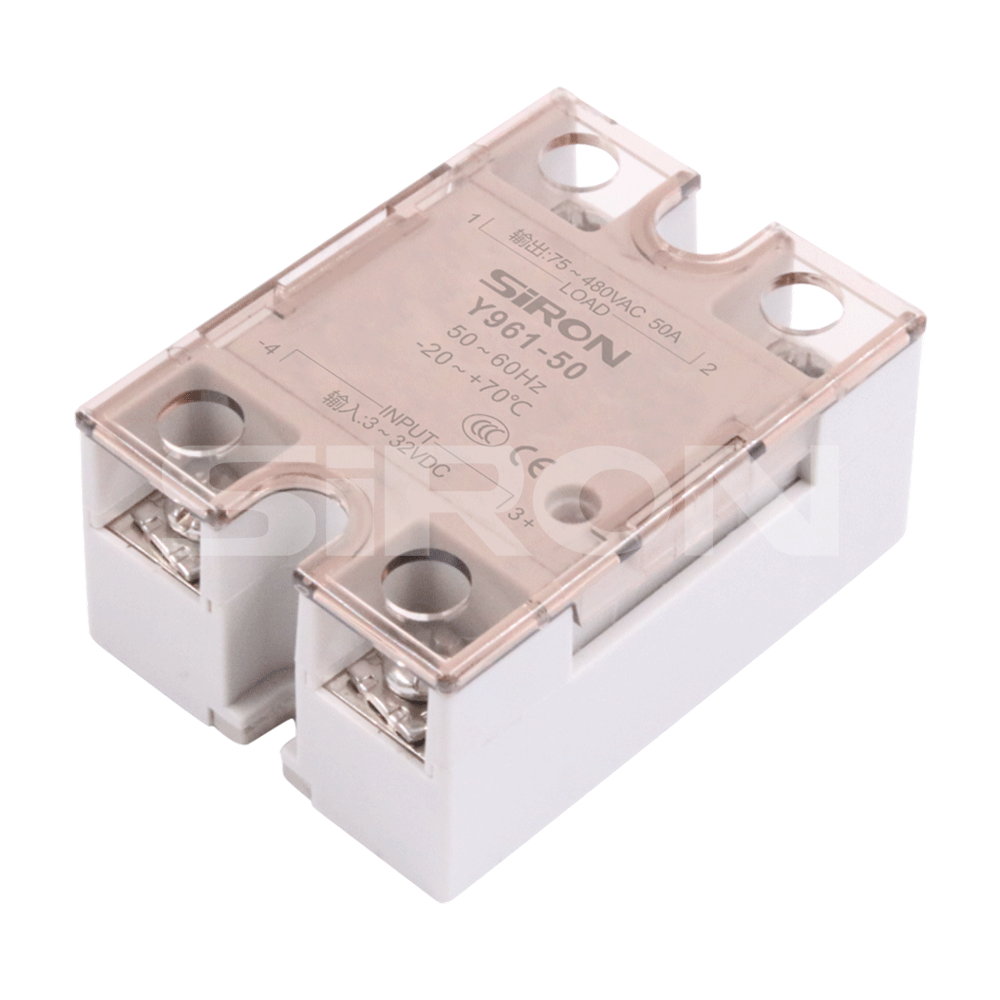

The appearance of Y961(50-100A) and Y962(50-100A) is white.

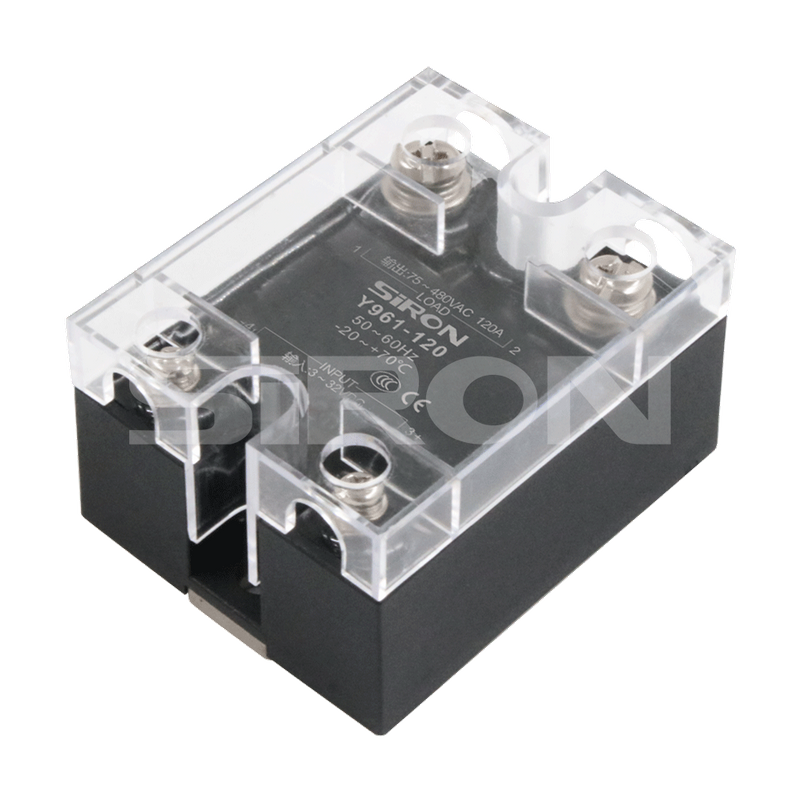

2. The Y961(120-200A), Y962(120-200A), and Y963(50A - 100A) models are black in appearance.

Specifications

Model		Y961Series (DC controls AC)		Y962Series (AC control AC)		Y963Series (DC control DC)
Current output		50～100A	120～200A	50～100A	120～200A	50～100A
Load voltage		75~480VAC		75～480VAC		12~250VDC
Maximum load current		10～100A	50~200A	10～100A	50～200A	10～120A
Minimumload current		0.08A	0.1A	0.08A	0.1A	0.08A
Output leakage current		≤5mA	≤8mA	≤5mA	≤8mA	≤1mA
Input Current		6～25mA		5~25mA		4~25mA
Input voltage		3~32VDC		80～250VAC		5~30VDC
Reverse voltage		32VDC		/		30VDC
Guaranteed offvoltage		1VDC		30VAC		1.5VDC
Guaranteed switching voltage		3VDC		80VAC		3VDC
Safety factor of load current	Resistive load	50～60%				40~50%
	Inductive load	30～40%				20~30%
Frequency range		50～60Hz				/
State pressure drop		≤2 VAC				≤2 VDC
Switching time		≤10ms				≤5ms
Medium pressure		≥2500VAC
Insulation resistance		≥100MΩ
Working temperature		-20~+70℃
