SiRON Y420-Y421 Series Compact 8/4 Bit of Plug Relay Module

Name: SiRON Y420-Y421 Series Compact 8/4 Bit of Plug Relay Module
Brand: SiRON
Rating: 5.0 (69 reviews)

Features

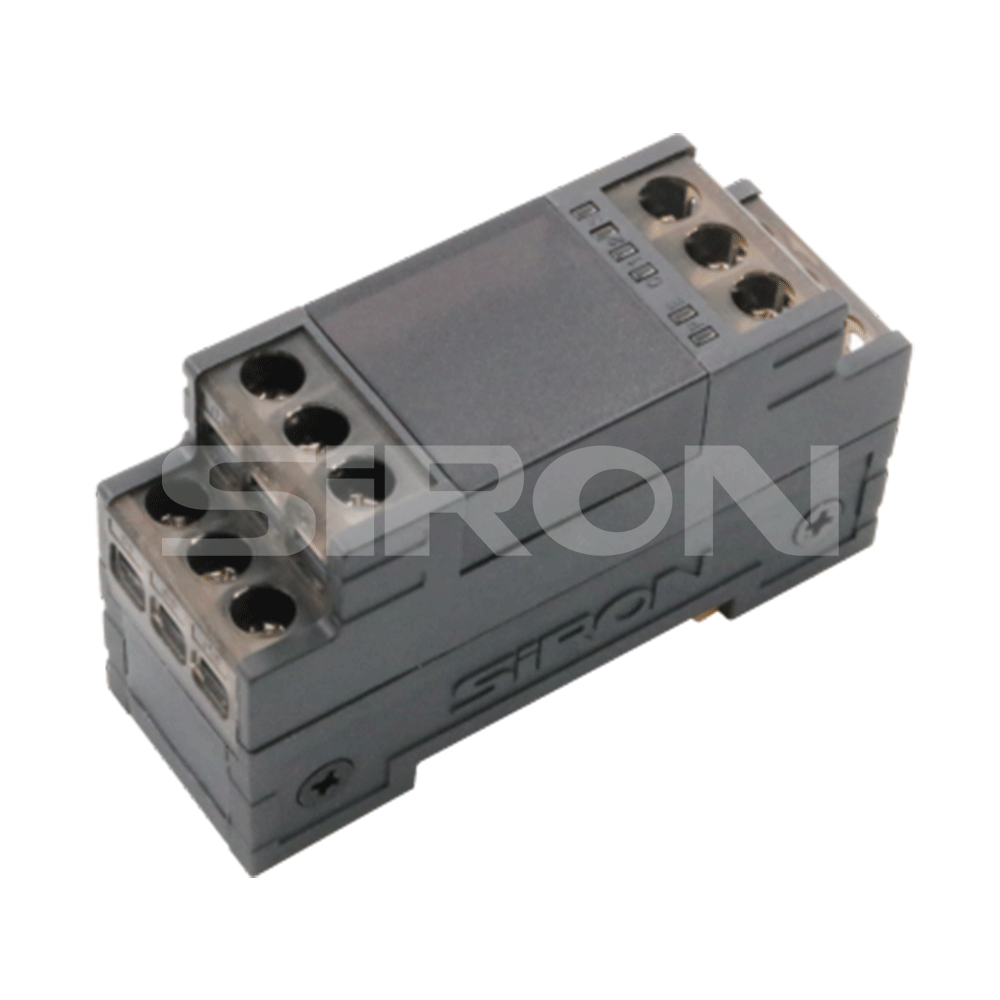

Y420/Y420-P industry minimum size, 2-in-1 COM design ;

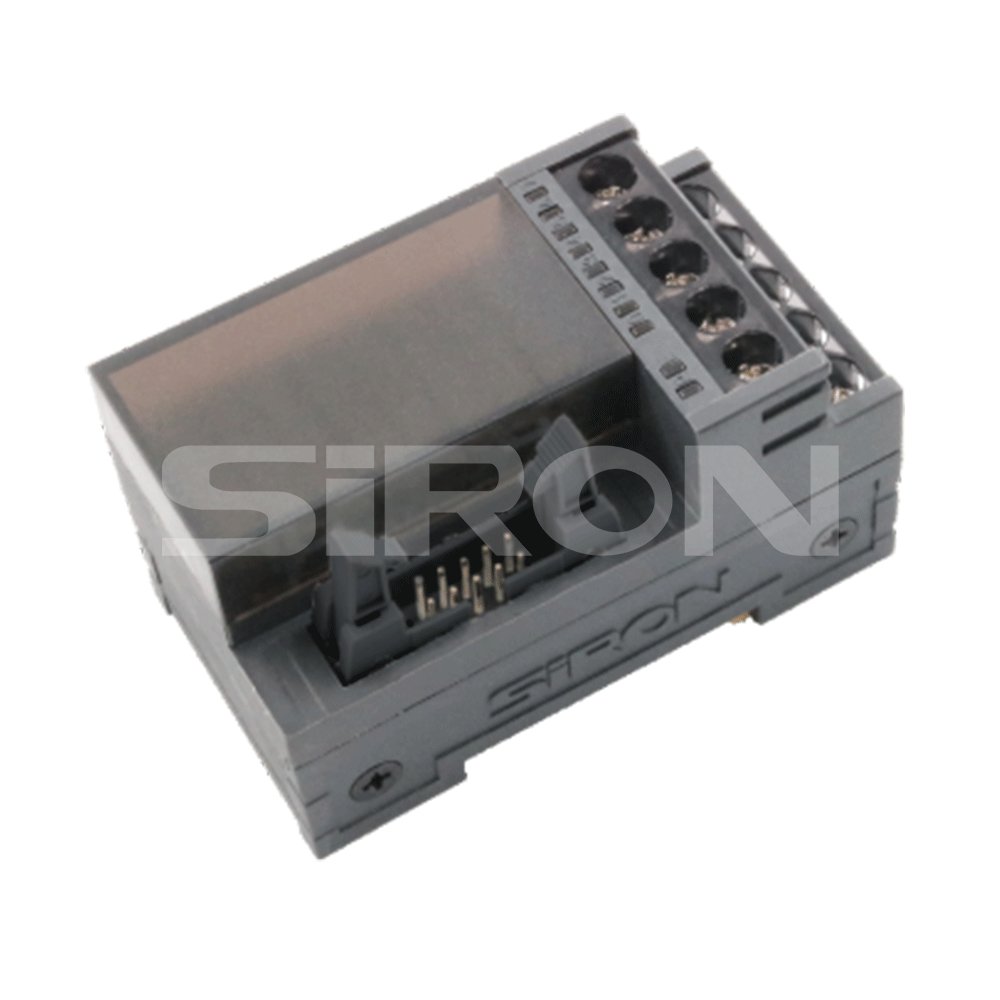

Y421/Y421-P compact 8 Relay Module, 4-in-1 COM design ;
The above four modules all using Panasonic Pa Series relay,with hiah reliabilitv: Plugaable base as a standardaccessory, for more convenient and faster relay changes;
Built-in coil surge suppression circuit, prolonged life ofcontact: With reverse direction protection device: Clear-cut LED action indicator;
DIN rail mounting base compliantwith international standard, with UL and CSA certificates.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y420-Y421
Brand:
SiRON
Code:
8536901100

Y420-Y421 Series Relay Module Compact 8 Relay Modul 4-in-1 COM Relay Module LED action indicator Relay

Product Description

Note

Before ordering , please confirm the load type and size, choose the suitable way to control.

Contact protection scheme ,please refer to this chapter products

When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Type selection reference

Model	Y416/Y416-D
Name	16-bit signal relay module

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

"C" after the model number for economical type, such as "Y410-C" 2. Add "O" after the model number for Omron exclusive use, such as "Y410-O" 3. For Omron pluggable, such as "Y410-A-O", please consult the relevant sales staff for details.

Related products

c1396a2862cc489f829dde87c4f1dbc7

Type selection reference

Model	Y420/Y420-P Y420-C/Y420-P-C	Y421/Y421-P Y421-C/Y421-P-C
Name	4-bit relay module	8-bit relay module

Note: add "C" after the model for economy, such as "Y420-C", please consult relevant sales personnel

for details.

Suitable P L C

Suitable PLC

No brand restrictionsPLC

Panasonic FP0 series and other 10P plug output modules

Specifications

Input	Relay Coil Specifications
	Nominal coil voiltage		DC 24V
	Nominal operaing curent		7.5mA
	Coif resistance		3200Ω
	Pick-up Voitage		rated voltage70%
	Drop-out Voitage		rated voltage 5 %
	MB.allowable voltage		120% of the rated voltage
	Nominal operating power		180 MW
Output	Switch Cirouit
	Contact Specifications	Aangement	(1NO)
		initial contact resistance	30mΩ(Voltage drop through the DC6V1A France)
		Nominal switching capacity(resistive load)	5A250VAC,5A30VDC
		MaX.switchingpower(resistive load)	1250VA,150W
		Max.switching voltage	12A
		Max.switching capacity	250VAC;30V DC
		Min.switching capacity	DC 100mv 100uA
	COM port	Max switching capacity	12A
	lifetime	Mechanical	20 million times (on-off frequency 180 times per minute)
		Electnial	100,000 times (on-off frequency 20 times per minute)
Corresponding output Devices			Solenoid,Warning Light,Relay or Contactor.
Electrical properties		Action time	10ms
		Teset time	5ms
suoundings		Operating temperature	-40℃~70℃
		Use humidity	5%～85%
