SiRON Y95 Series Solid-state Relay

Name: SiRON Y95 Series Solid-state Relay
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

Bolt-.mounted - horizontal, single-phase AC/Dc solid state relay, Two-way SCR/ONE-WAY SCR inverse parallel, normally open output;
DC-AC/DC-DC DC signal control AC load /AC-AC AC signal control load;
Y950, Y951, Y952 for photoelectric device isolation;
Y953 for transformer isolationZero crossinglrandom triggering form, SMD mountingprocess: Built-in RCabsorptionloop and varistorprotection.LED indicator working state.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

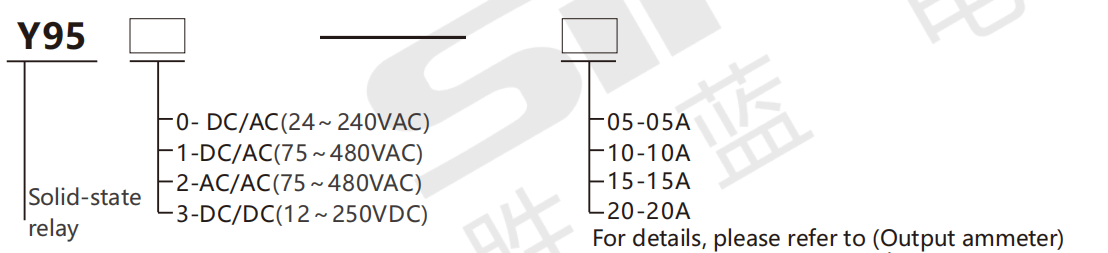

For Selection

0c67d0cef2737ee066390b75eab23b2e

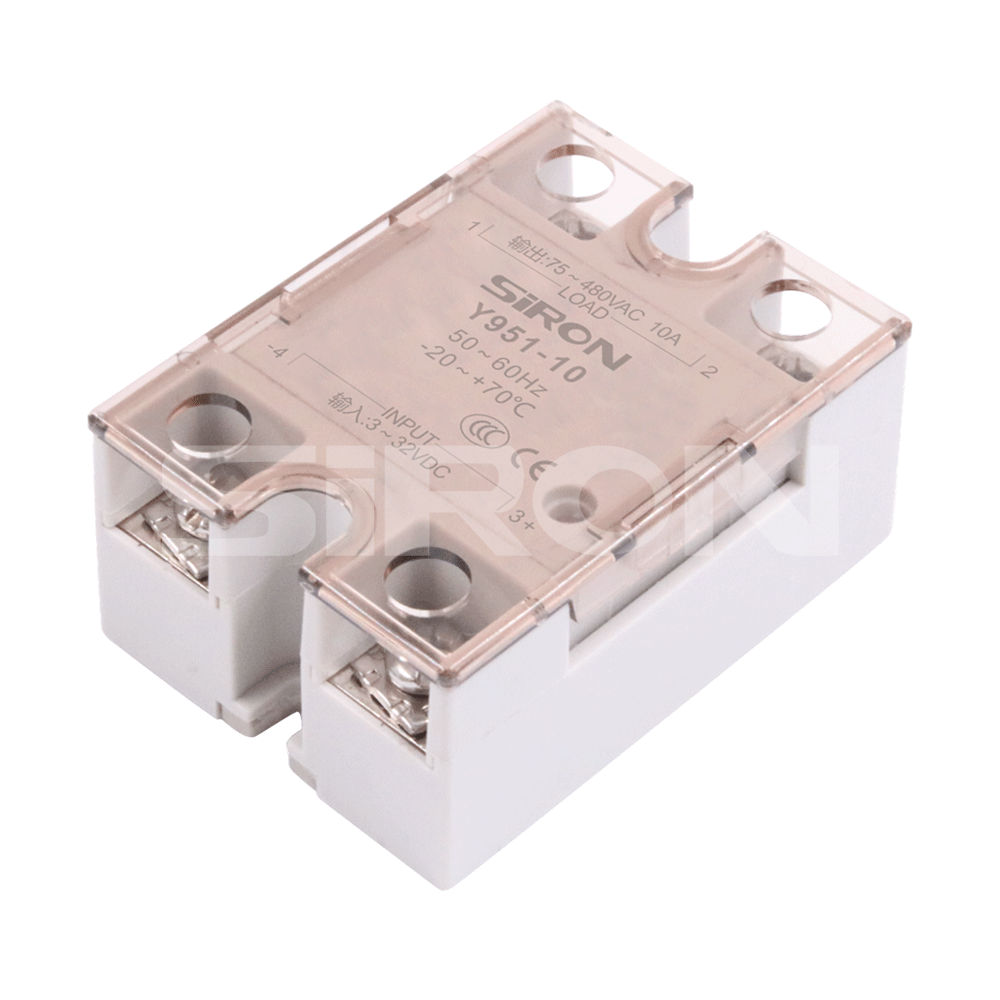

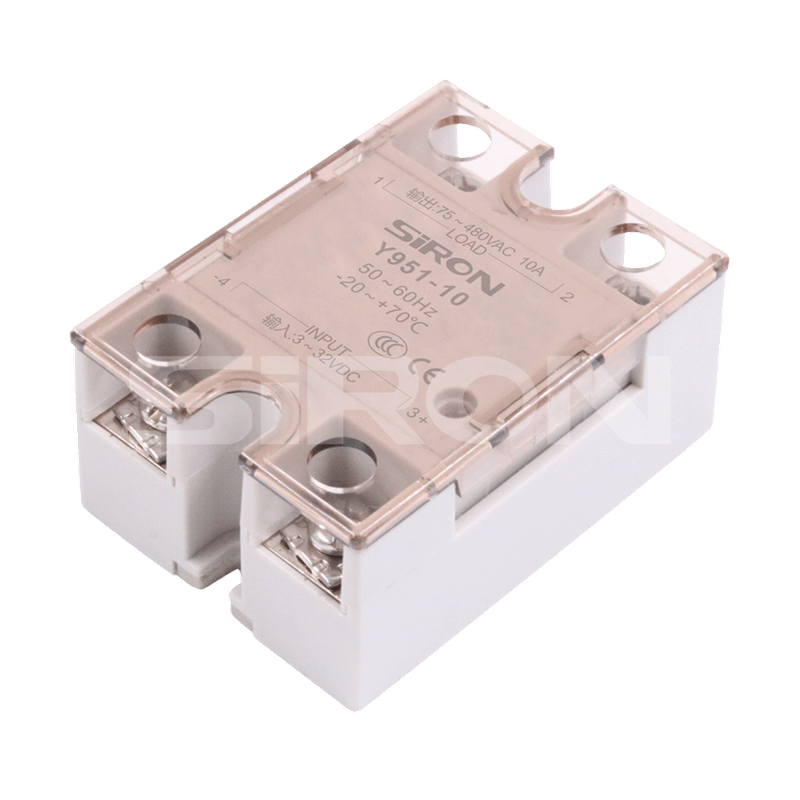

Selection example: Y951-10 Solid state relay, DC-controlled AC, load voltage 75~ 480VAC, output current 10A

The electricity flow table

Note: The Y950, Y951, Y952, and Y953(5-20A) series have a white appearance.

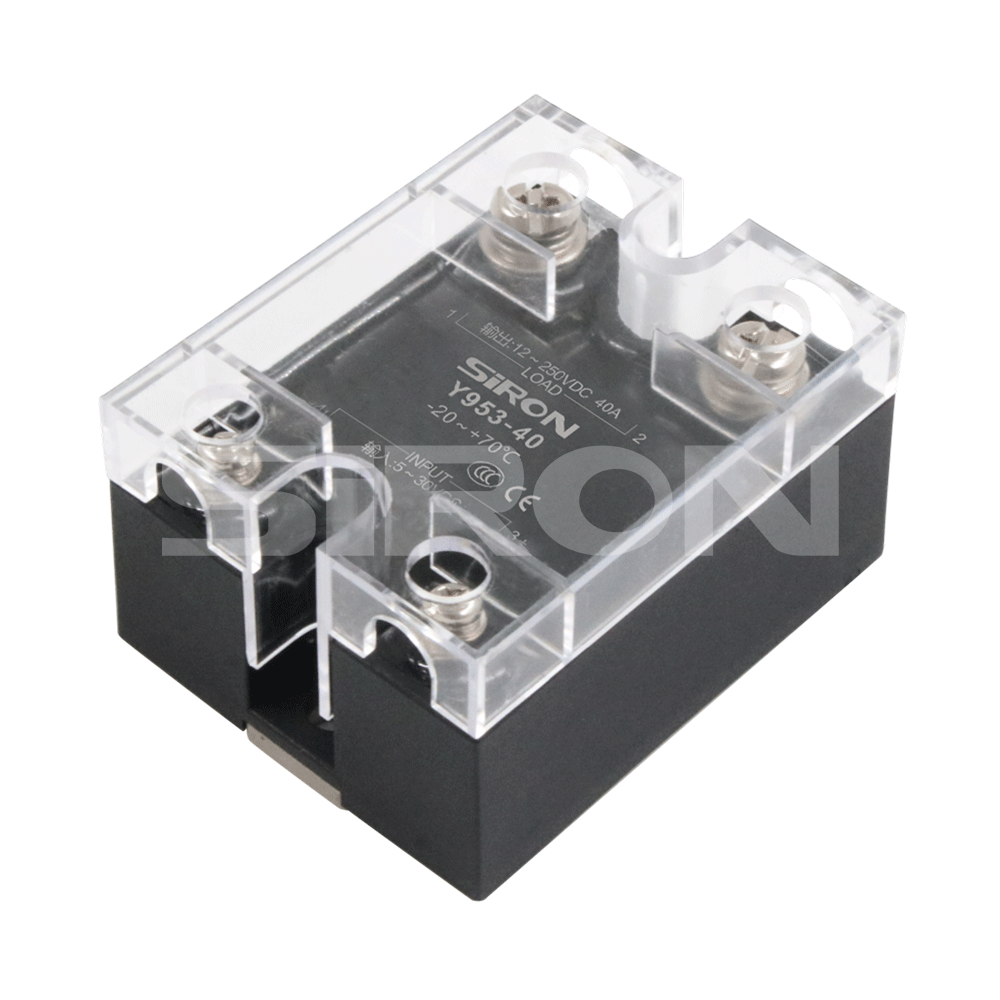

The appearance of Y953-25 and Y953-40 is black.

S p e cific a tio n s

Model		Y950Series (DC controls AC)	Y951Series DC controls AC)	Y952Series (AC control AC)	Y953Series (DC controls DC)
Current output		10～40A	05～40A	10～40A	05～20A	25A、40A
Load voltage		24～240VAC	75～480VAC	75～480VAC	12~250VDC
Input current		6~25mA		5~25mA	4~25mA
Input voltage		3~32VDC		80～250VAC	5~30VDC
Reverse voltage		32VDC		/	30VDC
Guaranteed off voltage		1VDC		30VAC	1.5VDC
Guaranteed switching voltage		3VDC		80VAC	3VDC
Maximum load current		5~75A			5~40A	10~120A
Minimumload current		0.08A			0.06A	0.08A
State pressure drop		≤1.6VAC			≤1.8VDC	≤2VDC
Safety fador of load current	Resistive load	50～60%			40～50%
	Inductive load	30～40%			20～30%
Output leakage current		≤5mA			≤1mA
Switching time		≤10ms			≤5ms
Frequency range		50～60Hz			/
Medium pressure		≥2500VAC
Insulation resistance		≥100MΩ
Working temperature		-20～+70℃
