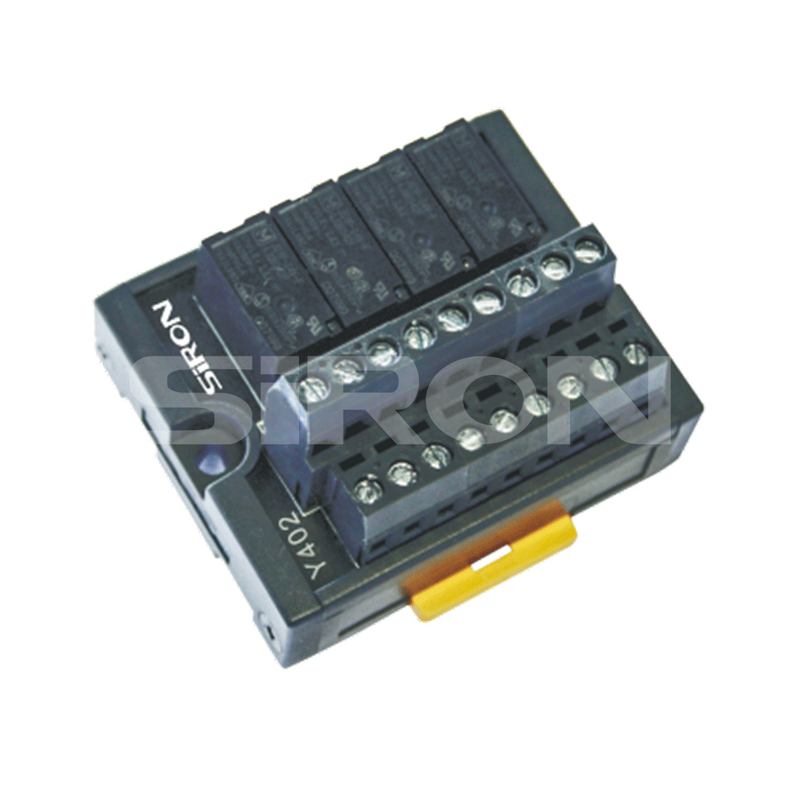

SiRON Y402~Y414 Series with LED Display Relay Module

Name: SiRON Y402~Y414 Series with LED Display Relay Module
Brand: SiRON
Rating: 5.0 (1 reviews)

Features

Utilizes a 4 & 8 bit relay module for compact design to savespace;
The above two modules are outout modules coresponding to all PLC with teminalblock connecion : The relav conlactor is iC point. All thepoints are fetched separately;
The relay coll end has fuse, it has the funcion of short curent and over curent protection,avoiding damage thePLC;
Output common terminal is an independent contact with normally open normally closed contacts.
Terminal connection is used for both the input and output: Utilizes LED display , so all input and outout statuses are visible

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Note

Before ordering , please confirm the load type and size, choose the suitable way to control.

Contact protection scheme ,please refer to this chapter products

When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Suitable wire

965d96ecce847a5167b5e547e960e6ab

Specifications

Model

Y402/Y402- P Y42-C

/ Y402-P-C

Y 4 1 4 / Y 4 1 4 - P Y 4 1 4 - C / Y 4 1 4 - P - C

Name

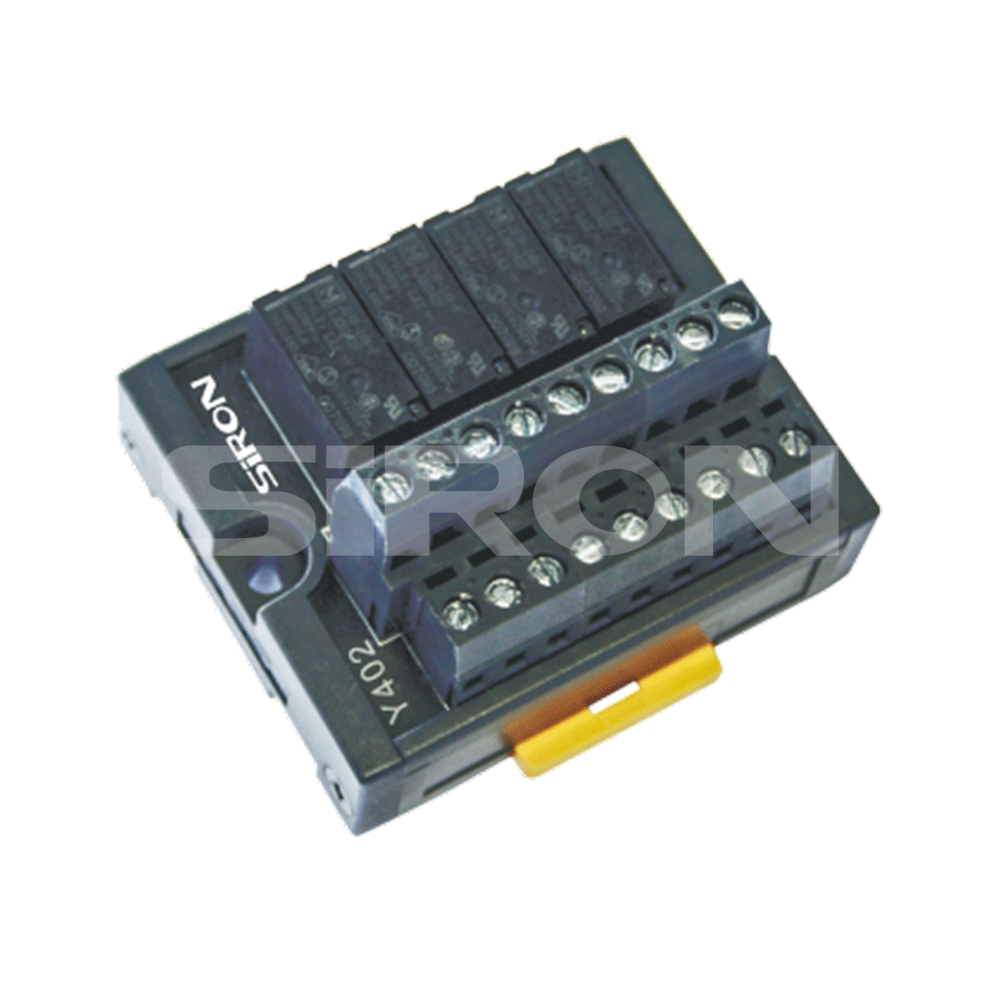

4-bit relay module

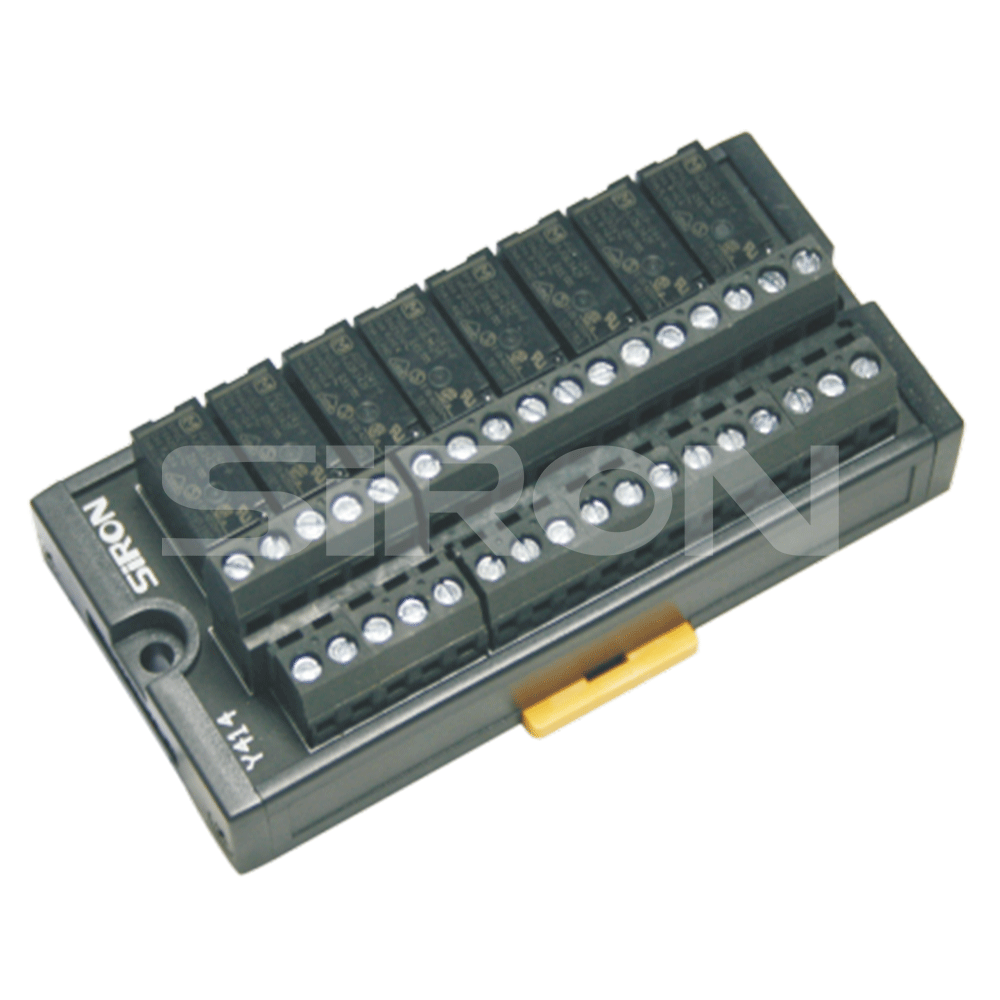

8-bit relay module

Note: add "C" after the model for economy, such as "Y402-C", please consult relevant sales personnel for details.

Suitable PLC

Panasonic		FPO-C16T/C16CT(OUT) FPO-E8YT FPO-C16P/C16CP(OUT) FPO-E16YT FPO-C32T/C32CT/T32CT(OUT) Fp ∑-C32(OUT) FPO-C32P/C32CP/T32CP(OUT) Fp ∑-C28(OUT) FP0-E16T/P(OUT) FP0-E32T/P(OUT)
Unlimited	Unlimited

Specifications

Relay Coil Specifications
Input	Nominal coil voltage		DC 24V
	Nominaloperaing urent		7.5mA
	col resistance		3200Ω
	Pickup Voltage		More70%
	Drop-out Voltage		Following 5%
	Max.allowable voltage		120%
	Nominaloperating power		180 MW
Output	Switch Circuit
		Arrangement	1a
		nitial contact resistance	100mΩ(Voltage drop through the DC6V1A France)
		Nominal switching capacity (resistive load)	No s i de 5A 2 5 0V AC , 2A 2 5 0V A C , 3A 3 0V D C ; Nc s i de 2A 1 2 5V A C , 1A 2 5 0V A C , 1A 3 0V D C .
		Max.switching power(resistive load)	N O.6 2 5 VA , 9 0 W; N C.2 5 0 VA , 3 0 W
		Max.switching voltage	5A
		Max.switching capacity	2 5 0V AC ; 3 0V D C
		Min.switching capacity	DC 100mv 100uA
	COM port	Max.switching capacity	12A
		Mechanical	More than 20 million times(Off frequency of 180 times/min)
		Electrial	100,000 cycles (with a frequency of 20 on-off cycles per minute)
Coresponding output Devices			S ole n oid , W a r ning Lig h t , R elay or C o n t a c t or.
