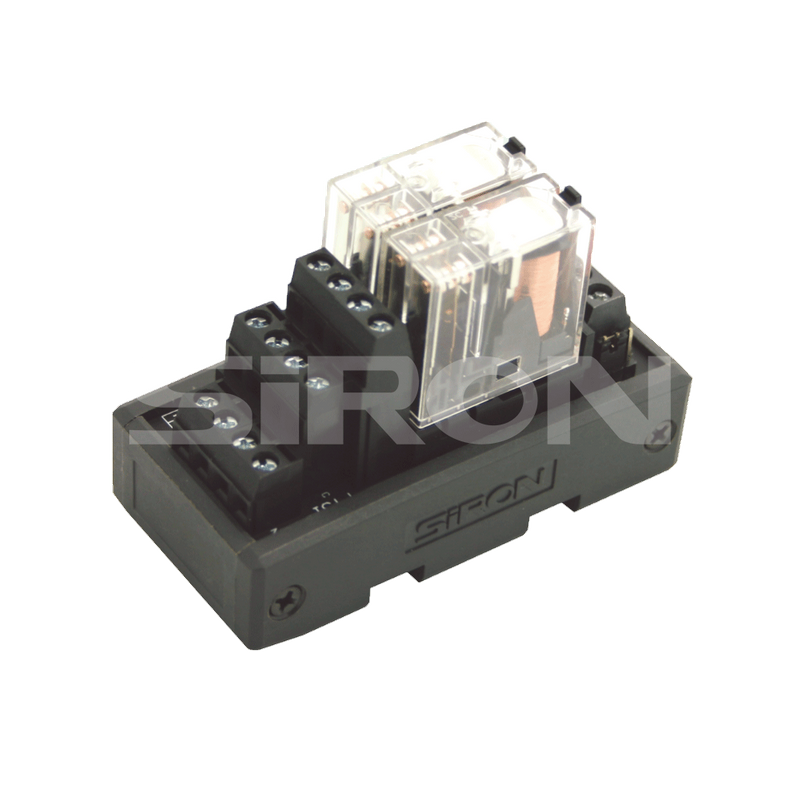

SiRON Y430~Y435 Series Wide Base Type Power Relay Module

Name: SiRON Y430~Y435 Series Wide Base Type Power Relay Module
Brand: SiRON
Rating: 5.0 (4 reviews)

Features

Inputloutput side with surge absorbing circuit, which can effectively extend the life of the relay contact, and canslow the instantaneous impact current of load side.
NPN/PNP bipolar input coresponding, and the indicator light will also follow the input signal of different and bright color ;
Green - NPN .Red-the PNP.
Input side wrong line protection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

965d96ecce847a5167b5e547e960e6ab

Range of Application

Automation equipment, processing machinery, welding equipment and other kinds of industrial and agricultural machinery and equipment.

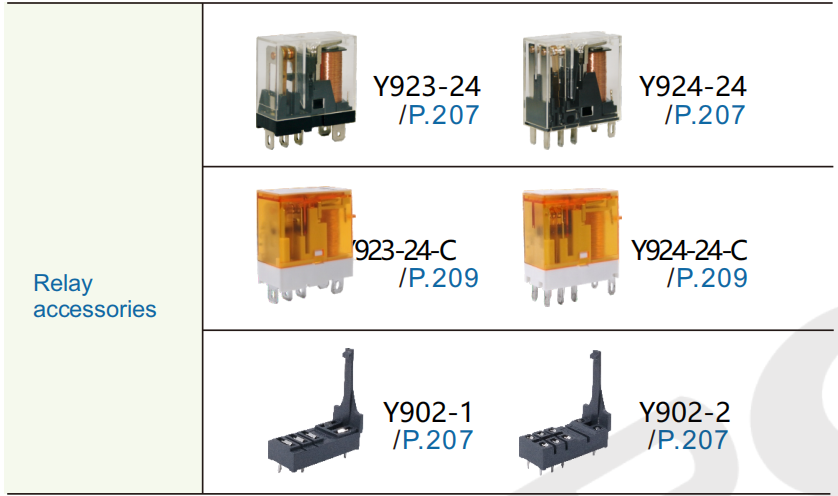

Related products

6404df03ea6bd4be647fc90f99ef3a84

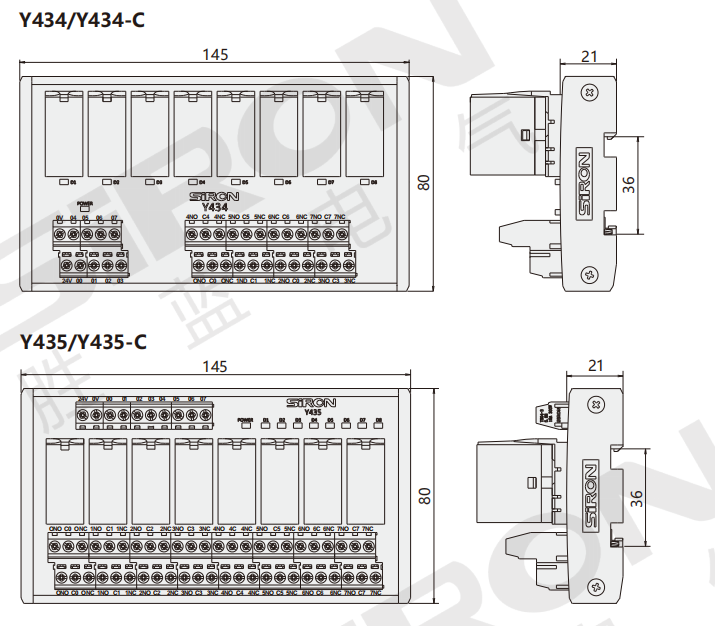

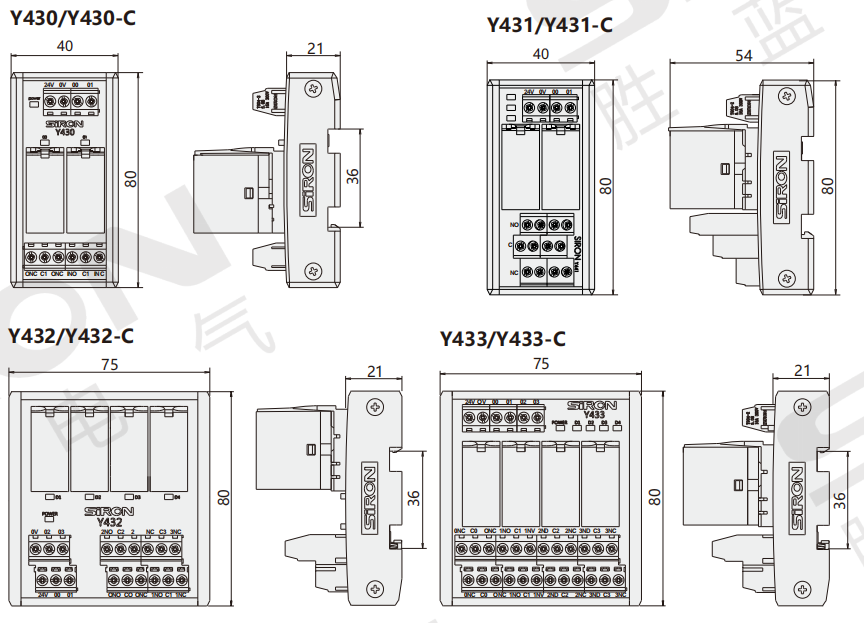

Dimensions

62faaaaf004ca3e32eb963e665b1e58d

798d438dd961c022e0a47fffae5a0f15

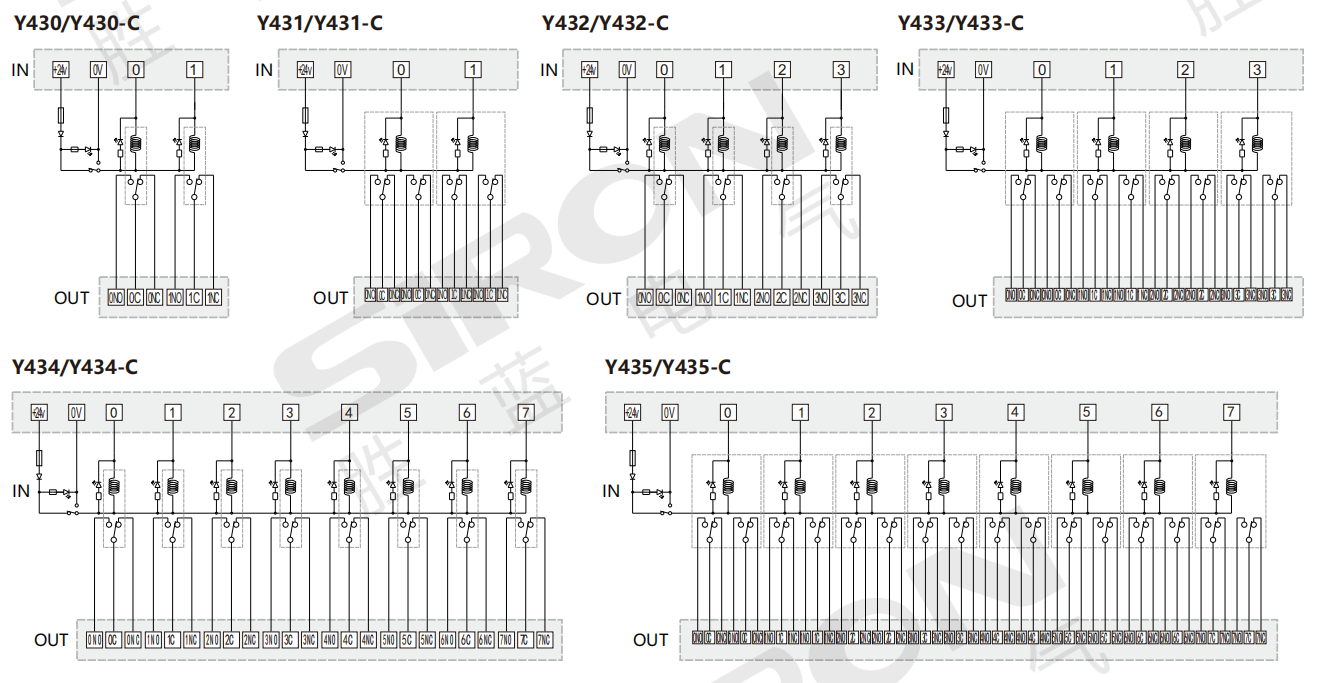

Wiring Diagram

d742efd637c1f3f94c63f51594fd6132

Type selection reference

Model	Y430/Y430-C	Y431/Y431-C	Y432/Y432-C	Y433/Y433-C	Y434/Y434-C	Y435/Y435-C
Name	2-bit 1C power Relay module	2-bit 2C power Relay module	4-bit 1C power Relay module	4-bit 2C power Relay module	8-bit 1C power Relay module	8-bit 2C power Relay module

Note: Add "C" after the model for economical type, such as "Y430-C". For details, please consult relevant sales personnel.

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

Model			Y430/Y430-C Y432/Y432-C Y434/Y434-C	Y431/Y431-C Y433/Y433-C Y435/Y435-C
Input	Relay Coil Specifications
	Nominal coil voltage		DC 24V
	Nominal operating current		25.7mA(DC24V)
	Coil resistance		1080Ω(DC24V)
	Pick-up Voitage		More than 80% (AC) and more than 70% (DC) of the rated voltage
	Drop-out Volitage		Below 30% of the rated voltage (AC) and above 10% (DC)
	Max.allowable voltage		140% of the rated voltage
	Nominal operaling power		900MW(AC),530MW(DC)
Output	Contact
	contact Spedicahicn	Contact structure	1C	2C
		Contaci Material	Silver-nickel	Au-flashed AgNi type
		contact resistance	Below 100mΩ (by the DC 6V1A voltage drop method)	Below 50mΩ (by the DC 6V 1A voltage drop method)
		Rated control capacity	Below 100mΩ (by the DC 6V1A voltage drop method)12A(AC250V),6A(30V)	5A 250V AC、5A30V DC
		Rated control capacity	NO contact: 6A,NC contact: 6A(AC250V),3A(30V)
		Rated control capacity	NO contact: 3000V(AC),360W(DC); NC contact:3000V(AC),180W(DC)
		maximum allowable voltage	AC250V,DC110V
		maximum allowable voltage	DC100mA,DC5V

Electrical properties	Action time	15ms
Electrical properties	Teset time	10ms
sumroundings	Operating temperature	-40℃~70℃
sumroundings	Use humidity	5%～85%
Life	Mechanical	30 million times (on-off frequency 180 times per minute)
Life	Electrial	More than 100,000 times
