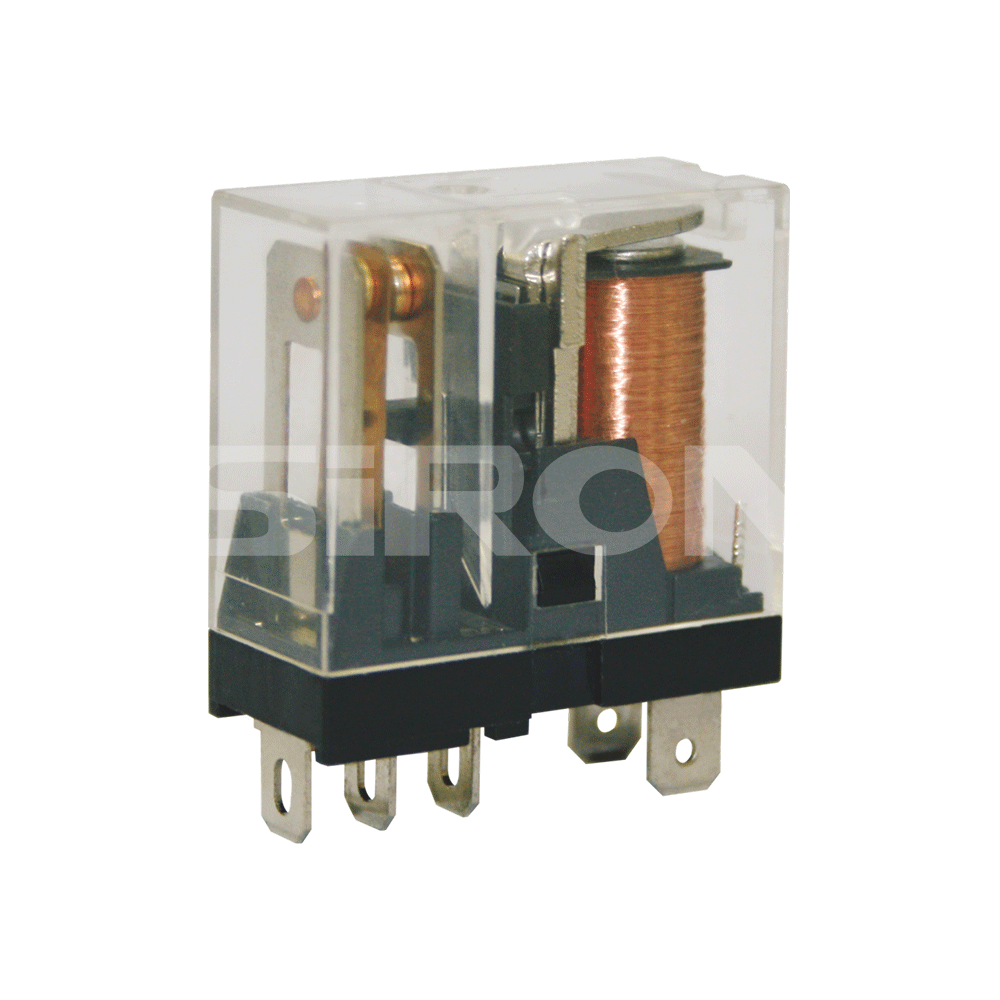

Y923-24
SiRON
8536411090
Suitable terminal
| Model | Name | Dimensions | Page |
| Y430 Y430-C | 2bit1CPower relay module |   | P.177 |
| Y432 Y432-C | 4bit1CPower relay module | ||
| Y434 Y434-C | 8bit1CPower relay module | ||
| Y431 Y431-C | 2bit2CPower relay module | ||
| Y433 Y433-C | 4bit2CPower relay module | ||
| Y435 Y435-C | 8bit2CPower relay module |
Type selection reference
| Model | Y923-24 | Y924-24 | Y902-1 | Y902-2 |
| Name | 1c power relay | 2c power relay | 1crelay socket | 2crelay socket |
Specifications
| Model | Y923-24 | Y924-24 |
| Contact Resistance (initial) | 1 0 0 m Ω As follows (By the DC 6V 1A voltage drop method) | 5 0 m Ω below By the DC 6V 1A voltage drop method |
| Contact Material | A g S n O 2 | Au-flashed AgNi type |
| The rated control capacity(resistance load) | 10A 250V AC、10A 30V DC | 5A 250V AC、5A 30V DC |
| Contact maximum allowable voltage | 250V AC、30V DC | |
| Mechanical Life(under the rated control capacity) | AC: Over 10 million times, DC: Over 20 million times (on-off frequency 300 times per minute) | |
| The largest operating frequency | 20 times per minute (at the rated control capacity) | |

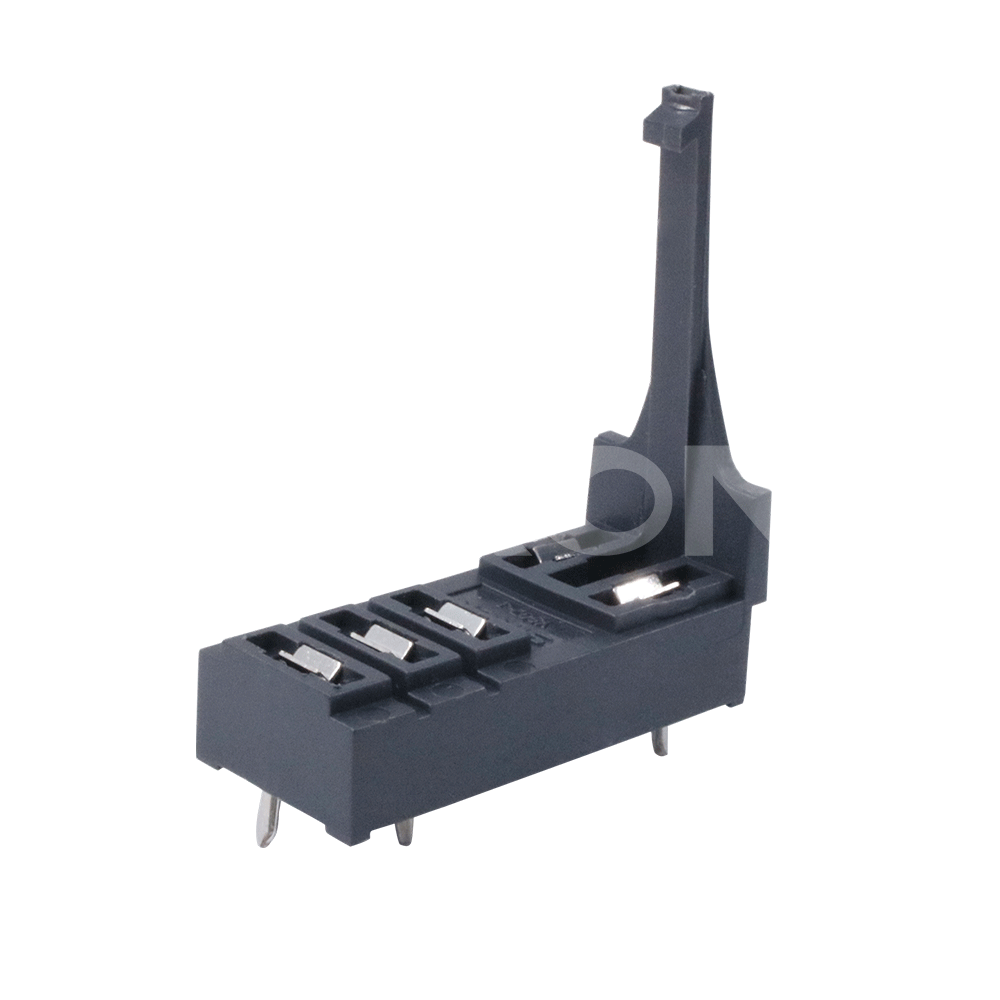

| Form a complete set of socket | Y902-1 | Y902-2 |
