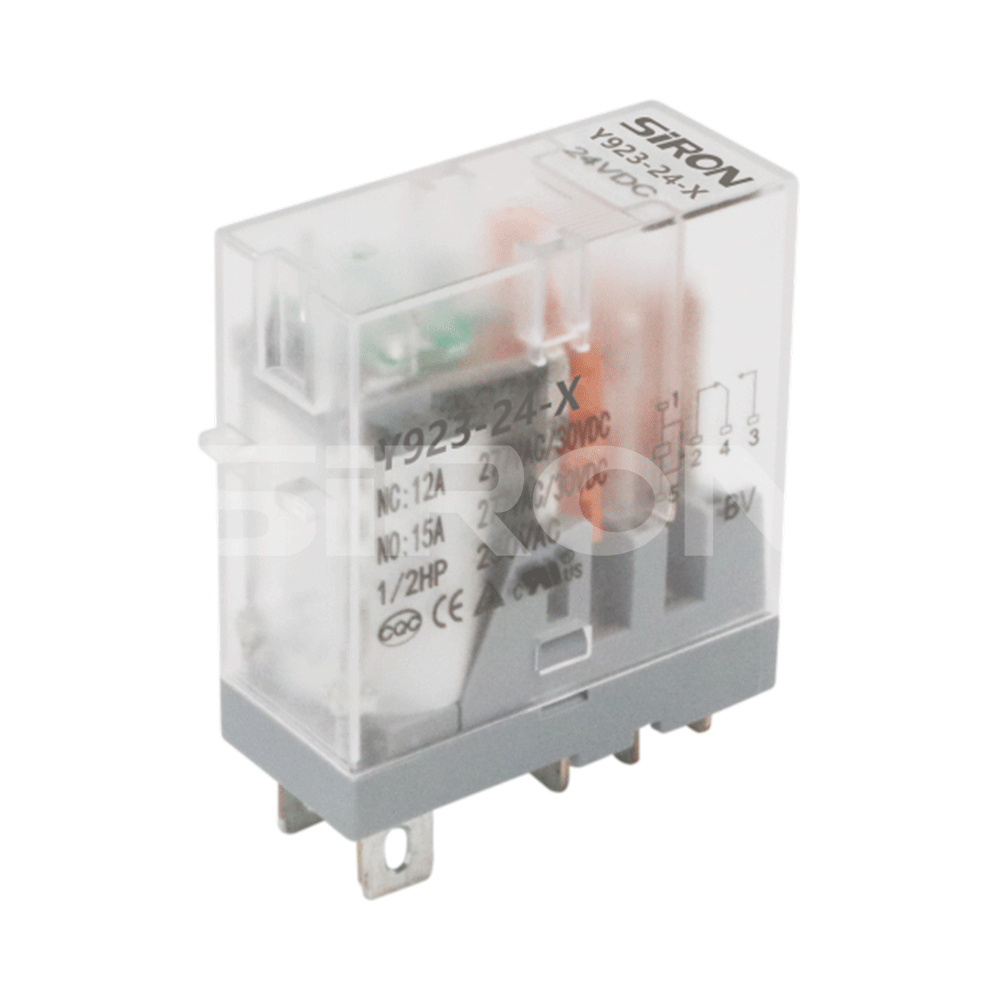

SiRON Y923-24-X1 Series Electromagnetic Relay And Socket

Name: SiRON Y923-24-X1 Series Electromagnetic Relay And Socket
Brand: SiRON
Rating: 5.0 (75 reviews)

Features

Electromagnetic relay is an automatic switch element with isolation function, widely used in remote control, telemetry, communication,automatic control, machine
Electricalintegration and power electronic equipment, is one of the most important control components;
Can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure,speed,light, etc.)inductionMechanism(input part);
There is an actuator (output part) that can realize "on" and "off" control ofthe controlled circuit;Between the input part and the output part ofthe relay,there are input coupling isolation, function processing and the output part
Theintermediate mechanism for driving (the driving part).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Specifications

Model	Y923-24-X1 Y923-220-X1	Y924-24-X1 Y924-220-X1	Y923-24-X Y923-220-X	Y924-24-X Y924-220-X
Appearance
Overall dimension	28.8×12.7×28	28.8×12.7×27	28.8×12.7×30.6
Contact form	A set of conversions	Group Two Conversion	A set of conversions	Group Two Conversion
Contact load	NO:15A NC:12A 1/2HP	8A 1/3HP	NO:15A NC:12A
Switching voltage	277VAC/30VDC
Contact material	silver alloy
Coil power	DC:0.53W;AC:1.0VA
Coil voltage	DC24V;AC220V
Electrical life	≥100000次
Installation mode	PCB printed circuit board style

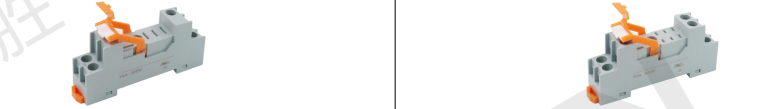

Suitable base	Y902-6-X(X1)	Y902-7-X(X1)	Y902-6-X(X1)	Y902-7-X(X1)

Note: If you need a range for the coil voltage, please consult the salesperson.

Specification parameters of accessories
