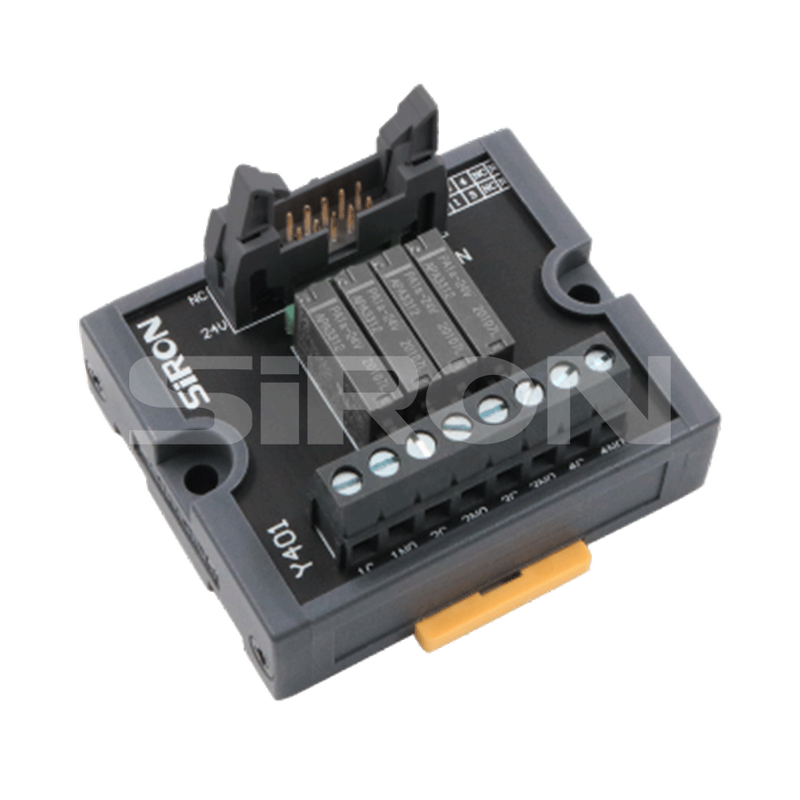

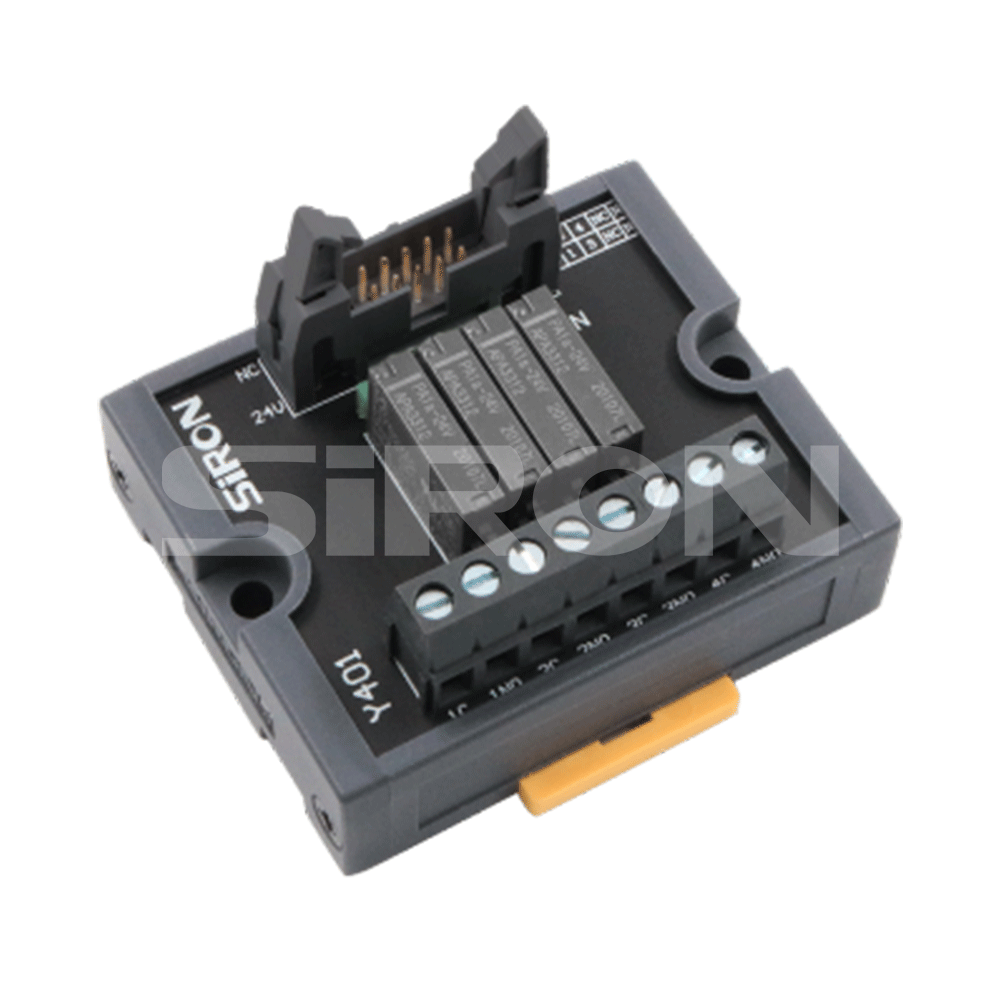

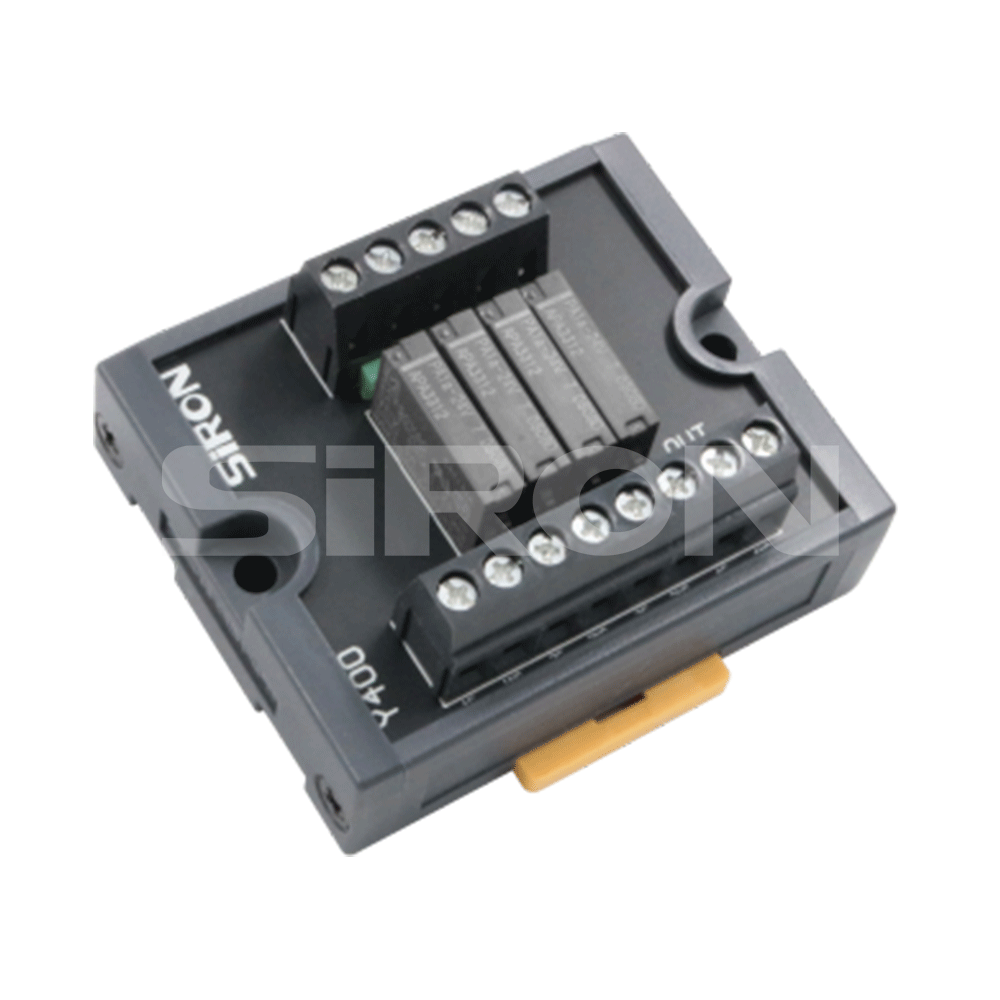

SiRON Y400~Y401 Series Economical Type 4 Bit Relay Module

Name: SiRON Y400~Y401 Series Economical Type 4 Bit Relay Module
Brand: SiRON
Rating: 5.0 (89 reviews)

Features

Y400/Y400-P utilizes a 5 terminal station as the input end and a single-strip terminal black as the output endoutput of electric shock are independent of each COM port.Y401/Y401-P utilizes a 10P MlL connector as the input end and a single-strip terminal black as th e outputend ,output of electric shock are independent of each COM port.
The two relay coils have a surge suppressing loop, which prolongs the service life of the relay module andminimizes the electromagnetic interference on the circuit; Utilizes an 4 bit relay module for compact designto save space;
Utilizes LED display, so all input and output statuses are visible, Utilizing PA relay seriesfrom Panasonic;
When used in combination with other series products, it can increase the efficiency of wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y400~Y401
Brand:
SiRON
Code:
8536901100

Y400~Y401 Series 4 Bit Relay Module 10P MIL Input Type Relay Economical type relay LED display Relay Module

Product Description

Note

Before ordering , please confirm the load type and size, choose the suitable way to control.

Contact protection scheme ,please refer to this chapter products

When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Suitable wire

965d96ecce847a5167b5e547e960e6ab

Specifications

Model	Y400/Y400-P Y400-C/Y400-P-C	Y401/Y401-P Y401-C/Y401-P-C
Name	4-bit relay module	4-bit relay module

Note: 1. Add "C" after the model number for economical type, such as "Y400-C" 2. Add "O" after the model number for Omron's exclusive use, such as "Y400-O", please consult the relevant sales staff for details.

Suitable PLC

Panasonic		FPO-C16T/C16CT(OUT) FPO-E8YT FPO-C16P/C16CP(OUT) FPO-E16YT FPO-C32T/C32CT/T32CT(OUT) Fp ∑-C32(OUT) FPO-C32P/C32CP/T32CP(OUT) Fp ∑-C28(OUT) FP0-E16T/P(OUT) FP0-E32T/P(OUT)
Unlimited	Unlimited

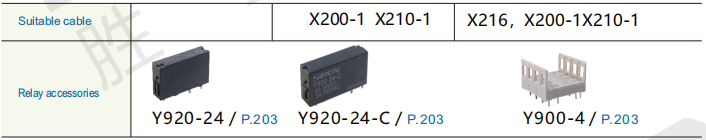

Related products

90d9ab352131594c59c985c2ee31574e

Specifications

Relay Coil Specifications
Input	Nominal coil voltage		DC 24V
	Nominaloperaing urent		7.5mA
	col resistance		3200Ω
	Pickup Voltage		More70%
	Drop-out Voltage		Following 5%
	Max.allowable voltage		120%
	Nominaloperating power		180 MW
Output	Switch Circuit
		Arrangement	1a
		nitial contact resistance	30mΩ(Voltage drop through the DC6V1A France)
		Nominal switching capacity (resistive load)	5A250VAC;5A30V DC
		Max.switching power(resistive load)	1250VA,150W
		Max.switching voltage	5A
		Max.switching capacity	250VAC;110V DC
		Min.switching capacity	DC 100mv 100uA
	COM port	Max.switching capacity	5A
		Mechanical	More than 20 million times(Off frequency of 180 times/min)
		Electrial	100,000 times or more(3A250AC,30VDC,Resistive load)
Coresponding output Devices			Button Switch,Photoelectric Switch,Solenoid,Indicator,Stepping Servo Motor,etc.
