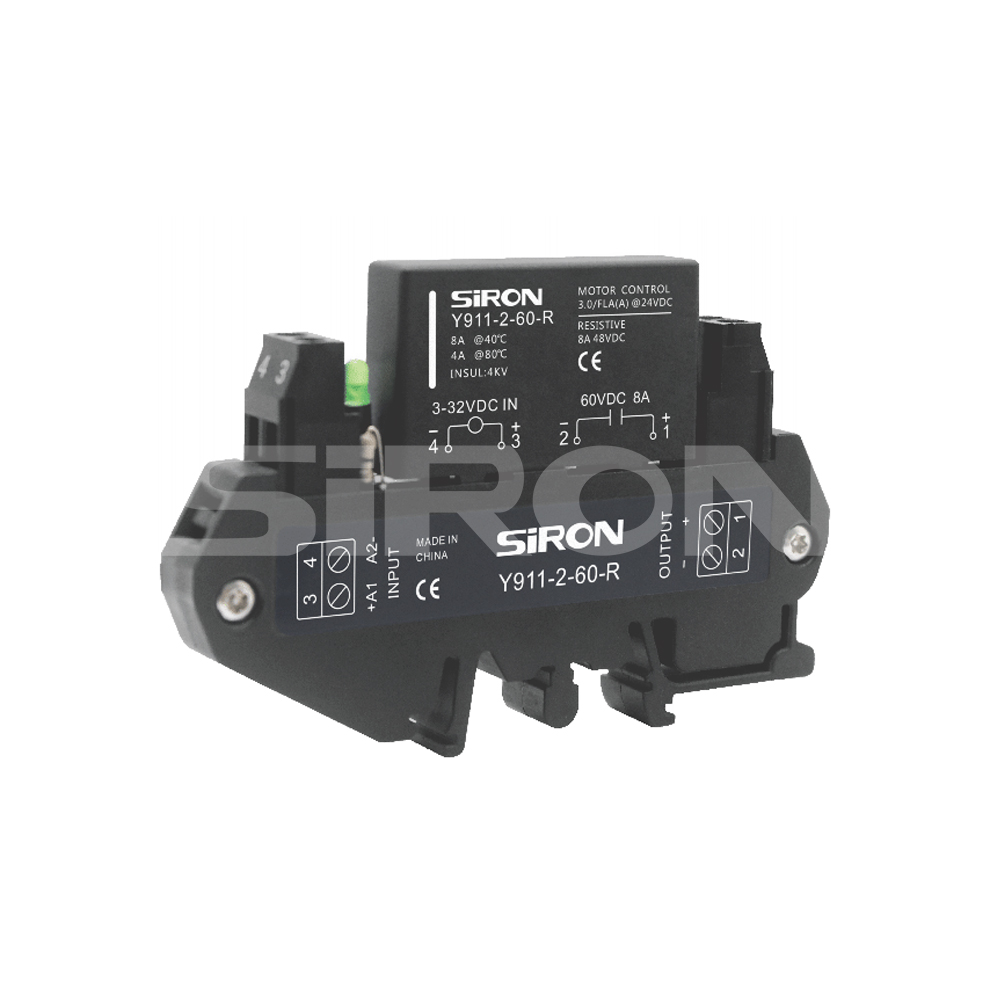

SiRON Y911-2-60-R Series Low Power DC Output Solid State Relay

Name: SiRON Y911-2-60-R Series Low Power DC Output Solid State Relay
Brand: SiRON
Rating: 5.0 (88 reviews)

Features

The Y911 series is a rail.-mounted module assembly, single output, pcB single pin, solder-type solid state relay.
The Y911series combines an AC or DC output PcB soldering direct insert Slp solid state relay with a 10.5mm width rail mounting baseto produce a ready-to-use SSR assembly, and the 10.5mm volume can areatly reduce the cabinet installation space, which isan ideal control device for Plc power amplification, solenoid valve control, heating, ighting or electromechanical motion inlow power;
Dutput ratings of3A,4A,5A,6Aand 8Aat 60VDC,120VDC and 200VDC.
Single MOSFET output, higher power density value, Dc control input, U-class SSR with minimum 0.02ms high-speed response.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Selection reference

Characteristics

Model		Y911-1-60-R	Y911-2-60-R	Y911-3-60-R	Y911-4-60-R
Output parameter	Working voltage	1-24 VDC
	Peak withstand pressure	60 VDC
	Maximum leakage current at off state	0.02 mA
	Maximum load current	4 Adc	8 Adc	4 Adc	8 Adc
	Minimum load current	0.1 Adc
	Maximum On-State Resistance	0.025 Ohms
Controls parameter	Control voltage range	3-32 VDC
	Minimum off voltage	1 VDC
	Maximum input current	7mA		11 mA
	Minimum conduction current	2mA		8mA
	Maximum conduction time	0.03 ms		≤0.1 ms
	Maximum break time	0.2 ms		≤0.2 ms
Fundamental characteristics	Work environment	-40 to 80℃
	Storage environment	-40 to 100℃
	Input to output insulation voltage	4000 Vrms
	Guide light color	Green
	Product weight	0.025 kg
	Product packaging	Length: L9.3cm* Width: W6.4cm* height: T1.4cm
