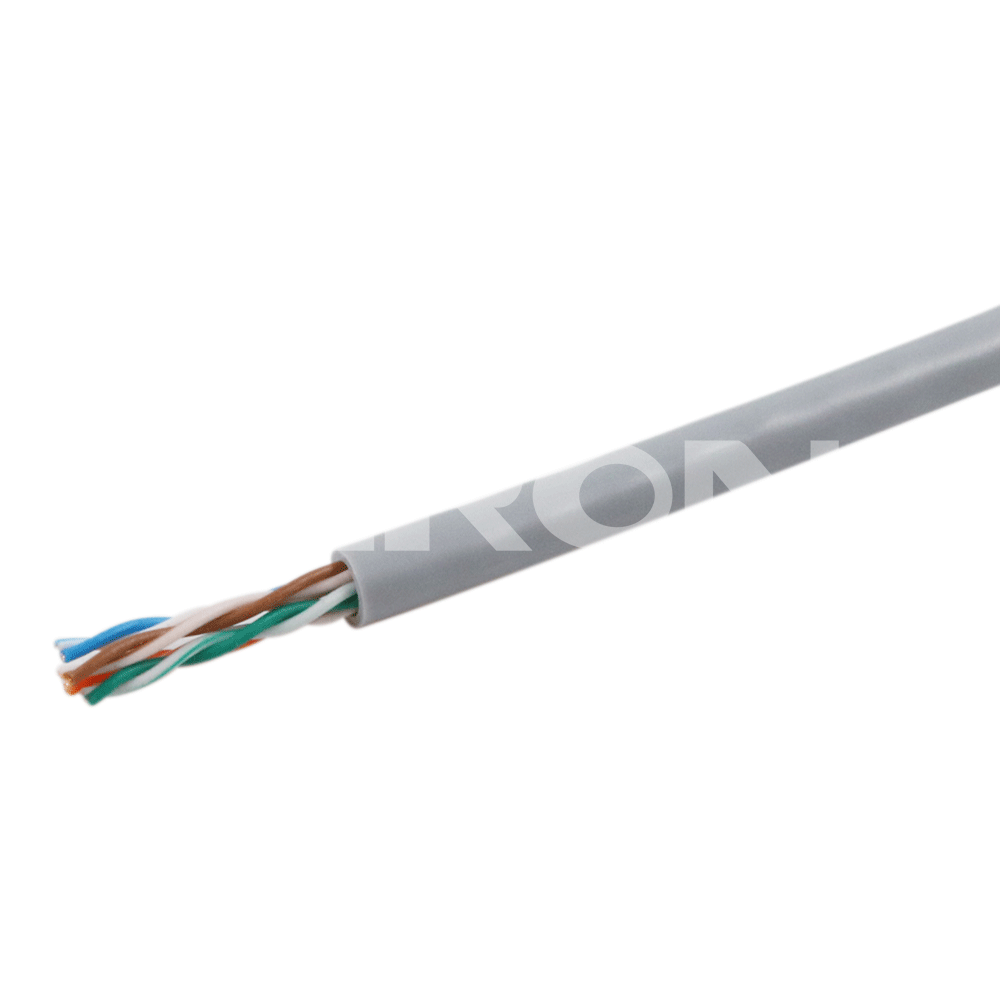

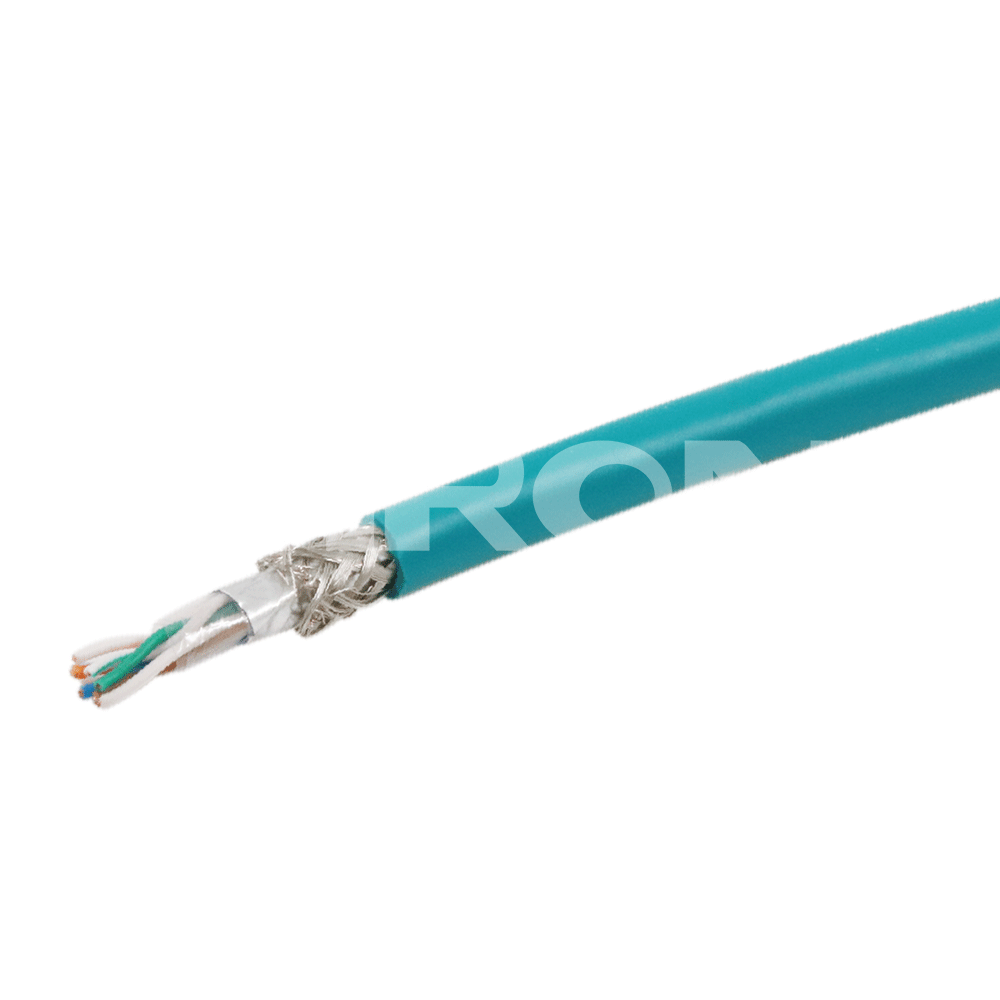

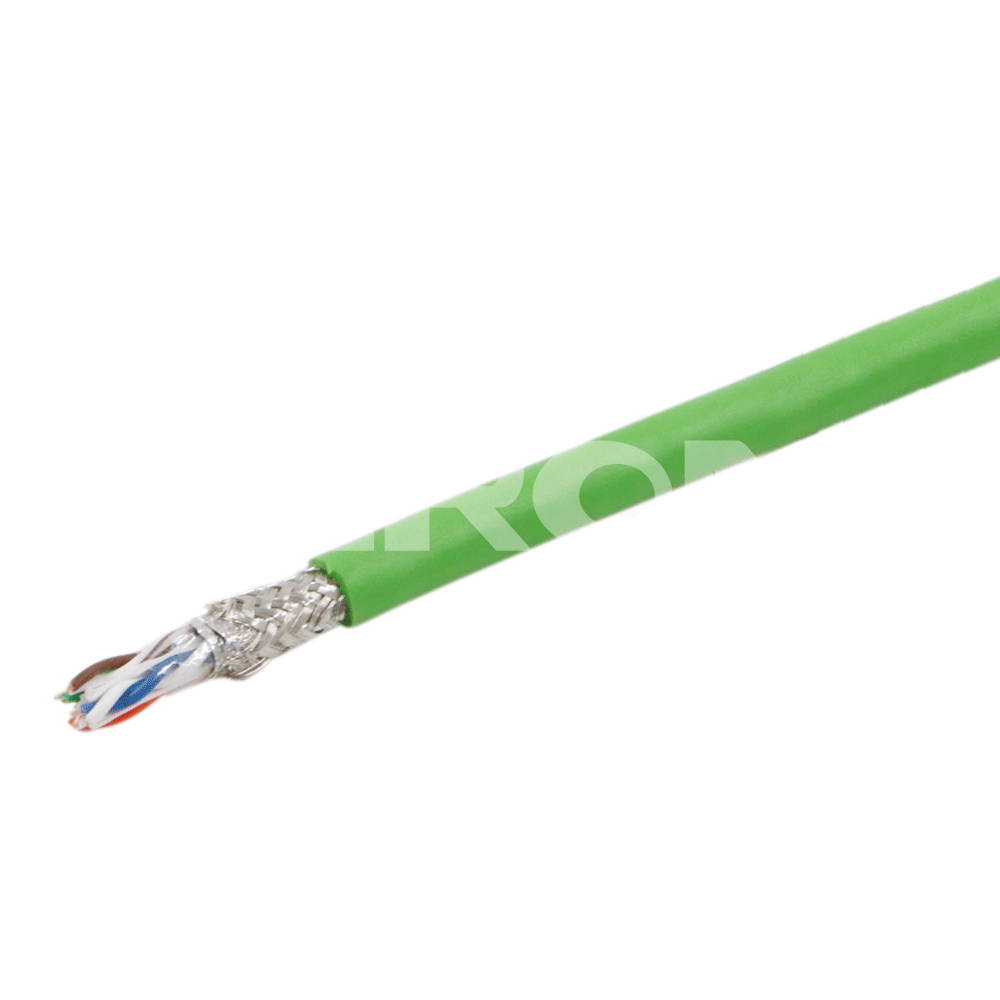

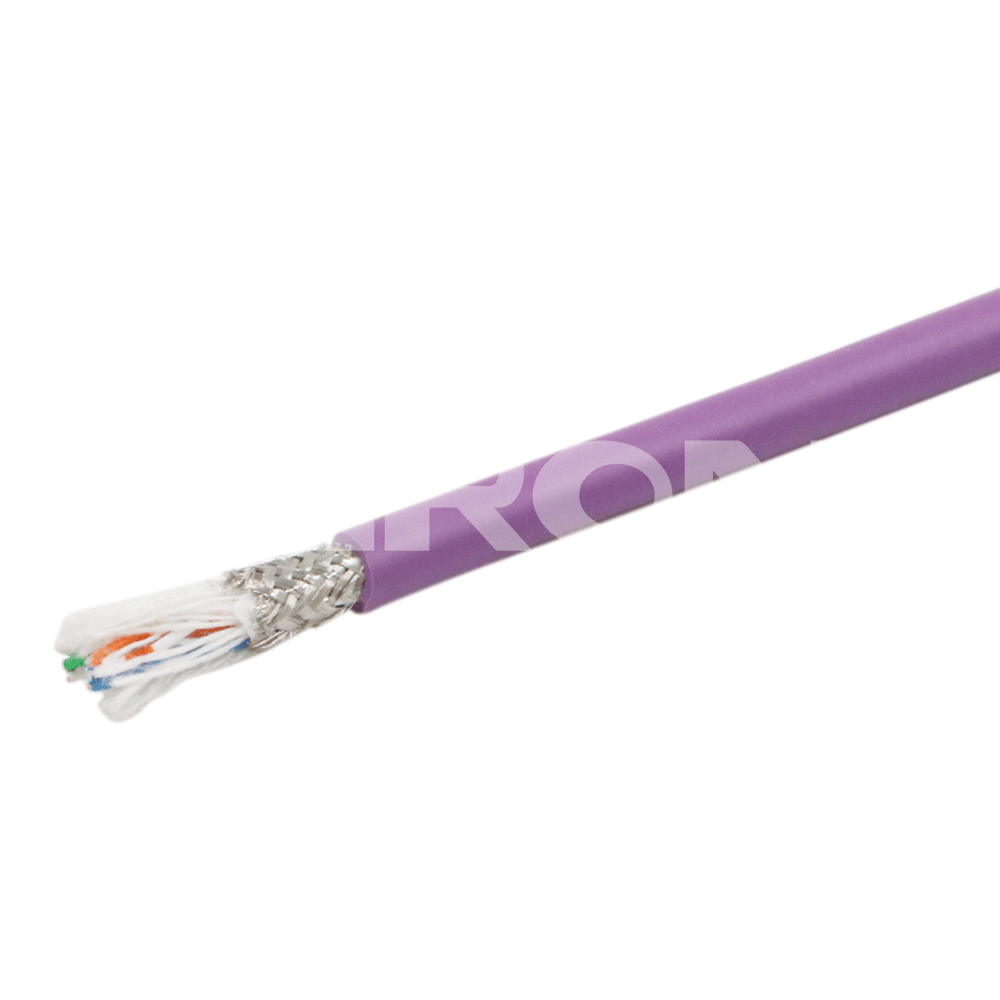

X140
SiRON
8544421100
Order
Specification
| Model | X140-2 | X140-2A | X140-3 | X140-4 |
| Types | Category 7: Individual/overall shielding(≥85%) | Category 6A/Shielded(≥40%) | Category 6A/Shielded(≥85%) | Category 7: Individual/overall shielding(≥85%) |
| Conductor resistance | ≤148Ω/km | ≤14.8ohm/100m | ||
| Insulation resistance | ≥5000MΩ ·km | / | ||
| Resistance unbalance | ≤2% | / | ||
| Capacitance unbalance | ≤160pF/100m | / | ||
| Min bending radius | -20℃~75℃ | -20℃~80℃ | ||
| UV resistance | -20℃~55℃ | -20℃~60℃ | ||
| Flame resistance | FT2,IEC 60332-1-2,VW-1 | VW-1,CM | ||
| Rated voltage | ≤30V | ≤30V | ||
| Test voltage | 300V | 300V | ||
| Adapter end | A casing with metal shielding and gold-plated pins | With a metal shielded housing and gold-plated pins | ||
| Dielectric strength | DC1KV for 1min | / | ||
| Rated capacitance @ 1 K H zNom.Mutual Capacitance | ≤5.6nF/100m | / | ||
| Operating temperature | Fixed: 4D(cable diameter)/ drag chain：8D | / | ||
| Characteristic impedance | 100±15 ohm | 100±15 ohm | ||
| Jacket characteristic | / | ≥13.8MPa | ||
| Tensie strengt(beiore aging) | ||||
| Elongation(before aging) | / | ≥100% | ||
| Tensie strengh(after agng100℃×240n) | / | Minimum retention without aging 8 5 % | ||
| Elongation(after aging100℃×240h) | / | Minimum retention without aging 8 5 % | ||
| Heat shock | / | 85℃×1h,transformation≤50%(UL44) | ||
| Cold bend test(-40℃×4h) | / | 8×OD.,No cracks | ||
