K707 Series
SiRON
8479909090

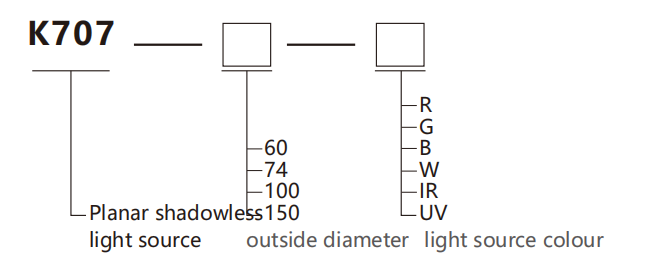

About selection
Selectionexample: K707-60-R indicatesthe K707 series,the outer diameteris 60mm,
and the light source color is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
Specifications
| Name | Planar shadowless light source |

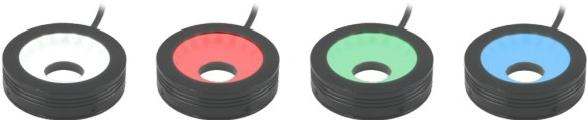

| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Angle | 30°(The Angle between the light and the central axis) |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Check the date on the food bag;Metal device edge detection and positioning, size detection;Detect the dimensions of IPA precision components |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
Example

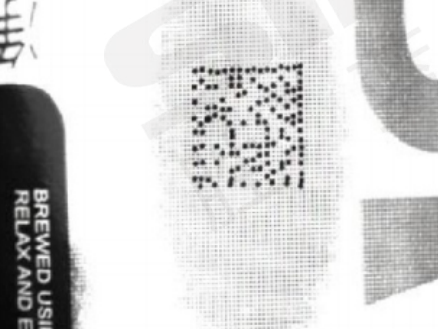

Special-shaped product positioning inspection QR code inspection on beer bottle surface
Highlight the product outline for clear visibility. With shadowless lighting, the QR code on the bottle
surface is clearly visible.

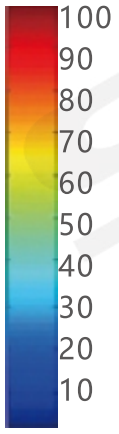

Uniformity distribution map
LWD = 20, Field of View: 55 × 40mm LWD = 30, Field of View: 55 × 40mm

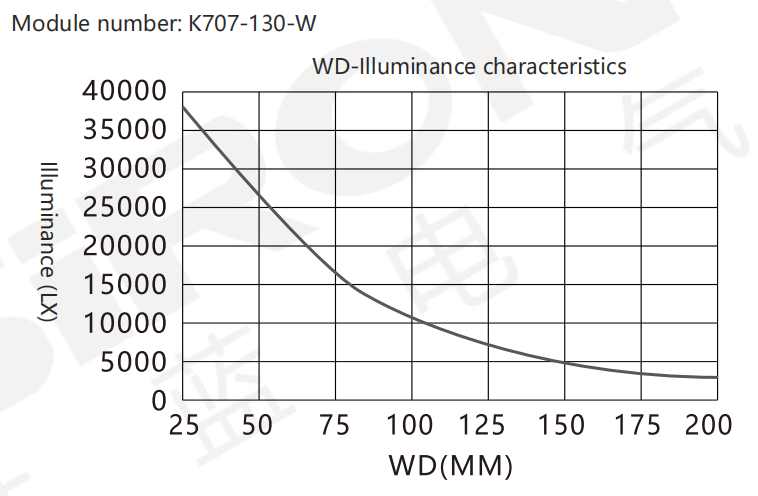

Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |
Dimension
