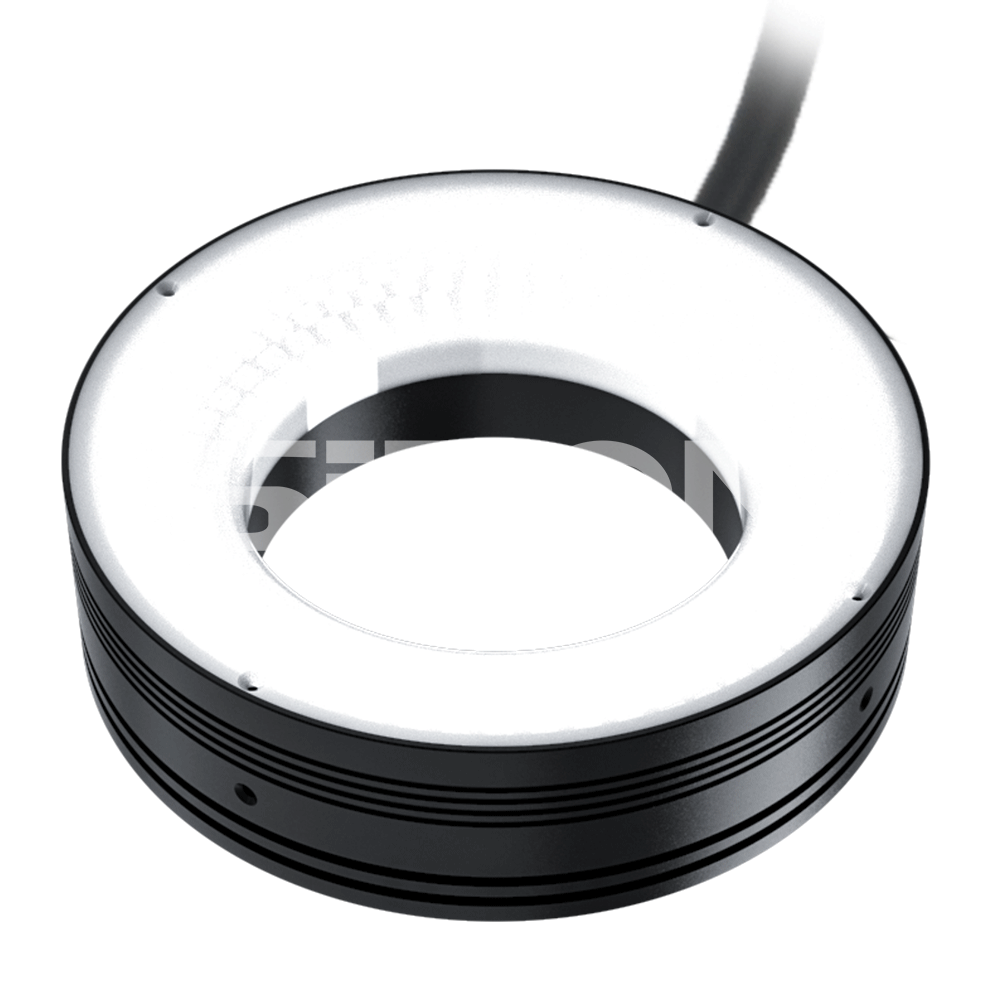

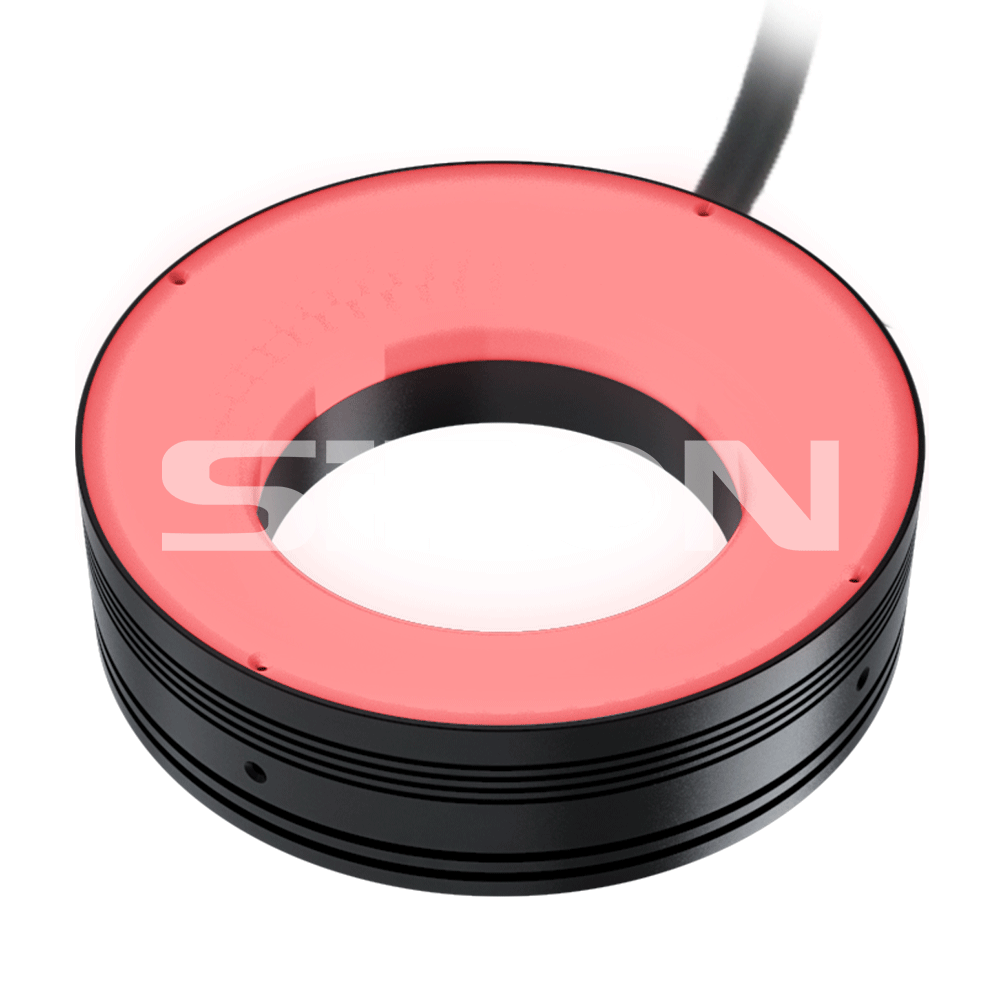

K706 Series
SiRON
8479909090

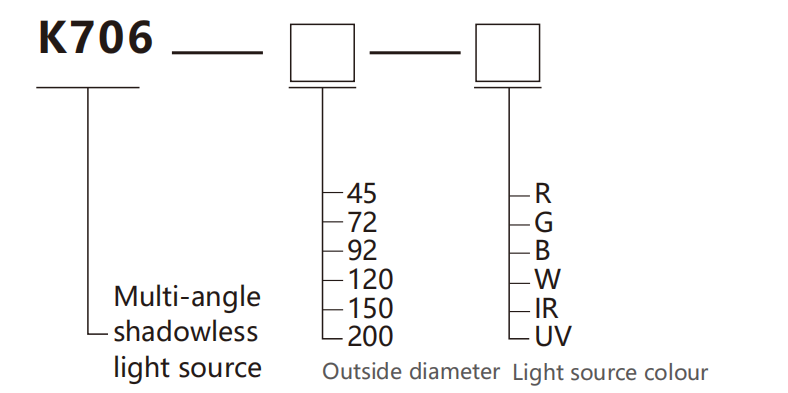

About selection
Selectionexample:
K706-45-R indicatesthe K706 series, theouterdiameteris 45mm,the light source color is red.
Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
Specifications
| Name | Multi-angle shadowless light source | |
| Appearance |

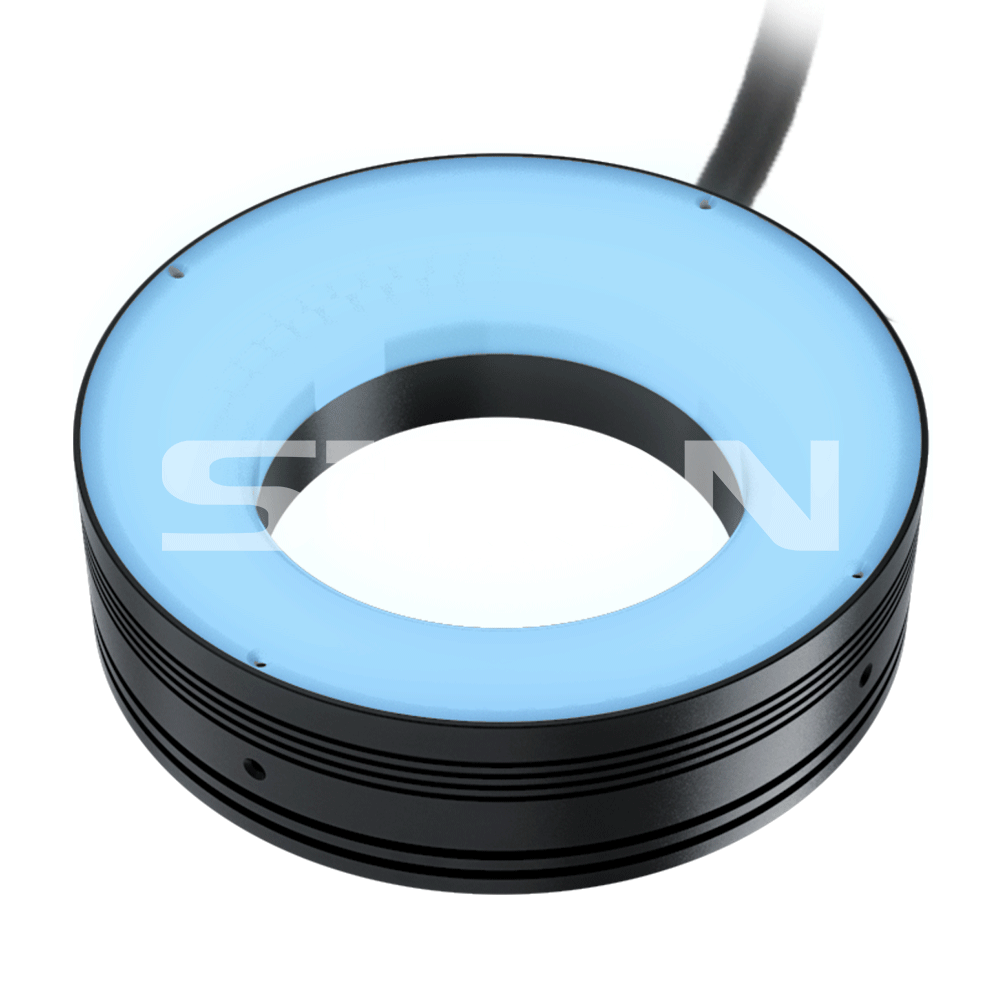

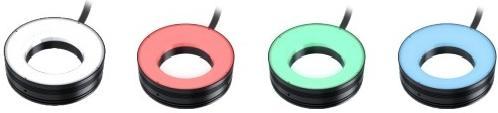

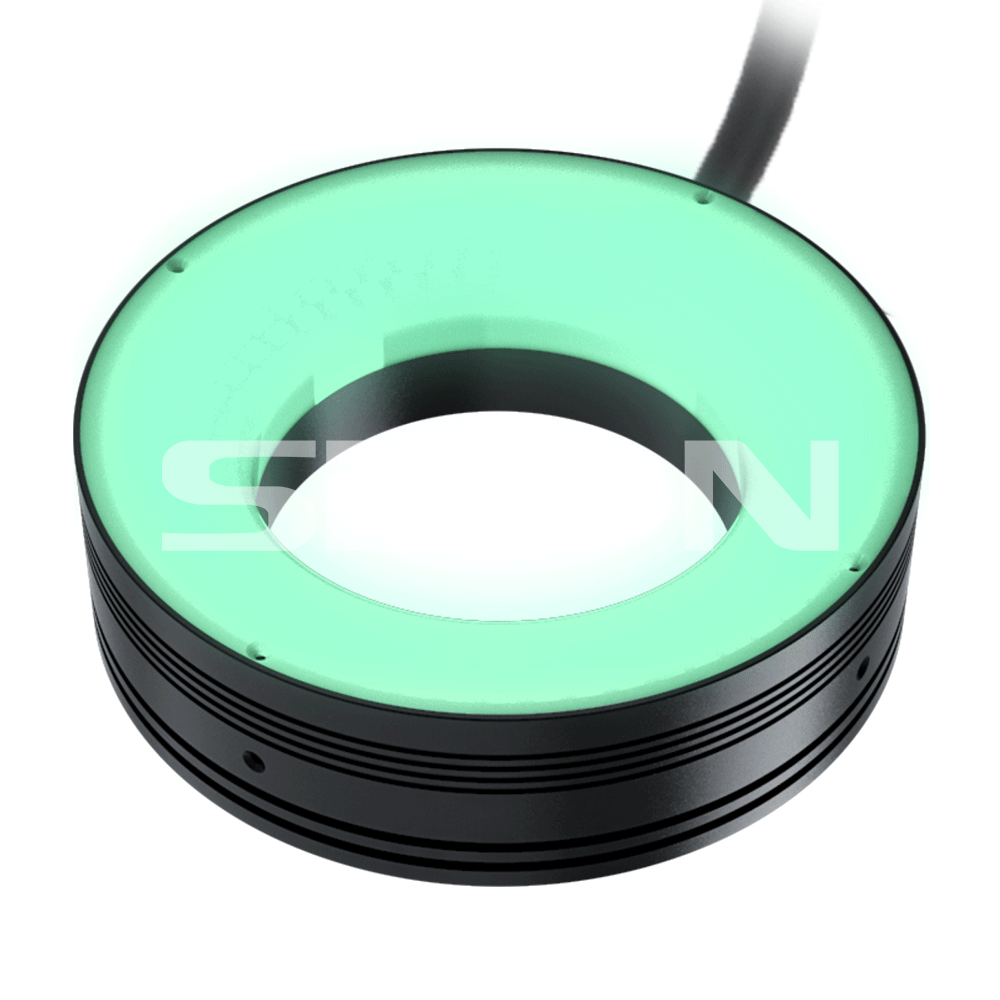

White Red Green Blue | |
| Voltage | 24V DC | |
| Angle | 30°(The Angle between the light and the central axis) | |
| Operating temperature | -10～+60℃ | |
| Working humidity | 20～85%(No atomization) | |
| Controller | Analog controller;Digital controller;Stroboscopic controller | |
| Scope of application | Detect objects with bright,reflective surfaces.Detect the dimensions of IPA precision components. Connector pin spacing and offset detection.Crack detection of bottle cap | |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm | |
Example
Connector pin inspection Glass positioning inspection
High-brightness lighting in narrow spaces High-intensity light source to create strong
to achieve clear black-and-white contrast contrast on the glass surface.
between pins and background.

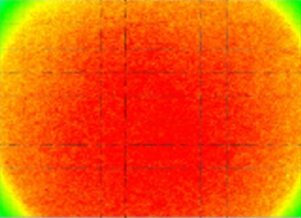

Uniformity distribution map
LWD = 20, Field of View: 60 × 45mm

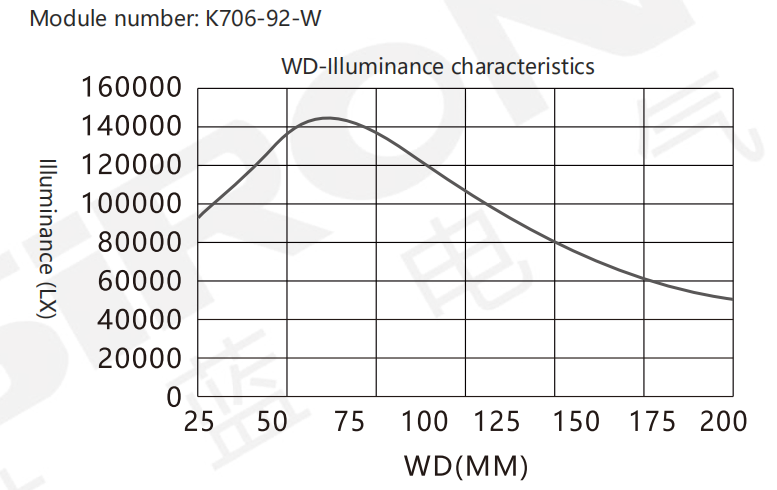

Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

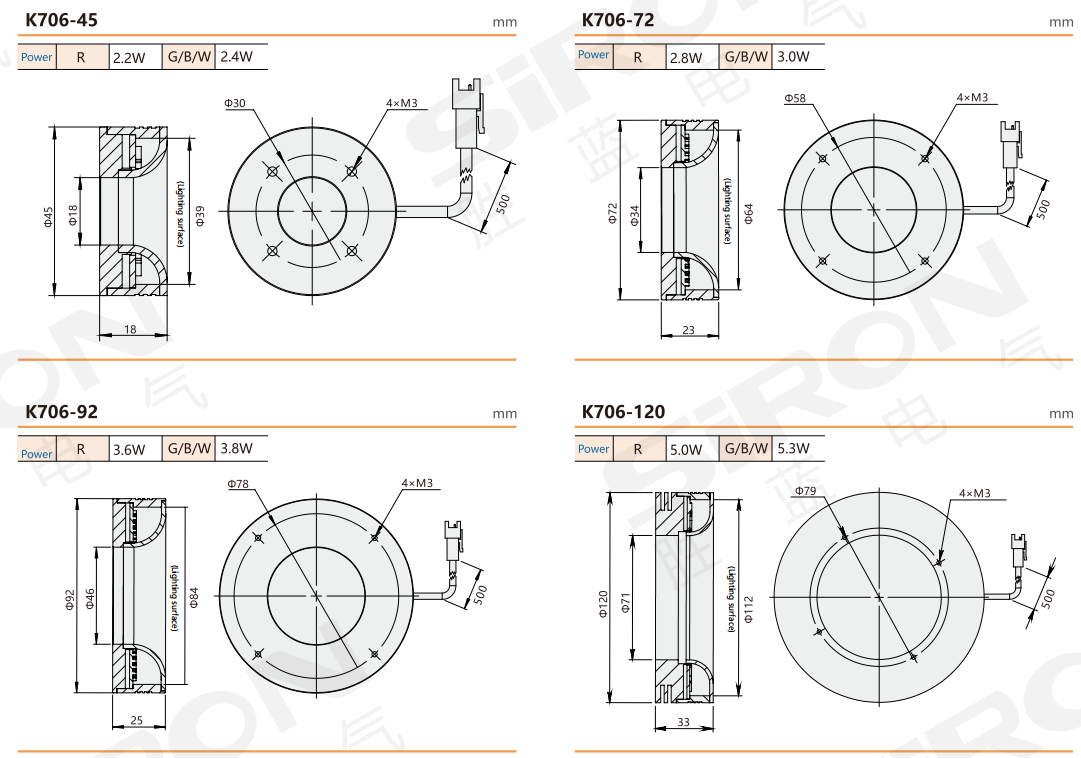

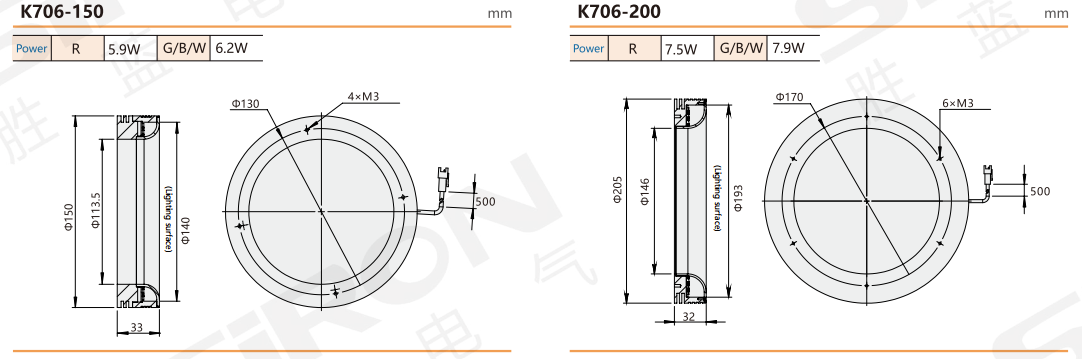

Dimension
