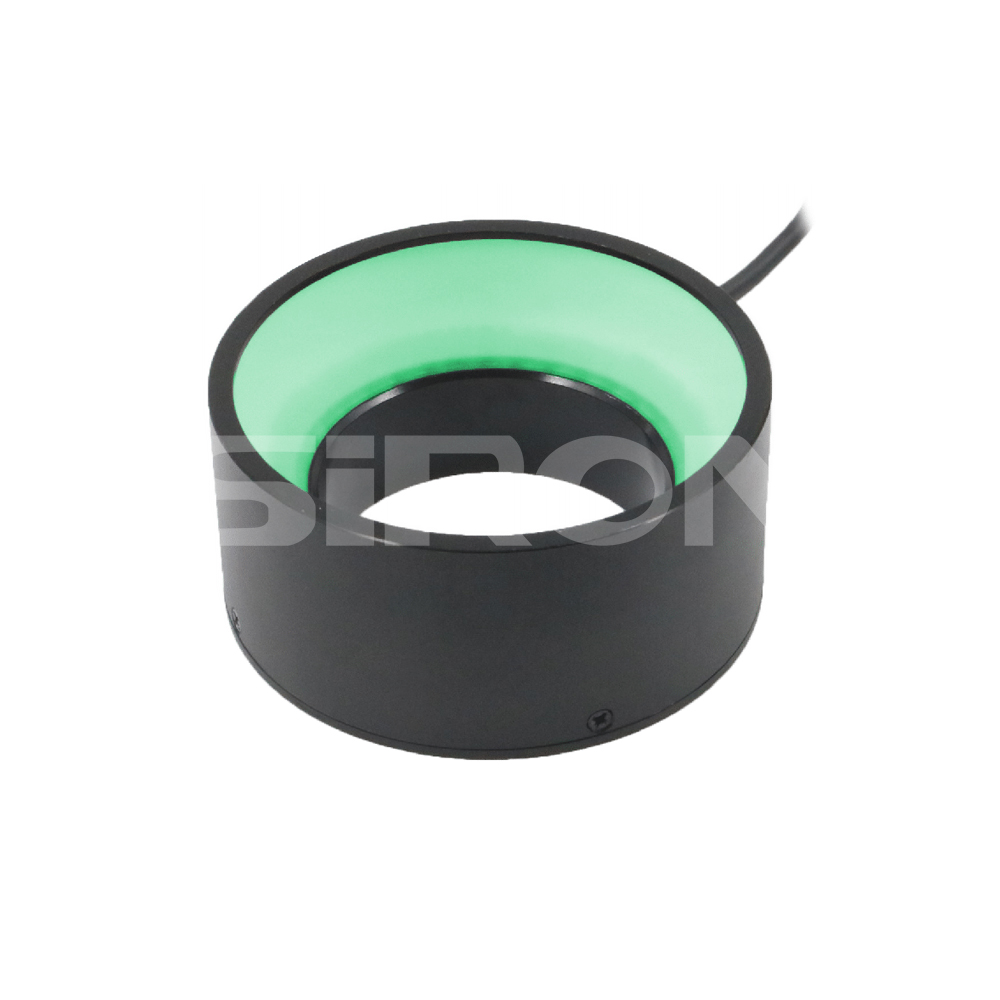

K705 Series
SiRON
8479909090

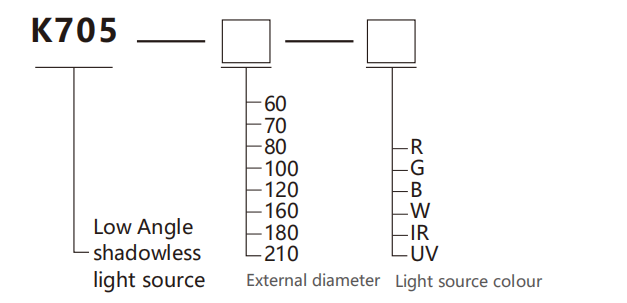

About selection
Selectionexample: K705-60-R indicatesthe K705 series,theouterdiameteris 60mm,andthelightsourcecolorisred.
Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-uv.
2, only K705-70 series of light and the axis of the Angle of 45°; The remaininganglesare 60°.
Specifications

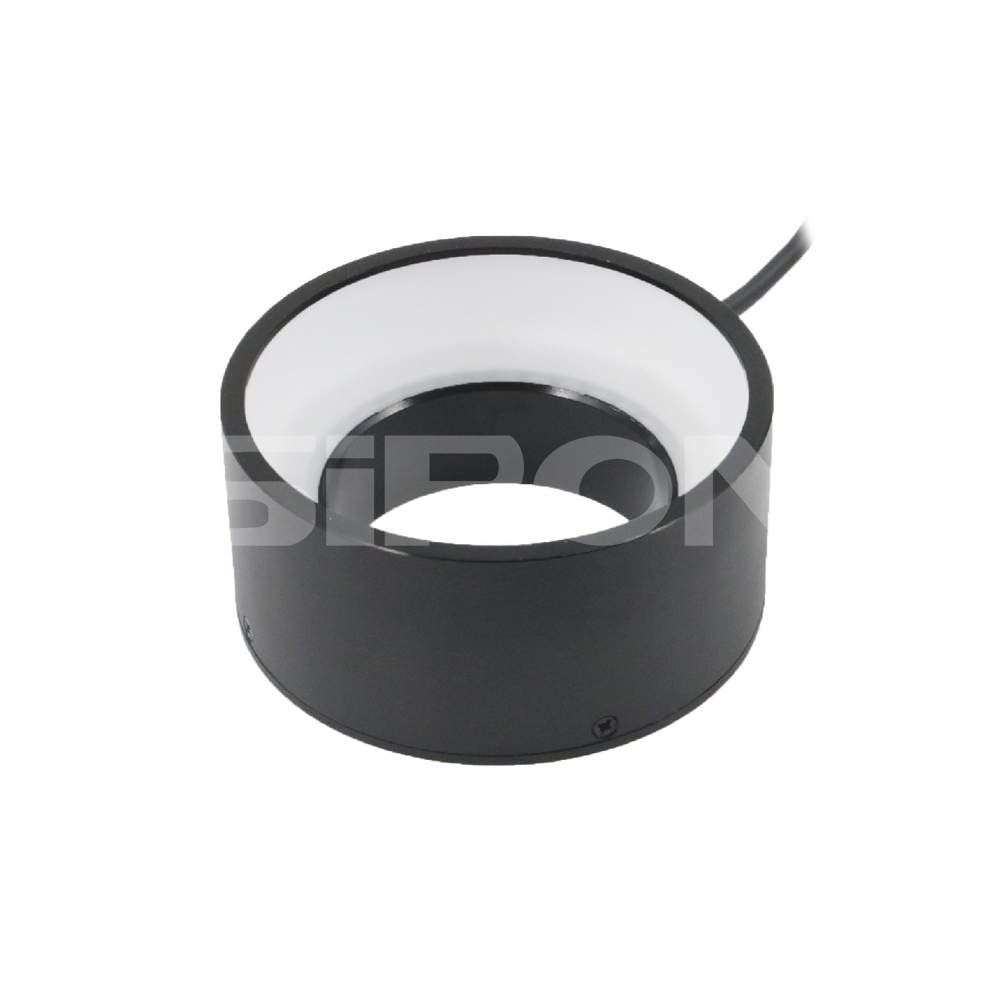

| Name | Low-angle shadowless light source |
| Appearance |

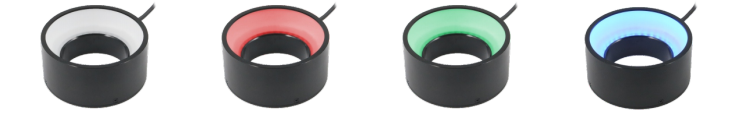

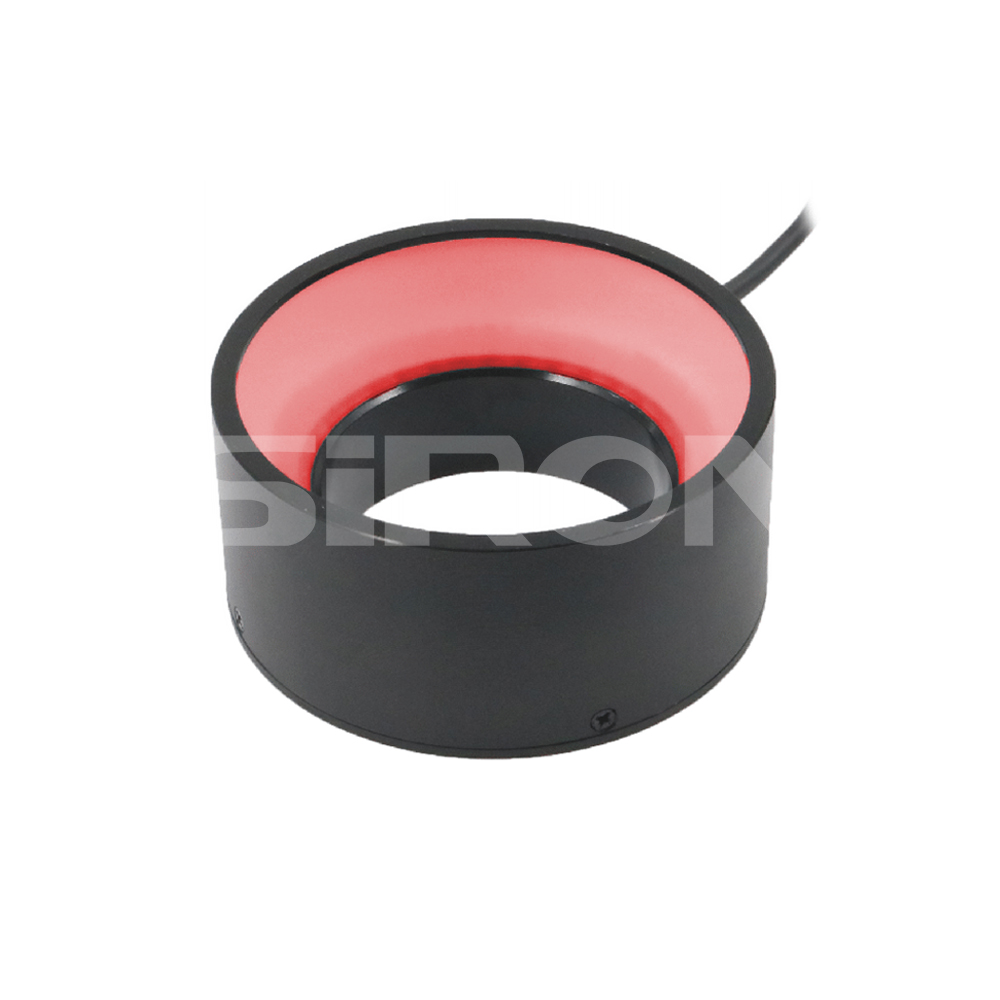

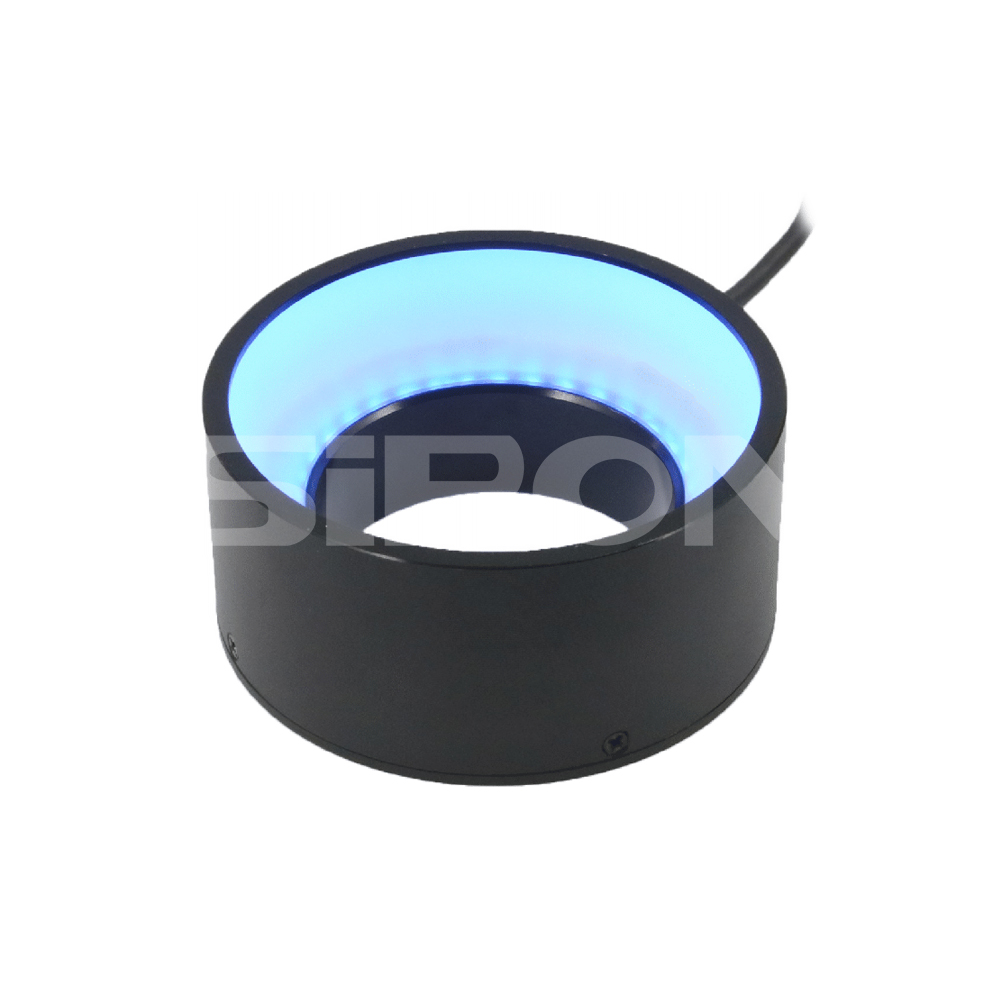

White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20~85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Detection of surface bright,reflective objects;Detect the dimensions of IPA precision components; Connector pin spacing and offset detection. |
| Wavelength and color temperature | W：6500K B ：465～470nmI R ：620～630nm R：850～940nm G ：525～530nm UV ：365～395nm |
Example

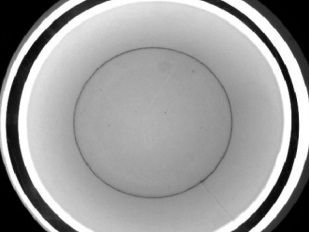

Button surface pattern inspection Paper cup inner wall contamination inspection
Adopt shadowless lighting to highlight Use shadowless lighting to check for dirt or
the pattern on the button surface. defects on the inner wall.
Uniformity distribution map
LWD = 20, Field of View: 60 × 45mm LWD = 30, Field of View: 60 × 45mm

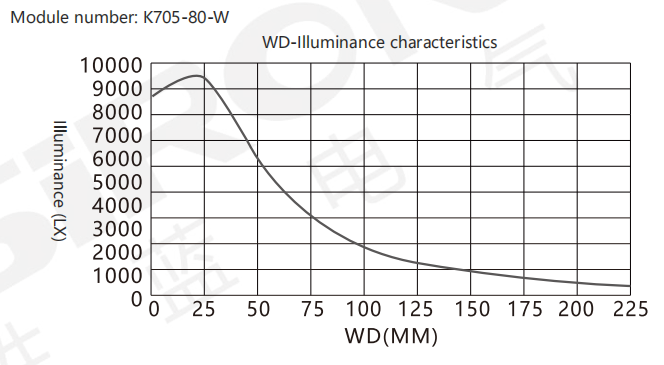

Lllumination characteristic graph
Related products
| Controller |  |  |  | Extension cord |  |
Analog Controller K790/P.065 | Digital Controller K791/P.067 | Strobe Controller K792/P.069 | K019-2-XXXX (Custom lengths available; confirm length before order) |

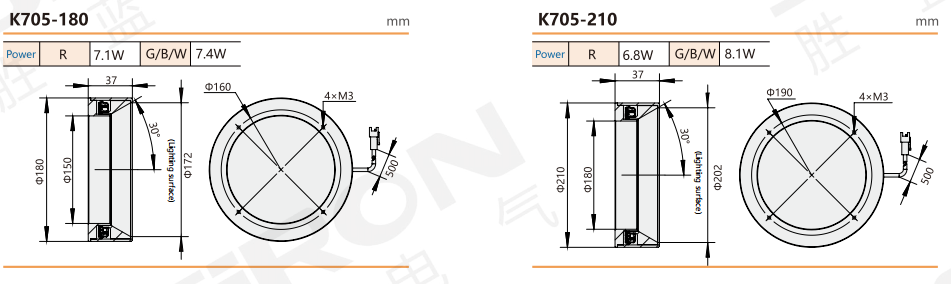

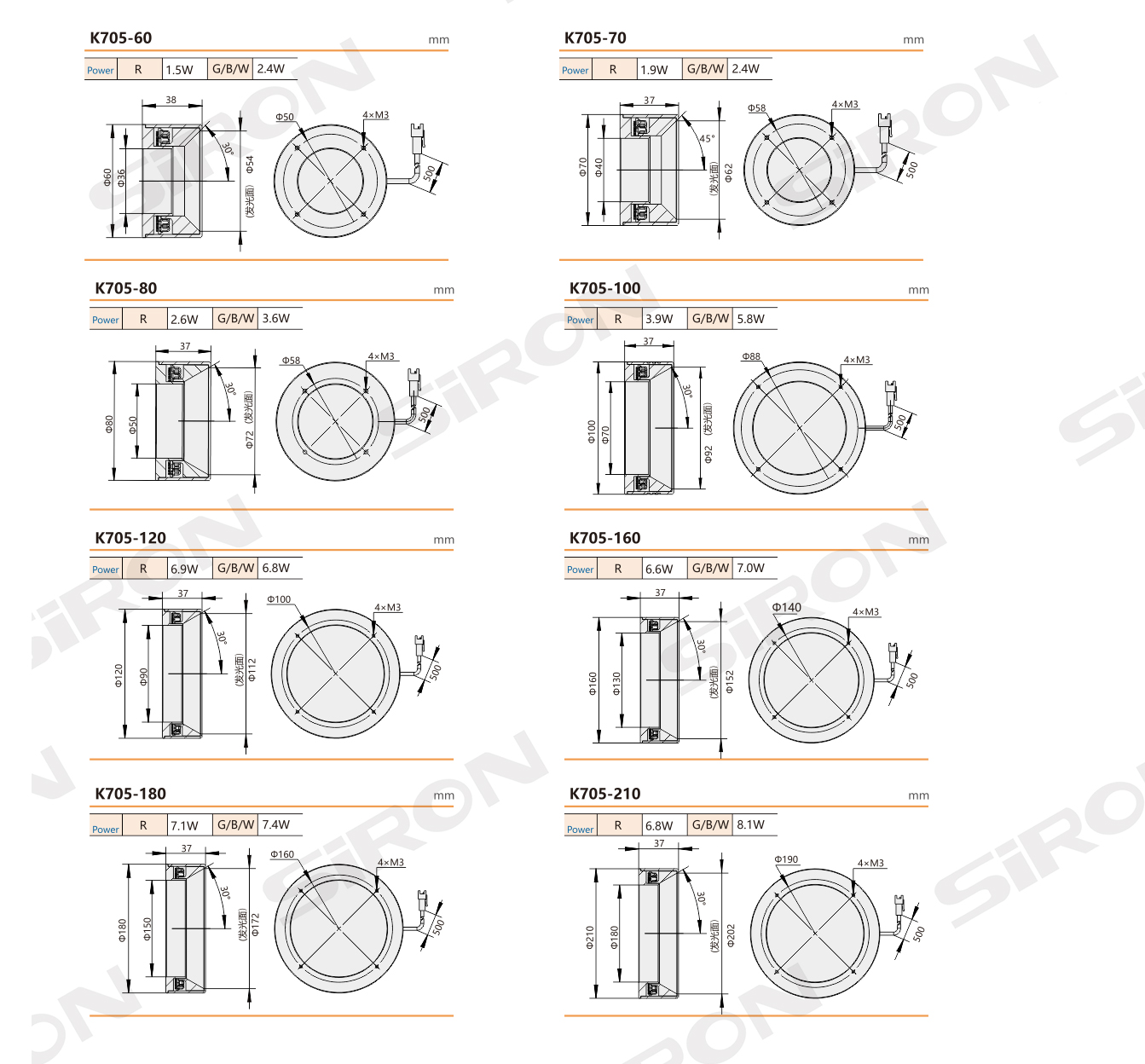

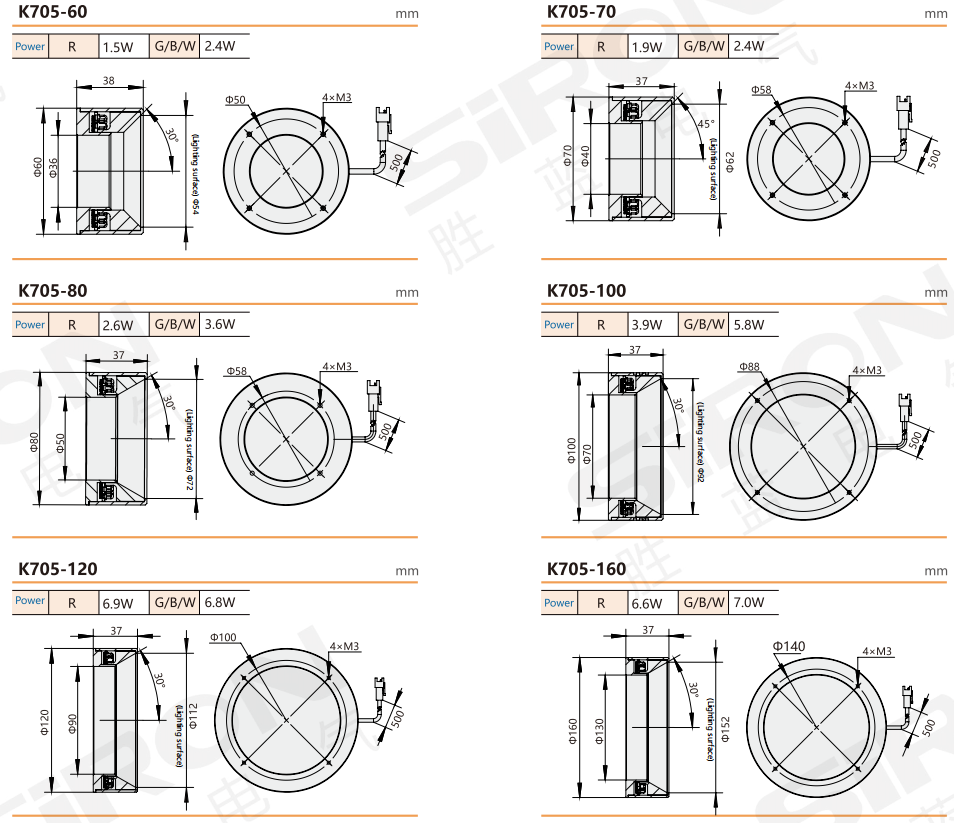

Dimension
