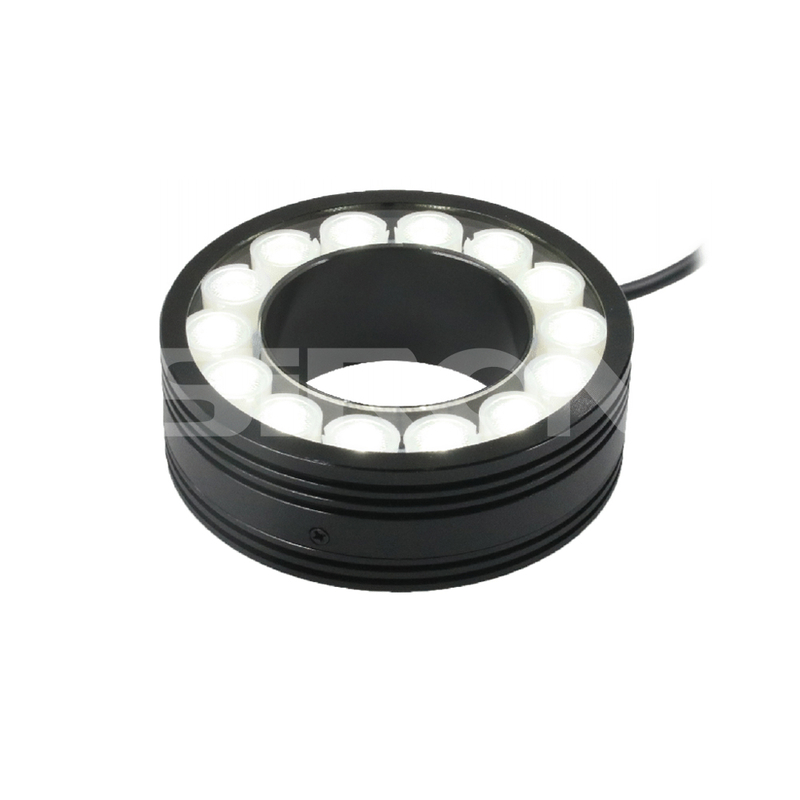

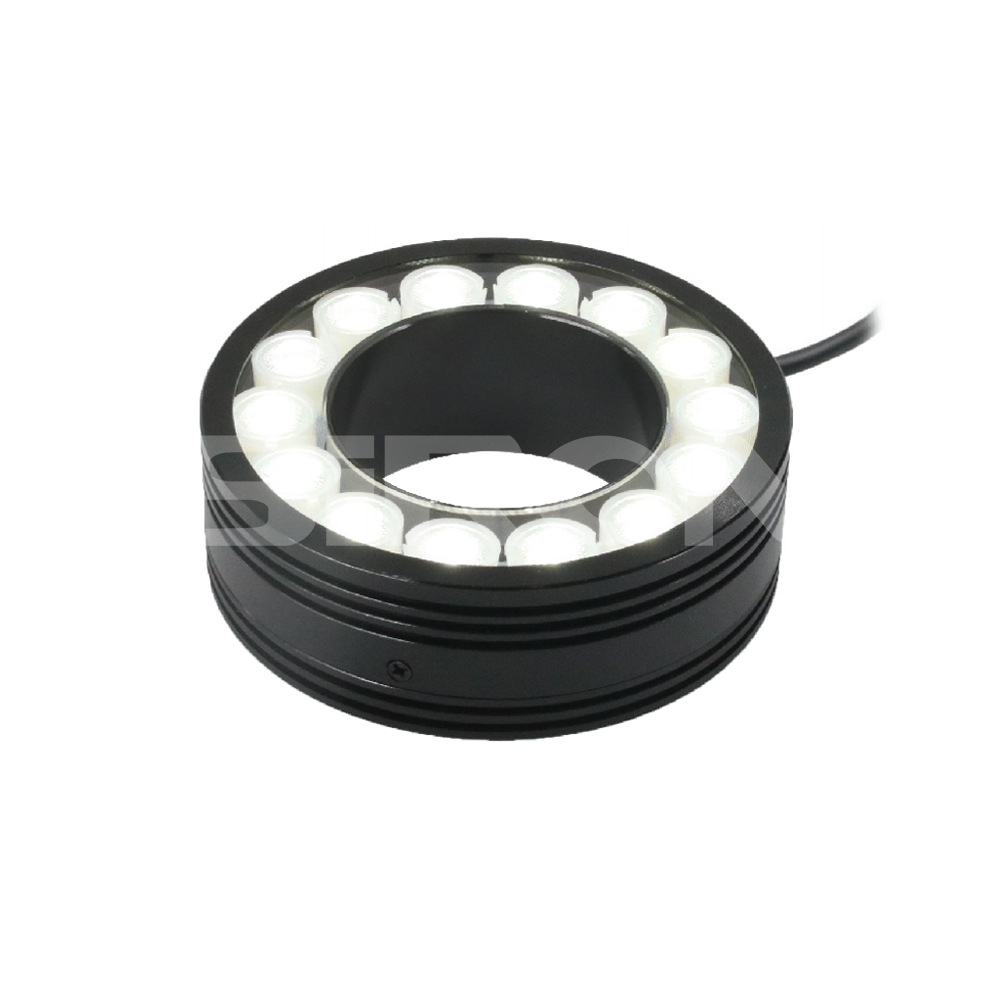

SiRON K701 Series High-power Ring Light Source

Name: SiRON K701 Series High-power Ring Light Source
Brand: SiRON
Rating: 5.0 (2 reviews)

Features:

* High-power ring light, made of high-power LED array;
* Condenser lens is used for matching, so that the light is more concentrated and the brightness is higher;
* Can achieve long-distance high-brightness lighting, suitable for large-area lighting.

It makes up for the problem of poor brightness of small-particle LED light sources.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K701 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Ring Light High power Ray of High High bright Long distance illumination

Product Description

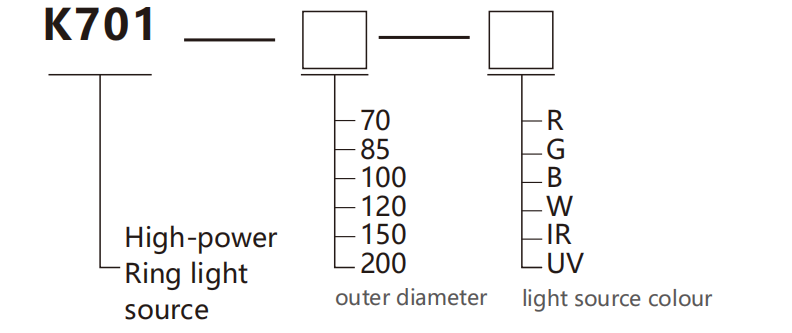

About selection

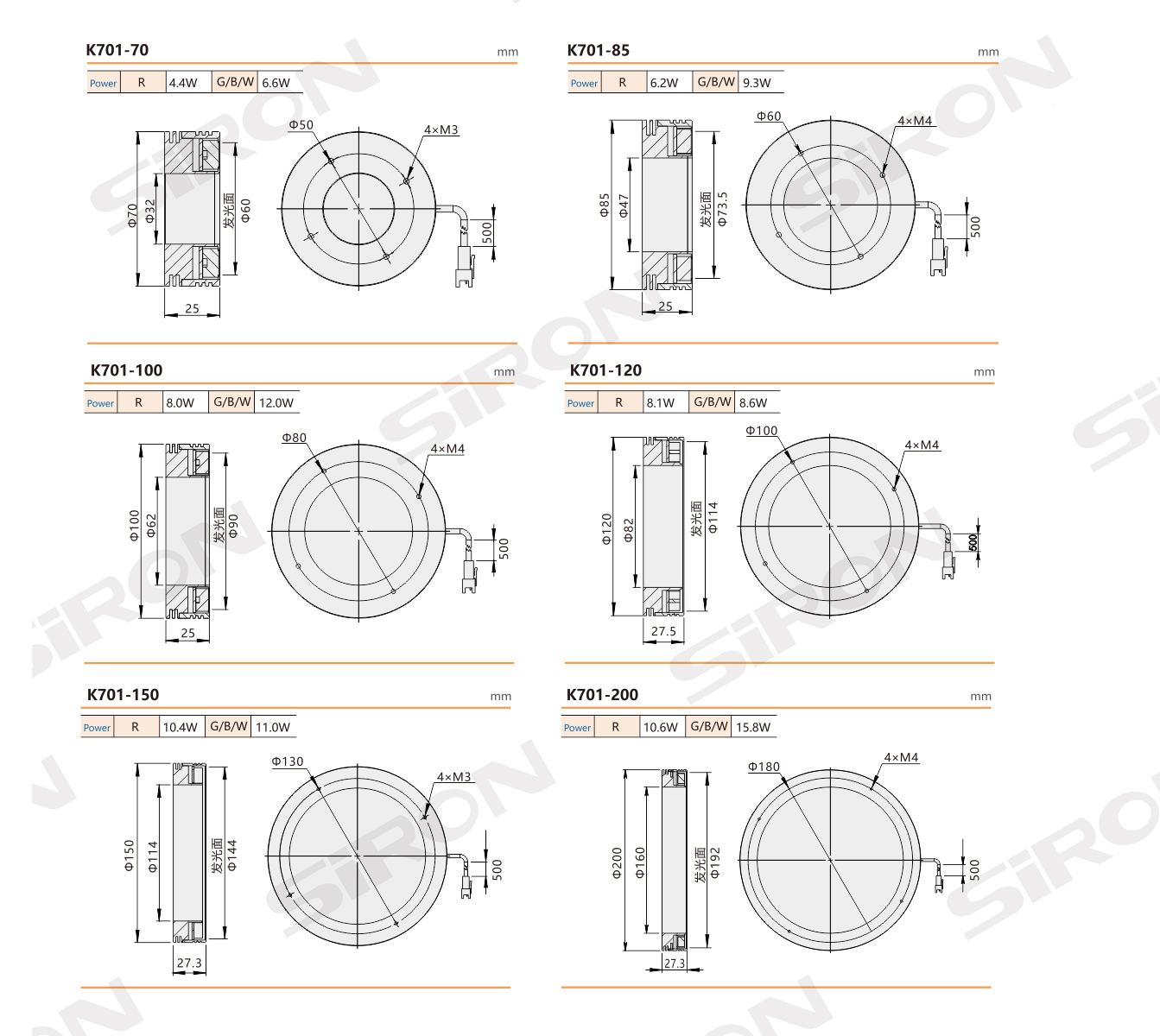

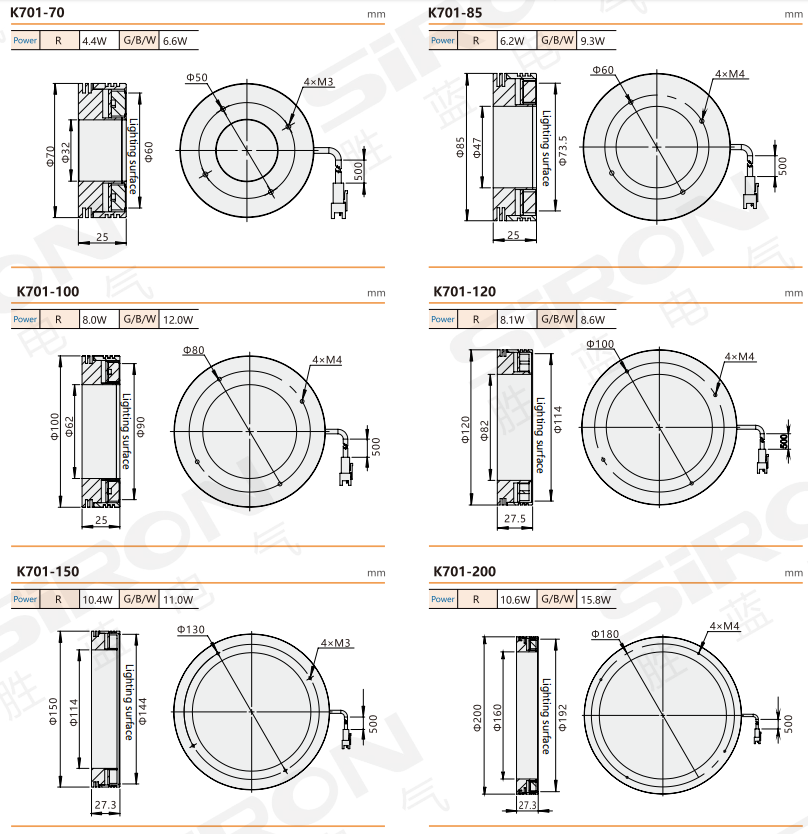

Selection example: K701-70-R indicates the K701 series, the outer diameter is 70mm, the light source color is red.

Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

Specifications

Name	High-power ring light source

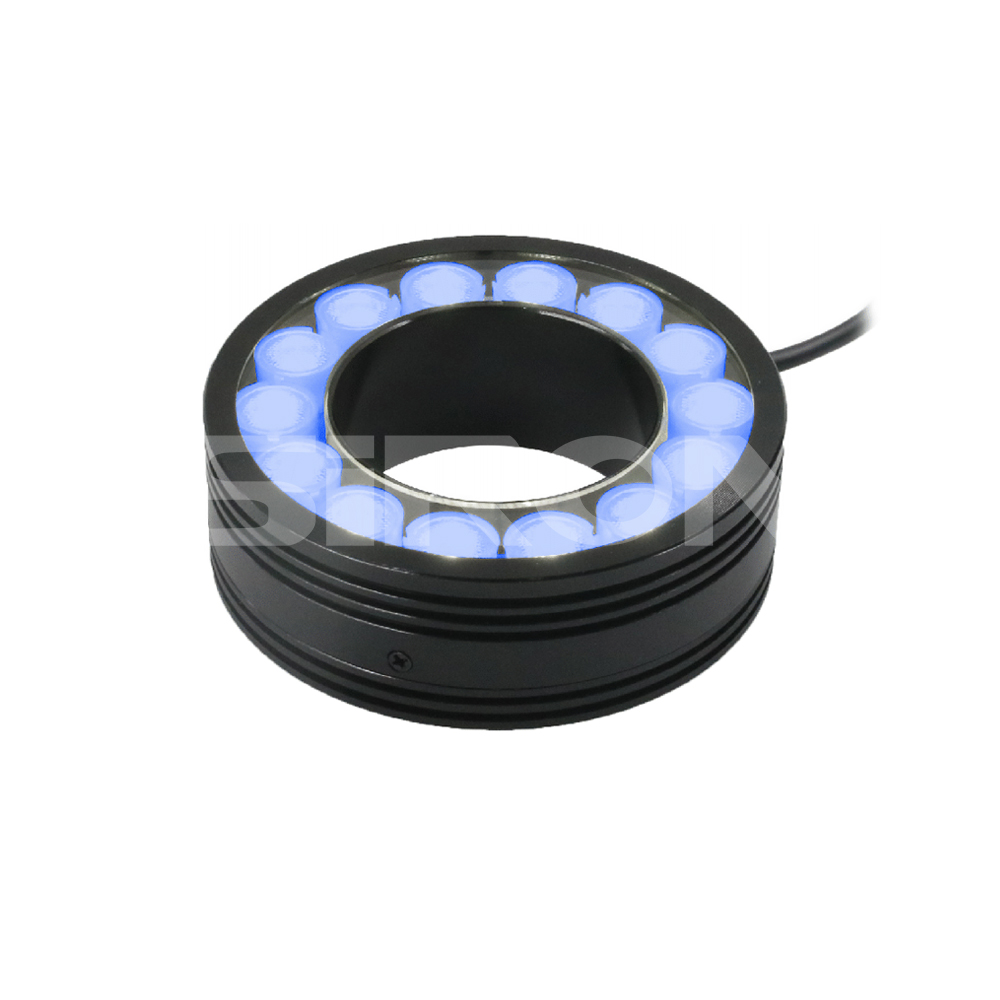

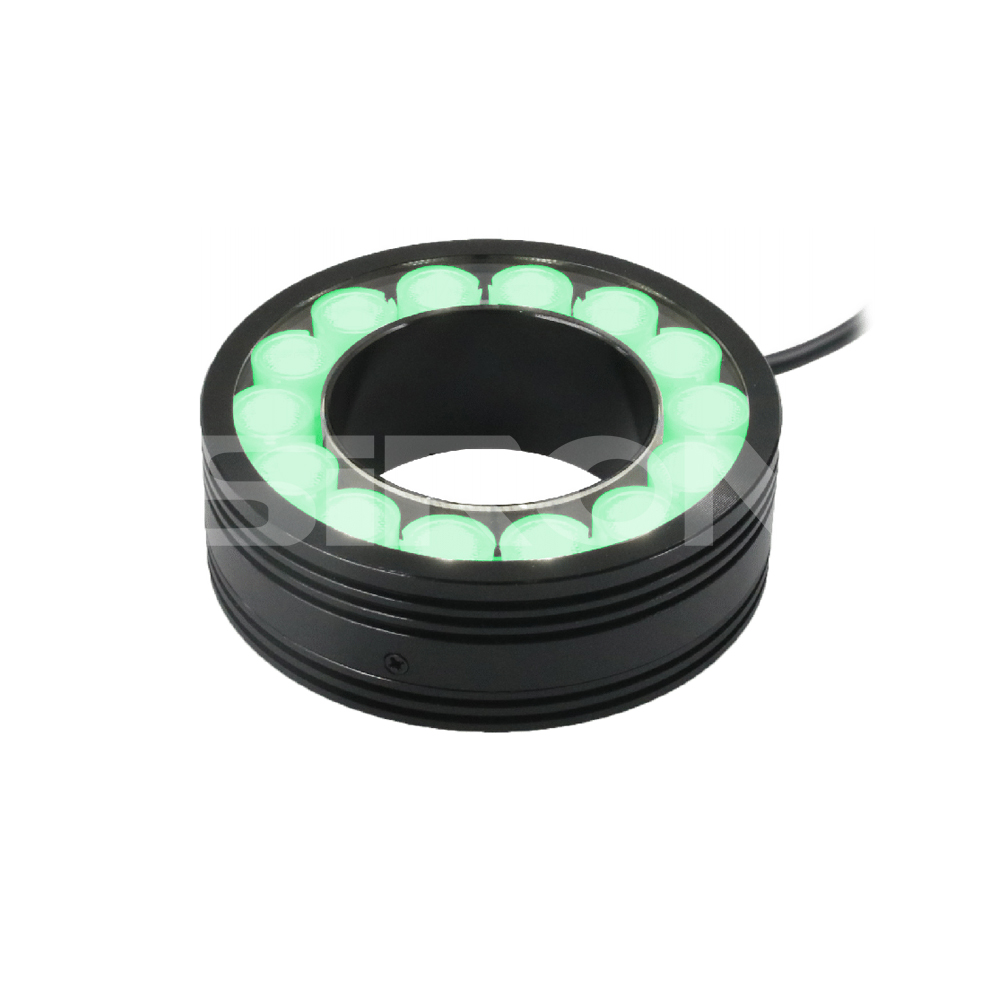

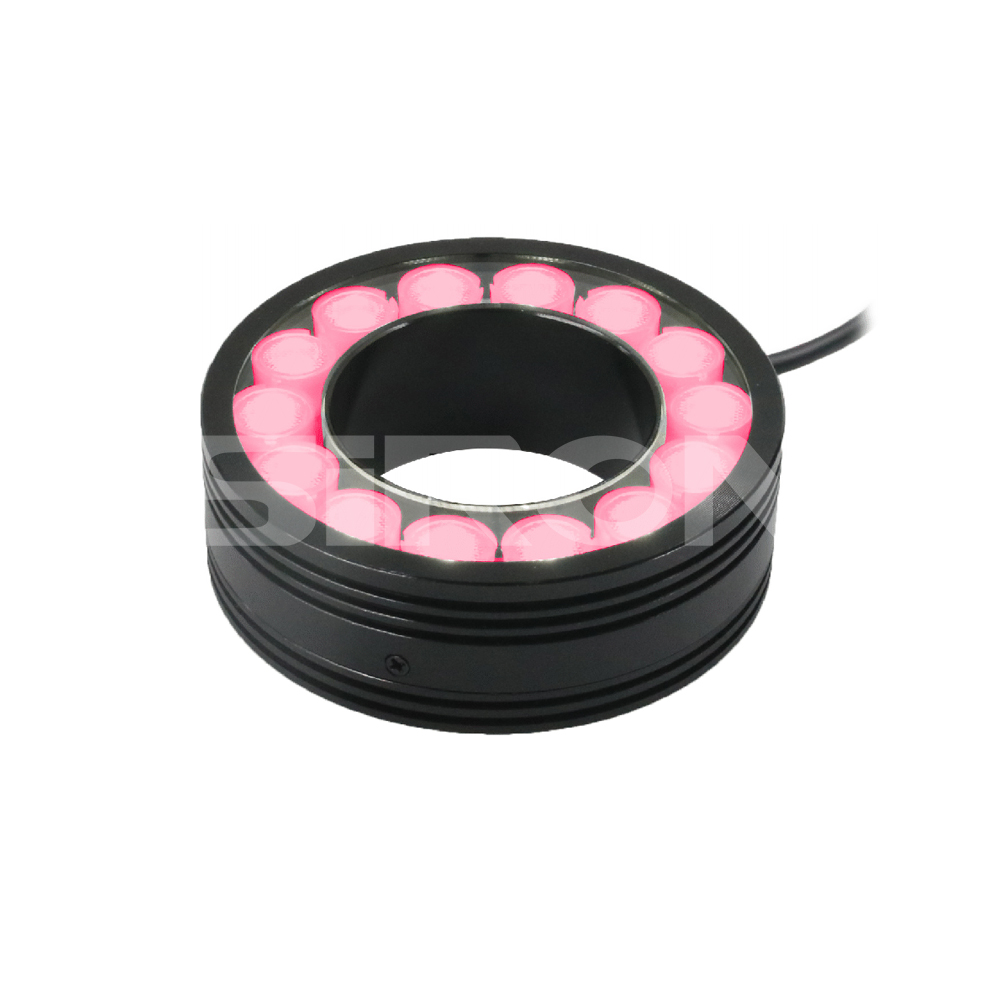

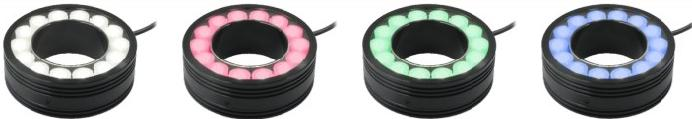

Appearance	White Red Green Blue
Voltage	24V DC
Angle	0°(The Angle between the light and the central axis)
Operating temperature	-10～+60℃
Working humidity	20～85%(No atomization)
Controller	Analog controller;Digital controller;Stroboscopic controller
Scope of application	IC chip appearance and character detection;PCB circuit board and component testing;Circular product size measurement
Wavelength and color temperature	W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm
