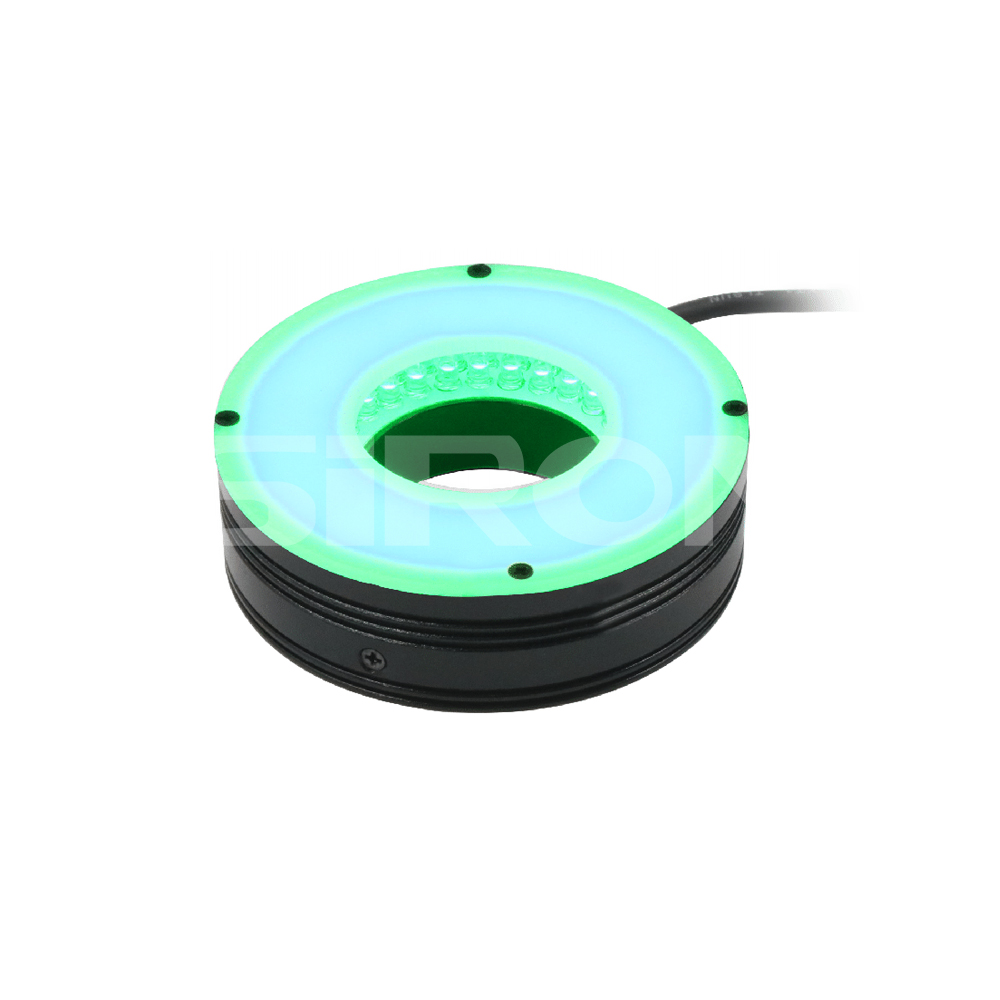

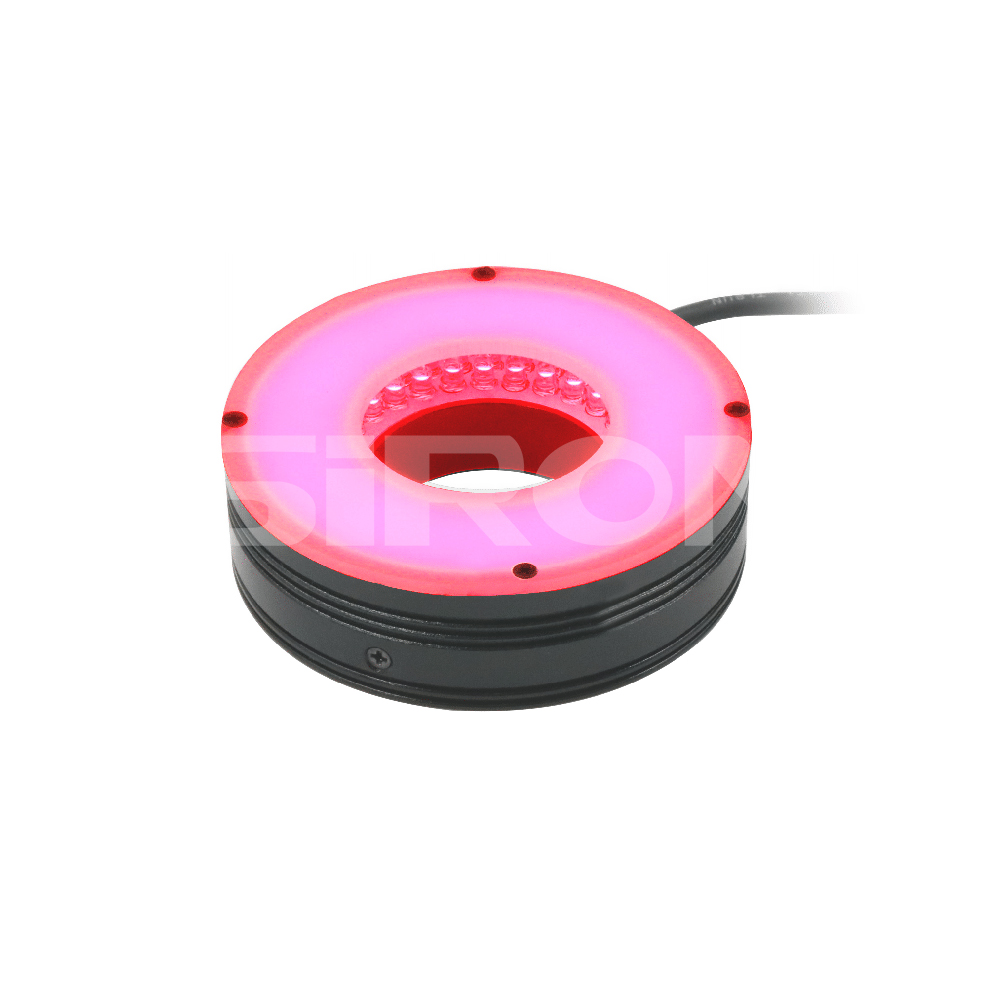

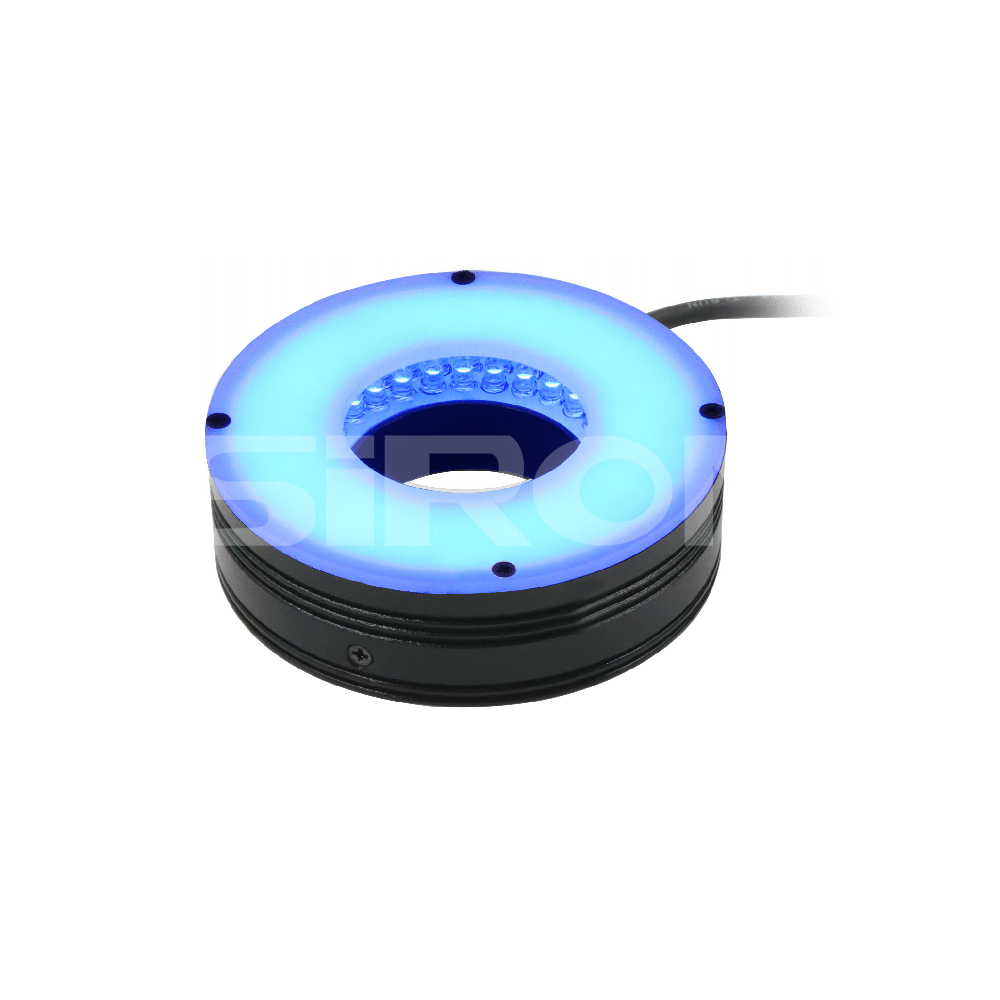

SiRON K700 Series Ring Light Uniform Light Distribution Gentle Light High Brightness

SiRON K700 Series Ring Light Uniform Light Distribution Gentle Light High Brightness

Name: SiRON K700 Series Ring Light Uniform Light Distribution Gentle Light High Brightness
Brand: SiRON
Rating: 5.0 (50 reviews)

Features:

*Solve the problem of diagonallyilluminating shadows;
*The high-brightness LED is designed with strict angle and uniform gap design;
*Can be used in conjunction with a diffuser to make the light more uniform and soft.
* Provides different angles of ilumination, can highlight the three-dimensional information of the object
and effectively solve the problem of diagonally illuminating the shadow.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K700 Series
Brand:
SiRON
Code:
8479909090

Machine Vision Light Ring Light uniform light distribution gentle light high brightness

Product Description

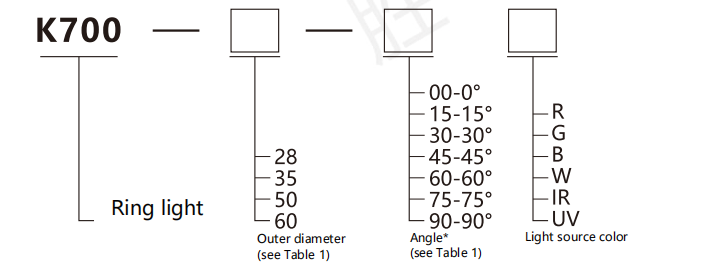

About selection

Selection example : K700-35-00R indicates the K700 series, with an outer diameter of 35mm, an Angle of 0°,

and a red light source color

Note:

1.Wire Length: 0.5m

2.Angle: The included angle between the light ray and the central axis direction.

3.R - Red; G - Green; B - Blue; W - White; IR - Infrared; UV - Ultraviolet

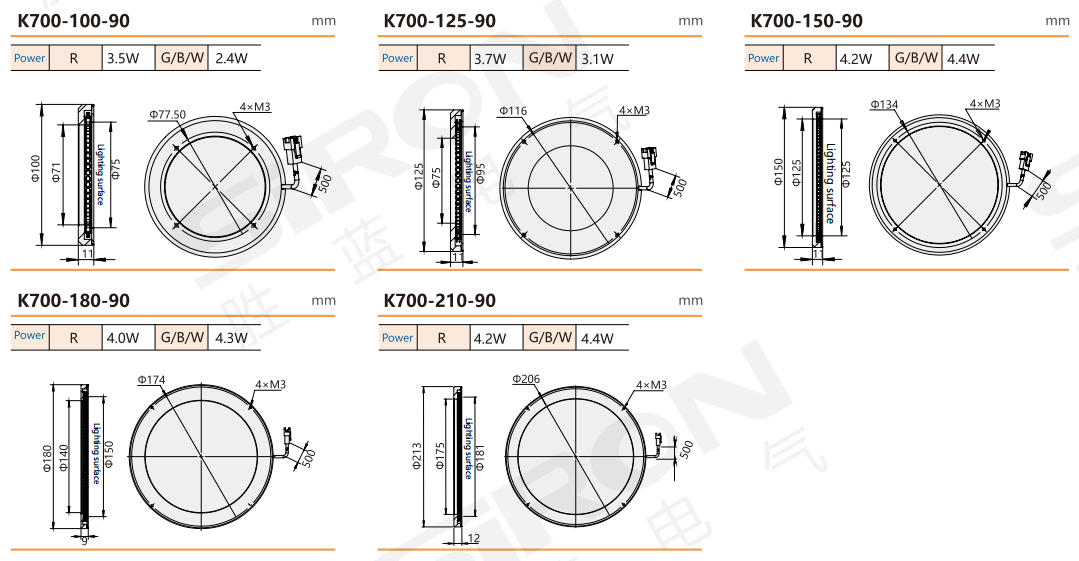

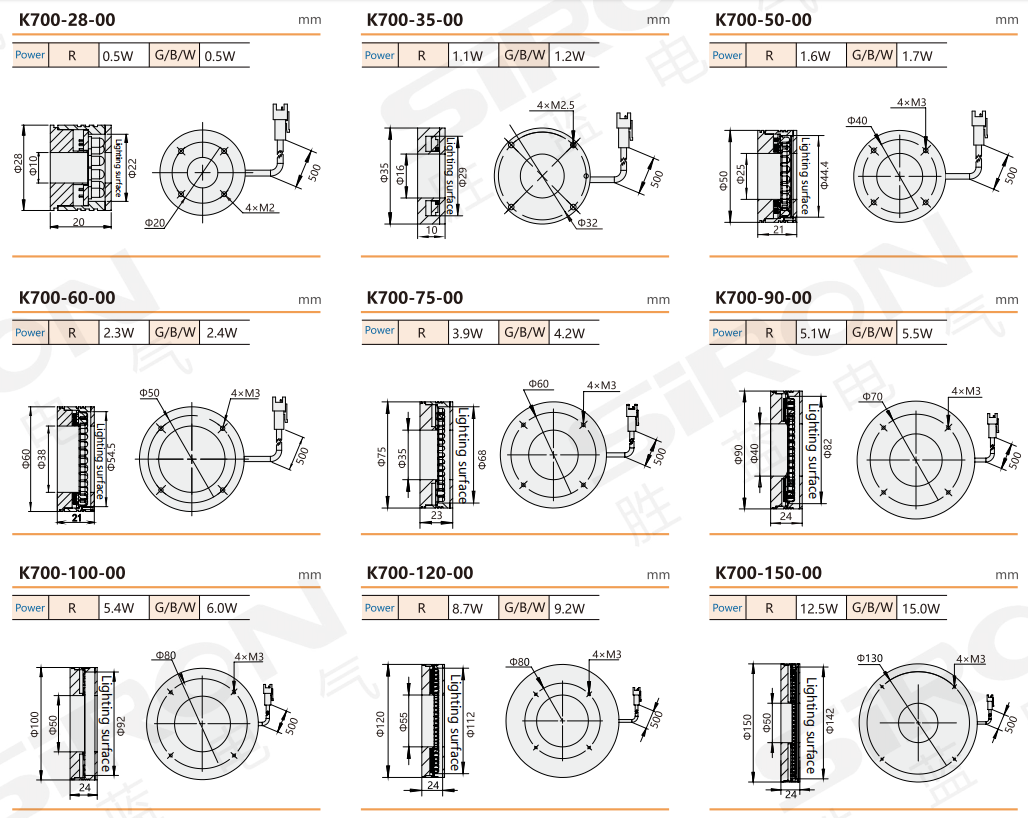

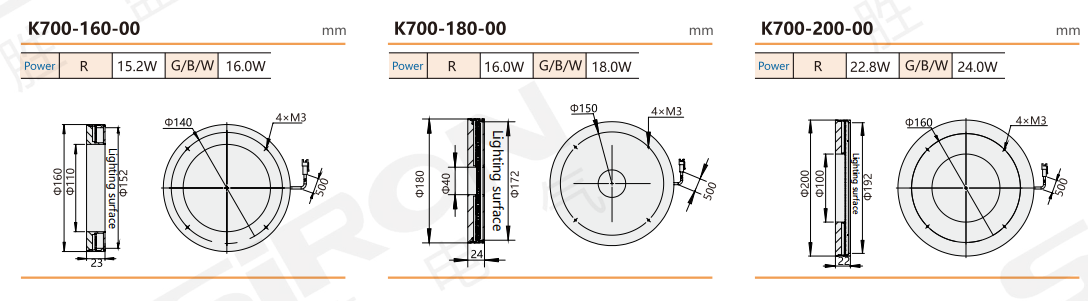

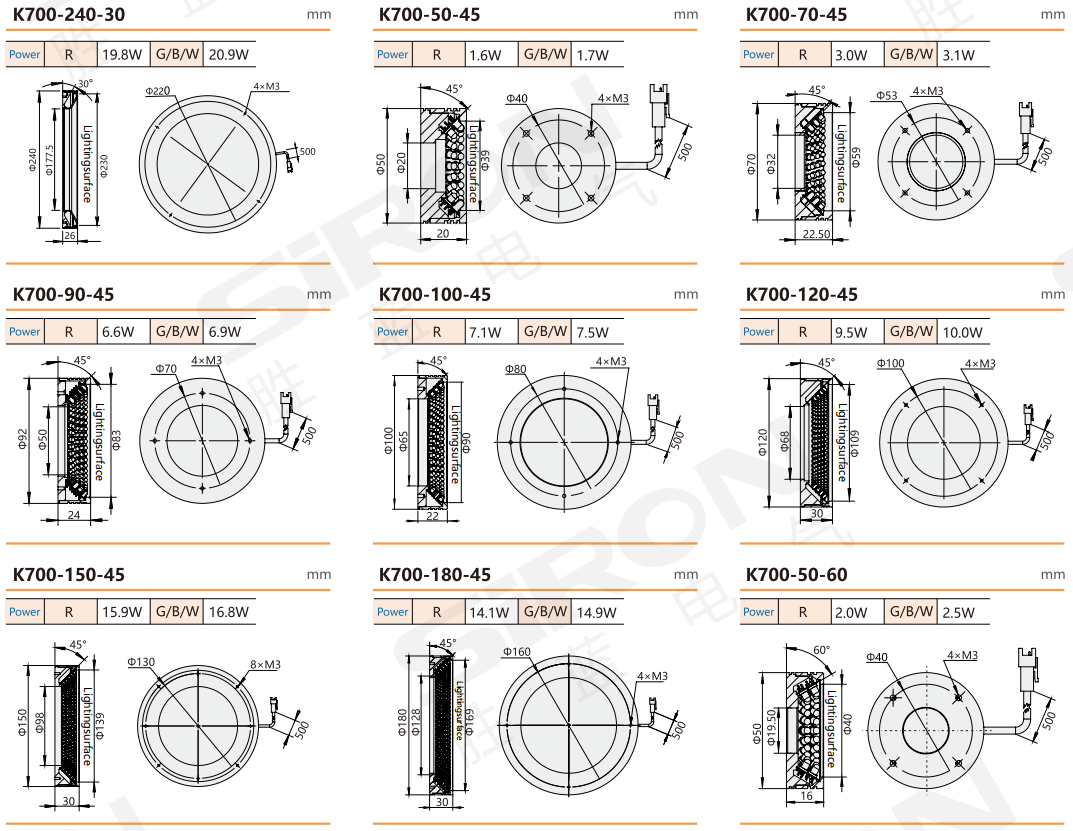

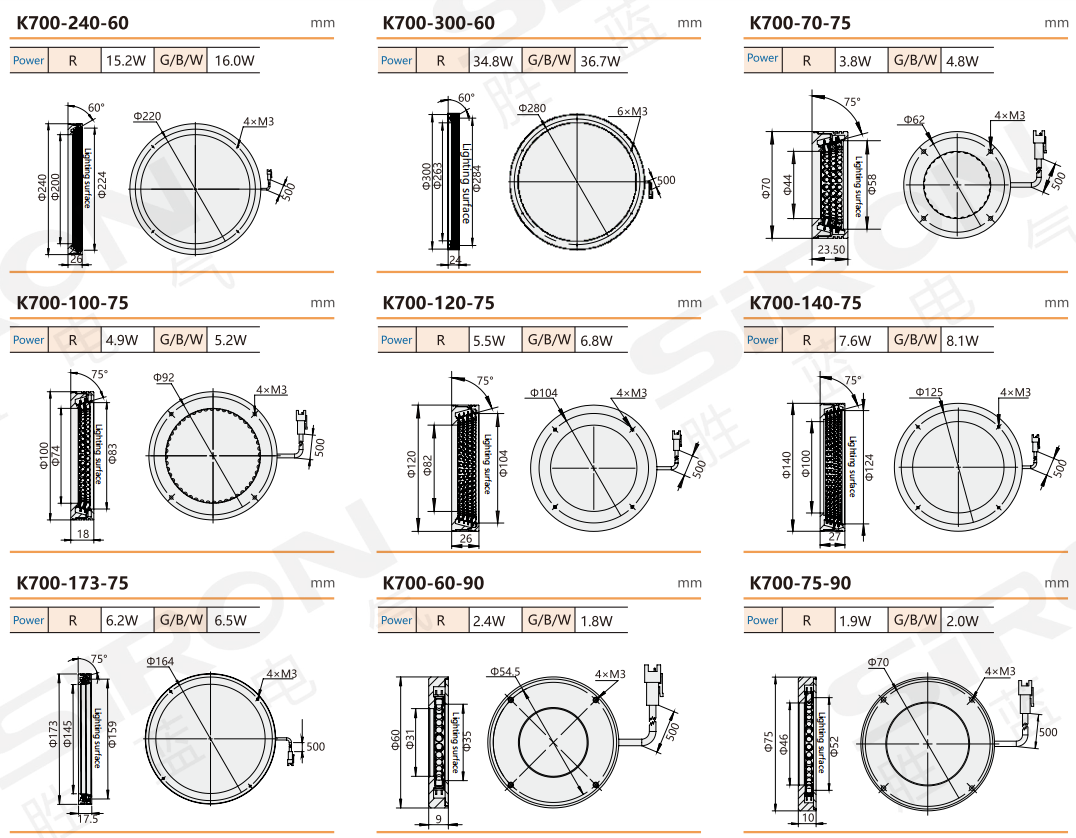

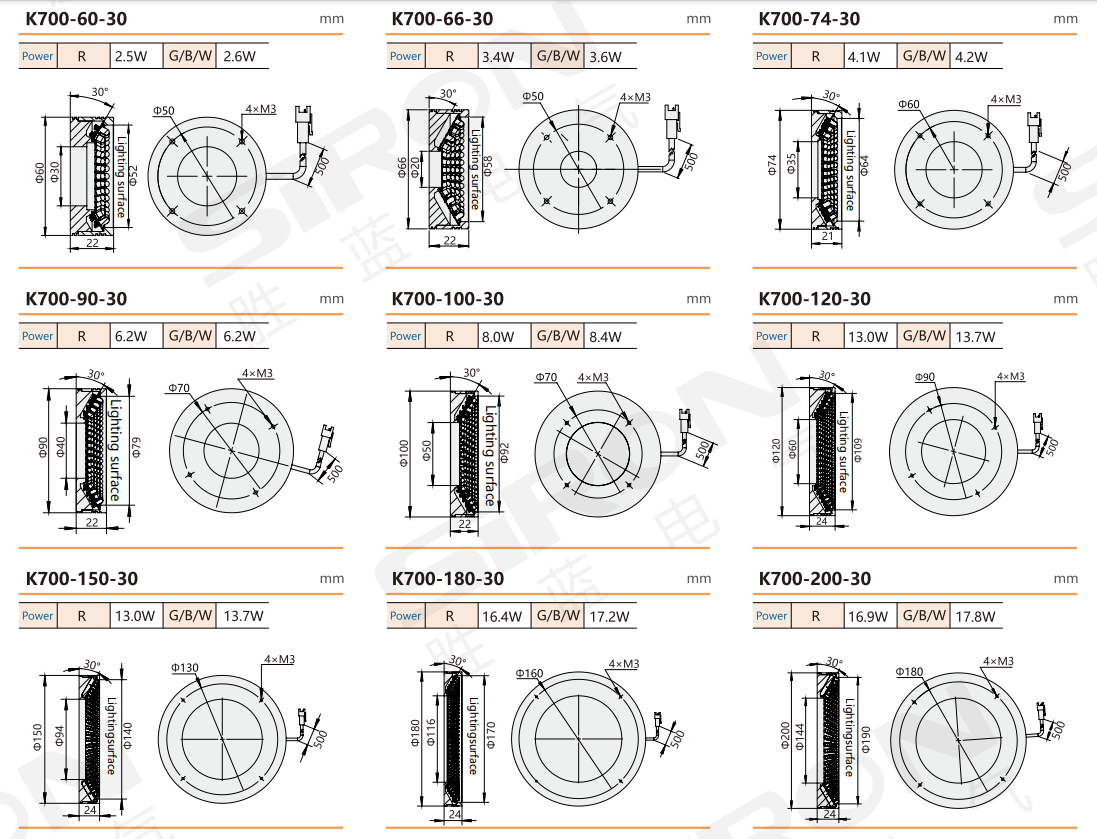

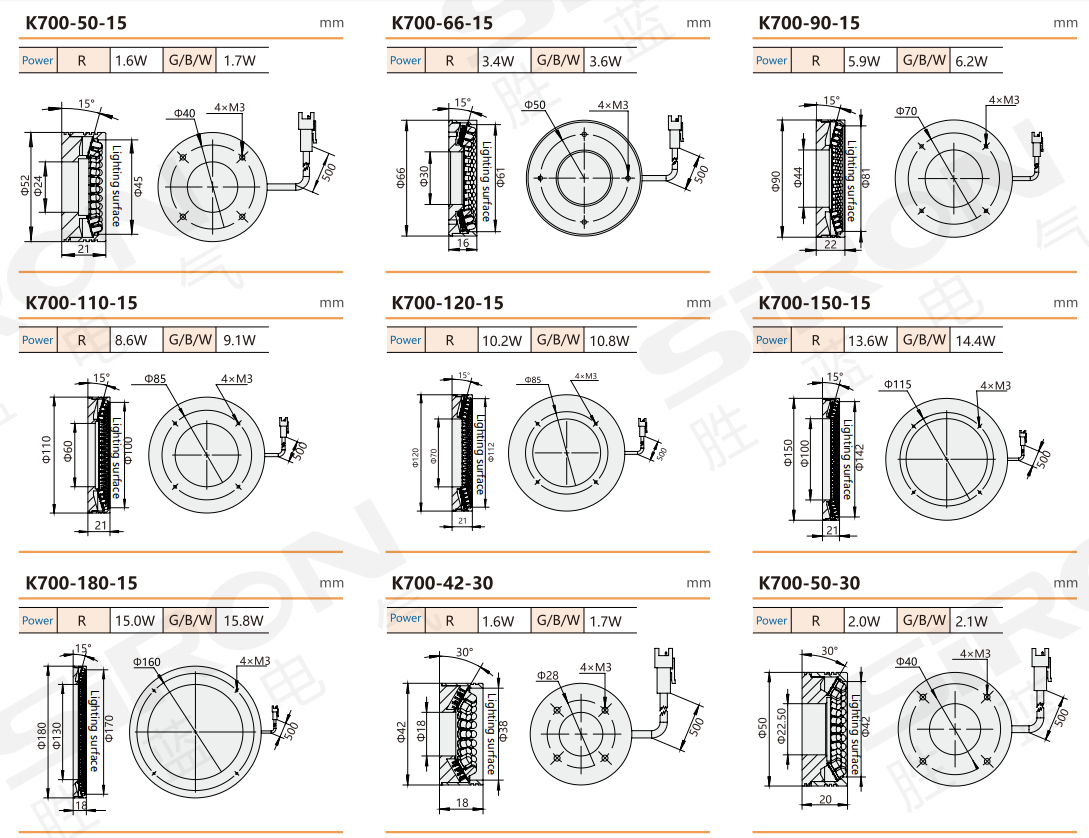

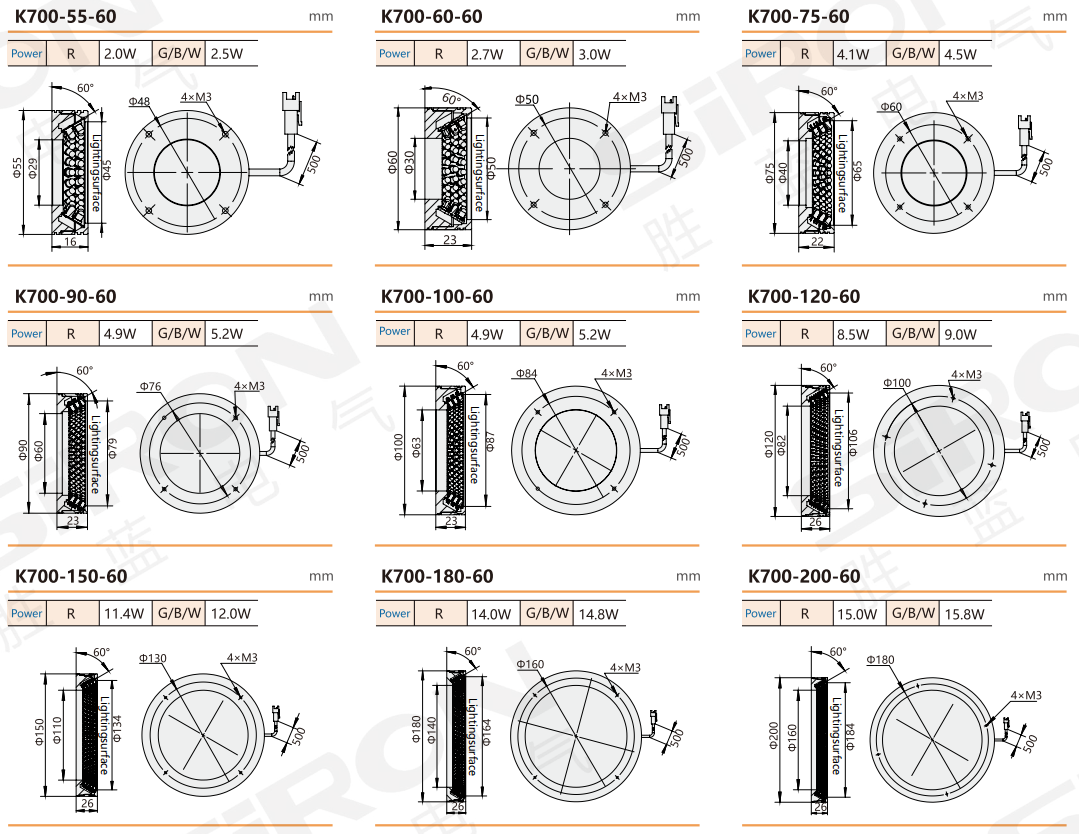

Table 1 mm

Angle	External diameter	Angle	External diameter
0°	28,35,50,60,75,90,100,120,150,160,180,200	60°	50,55,60,75,90,100,120,150,180,200,240,300
15°	50,66,90,110,120,150,180	75°	70,100,120,140,173
30°	42,50,60,66,74,90,100,120,150,180,200,240	90°	60,75,100,125,150,180,210
45°	50,70,90,100,120,150,180

Specifications

Name	Ring light
Appearance	White Red Green Blue
Voltage	24V DC
Operating temperature	-10～+60℃
Working humidity	20～85%(无雾化)
Controller	Analog Controller；Digital Controller；Strobe Controller
Scope of application	IC Chip Appearance and Character Inspection； PCB Circuit Substrate and Component Inspection； Circular Product Dimension Measurement
Wavelength and color temperature	W : 6 5 0 0 K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm

Example

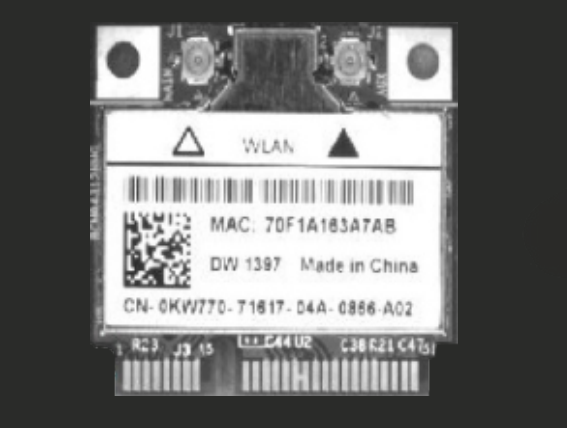

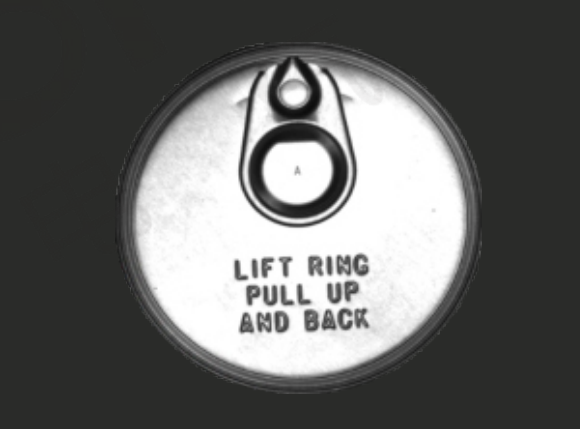

Can character detection Qr code label recognition

Brighten the background to highlight Highlight the characters to enhance the contrast

the character features with the background

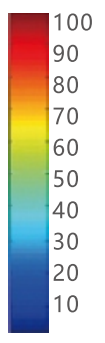

Uniformity distribution map

LWD = 15, Field of View: 78 × 58 mm LWD = 20, Field of View: 78 × 58 mm

Related products

Controller

Diffuser

Analog Controller

K790/P.065

Digital Controller

K791/P.067

Strobe Controller K792/P.069

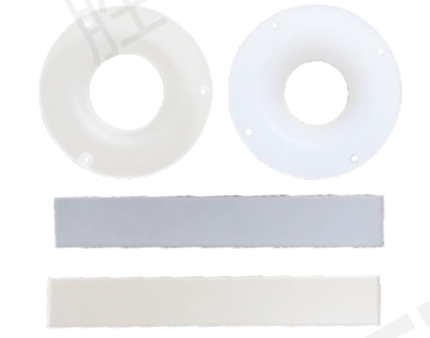

0° diffuser is standard. Diffusers ensure uniform light and avoid reflections on shiny surfaces. Available in translucent, frosted, and foggy types.

Extension cord

K019-2-XXXX (Custom lengths available; confirm length before order)
