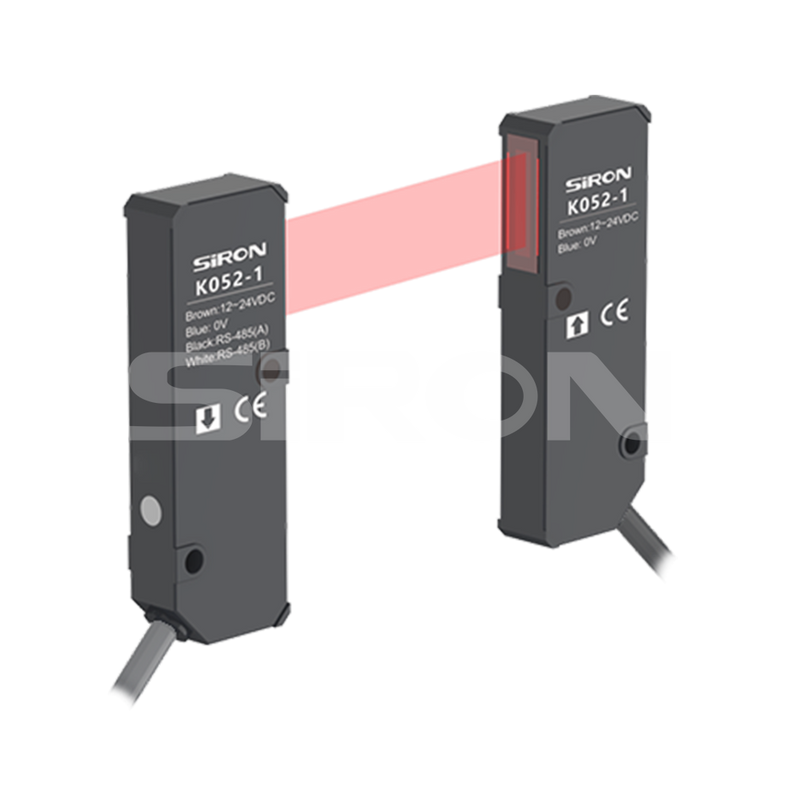

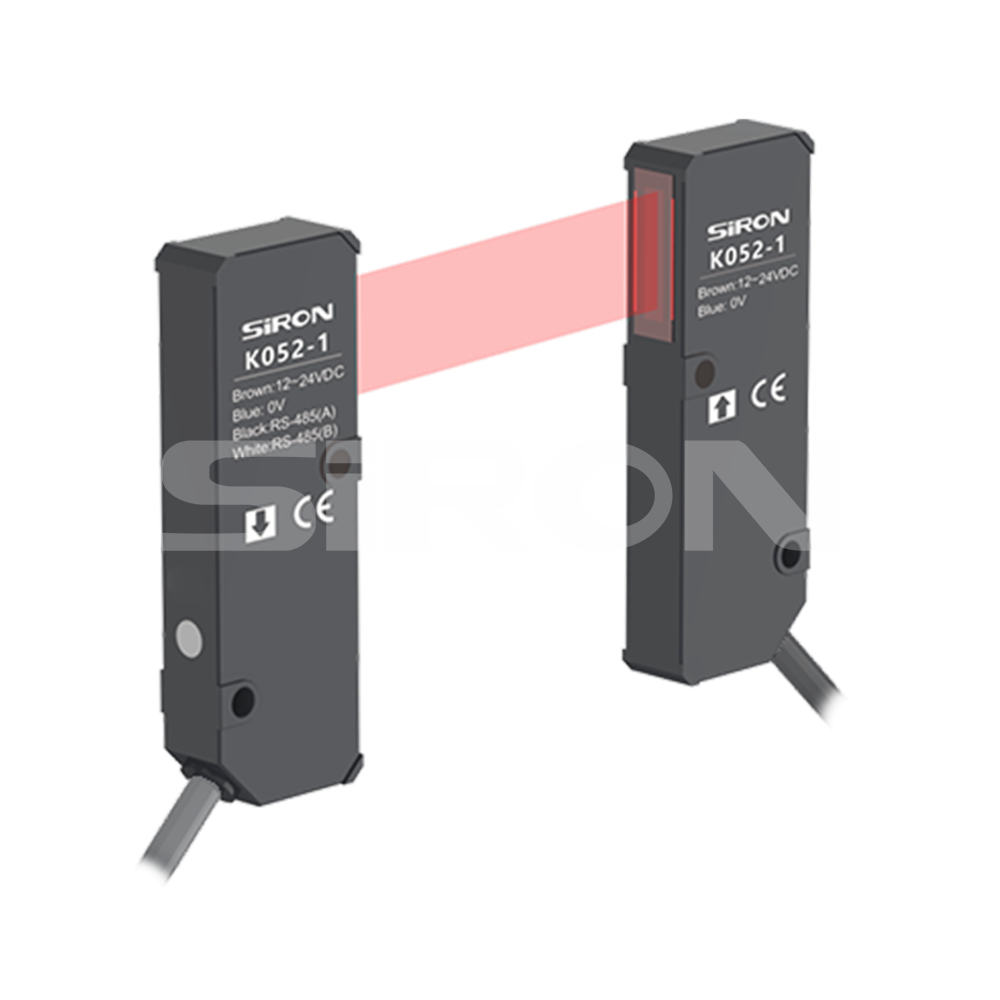

K052 Series
SiRON
9031809090
About selection

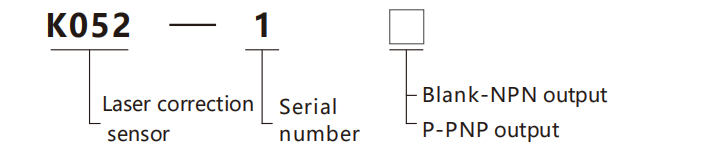

Selection example: K052-1 indicates the K052series, serial number 1, with NPN output.
Specifications
Name | Laser correction sensor | ||
Model | K052-1 | K052-2 | |
Types of | Correlation | Beam laser ranging (CMOS mode) | |
Appearance |   |  | |
Detection range | Edge mode: ±5mm; Width mode: 10mm | Edge detection mode: ±6mm; Diameter detection mode: 12mm | |
Spot size | 3×14mm | / | |
Set distance | / | 0～400mm | |
| Minimum detector | / | 0.5mm(when the set distance is 400mm) | |
Line ar accuracy | When the installation distance of the induction head is 100mm: ±0.4%F.S. (±40μm) | ±0.12%F.S. (when the set distance is 20mm); ±0.28%F.S. (When the set distance is 100mm) | |
Repetition accuracy | ±5μm(average sampling times 1) | 1μm(when the set distance is 20mm); 2.5μm(when the set distance is 100mm); 5um(when set at a distance of 400mm) | |
Analog output | Voltage | / | Output range: 0 to 5V(alarm: +5.2V), output impedance: 100Ω |
Curent | / | Output range: 4~20mA(0mA when alarming) Load: <300Ω | |
Supply voltage | 12~24V DC±10% | ||
Consumption current | ≤20mA(12V DC) | Transmission: Below 10mA, Reception: below 70mA (at DC 24V) | |
| Light source (medium,wavelength) | Red semiconductor laser wavelength: 660nm | Red semiconductor laser grade 1 | |
Maximum output power | 390μw | / | |
Sensor mounting distance | Max.300mm | / | |
Measurement mode | / | Automatic edge mode, edge mode, inner diameter/gap mode, width/diameter mode | |
Laser class | Class1(IES/JIS) | Class1 | |
Temperature drift | ±0.02%F.S/℃ | ±0.03%F.S./℃ | |
Sampling period | 500μs | / | |
Indicator light | Power indicator light: Green | Transmitter: Green (laser emission indicator light); Receiver: The optical axis adjustment light is green, and the output determination light is red | |
Communication mode | RS-485 | 485 communication hexadecimal | |
Protection circuit | Reverse connection protection | / | |
Protection dass | IP50 | ||
Ambient illumination | Sunlight: 1000Lux and below; Incandescent lamp: 3000Lux and below | Incandescent lamp: The illuminance of the light-receiving surface is less than 5000Lux | |
Ambient temperature | - 10℃~+50℃, No freezing | In use: -10℃ to +45℃(no condensation); Storage time: -20℃ to +60℃ | |
Ambient humidity | 35%～85%RH | ||
Anti-vibration | 10 ~ 55Hz, dual amplitude 1.5mm, 2 hours in each of the X, Y and Z directions | ||
Pulse resistance | / | Durability: 500m/s⊃2; Do it three times in each of the X, Y and Z directions | |
Insulation | / | Above 20MΩ under a DC250V megohmmeter (between all terminals and the housing) | |
Anti-interference | / | Anti-light interference, anti-electromagnetic interference, and installed side by side | |
| Connection form | Connector: M84-pin connector, with 300mm cable | ||
| Material | Main body: Die-cast aluminum; Transmitting/receiving lens: Glass | Aluminum alloy metal casing | |
| Cable length | 2M | ||

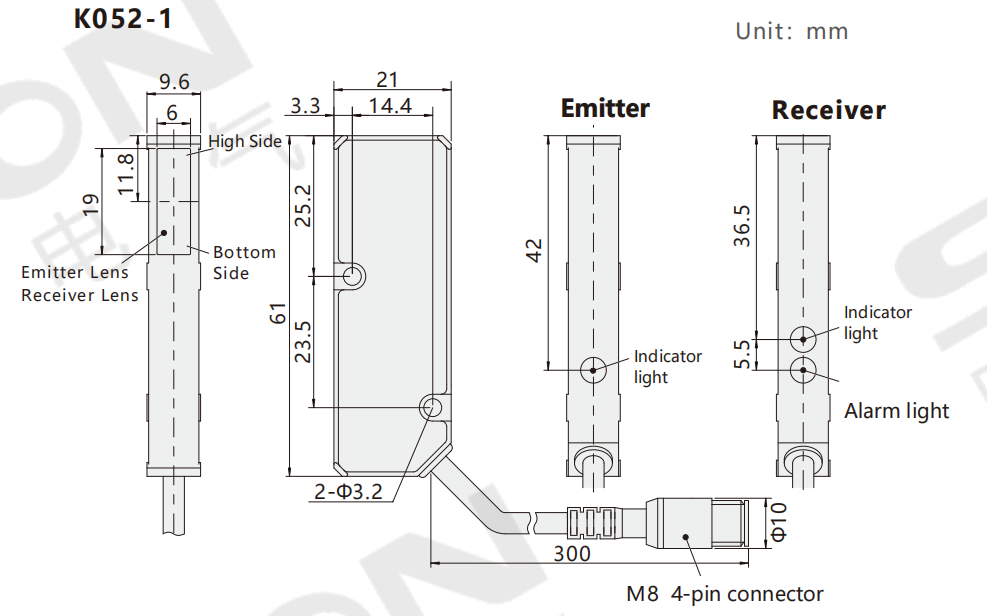

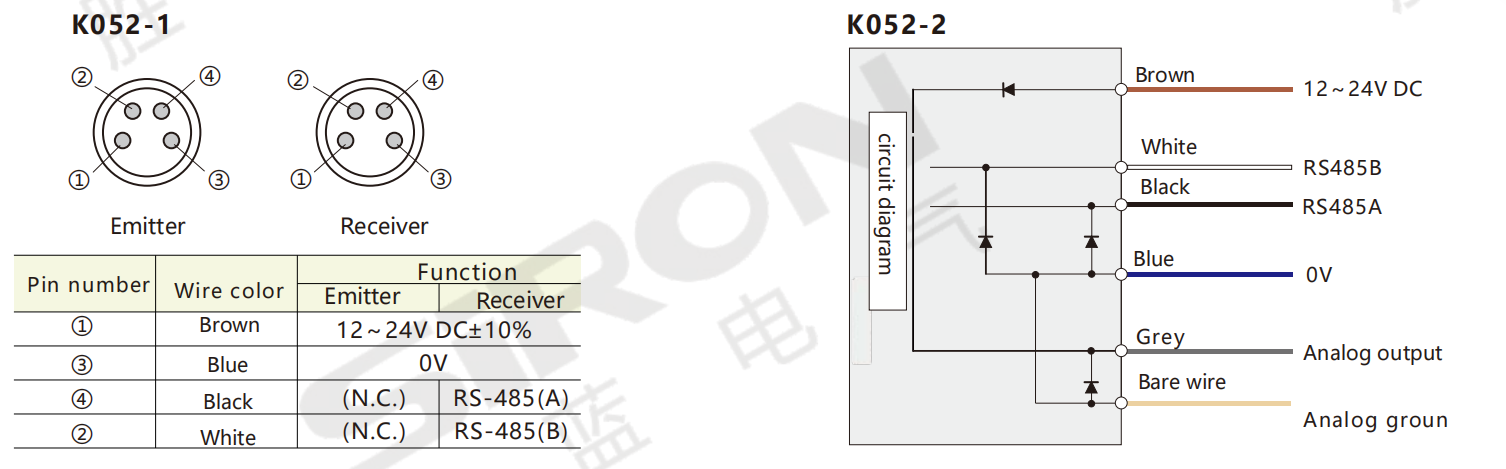

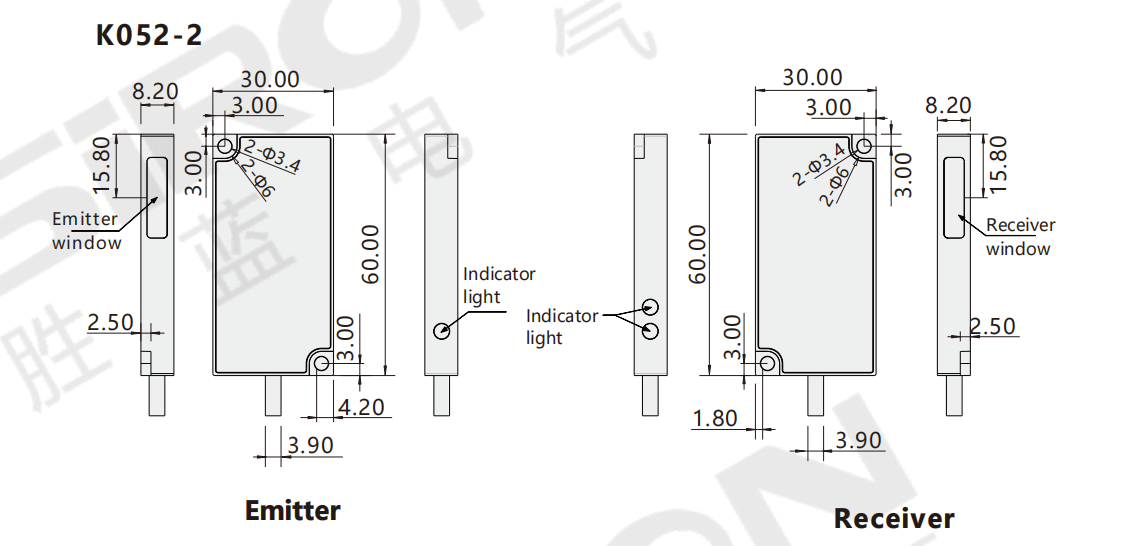

Example

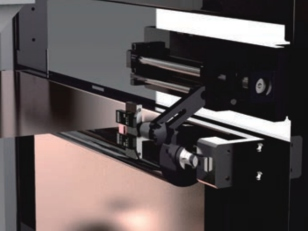

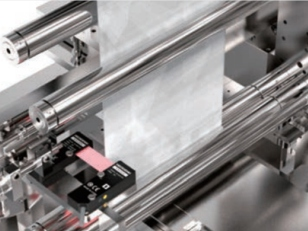

Detect the positional offset of the electrode sheet Detection of position deflection during diaphragm transmission
