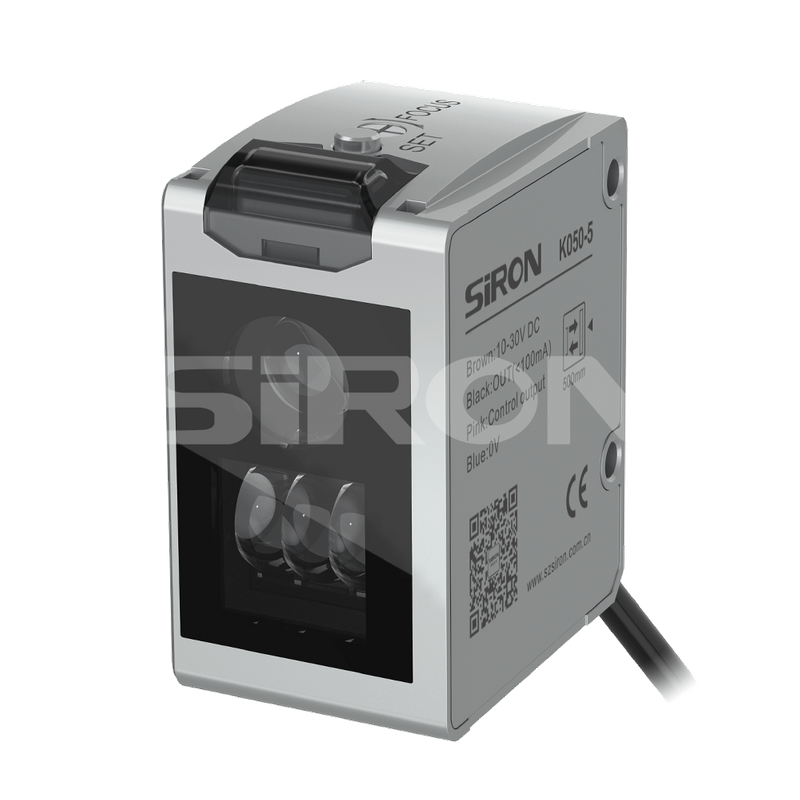

SiRON K050-5 Long Range Color Scale Sensor

Name: SiRON K050-5 Long Range Color Scale Sensor
Brand: SiRON
Rating: 5.0 (5 reviews)

Features:

* HD digital display, easy to set, more high-end;

* When testing products, it is not easy to tilt and be affected by distance changes;
* The size of the spot can be freely changed according to the characteristics of the product to achieve the best detection;* True black and white isometric, completely unaffected by color, capable of detecting in complex environments;
* The effect of mutual interference can be reduced by changing the luminescence period.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K050-5 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor Range Color Scale Sensor HD digital display easy to set IP65

Product Description

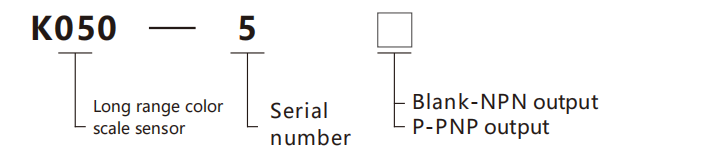

About selection

Selection example: K050-5 indicates the K050series, serial number 5, with NPN output.

K050-5P indicates the K050series, serial number 5, with PNP output

Specifications

Name	Long range color scale sensor
Model	K050-5	K050-5P
Output mode	NPN	PNP
Appearance
Deaction distance	50~500 mm
Minimum spot diameler	Approximately Φ3.5mm (at a distance of 100mm); approximately φ9mm (at a distance of 250mm); approximately Φ20mm (at a distance of 500mm)
Response time	200μs/1ms/10ms/100ms/500ms
Iluminant	White L E D
Reduce mutual interference function	Set different frequencies, maximum 2 units
Supply voltage	10 - 30V DC including ripple (P - P) 10%
Current oonsumption	50 mA or less (when the power supply voltage is 24 V), 100 mA or less (when the power supply voltage is 12 V)
Class oflaser	Class2 or LPS
Timer	OFF/On Delay/Off Delay/Single Shot
Control output	NPN open collector / PNP open collector switchable, below 30V, below 100mA, residual voltage below 2V, N.O. / N.C. switchable
External input	Tunable/Stop transmission switchable
Protection circuit	Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection
Ambientilumination	Incandescent lamp: ≤10,000lux, sunlight: ≤20,000lux
Ambient temperature	-20～+50℃(No freezing)
Relative humidity	35~85%RH(No condensation)
Impact resistance	1000m/S⊃2;, 6 times in each of the X/Y/Z directions
Vibration resistance	10~55Hz, double amplitude 1.5mm, 2 hours each in X/Y/Z directions
Classof protection	IP65
Line length	2m
Material	Shell: zinc casting (chrome-plated); Indicator light cover: PC; Button: stainless steel
Weight	128g
