K07G Series
SiRON
8479909090
About selection
Selection example: K07G20-C-5A-V1-P represents the K07 series LVDT displacement sensor, which is split-type, with a main body outer diameter of 20mm, an electronic compartment without a shell, a displacement range of 5mm, an accuracy of 0.25%, analog voltage output, an output range of 0-10V, a positive stroke direction, and a direct outgoing cable.
Note: The cable exit methods are available in "aviation plug and with digital display output". For more details, please consult our sales staff.
Specifications

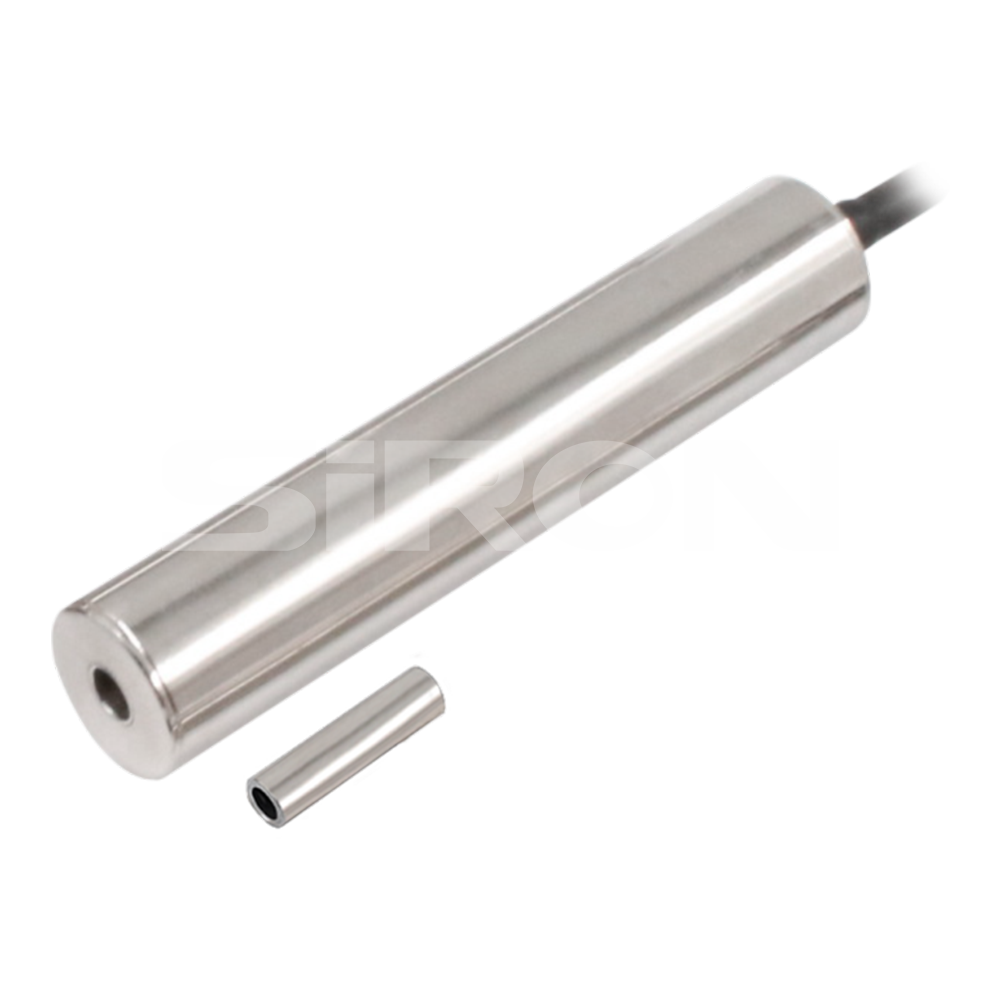

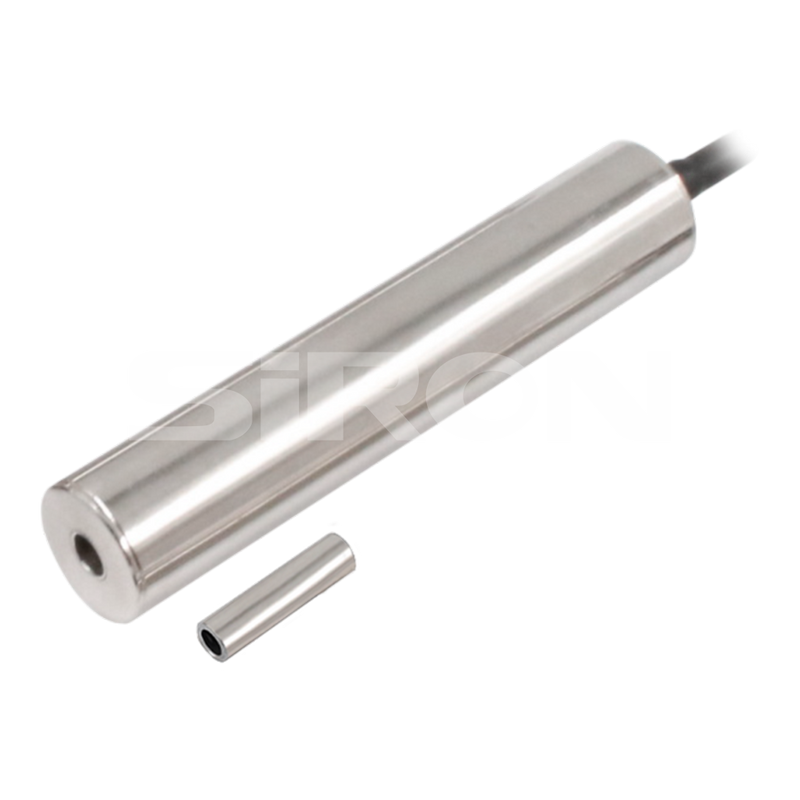

Name | LVDT displacement sensor(separate type) | ||
Appearance |   | ||
Type | Split type | The displacement range | 2.5、5、10、15、25、50、100、250mm |
Power supply | 9~28V DC | Repetitive error | ≤0.01%F.S |
Working current | Voltage output type: Power supply current ≤12mA | Linearity error | Analog output: ±0.25%,±0.5%, etc. are optional; Digital output: ±0.25%,±0.1%, etc. are optional |
| Two-wire 4-20mA current output type LVDT, supply current 4-20mA | Resolution | ≤0.1μm(maximum), digital output is 16 bits | |
The output signal | 0～5V(9~28V DC supply voltage) | Protection level | IP64 |
| 0～10V(15～28V DC supply voltage) | Operating temperature | -25～85℃ | |
| 4~20mA(two-wire system，15～28V DC supply voltage) | Temperature Coefficient | Zero point ≤0.01%/℃ Sensitivity ≤0.025%/℃ | |
| Digital RS485Modbus output (9 ~ 28V DC power supply voltage) | Cable length | 1M | |
