Compact size K014-71 Photoelectric Sensor

High sensitivity K014-71 Photoelectric Sensor

Fast response K014-71 Photoelectric Sensor

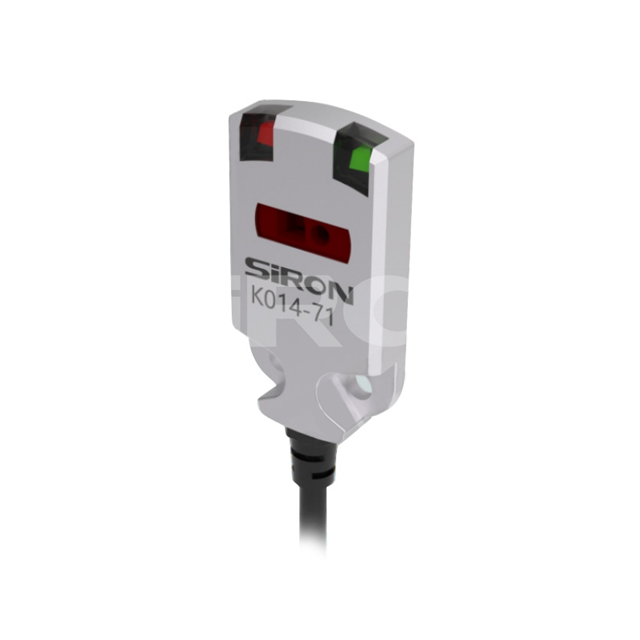

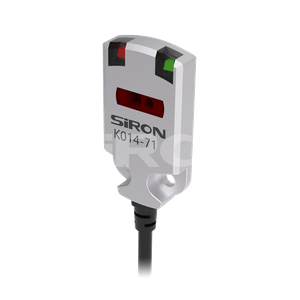

SiRON K014-71 Series Photoelectric Sensor Ultra-thin

Name: SiRON K014-71 Series Photoelectric Sensor Ultra-thin
Brand: SiRON
Rating: 5.0 (60 reviews)

Features:

* Ultra-thin small size to adapt to different narrow Spaces;
* Small blind area;
* Unique BGS background suppression function, black and white detection object equidistant;* Ultra-thin stainless steel SUS316L housing, better protection performance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K014-71 Series
Brand:
SiRON
Code:
8479909090

Photoelectric Sensor SUS 316L Small volume long life Height visual indicator Ultra-thin

Product Description

About selection

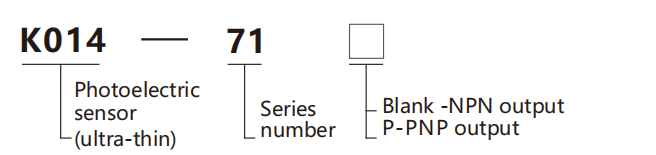

Selection example：K014-71 means K014 series, 71 serialnumber, NPN output;

K014-71P means K014 series, 71 serial number, PNP output.

Note:The original model is K015-17 series.

Specifications

Name		Photoelectric sensor (ultra-thin type)
Model	NPN	K014-71
	PNP	K014-71P
Types of		reflection-type
Appearance
Shape		Flat
Detection distance		Background suppression distance:30+-5mm
voltage		12-30VDC with 10%ripple current(P-P)
Current consumption		19mA
Normally open normally closed mode		It can be selected as ON when light enters or ON when light is blocked
Operation mode (output)		LIGHT-ON/NC
Light spot diameter		Less than φ5mm(when 30mm)
light source		Red LED(650nm)
Response time		≤1ms
Cable length		2M
Indicator		Output indicator light (red)Stable operation indicator light(green)
IP level		IP67
Control output		The collector of NPN is open,and the collector of PNP is open at 30VDC and 50mA respectively;
		Residual voltage:Below 1.5V when below 30mA,and below 2.0V when between 30 and 50mA
		Leakage current: When the load resistance is 3kΩ, it is below 0.3mA; when the load resistance is 1kΩ, it is below 0.5mA; when the load resistance is 0.2kΩ, it is below 1.5mA
