SiRON K015-10～K015-13 Series M12 Photoelectric Sensor IP66

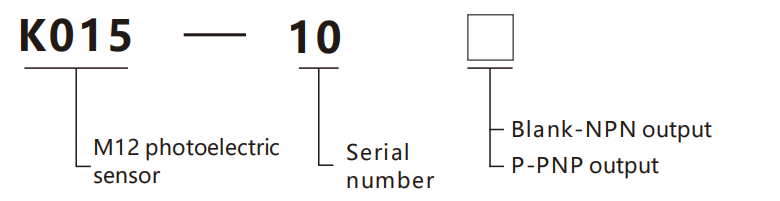

About selection

 Selection example: K015-10  indicates the K015 series, serial number 10, with NPN output;

                                      K015-10P indicates the K015 series, serial number 10, with PNP output.

Specifications

Name		M12 photoelectric sensor
Model	NPN	K015-10	K015-11	K015-12	K015-13
	PNP	K015-10P	K015-11P	K015-12P	K015-13P
Shell material		PBT	Nickel plated brass	PBT	Nickel plated brass
Type		Diffuse reflection		Regression reflection
Appearance
Detection distance		200mm		100～2000mm
Operating Voltage		10～30V    DC
On-off level		500Hz
Type oflight		Infrared ray 880 nm
Reacion time		<2ms
Load current		100mA
Power-on delay		<300ms
Sensitive regulation		Single-turn potentiometer
Blind spot distance		/		<200mm
Anti-light interference		<5000Lux
Ambient temperature/humidity		-25~55℃/35～85%
Lens materiaVLEDindication		P M M A / Yellow
Cable		Line length: 2 M, PVC cable 4×0 . 25mm²

Example

 Inspection of aluminum cans
